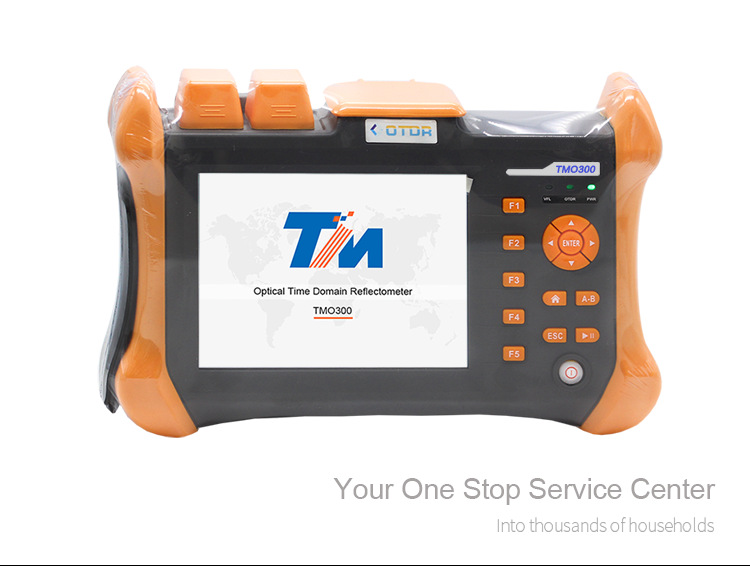

OTDR SM Optical Time Domain Reflectometer Tester 1310/1550nm 32/30dB Built-in VFL 10mW

OTDR SM Optical Time Domain Reflectometer Tester 1310/1550nm 32/30dB Built-in VFL 10mW

Features:

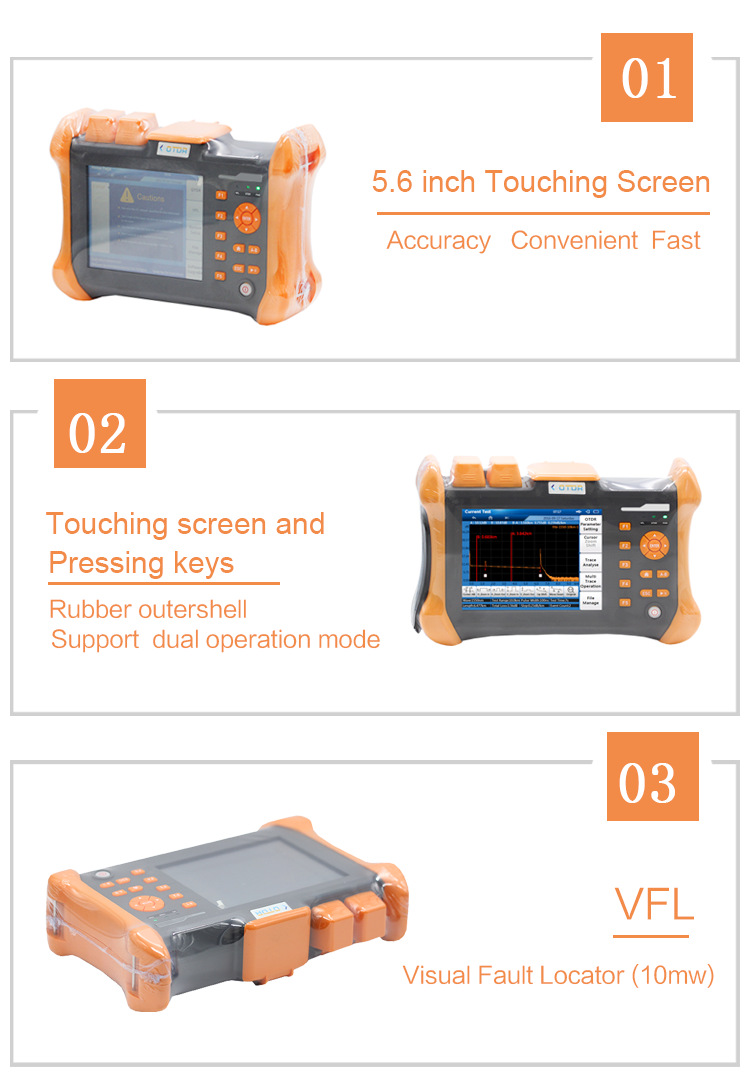

- 5.6-Inch outdoor-enhanced touchscreen
- Event Dead zone as lower as 1.5 meter
- Combined multi-dynamic range and wavelengths
- Muti measurement mode, support Touching LCD and pressing keys
- Warning function could prevent OTDR module from being damaged by optical signal in fiber.
- Real-time measuring function, convenient to monitor the splicing process
- Integrated 10mw Visual Fault Locator
- Support English/ Chinese input, adopts friendly input interface, totally simulate the computer keyboard input
- Integrated with 8GB internal memory, more than 80,000 groups curve storage
- PC remote access and control function is available, which support the printing work of the measurement report

Test Curve of Typical Events:
- Precision judgment of fiber faults; splicing posit and connector terminal
- Precision measurement of test distance and the fiber loss
- Contracted design style,lively graphical interface,easy operation and easy analysis of various events
- Measure the length of whole fiber; length between two points, as well as the distance, loss and attenuation coefficient etc.
- Detailed description of fiber loss distribution curve and the events

Functions:
- Automatic Measurement Mode: Operators do not need to choose the test distance and pulse width, the tester will automatically judge the length, and choose suitable dynamic range as well as pulse width to complete the work; The storage of event trace can be saves manually or automatically which will be convenient for data analysis
- Multiple Wavelengths Measurement Mode: In order to use different wavelengths to execute the loss calculation in one fiber, we can choose duplex wavelengths test mode from parameter settings, the tester will switch wavelengths automatically
- Multiple Trace Analysis: Simultaneous display 4 traces, operators can compare the traces and make analysis of any ones among the traces
- Online Test: This will protect the test instruments and equipment
- Duplex Operation Mode: Pure operation through touch screen ; or pure operation through the pressing keys
- Data Analysis:
  * Save and generator standard trace file(. Sor), more than 20000 groups storage capacity:
  * Print the analysis report and traces which make the acceptance or work easily;

Specifications:
- Pulse Width:
  * (SM 1310/1550NM) 5ns, 10ns, 20ns, 50ns, 100ns, 500ns, 1μs, 2μs, 5μs , 10μs;
  * (MM 850/1300NM) 5ns, 10ns, 20ns, 50ns, 100ns, 500ns, 1us
- Distance Range:
  * (SM 1310/1550NM) Dead zone test, 1.3km, 2.5km, 5.0km, 10km, 20km, 40km, 80km, 120km,
  * (MM 850/1300NM): 100m, 400m, 1.3km, 2.5km, 5km, 10km, 20km, 40km, 80km
- Sampling Resolution: Minimum 0.05m
- Sampling Point: 128,000
- Linearity: ≤0.05dB/dB
- Loss Threshold: 0.01dB
- Loss Resolution: 0.001dB
- Distance Resolution: 0.01m
- Distance Accuracy: ±(1m+measuring distance x 3 x 10 +sampling resolution)
- Data Storage: 20000 groups of curve
- VFL: 10mW, CW/2Hz
- Interface: 3 USB ports (Type Ax2, Type Bx1)
- Display: 5.6 inch TFT LCD, Touching screen
- Working conditions:Working Temperature: -10℃ to 50℃; Storage Temperature: -20℃ to 70℃; Humidity: ≤95%（non-dew）
- Weight: 1.5kg

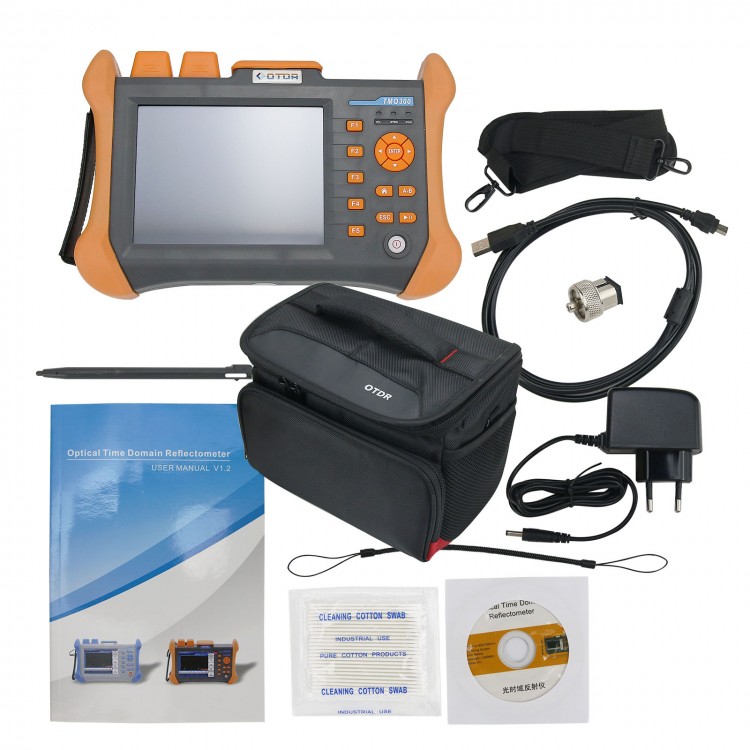

Package Included:
- 1 x OTDR
- 1 x FC Adapter
- 1 x SC Adapter
- 1 x Mini USB Cable
- 1 x Charger
- 1 x Bag of Cleaning Cotton Swabs
- 1 x Touching Pen
- 1 x Hanging Strap
- 1 x CD
- 1 x Operation Guide
- 1 x Calibration Sheet
- 1 x Carry Bag
