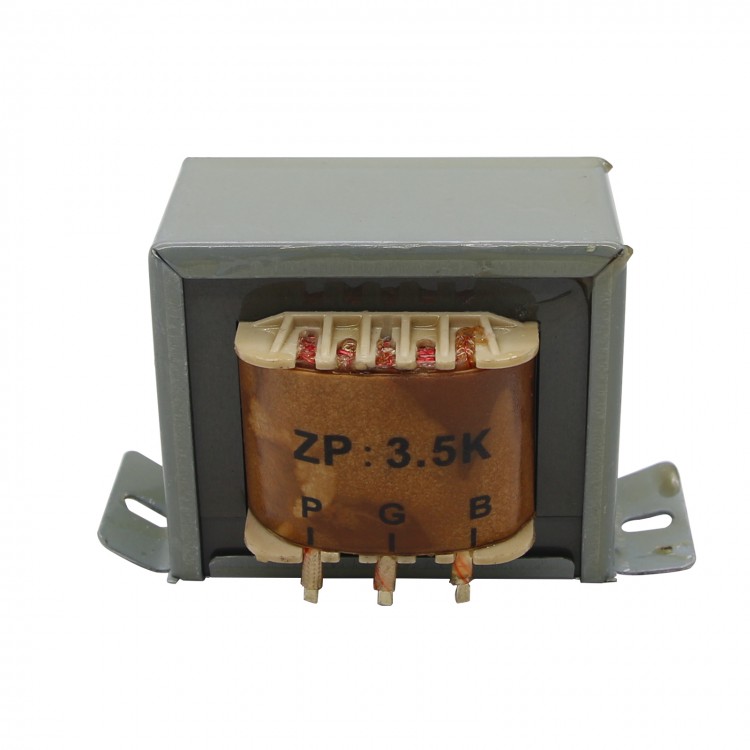

Output Transformer Tube Amplifier Audio Output Transformer Single-Ended Z11 Oxygen-Free Copper
Description:
Designed with the latest bile fever concept, create a new and inexpensive new product for the enthusiasts, the core is non-oriented high-silicon cold-rolled annealing (0.35EI) audio special film, the line package uses high quality anaerobic Copper enameled wire, each layer is insulated with pure wood pulp insulation paper, output cow is not afraid of cumbersome, adopts 3 clips 2 or 5 clips 4 method, layered segmentation, group padding, meticulous, meticulous winding, 24 hours Dip lacquer, high temperature baking, make the transformer have good insulation and moisture resistance, sound transparent, sweet and warm tone, excellent resolution and beautiful appearance. It is the first choice for the majority of people.
Specifications:
- Power: 8-10W (20Hz)
- Frequency response: 20Hz-40KHz, -3dB
- Secondary: 0-8Ω, or 0-4-8Ω
- Core size: EI66 stack thickness 35mm
- Dimensions: length 68MM + two fixed screws 30MM
width: 65MM high 60MM
- Material: Japan imported z11 sheet
- Primary copper resistance: about 408Ω (B-P),
- Inductance: 25H
- Primary maximum allowable DC: 100mA
- Suitable for 6P14 (el34, el84, 6p3p)
Package Includes:
1 x Output Transformer
