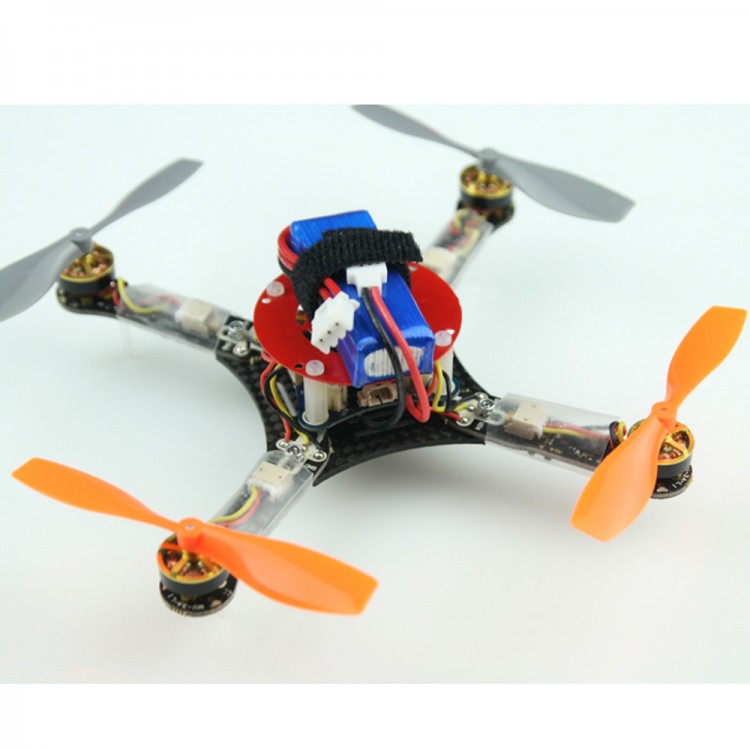

Oversky Super-X Micro Brushless 4-Axis Quadcopter Kit 2S w/Motor ESC Flight Control Propeller for FPV
Specification:
- Ultra small volume (excluding housing)
- Ultra light weight (without casing and built-in receiver)
- Working voltage: 5~10V type X;
- 12M/10PPM crystal;
- Support the receiver signal type: PPM, DSM2, DSMX, SBUS;
- Optional built-in compatible with DSM2 receiver;
- B type and X type built-in DCDC boost circuit (output 5V/500mA) can supply power to external equipment;
- B type built-in output LDO 5V/500mA can supply power for external equipment;
- Independent IIC, GPS, PPM/DSM/SBUS receiver interface
- No battery
Flight requirements:
- When using the built-in receiver,needs to support DSM2 protocol 4CH above transmitter or higher frequency ones; when using an external receiver, receiver and transmitter should be above 4CH ;
- Support 1S lithium battery charger;
Frequency operation:
1. Press the receiver frequency switch and supply power to MX MWC 32-X flight control board, then loosen the switch.
green LED flashes (receiver into the frequency mode);
2. Press the DSM2 frequency switch, then turn on the power;
3. When the receiver green LED flashes into a constant light, the frequency is success, otherwise repeat the above steps.
Package included:
- 1 x V2 Super-X frame
- 4 x Brushless motor MP-03
- 1 x Oversky 32 1S flight control board
- 4 x MU-3A arm type brushless ESC
- 8 x 75mm propeller
- 1 x Tie
