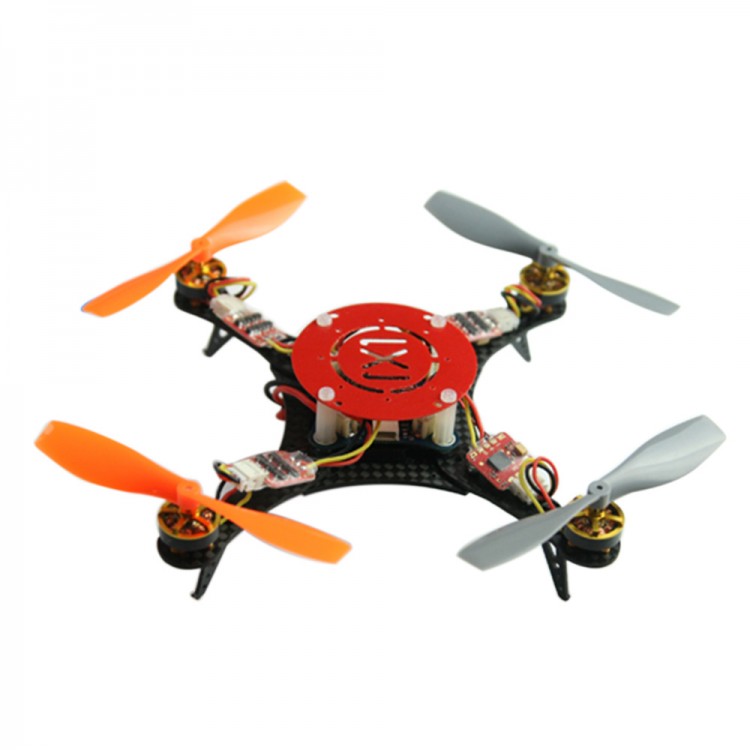

OVERSKY Super-X V2 125mm Brushless 4-Axis Quadcopter Kit 1S w/Motor ESC Flight Control Propellers for FPV
Description:
Super-X V2 is based on Super-X. There are some improvements: output shaft is 1.5mm and propeller with 1.5mm mounting hole; simply the flight control installation; USB function about the flight control board. This is with MX MWC 32-X flight control board(comes with receiver that is compatible with DSM2).
Specification:
- Wheelbase: 125mm;
- Weight: 43.5g (without battery), 52.5g (including 300mAh 1S battery);
- Diameter of propeller: 75mm;
- Motor model: MR-03-H (3G, KV6400);
- ESC: MX-3A (0.36g, 3A);
- Flight control board :MX MWC 32-X) (with a receiver compatible with DSM2 , support Baseflight and Claenflight firmware);
- Flight time: 7min (1S 300mAh/25C LiPo );
9min (400mAh/25C LiPo 1S);
11min (600mAh/25C LiPo 1S);
- No battery
MX NANO MWC 1.31 features:
- Integrated 7CH receiver that compatible with DSM2
- 32bit processor
- Onbpard MPU6050 sensor
- Support GPS, with external compass and MSR5611 air pressure sensor
- 4 channel PWM output
- Onboard DC DC step-up circuit (output 5V/500mA, for 1S lithium battery)
- Support external PPM receiver and SBUS receiver
- Onboard USB circuit
Flight requirement:
- When using built-in receiver, should be the transmitter that supports DSM2 protocal or higher frequency ones;
when using external receiver, the receiver and transmitter should be above 4CH
- Support 1S lithium battery charger
Frequency operation:
1. Press the receiver frequency switch and supply power to MX MWC 32-X flight control board, then loosen the switch.
green LED flashes (receiver into the frequency mode);
2. Press the DSM2 frequency switch, then turn on the power;
3. When the receiver green LED flashes into a constant light, the frequency is success, otherwise repeat the above steps.
Package included:
- 1 x Super-X V2 frame
- 4 x Brushless motor MP-03-H
- 4 x MA-3A ESC
- 1 x Tie
- 8 x 75mm propeller
