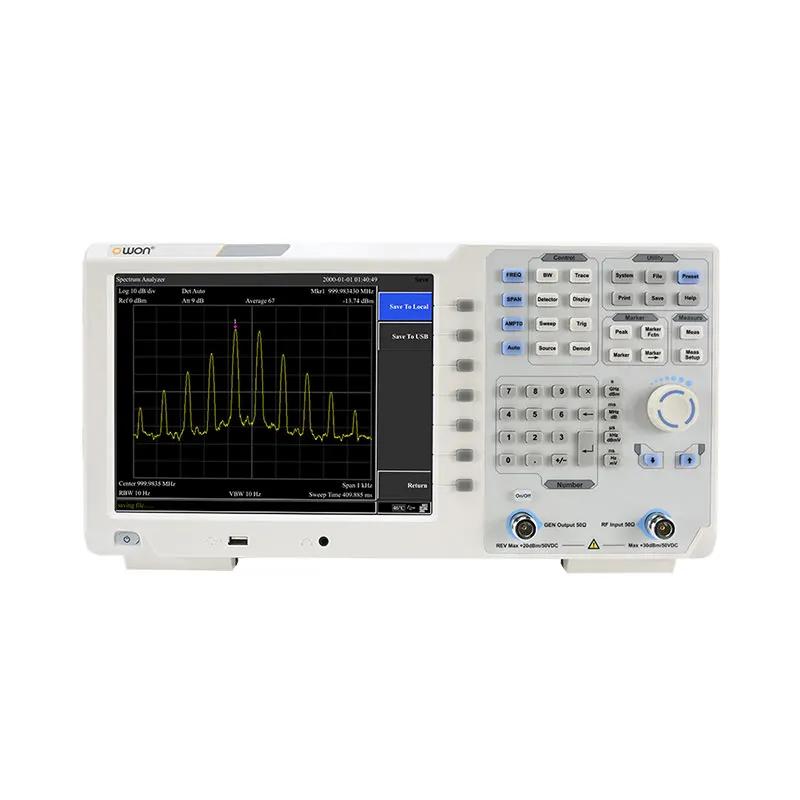

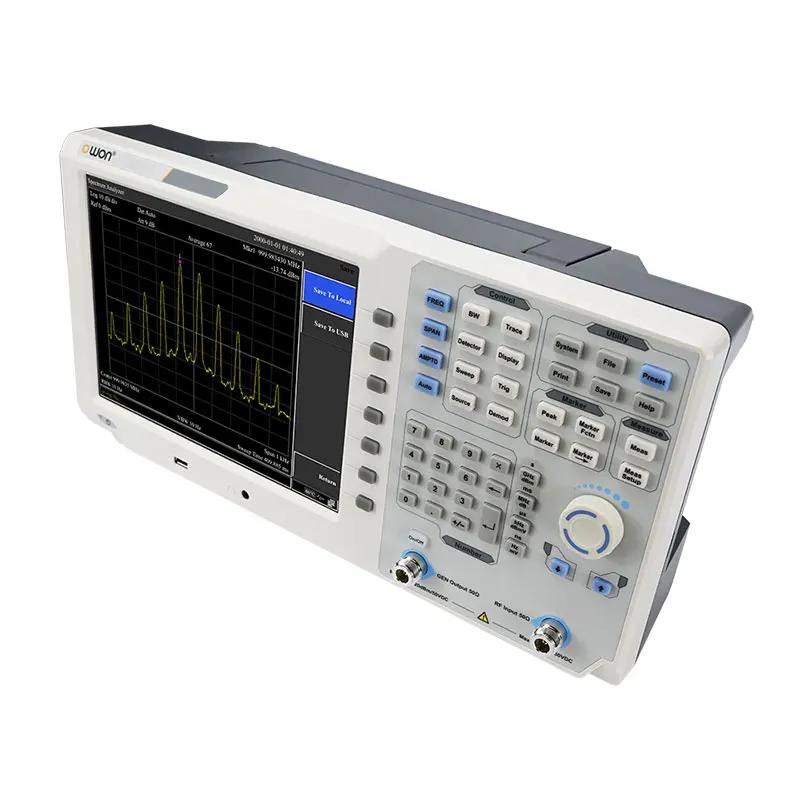

Features:
- Frequency range from 9kHz up to 1.5GHz
- 160dBm Displayed average noise level
- Phase noise -82dBc/Hz at 1Gz and offset at 10KHz
- Total amplitude accuracy < 1.5dB
- 10Hz Minimum resolution bandwidth (RBW)
- EMI Pre-compliance test kit
- 3.6GHz tracking generator kit
- 10.4 inches display

Frequency:
- Range: 9kHz-1.5 GHz
- Resolution: 1Hz

Frequency Span:
- Range: 0Hz, 100 Hz to maximum frequency of device 0Hz, 100 Hz
- Accuracy: ± span / (swept points - 1)

Internal reference:
- Reference frequency: 10.000000MHz
- Reference frequency accuracy: ±[(days from last calibrate x freq aging rate) + temperature stability + initial accuracy]
- Temperature stability: < 2.5ppm (15℃ to 35℃)
- Aging rate: < 1ppm/year

Readout:
- Marker frequency resolution: span/(the number of sweep points -1)
- Uncertainty: ± (freq indication x freq reference uncertainty + 1% x span + 10% x resolution bandwidth + marker frequency resolution)

Frequency Counter:
- Resolution: 1Hz, 10Hz, 100Hz, 1kHz
- Accuracy: ± (marker freq x freq reference uncertainty + counter resolution)

Bandwidth:
- Resolution bandwidth (-3 dB): 10Hz to 500kHz (in 1 to 10 sequence), 1MHz, 3MHz
- Resolution filter shape factor: < 5:1
- Accuracy: < 5% nominal
- Video bandwidth (-3 dB): 10Hz to 3MHz

Amplitude Specification:
Amplitude and electric level:
- Amplitude measurement range: DANL to + 20dBm, close the preamplifier
- Reference electric level: -80dBm to + 30dBm, 0.1dBm steps
- Preamplifier: 20dB, nominal, 9 kHz ~ 1.5GHz
- Input attenuator range: 0 ~ 39dB, 3dB steps
- Max input DC voltage: 50 VDC
- Max continuous power: 30dBm

Displayed average noise level (DANL):
- Input attenuation 0 dB, 1Hz resolution bandwidth
- Preamp off:
  1MHz ~ 10MHz - 130dBm (nominated)
  10MHz ~ 1GHz - 130dBm (nominated)
  1GHz ~ 1.5GHz - 128dBm ( nominated )
- Preamp on:
  1MHz ~ 10MHz - 150dBm (nominated)
  10MHz ~ 1GHz - 150dBm (nominated)
  1GHz ~ 1.5GHz - 148dBm ( nominated)

Phase noise (20℃ ~ 30℃, fc = 1GHz):
- <-90dBc/Hz at 30kHz offset
- <-100dBc/Hz at 100kHz offset
- <-110dBc/Hz at 1MHz offset

Level display range:
- Log scale coordinate: 1dB ~ 255dB
- Linear scale coordinate: 0 to reference level
- Level unit: dBm, dBuW, dBpW, dBmV, dBuV, W, V
- Points: 201 ~ 1001
- Number of traces: 5
- Detectors: Positive-peak, negative-peak, sample, normal, RMS
- Trace functions: Clear write, Max Hold, Min Hold, View, Blank, Average

Frequency response:
- 20℃ ~ 30℃, 30% ~ 70% relative humidity, 20dB input attenuation, reference 50MHz
- Preamp off: ±0.8dB
- Preamp on: ±0.9dB

Accuracy:
- Input Attenuation Switching Uncertainty:
  20℃ ~ 30℃, fc = 50MHz,Preamplifier Off, 20dB RF attenuation,input signal 0~39 dB
  ±0.5 dB
  20℃ ~ 30℃, fc = 50MHz
  ±0.5 dB
- Absolute Amplitude Uncertainty:
  20℃ ~ 30℃, fc = 50MHz, RBW=1kHz, VBW=1kHz, peak detector, 20dB RF attenuation,
  Preamplifier Off ±0.4dB, input signal = -20dBm
  Preamplifier On ±0dB, input signal = -40dBm
  20℃ ~ 30℃, fc = 50MHz, RBW=1kHz, VBW=1kHz, peak detector, 20dB RF attenuation
  Preamplifier Off ±0.4dB, input signal = -20dBm
- Uncertainty:
  Input signal range 0dbm ~ -50dbm
  ±1.5dB
- VSWR:
  Input 10dB RF attenuation,1 MHz ~ 1.5GHz
  <1.5, nominal
  +13dBm
  < -60dBc

Distortion and spurious response:
- Second harmonic distortion:
  fc ≥ 50MHz, Preamp off, signal input -30dBm, 0dB RF attenuation, 20℃ to 30℃
  -60dbc
- Third-order intermodulation:
  fc ≥ 50MHz
  +13dBm
- 1dB Gain Compression 1dB:
  fc ≥ 50MHz, 0dB RF attenuation, Preamp off, 20℃ to 30℃
  +7dBm, nominal
- Residual response:
  Connect 50Ω load at input port, 0dB input attenuation, 20℃ to 30℃
  < -85dBm, nominated
- Input related spurious: -30dBm signal at input mixer, 20℃ to 30℃

Tracking generator:
- Output frequency range: 100kHz ~ 1.5GHz
- Output power level range: -30dBm ~ 0dBm
- Output power level resolution: 1DB
- Output flatness: +/-3dB
- Maximum safe reverse level: Average total power: 30dBm, DC: ±50VDC

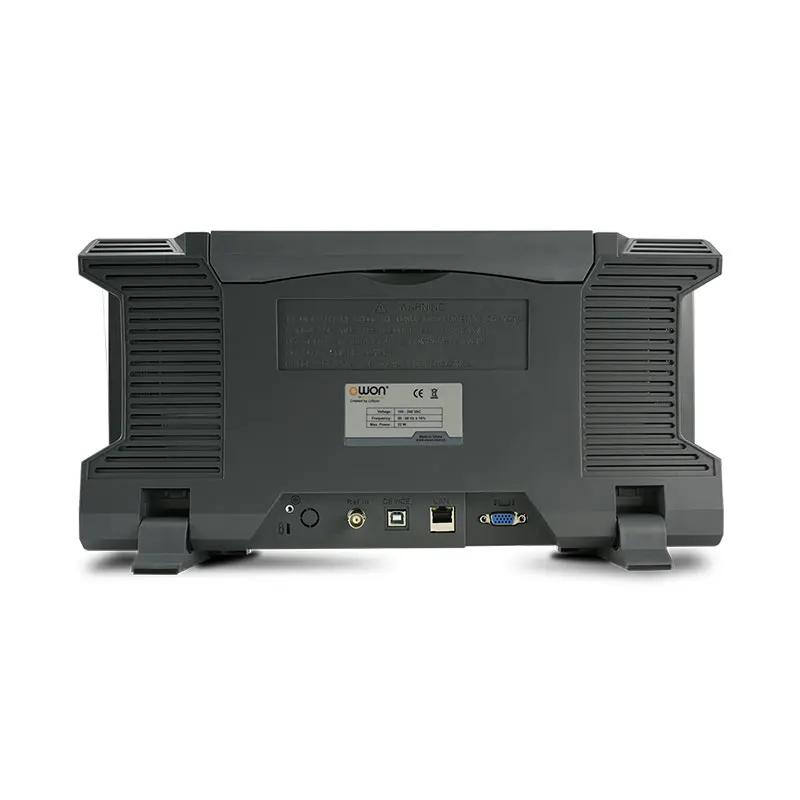

Inputs and Outputs:
- Front panel RF input connector: 50Ω, N-type female
- Front panel track generator output: 50Ω, N-type female
- 10 M reference input: 50Ω, N-type female
- Communication port: USB HOST, USB DEVICE, LAN, earphone port, and VGA

General technical specification:
- Display: TFT LCD, 10.4 inches
- Weight: 5.79kg/204.2oz

Package Included:
- 1 x Spectrum Analyzer
- 1 x Power Cord
- 1 x Quick Guide

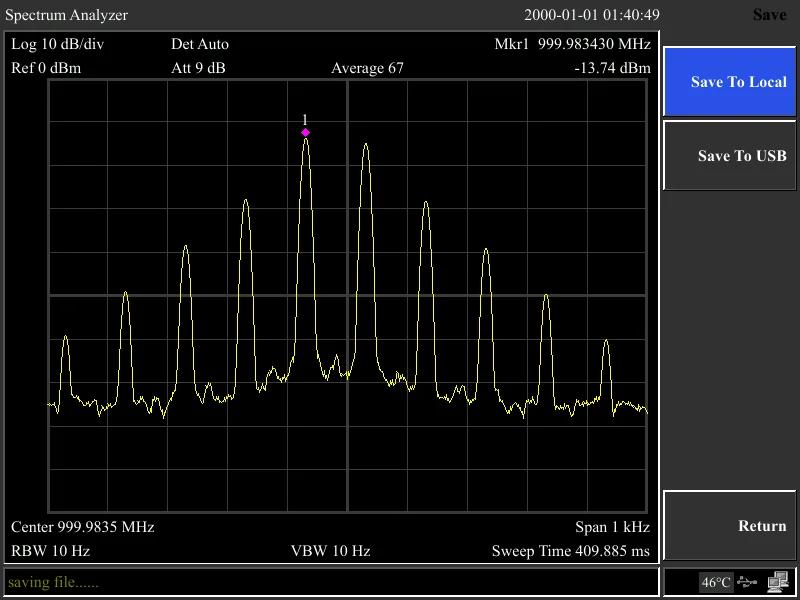

1. 10Hz Minimum Resolution Bandwidth (RBW)
- Digital IF technology offers a minimum bandwidth of 10Hz, allowing excellent signal resolution when separation of closely spaced signals is required.

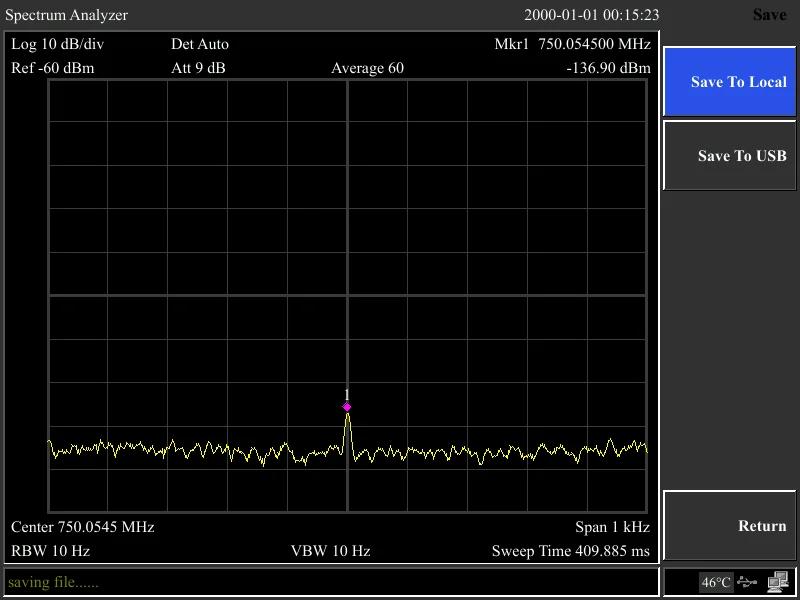

2. Measure -130dB small signal at 10Hz RBW
- Offers a DANL (displayed average noise level) down to -130 dBm, which is able to measure smaller signals.

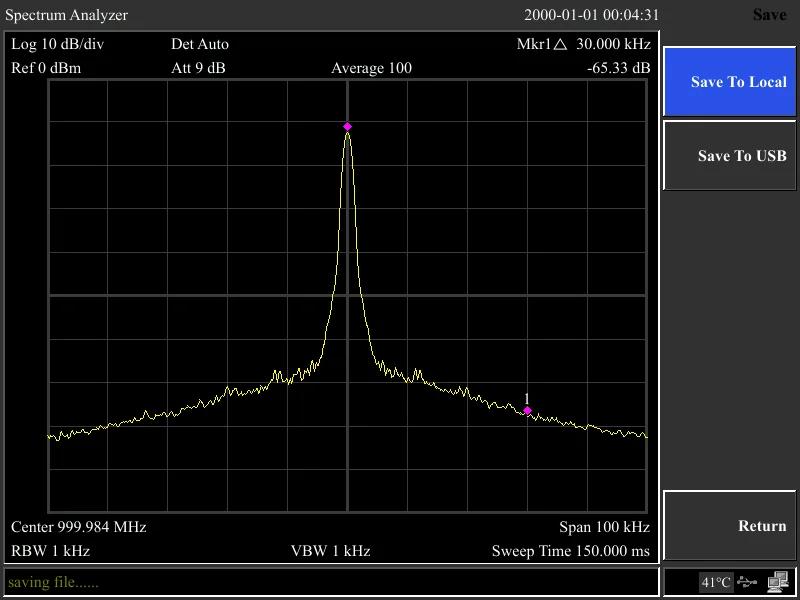

3. Phase noise: < -80dBc/Hz at 1GHz at 30KHz offset
- Excellent phase noise performance - <-80dBc/Hz at 30KHz enables users to evaluate most synthesizers and signal generators.

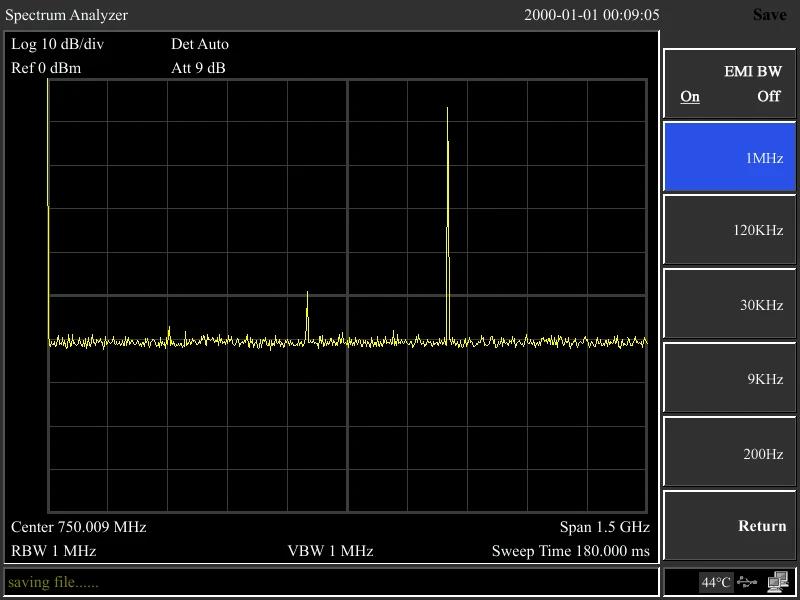

4. EMI filter and peak detector kit
- OWON offers an EMI filter and peak detector kit to help evaluating EMI levels for pre-compliance testing.
