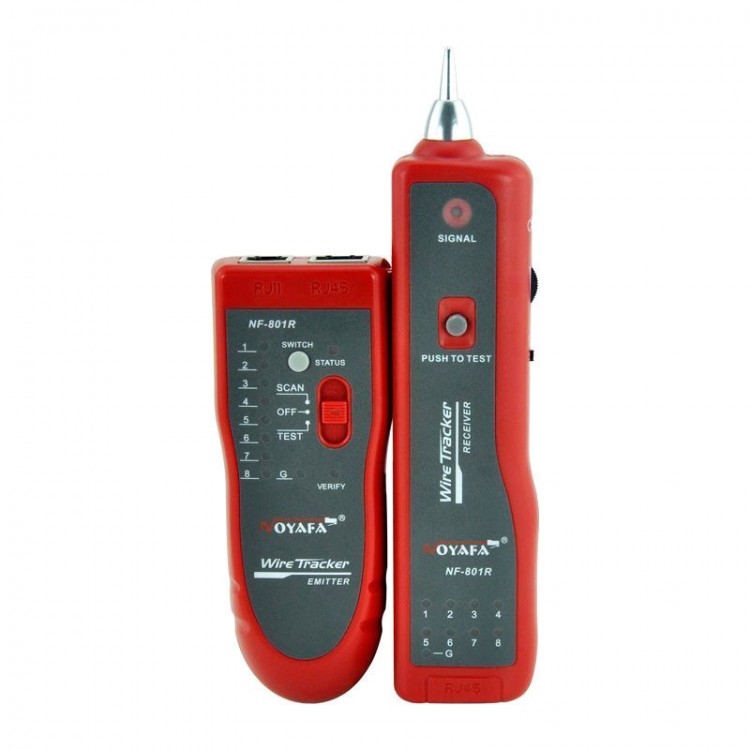

OZ BNC Telephone Lan Network RJ11 RJ45 Tester Tracker Cable Wire Finder Tracer

OZ BNC Telephone Lan Network RJ11 RJ45 Tester Tracker Cable Wire Finder Tracer

Description:
- Telephone Phone RJ45 RJ11 Wire Tracker Tracer Ethernet LAN Network Cable Tester
- This professional telephone and network cable tracking system,consisting of receiver and emitter,it can find wire on all types of connected operating Ethernet switch /Router/PC terminal;Rapidly find the target wire from among plenty of telephone wires;Rapidly find the target wire from among plenty of network wires;It can take place of cable tester.

Features:
- 100% Brand New and durable
- Distance of Wire Tested >=3km
- Rapidly find the target wire from among plenty of telephone/network wires
- Open circuit and short circuit testing function
- DC level testing function
- Low voltage alarm function
- Earphone function
- Volume Adjustable
- Power: 9V Battery
- Energy saving, Inching Switch can be use to automatically delay power-off
- The max working current: emitter: <=10mA; Receiver: <=30mA
- Product in RED provided

Details:
- Trace telephone wire/LAN cable
- Trace wire in electrical system
- Verify LAN cable condition
- Continuity test
- Low Battery Indication
- Bright white LED flash light
- Cable Assignment Test: Open, short and cross of LAN cable, 2-wire (RJ11)/4-wire (RJ45) Telephone cable
- Cable State Testing (2-wire)
- Line DC detecting and anode, cathode determination
- Ringing signal detecting
- Open, short and cross test.

Specifications:
- Max working current:
        Emitter:<=10mA
        Receiver:<=30mA
- Signal transmission format : Multi-frequency impulse
- Signal output electric status: 8Vp-p
- Distance of signal transmission:>=3Km
- Sensitivity : induction distance less than 20mm, strong anti-jamming ability
- Storage Temperature: -20~50°C
- Operation Temperature: -10~40°C
- Power Supply : DC 9V
- Battery Battery life time: >50hrs continuous use
- Size & Weight:
        Emitter: 126 x 49 x 34mm ; 0.060kg
        Receiver: 175 x 42 x 27mm ; 0.072kg
- Whole Set: 270 x 168x 48mm ; 0.570kg
- Colour:Yellow/red/deep blue (Send by random)

Operation:
- Plug one side of the target wire to the correspondent port in the Emitter, and turn on the switch.
- Use the Receiver to close to the bundle of wire and compare the volume of the sound and the brightness of the signal indicator, then you can find the target wire.
- For more function, pls read the manual .

Package List:
- 1 x Cable Transmitter
- 1 x Cable Receiver/Tracker
- 1 x RJ45 Cable
- 1 x RJ11 Cable
- 1 x Cable with crocodile clamp
- 1 x Earphone
- 1 x Instruction manual
- 1 x Bag
