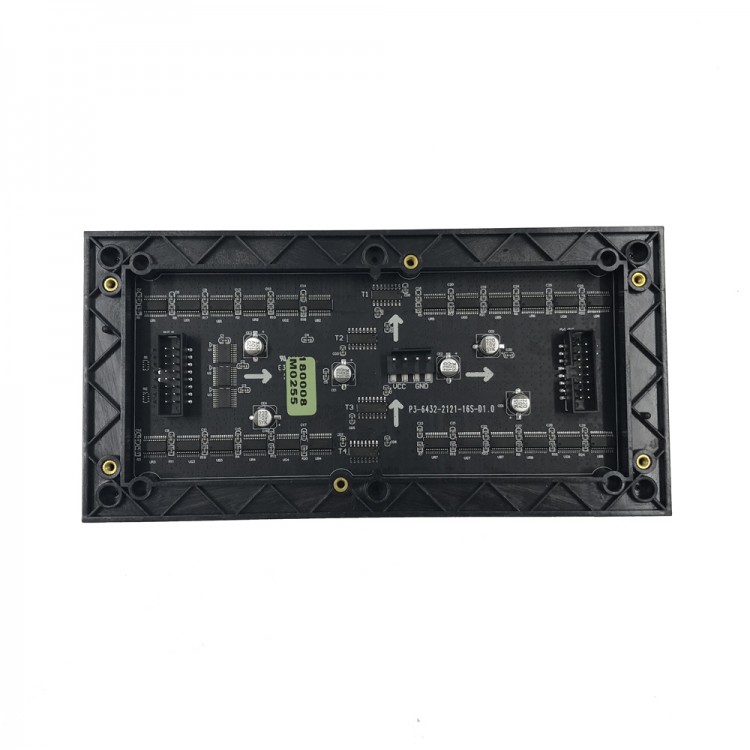

P3 RGB LED Display Board LED Screen Panel 64x32 Dots SMD2121 LED Module Indoor Screen Video Wall

P3 RGB LED Display Board LED Screen Panel 64x32 Dots SMD2121 LED Module Indoor Screen Video Wall

Attention:
Different batches of LED modules maybe have difference on color and brightness, please buy all LED modules which will be used in one LED display at one time. And if possible, suggest buying some LED modules as spare parts. The picture of PCB in description(images) maybe different from what you received because of the updating version. If you require LED modules with same PCB, please contact us in advance. Thank you!

Application:
Widely use in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, restaurants, entertainment, enterprises, highway etc.

Specifications:
- Pixel Pitch: 3mm/0.1"
- Pixel Density: 111111dots/sqm
- Color Configuration: 1R1G1B
- LED Package: SMD2121
- Module Size: 192 x 96mm/7.6 x 3.8"
- Module Resolution: 64dots x 32dots
- Drive Mode: 1/16 Scan
- Working voltage: 5V
- Brightness: ≥1200 cd/sqm
- Viewing Distance: 3m-30m/9.8-98.4ft
- Viewing Angle: H: 140°; V:140°
- Refresh Rate: 2000HZ, adjustable by software
- Frame Rate: 120frame/s
- Grey Scale: 16.7M colors (Synchronized)
- Color Temperature: R.G.B brightness 256 level adjustable
- Power Input: AC110V/ 220V ±10%, 50HZ
- Max Power Consumption: 1000W/sqm
- Ave. Power Consumption: 300W/sqm
- Storage Temperature: -30 to +70℃
- Working Temperature: -20 to +50℃
- Blind Spot Rate: <1/10000
- MTBF: >10,000 Hours
- Life Span: >100,000 Hours
- Waterproof Level: IP20
- Operating Humidity: 10%~90% RH
- Control Method: Synchronous, Asynchronous, 3G,WIFI and USB
- Control PC: With DVI Graphic card
- Operating System: For Win 98, Win2000, XP, Win7, Win8 and Win10
- Video Signal Mode: RF, S-Video, RGB, RGBHV, YUV, YC, etc.

Package Included:
- 1 x Set of LED Module
