P30 Type C Fast Charge PD Trigger Voltage Current Meter Digital Display Power-Off Memory Function

P30 Type C Fast Charge PD Trigger Voltage Current Meter Digital Display Power-Off Memory Function

Attention:

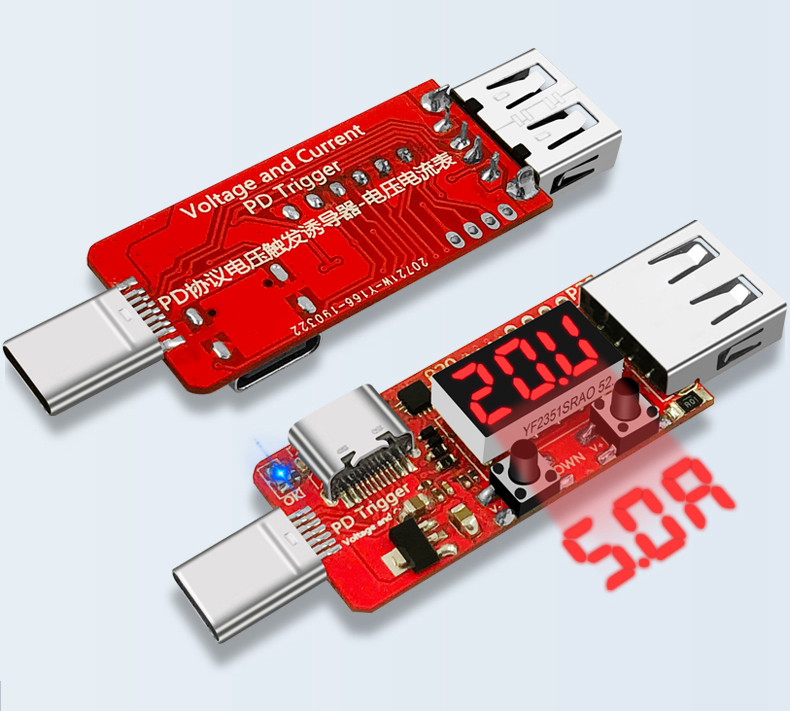

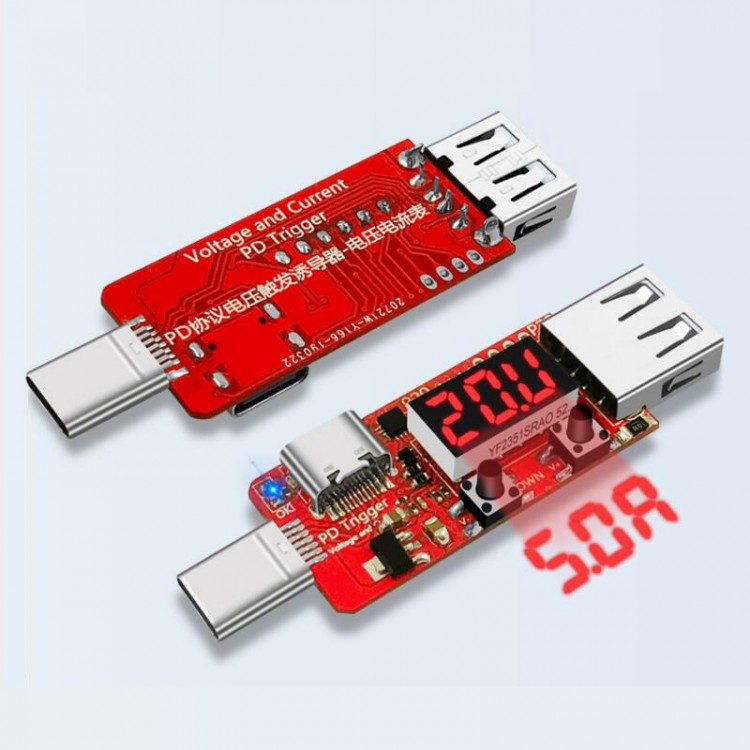

This product is used to detect the PD protocols on type-c power supplies, simulate mobile phone protocols and send the protocols to chargers to trigger its 5V, 9V, 12V, 15V, 20V voltage values.

Features:

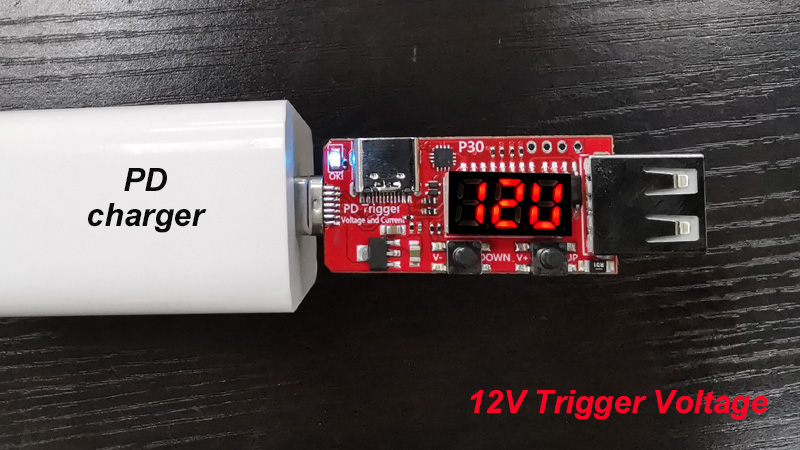

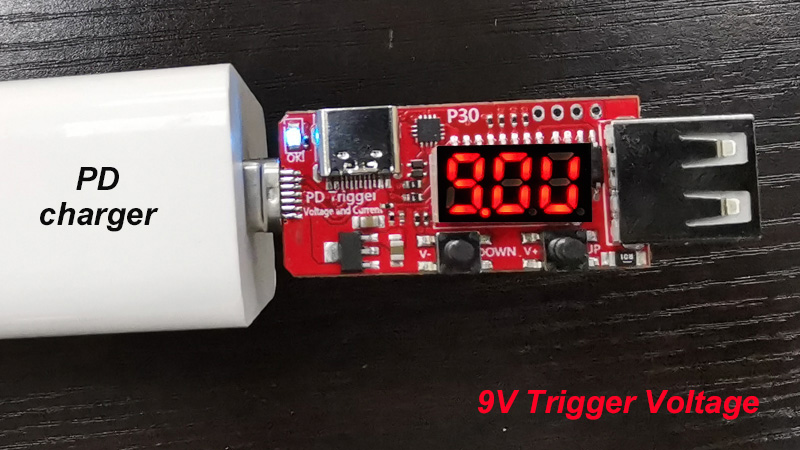

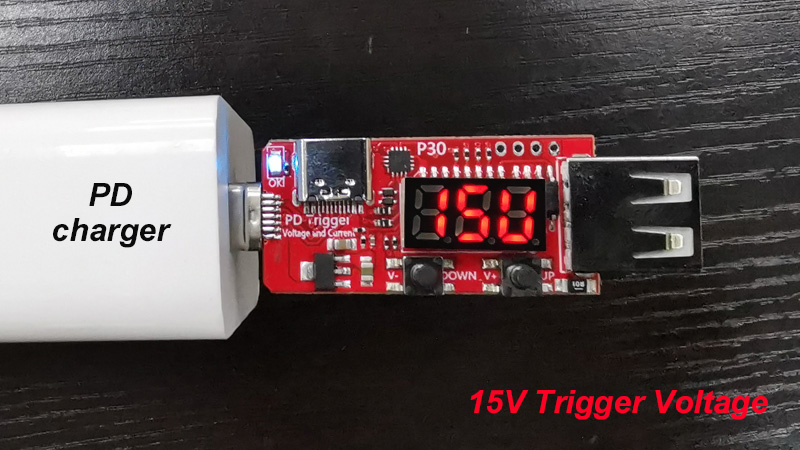

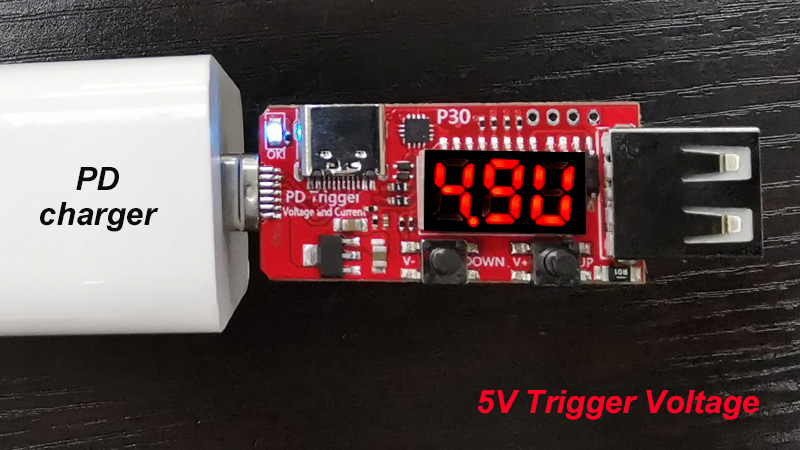

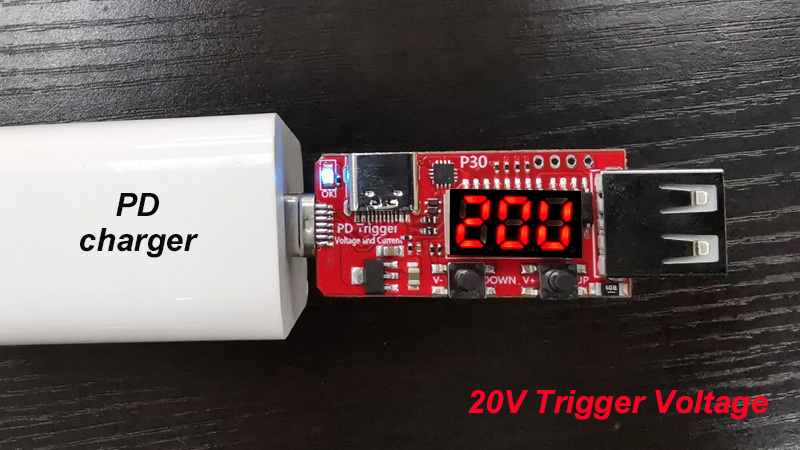

- Plug-to-play current voltage meter. PD protocol voltage trigger. Can trick the output of 5V/9V/12V/15V/20V voltage, can simulate new fast charging mobile phone protocols.
- High-power aging PD power supply. First insert the PD trigger into the 61W PD power supply, and then use the 150W adjustable constant current load to adjust the current, and the aging data can reach 20V/3A. Allow the charger to be used with high voltage for a long time and check the stability of the charger. (Note: ordinary PD power supply can only support 20V/1.5A)

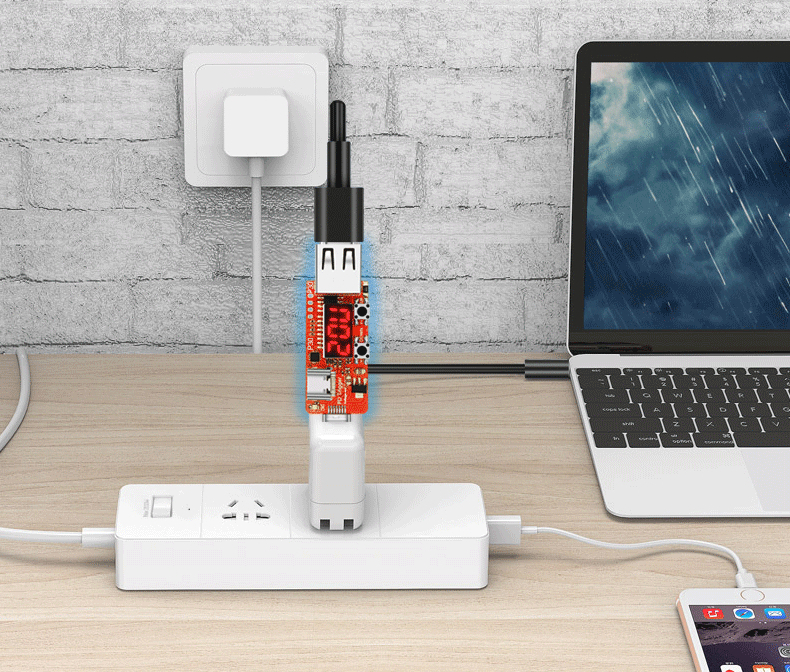

- Switch to display current and voltage. Trigger PD voltage values and continue high voltage output. It can trigger different voltage values in PD power supplies to supply power to routers, optical modems, set-top boxes or laptop computers. The PD triggers can be used in many occasions. It can induce 5V/9V/12V/15V/20V fast charging voltage and manually adjust the voltage value, so that your fast charging devices can use the voltage value induced by the PD trigger as a power supply for other devices (Adapter replacement should be realized when the total power is satisfied), so that idle fast charging devices can also be used as environmental protection applications for other power sources.
- Power-off memory function, automatic storage function, automatic voltage gear.
- With voltage and mode power-off memory function, current voltage value and load current value can be measured. PD fast charging source factories uses PD triggers to simulate expensive mobile phones for quality testing and aging during mass production, avoiding damage to the mobile phones when testing with mobile phones, and digital players for DIY other output voltages and fast charging authenticity, quality testing, etc.
- This small device can support PD3.0 and is compatible with 2.0 protocol. By sending the PD protocols to devices such as PD chargers or power banks, 5V/9V/12V/15V/20V fast charging voltages can be induced for various aging and testing, quality identification, voltage, current and power identification.
- Plug to test PD protocol fast charge detection. You can use V+ key to click to send voltage upshift protocol, double-click or long press to send 5V-9V-12V-15V-20V PD trigger protocol in turn. With power-off memory function to improve the batch test efficiency of factory production line.
- Support PD3.0, compatible with 2.0 protocol. Type-C dual-input PD detection.

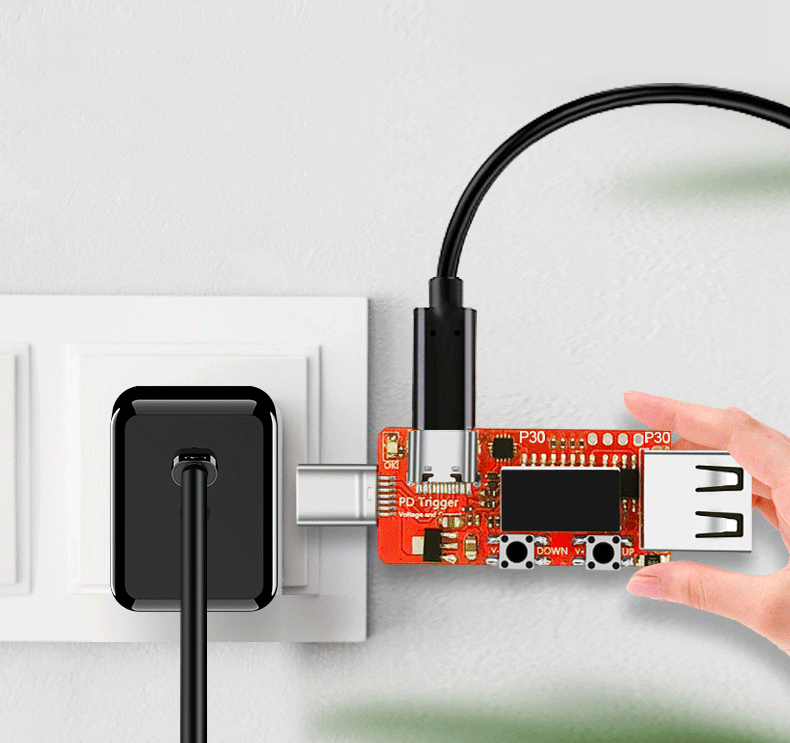

Connecting a double male type-c able can realize long-distance detection, convenient test, and can induce 5V/9V/12V/15V/20V fast charging voltage.

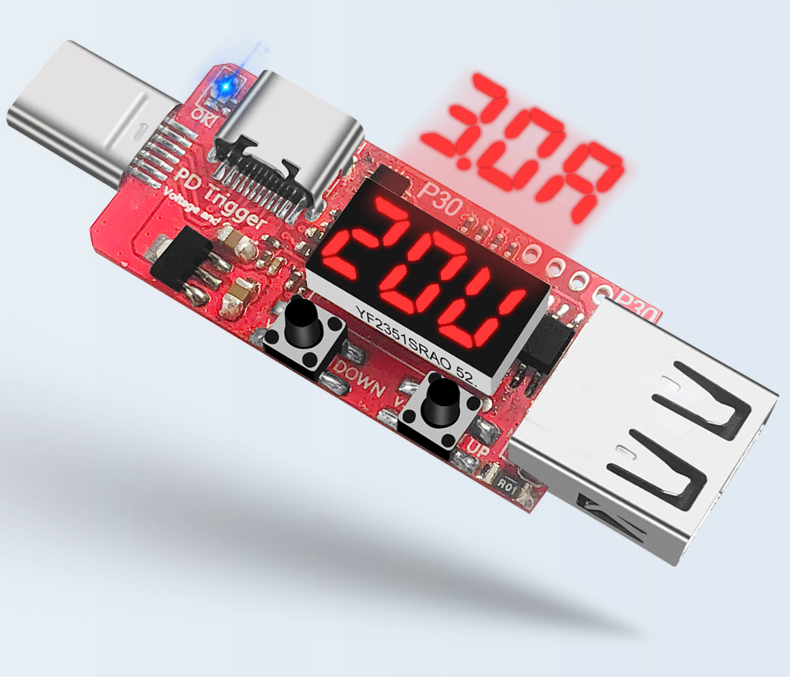

- PD trigger, current and voltmeter: it is not only a trigger but also a voltage and current meter with display. When output has no load, only voltage is displayed. When the output is loaded, voltage and current are displayed in turn.

Package Included:
- 1 x PD Quick Charge Trigger

Note: Other items pictured are not included, for demonstration purposes only. Thank you!

Power-Off Memory Function:
When double-clicking or long-pressing, it sends 5V-9V-12V-15V-20V PD trigger protocol in turn. When factories are mass-producing fast charging equipment, measurement mode is stored in memory, and the next time the power is turned on, the memory data will automatically enter the same mode as before, which can greatly shorten test time and improve production test efficiency.

Voltage Memory Function:
Manually adjust voltage, turn off and turn on again, the system will call the previously stored protocol and voltage data, intelligently and automatically send the corresponding protocol to activate the voltage value of the last stored data. In this way, fast-charging device can use the voltage induced by this meter as power supply for other devices (of course, adapters can be replaced when the total power is satisfied), and idle fast-charging device can also be used as an environmentally-saving application for other power sources.

* OK! Light: When this light is on, it indicates that PD protocol broadcast data is received successfully and protocol handshake is successful.

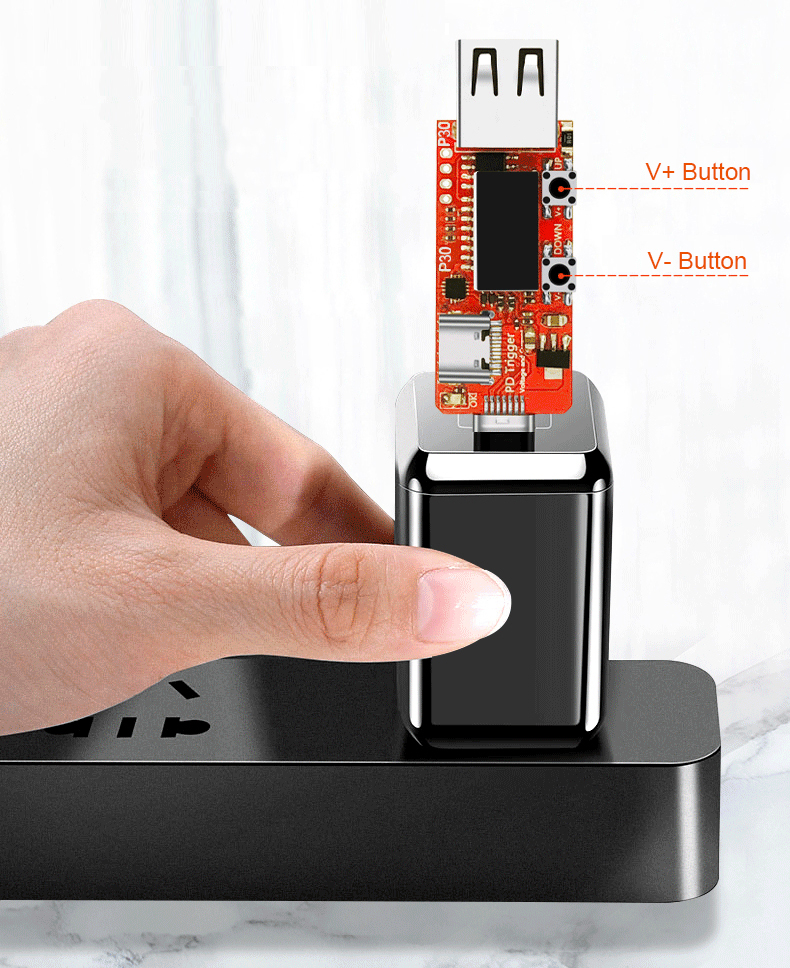

* V- Key: Send voltage reduction protocol when click once. Double click or long press to send 20V-15V-12V-9V-5V PD trigger protocol in turn.
* V+ Key: Send voltage upshift protocol when click once. Double-click or long-press to send 5V-9V-12V-15V-20V PD trigger protocol in turn.
* Digital display: When the output is no load, it only displays voltage. When the output is loaded, voltage and current will be displayed in turn.

Operation Instruction:

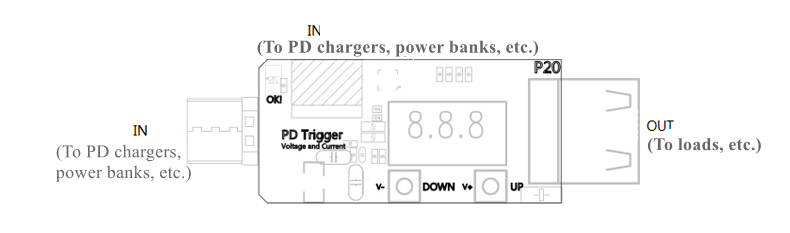

TYPE-C input male or female connectors connects your PD charger, power bank, etc. If PD protocol handshake is successful, OK! light will be on. The protocol voltages of different gears can be sent by clicking the button once. When long press or double click the button, PD protocols will be sent in turn; current voltage value and rotation mode can be memorized when the power is turned off, and the last memory will be recalled and loaded when the power is turned on next time, so as to facilitate the mass testing and aging of the production and improve production effectiveness.

Attention:
This equipment draws out the voltage of fast chargers and power banks that support PD protocol. The voltage is relatively high, so the output cannot be directly used for mobile phone charging. Because ordinary mobile phones support 5V, the voltages drawn by the PD protocol are high voltages, namely 9V, 12V, 15V, and 20V, so it is not advisable to input them directly into ordinary mobile phones. This is not a charging accelerator, but only induces the voltage of PD protocol products through this instrument to simulate the standard PD handshake protocol of mobile phones, which can be used with chargers, power banks, etc. to determine whether it is a real PD protocol, which is of great help.

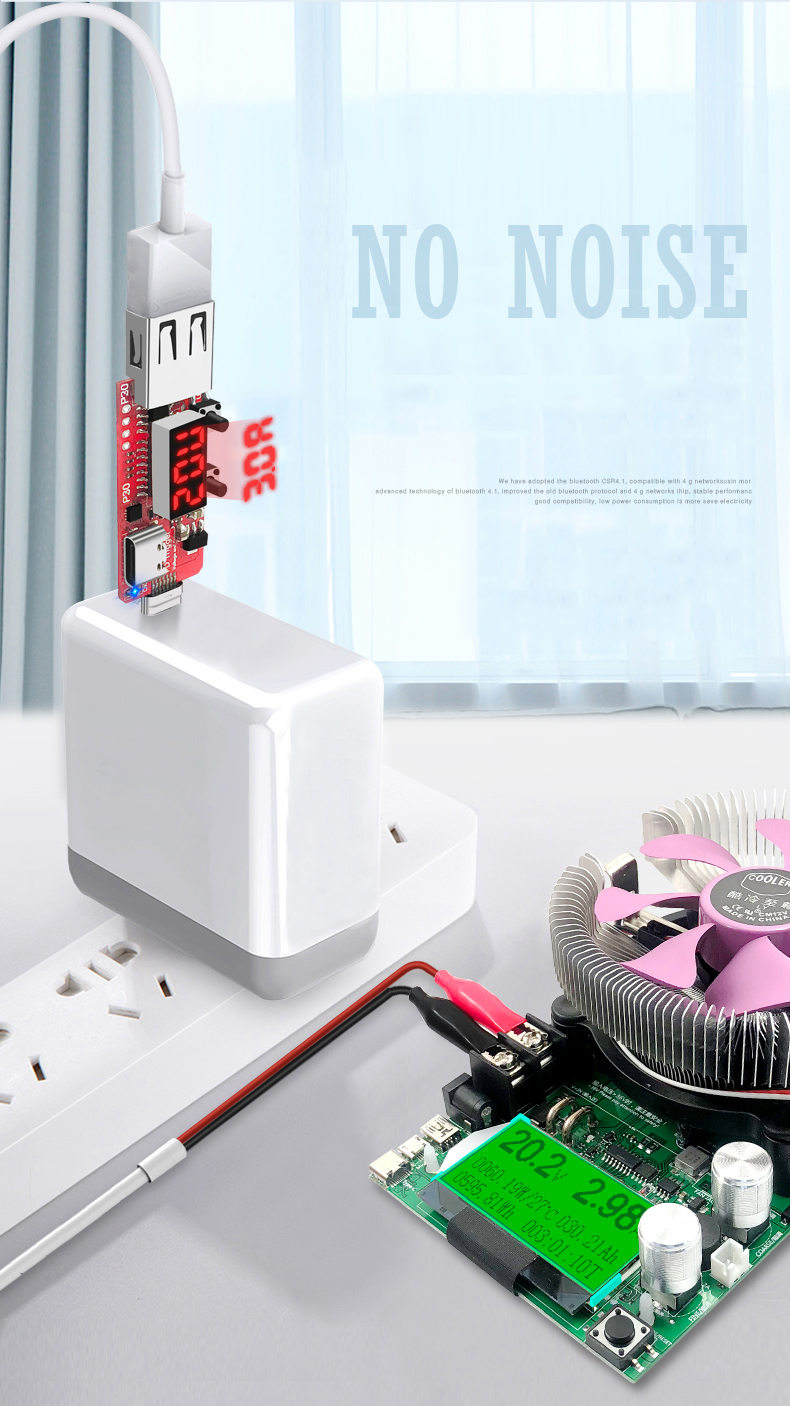

Manufacturers or players can use it with our electronic load for aging tests. This device can choose alternate aging mode and manual single voltage trigger aging mode. When in manual mode, you can send 5V/9V/12/15V/20V PD fast charge protocol in turn by long pressing or double-clicking +/- button. When some chargers do not have 20V gear, it means that this charger only supports 15V, and the highest output voltage index of the charger can be accurately determined.
