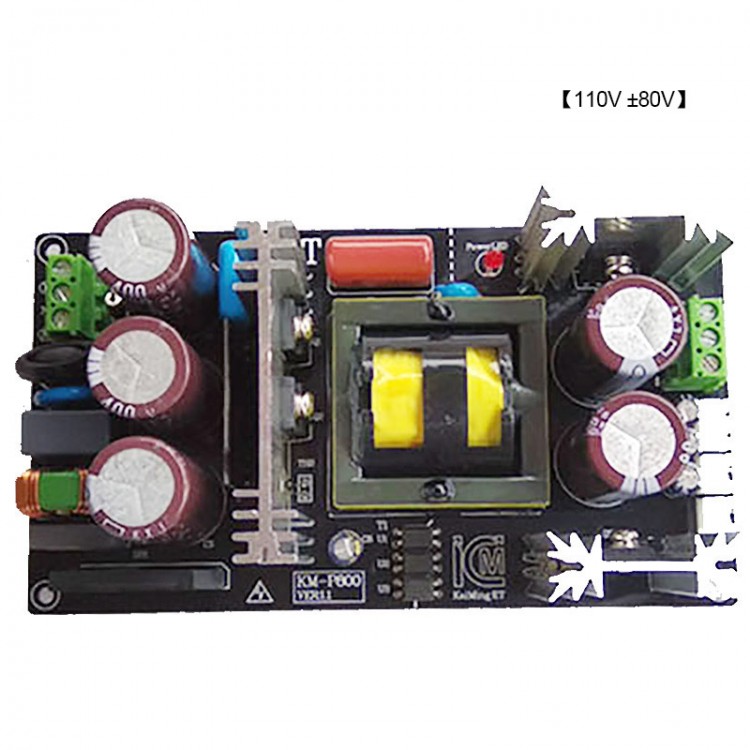

P800 Switching Power Supply Board LLC Soft Power Module for Power Amplifier 110V Input ±80V Output
Description:
This product adopts the LLC resonant half-bridge topology, with high conversion efficiency, low interference, fast dynamic response, stable output voltage, etc., as well as integrated overcurrent, overvoltage, overtemperature, output short circuit protection, the best collocation of high-end power amplifier products. It can be used for 200-800W power amplifier power supply. The continuous power at 25℃ temperature is 500W, and the peak power can reach 1200W.
Specifications:
Input voltage: AC 110V
Output voltage: main voltage ±DC 80V; auxiliary voltage ±12V; independent voltage 12V
Voltage regulation accuracy: main no-load +10%, with load ±3%; auxiliary no-load ±20%, with load ±15%
Continuous power: 400W-500W (can work continuously under 25℃ temperature)
Maximum power: 800W (can work continuously for about 5min under 25℃ temperature)
Instantaneous power: 1200W (power generated when dynamic signal impact, time is less than 100 milliseconds)
Conversion efficiency: Max 95%
Work environment: -10℃~ 40℃
Storage temperature: -30℃~ 85℃
Size: 80 * 148 * 45mm (W*L*H)
Package List:
1 x Switching Power Supply Board
