PA-01 3-In-1 Power Amplifier DAC Headphone Amp 200W BT 5.0 (Amp + Antenna + Power Adapter Cable)

Availability: In stock, usually dispatched in 1 business day

  • Price:$66.83
  • Price in reward points: 668 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $65.49 $64.16 $62.15 $59.48 Contact US
Quantity:

PA-01 3-In-1 Power Amplifier DAC Headphone Amp 200W BT 5.0 (Amp + Antenna + Power Adapter Cable)

Features:

- Multipurpose: Power amplifier, decoder and headphone amplifier in one.
- Soft Start Power Switch: protects speakers from impact and anti-interference when it is on/off.
- High-frequency Ring-resistance Constant-voltage Power Management System: Insert DC power supply without arc spark, which is safe and reliable to use.
- Against Surge: Protects speakers from being damaged when the power is cut off.
- ES9018K2M HiFi DAC Chip: Supports 192KHz/32bit sampling, SNR is up to 127dB, THD is lower than -120dB. It creates HiFi sound for users.
- BTM308-C Bluetooth Module: Built with QCC3008 chip, it supports A2DP, AVRCP, HFP, TWS, AAC, I2S, APTX, APTX-LL. 16M SPI Flash memory chiip is used.
- Bluetooth 5.0 Chip: Ensures quality communications, excellent compatibility and amazing performance.
- Compatibility: Compatible with 99% mobile phones, table PC, desktop computers on the market. Effective range is up to 10m.
- Special inductance dedicated to digital power amplifier circuits. The sound is cleaner, more delicate, and the dynamic display is clearer. The ring closure package has better anti-interference effect. It is the best match for high-end digital circuits.
- 2pcs Amplifier IC: One piece is for one channel. Its total output power is up to 200W. It can drive 6-inch and 8-inch speaker units.
- 3pcs Independent op amp are used to adjust bass and treble. Original relay is used for lossless switching of audio input signals.
- Professional HiFi Headphone Amp Chip: Synchronous parallel output of amplifier and headphone amp ensures accurate monitoring.

Specifications:

- Model Number: PA-01
- Output Power: 100W*2
- Headphone Power: 700mW*2@32Ω, 156mW*2@300Ω
- Input: Bluetooth 5.0 APTX, RCA
- Power Supply: DC 12-24V (Outer Dia.5.5mm Port; Inner Dia.2.5mm Port)
- Impedance: 4-8Ω
- Size: 133 x 36 x 149 mm
- Optional Colors: Silver, Black

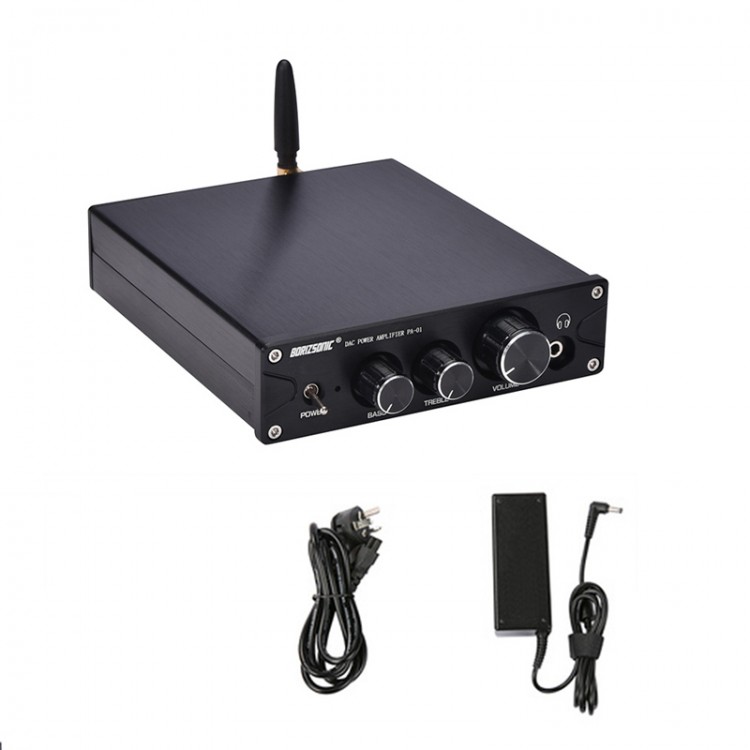

Package Included:

- 1 x DAC Amplifier
- 1 x Antenna
- 1 x Power Cable
- 1 x Power Adapter

Note: Optional Colors: Silver, Black. Please tell us the color you want when purchasing. Thank you!
