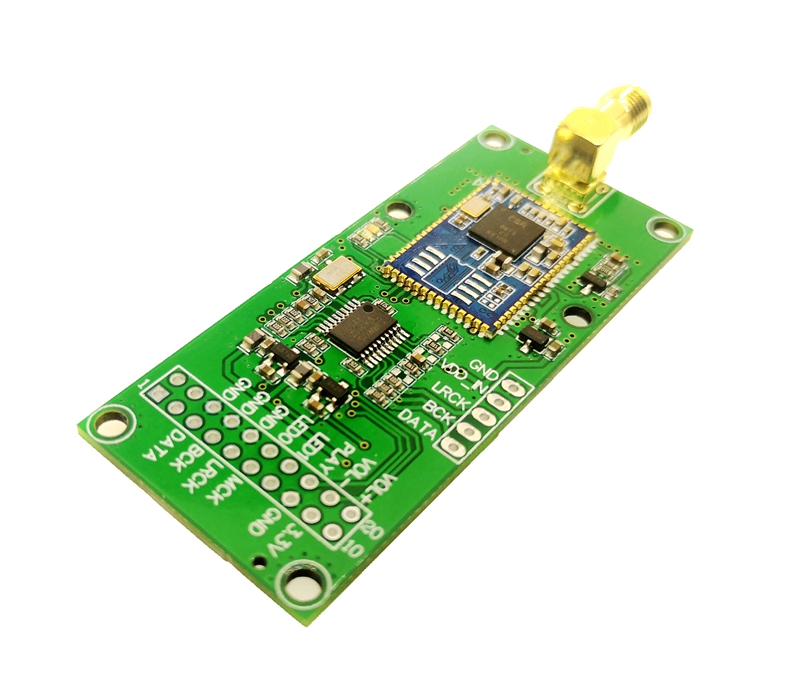

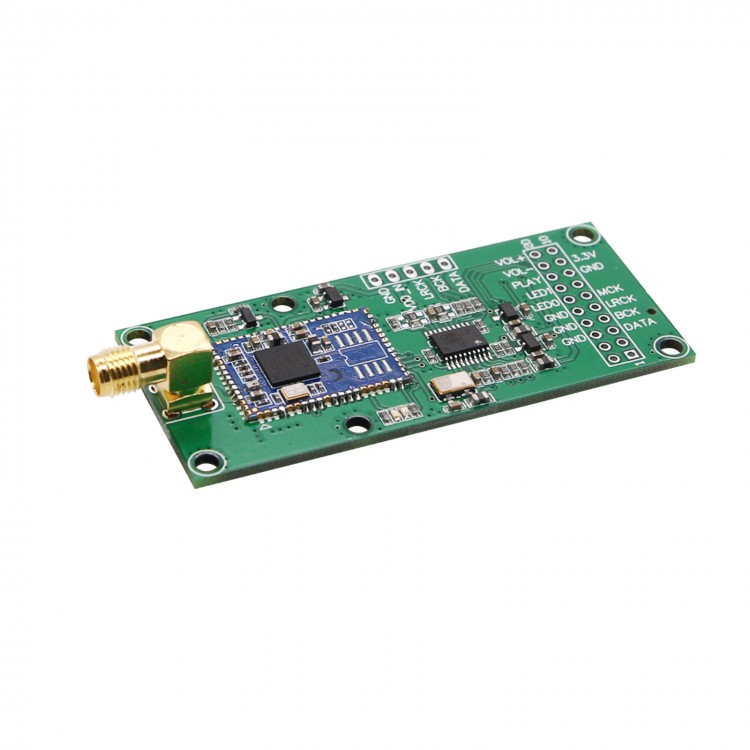

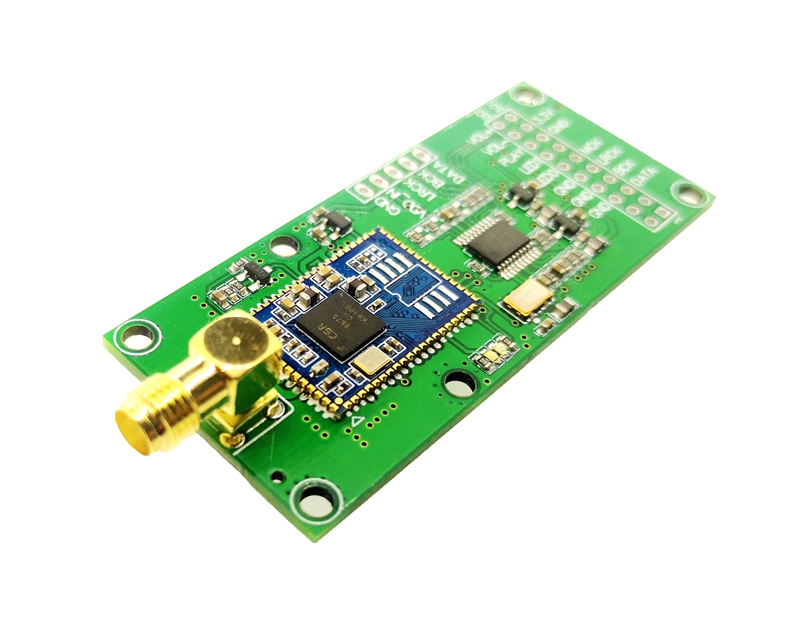

PA212 Bluetooth 5.0 Digital Audio Interface Audio Output LDAC Module CSR8675 IIS I2S

Availability: In stock, usually dispatched in 1 business day

  • Price:$27.34
  • Price in reward points: 273 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $26.79 $26.25 $25.43 $24.33 Contact US
Quantity:

PA212 Bluetooth 5.0 Digital Audio Interface Audio Output LDAC Module CSR8675 IIS I2S

Description:

Its CSR8675 Bluetooth 5.0 chip supports SBC, AAC, APTX, LDAC (does not support APTX-HD), and fits for Amanero USB IIS interface definition.

Button Introduction:
- PLAY: Short press to play/pause. Press for 3s to enter into matching mode. Press for 6s to clear matching records.
- VOL-: Short press to play previous song. Long press to decrease volume.
- VOL+: Short press to play next song. Long press to increase volume.

Features:
- CSR8675 Bluetooth 5.0 chip support sbc, aac, aptx, ldac (not support aptx-hd)
- Detailed pin descriptions pictured. It is compatible with Amanero USB IIS    interface definition (with MCK output)
- Bluetooth Name: CSR8675-LDAC
- Integrated LED Indicator: Blue light flashes when it is not connected. Blue light is always on when it is connected
- VDD Power Supply: 3.3V-5V, Max. 6V
- Board Size: 30 x 69mm (Not including the size of SMA connector)
- It is finished and ready to use

Package Included:
- 1 x PA212 Bluetooth 5.0 Digital Audio Interface

Note: Please note that antenna is not included in this package. Thank you!
