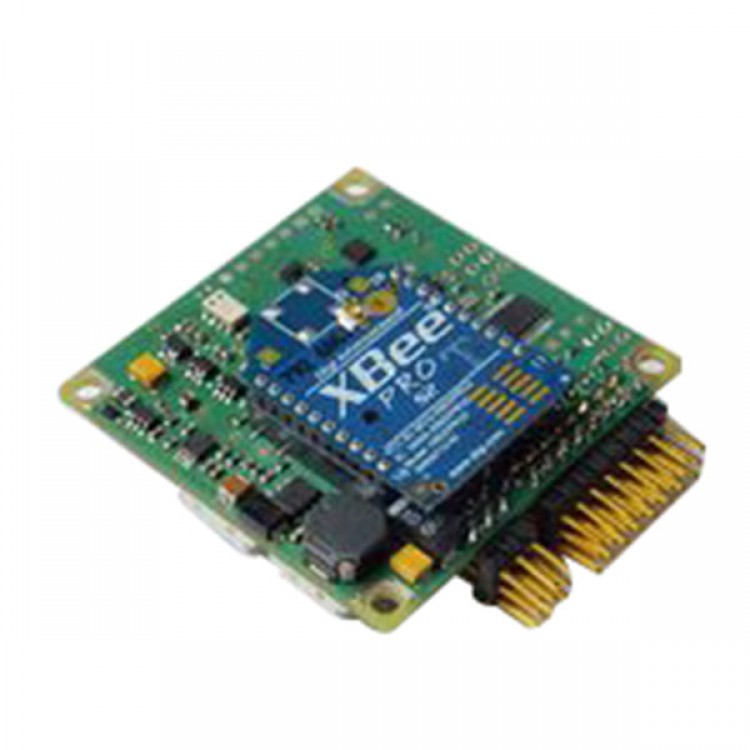

Paparazzi (ppz) Flight Control Mainboard Flight Control Board KroozSD
Overview
- KroozSD UAV autopilot board is an all in one rotorcraft solution, with a wide variety of sensors, modules and units on one board in market usual size.
Features
- KroozSD is based on the 64 pins STM32F405RGT6 Cortex M4 168MHz processor featuring a Floating point unit (FPU), up to 192k of RAM and 1024k of FLASH.
- STM32 microcontroller datasheet with 1024kB flash and up to 192kB RAM
- Onboard microSD card slot (SPI interface)
- MPU6050 Gyro/Accelerometer sensor and MXR9500 Accelerometer with 16 bit ADC (Big Rotorcraft Edition).
- HMC5883 magnet field sensor.
- MS5611 high precision pressure sensor.
- XBee Pro module on board connector.
- MAX7456 OSD module for mixing in a flight data into a camera video screen (using 4 pin connector)
- 3 x 3.3V TTL UART (5V tolerant)
- 11 x Servo PWM outputs (or 10 if using PPM output receiver)
- 2 x I2C 5V bus
- 1 x SPI bus
- 5 x Analog input channels
- 1 x Micro USB
- Extra camera control 6 pin connector for flexible camera use
- 3 x status LEDs with attached test point
- Up to 35V (8S LiPo) input power control unit
- Up to 1.5A load current on 3,3V line
- Up to 5A load current on 5V line
- 50mm x 60mm x 10mm
- 2 layers PCB design
So, except for a GPS unit with the KroozSD you have all necessary sensors for full features all in one rotorcraft solution.
