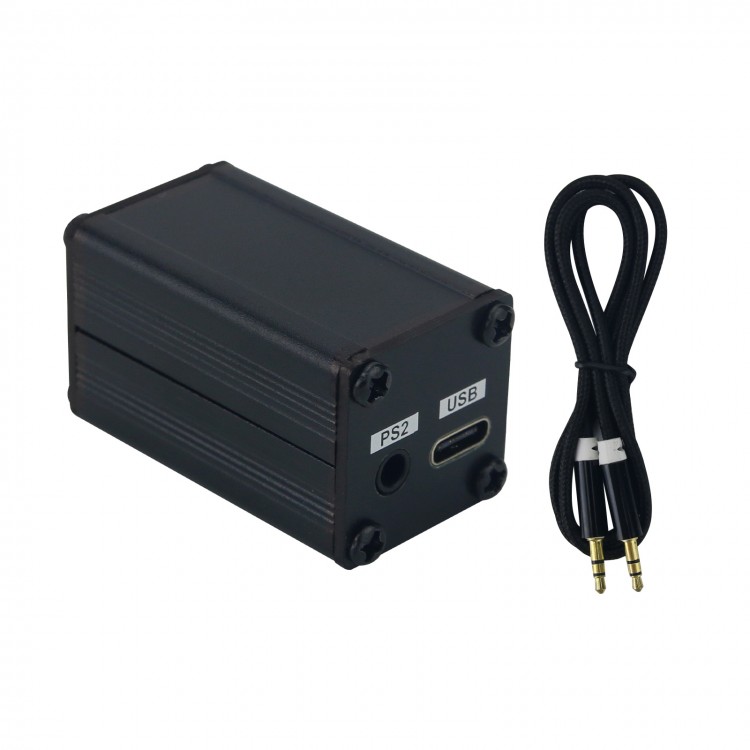

PC Keyboard Adapter With Aluminum Alloy Shell Fits HAMCUBE PRO CW Trainer & HAMCUBE Mini CW Trainer
Description:
A computer keyboard with a PS/2 interface can be connected to a HAMCUBE Mini or HAMCUBE PRO CW Trainer through the adapter. Then set the host menu through the computer keyboard, and control the sending operation of the external shortwave radio.
Specifications:
- Keyboard interface: For PS/2
- Built-in battery: 300mAh Li-polymer battery
- Charging interface: TYPE-C USB interface
- Host interface: 3.5mm three-segment stereo jack
- Switch type: turn on when the 3.5mm plug is inserted; turn off when it is pulled out
- Status indication: red light on: charging; green light on: working
- Working current: 3mA-10mA, depending on keyboards used
- Charging current: 250mA
- Working hours: >24H
- Dimensions: approx. 25 x 25 x 45mm/1 x 1 x 1.8"
- Cable length: approx. 99cm/39"
- Net weight: 35g/0.08lb
Package Included:
- 1 x Adapter Main Unit
- 1 x Cable
Note:
- PC keyboard and other items are not included.
Functions of Buttons on Your Keyboards:
* a-z; 0-9: normal character function
* Uppercase button, lowercase button: switch between uppercase and lowercase characters
* F1-F8: The main controller has built-in 8 groups of automatic calls
* Shift+F1-F4: Simulate the master controller F1-F4 click action
* Ctrl+F1-F4: Simulate the long-press action of F1-F4 of the main controller
* Pg Up: code speed +, analog main controller power button right toggle
* Pg Down: code speed-, analog main controller power button left toggle
* ↑: Code speed +, analog main controller power button right toggle
* ↓: Code speed, analog main controller power button left toggle
* ←: F4 to exit the function
* →: Click the power button to enter and confirm the function
* ESC: Terminate sending or stop automatic calls
* Backspace key: You can move the cursor backspace in the shortcut key editing window
* Shift+ESC key: main controller shuts down
