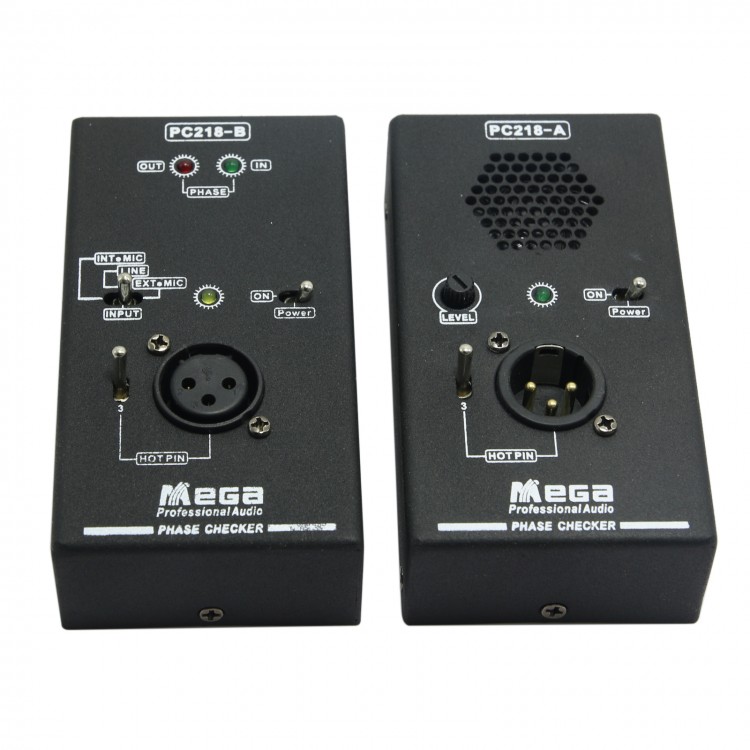

PC218PC80 Speaker Phase Tester Loudspeaker Test Microphone Phase Meter

Availability: In stock, usually dispatched in 1 business day

  • Price:$138.02
  • Price in reward points: 1380 Reward Points: 14
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $135.26 $132.50 $128.36 $122.84 Contact US
Quantity:

PC218PC80 Speaker Phase Tester Loudspeaker Test Microphone Phase Meter

PC218-A Parameters:

- Positive rate: 1Hz
- Electronic frequency: 1Hz------20KHz
- Electric-acoustic frequency: 200Hz--------5KHz
- Electronic output level: 0--------------1V
- Electric acoustic output level: fixed
- Output impedance: 1KΩ------INFINITY
- Output source impedance:     1KΩ
- Power: 9V, PP3 battery (lasting for 50hours)
- Current: 10mA
- Dimension: 31X110X60 mm

PC218-B Parameters:
- Electronic frequency: 1Hz------20KHz
- Electric-acoustic frequency: 10Hz--------1KHz
- Microphone input impedance: 1KΩ
- Circuit input impedance: 10 KΩ
- Microphone input level: 10mV--------1V
- Circuit input level:     0.5V---------50V
- Circuit output level: 0V----------1V
- Power: 9V, PP3 battery (lasting for 50 hours)
- Current: 10mA
- Dimension: 31X110X60 mm
