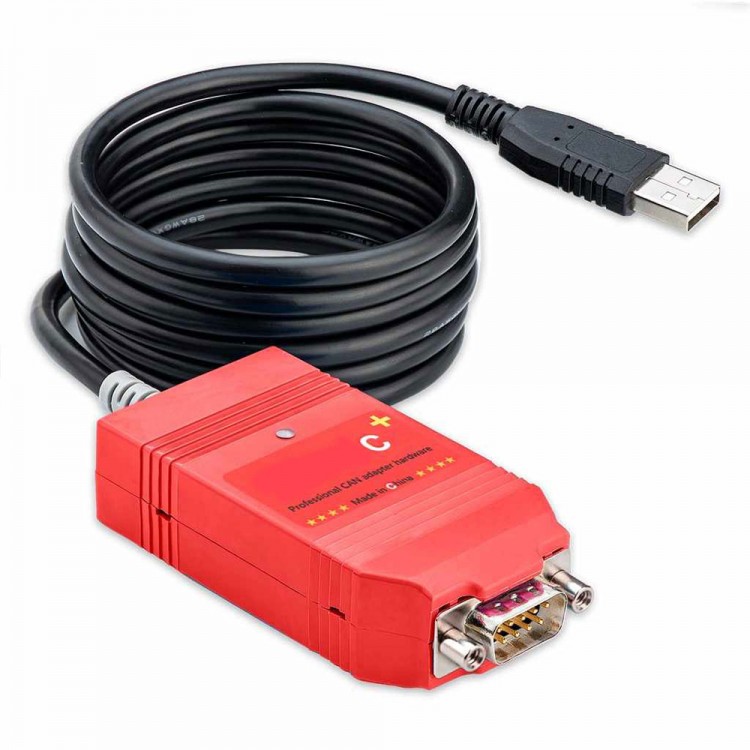

PCAN C Plus PCAN C+ CAN Adapter PCAN USB Adapter (with Imported Scheme) Compatible with IPEH-002022
Description:
The PCAN series adapters can be easily connected to CAN networks. Its compact plastic housing makes it suitable for mobile applications. Optocoupler isolation guarantees galvanic isolation of up to 1500V between the PC and the CAN side, protecting your PC from electrical interference and static electricity in complex working environments.
The software package for this product also provides the Windows CAN monitor PCAN-view and the programming interface PCAN-Basic. The device driver supports different operating systems, so the program can easily access the connected CAN bus.
Technical Specifications:
- Supports USB (full-speed mode, compatible with USB1.1, USB2.0, USB3.0)
- Supports high-speed CAN connection (ISO 11898-2)
- Supports bit rate adjustment: 5Kbit/s~1Mbit/s
- Timestamp resolution: Approx. 42μs
- Compatible with CAN 2.0A (11-bit ID) and 2.0B (29-bit ID)

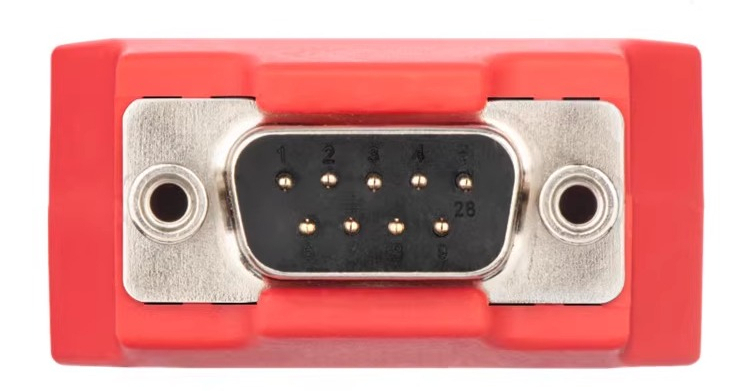

- CAN bus connection via 9-pin D-Sub connector (CiA 303-1 compliant)
- CAN galvanic isolation up to 1500V
- Supports for Windows 7, Windows 8.1, Windows 10 and Windows 11
- Supports for Linux system and Linux kernel has integrated PCAN driver (Socket CAN)
- Supports for MacOS (MacCAN)
Interface Specifications:

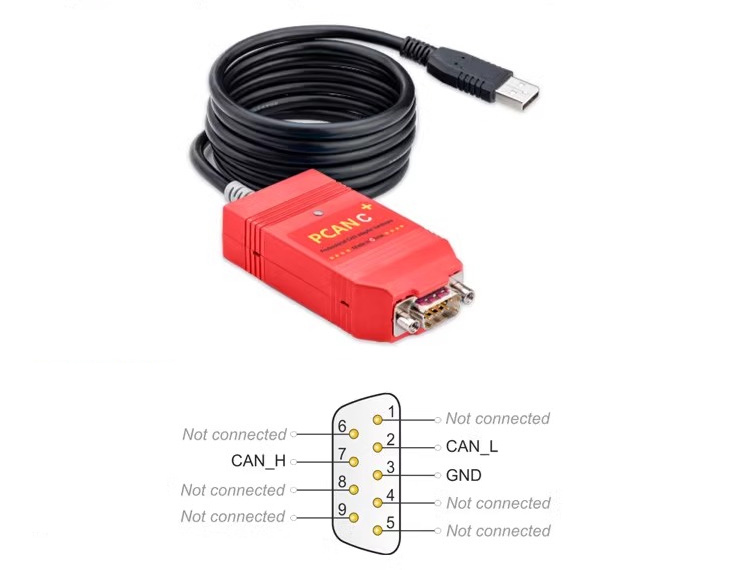

- This product can be connected to
the high-speed CAN bus via a 9-pin D-Sub connector. The pinout of the
CAN complies with the CiA 303-1 specification.
Features (PCAN C Plus):
- Adopts imported scheme and supports official hardware
- Supports firmware upgrade
- Comprehensively surpasses IPEH-002022/21

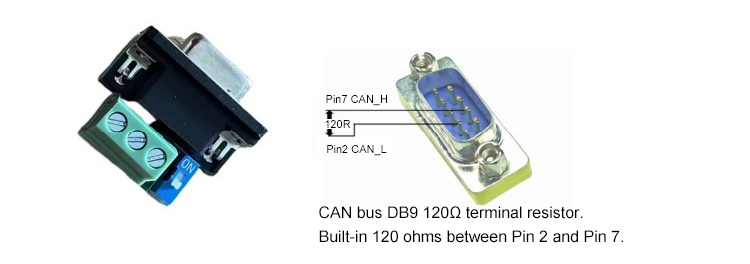

- PCAN is not configured with a 120-ohm terminal resistor by default. It comes with an external 120Ω resistor with a DB9 connector. CAN bus DB9 120Ω terminal resistor. Built-in 120 ohms between Pin 2 and Pin 7. It has been fully upgraded to a DB9 connector with gold-plated solid pins
Package Included:
- 1 x PCAN C Plus CAN adapter with plastic housing
- 1 x DB9 terminal adapter
- 1 x DB9 terminal resistor (120Ω)
Packaging Details:
- Weight: 0.35kg
