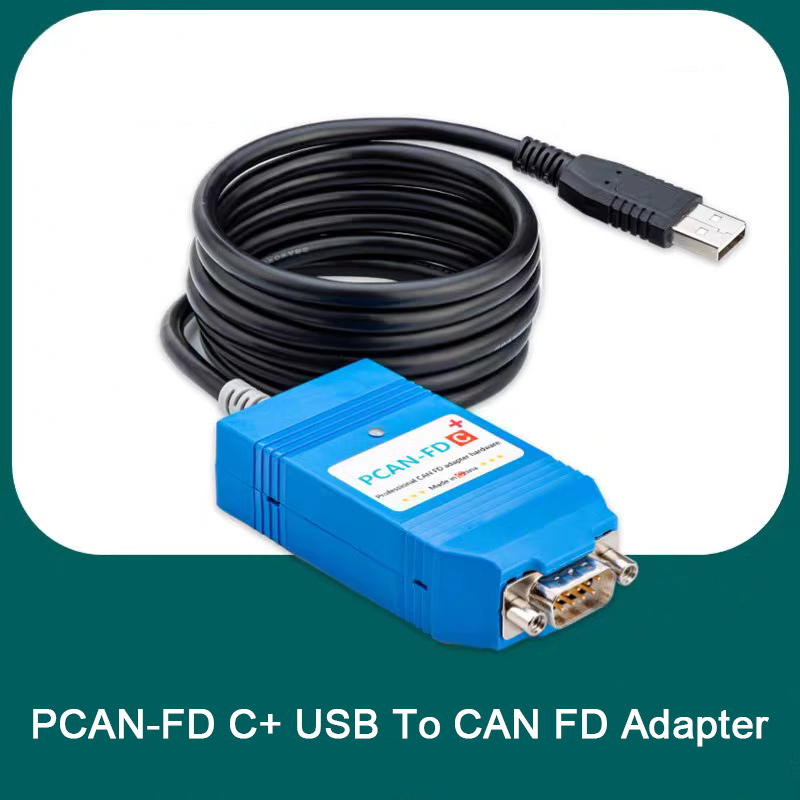

PCAN-FD C+ 12Mb/s High-End CAN FD Adapter for Firmware Upgrade & Compatible with PCAN FD IPEH-004022

PCAN-FD C+ 12Mb/s High-End CAN FD Adapter for Firmware Upgrade & Compatible with PCAN FD IPEH-004022

Advantages:
- PCAN FD C PLUS special edition
- High-end FPGA solutions
- Software-controllable terminal resistor
- Firmware upgrade is supported
- Supports 12Mb/s full load stable communication
- Error frame and load rate measurements are supported
- Firmware OTA updates are supported

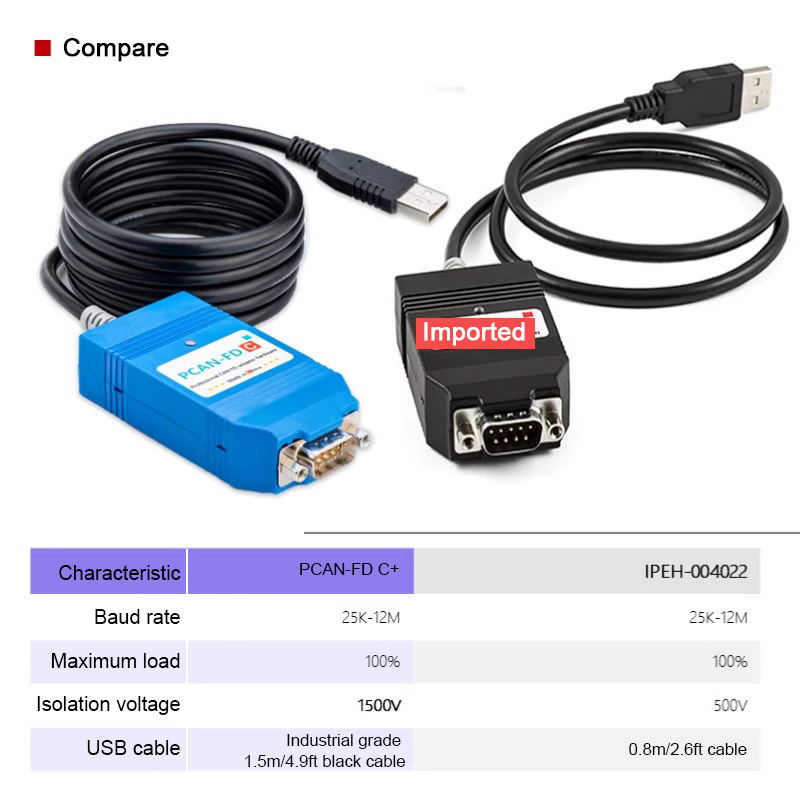

- Alternative to IPEH-004022

Description:

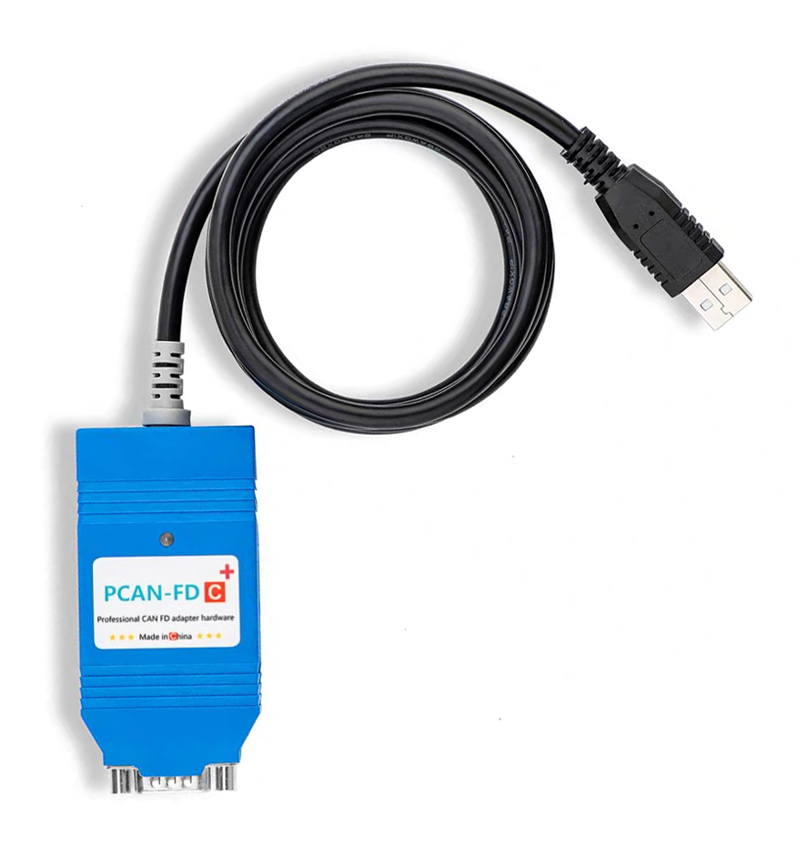

PCAN-FD C+ adapter allows easy connection to a CAN network. Its compact plastic housing makes it suitable for mobile applications. Opto-decoupling isolation guarantees up to 1500V of galvanic isolation between the PC and the CAN terminal, protecting your PC from electrical interference and static electricity in complex working environments.

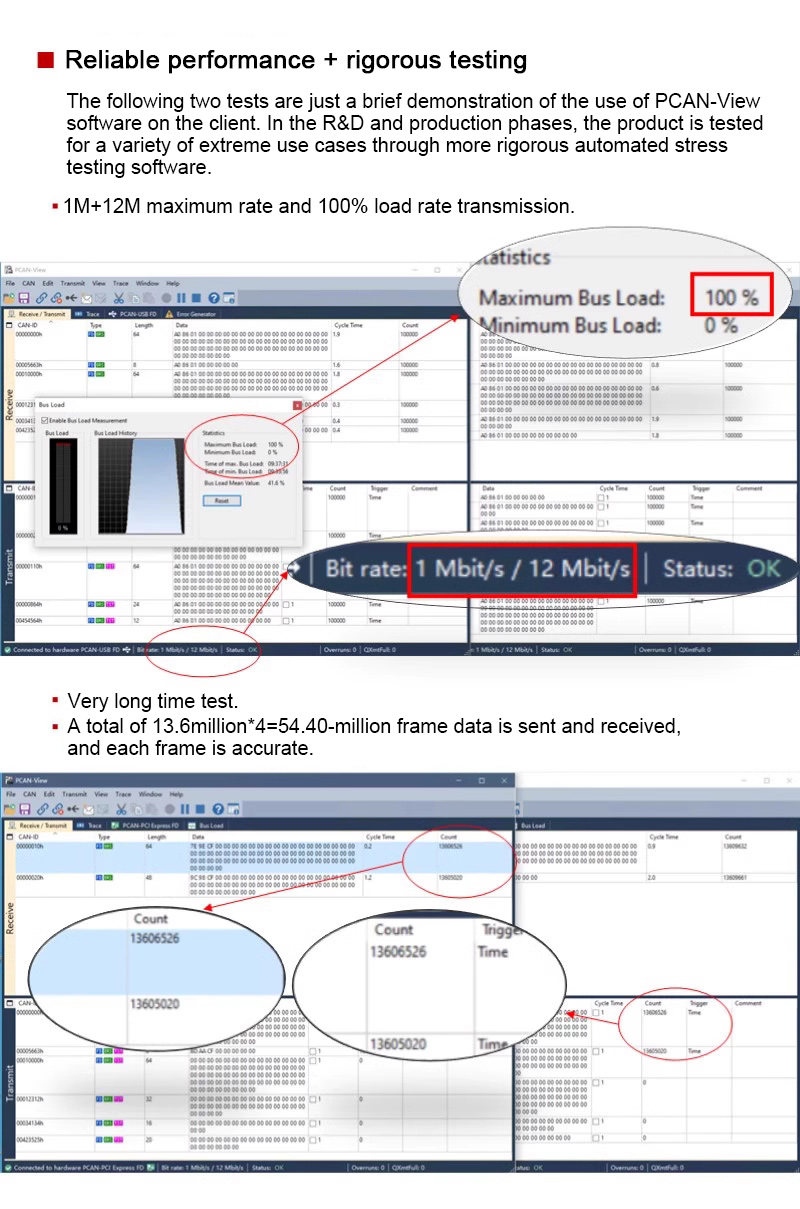

The software package for this product also provides Windows CAN monitor PCAN-View and the programming interface PCAN-Basic. The device drivers support different operating systems, so the program can easily access the connected CAN bus.

Features:
- Supports USB: full speed mode. Compatible with USB1.1, USB2.0 and USB3.0
- Supports high-speed CAN connection (ISO 11898-2)

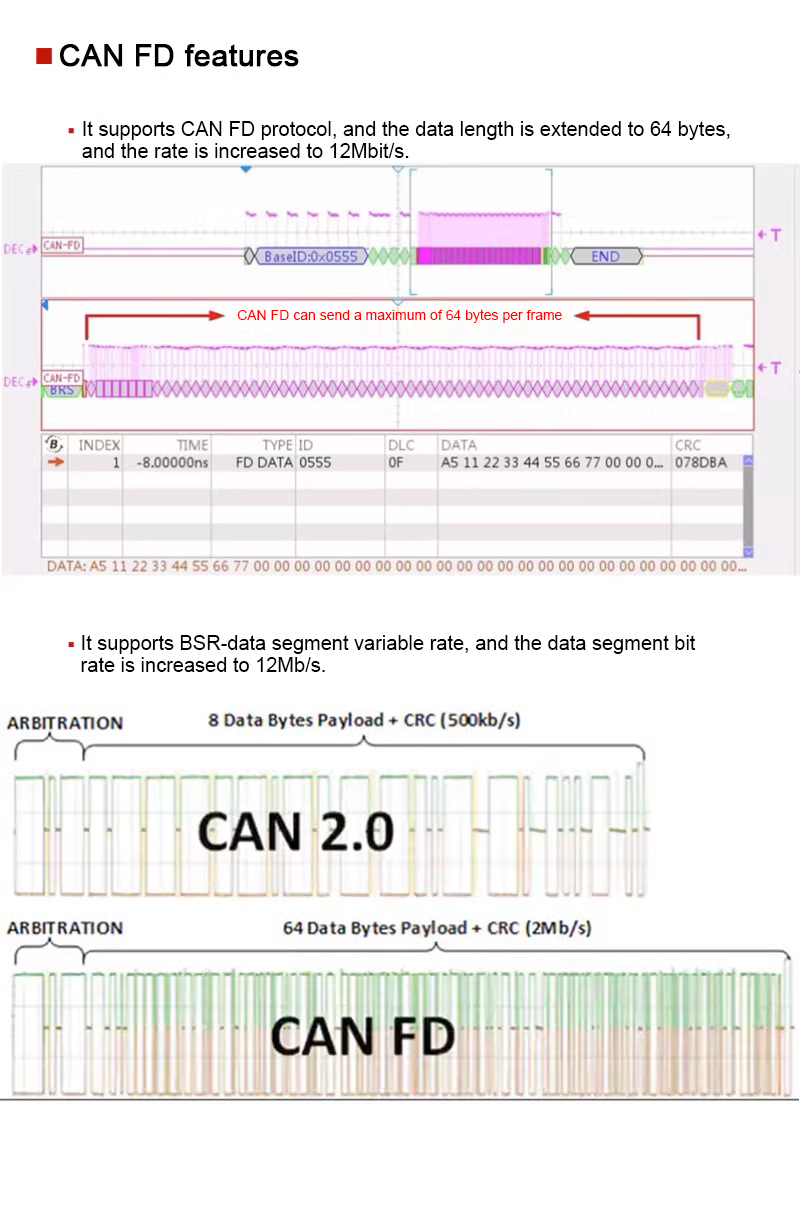

- Supports bit rate adjustment: 25Kbit/s~12Mbit/s
- Timestamp resolution is approximately 1 μs
- Compatible with CAN 2.0A (11-bit ID) and 2.0B (29-bit ID)

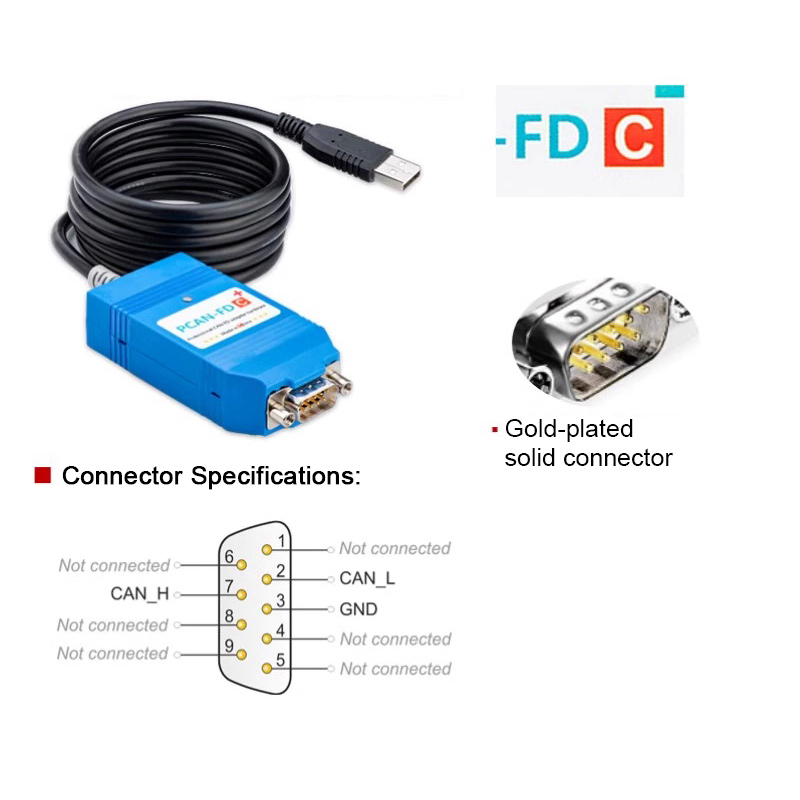

- CAN bus connection via 9-pin D-Sub connector (according to CiA 303-1)
- CAN galvanic isolation up to 1500V

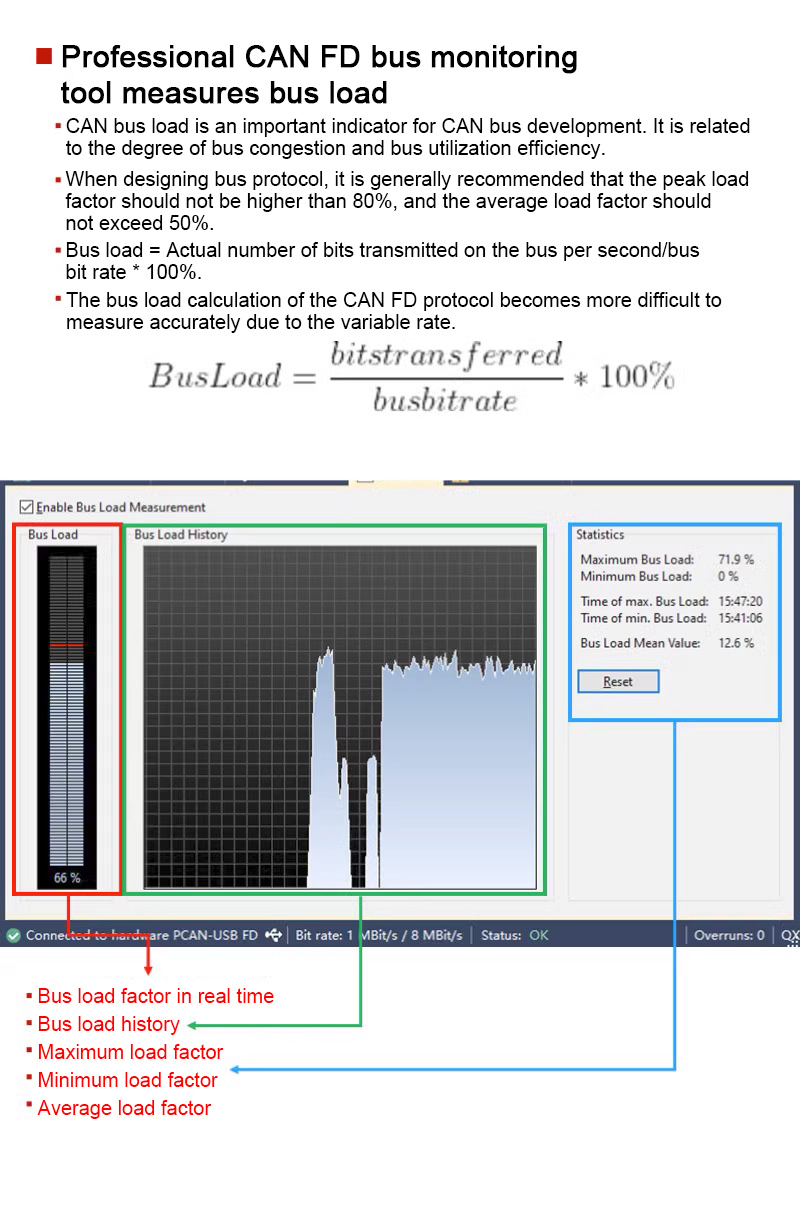

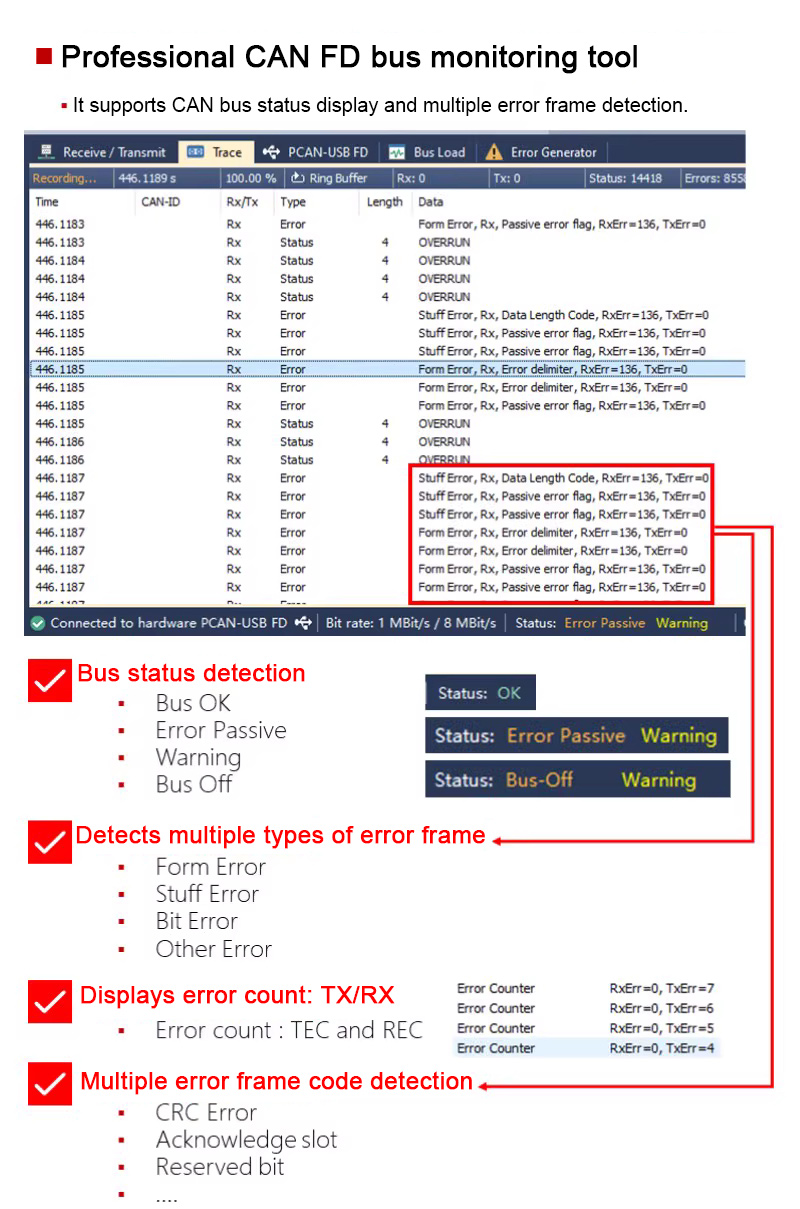

- It supports bus load measurement, error frame detection and bus status monitoring
- Supports for Windows 7, Windows 8.1, Windows 10 and Windows 11
- For Linux system. The kernel for Linux has integrated PCAN driver (SocketCAN)
- Supports for MacOS (MacCAN)
- Supports firmware update and software-controllable terminal resistor
- Supports firmware OTA upgrade/resistor configuration: Equipped with easy-to-use configuration/upgrade tools. Supports firmware version query upgrade and built-in terminal resistor configuration
- One-year warranty

Supports Multiple Operating Systems and Platforms:
1. For Windows: PCAN-Basic provides more features and extended language support. It offers a variety of features for developers under C++, C#, C++/CLR, Delphi, VB.NET, Java and Python 3.x.

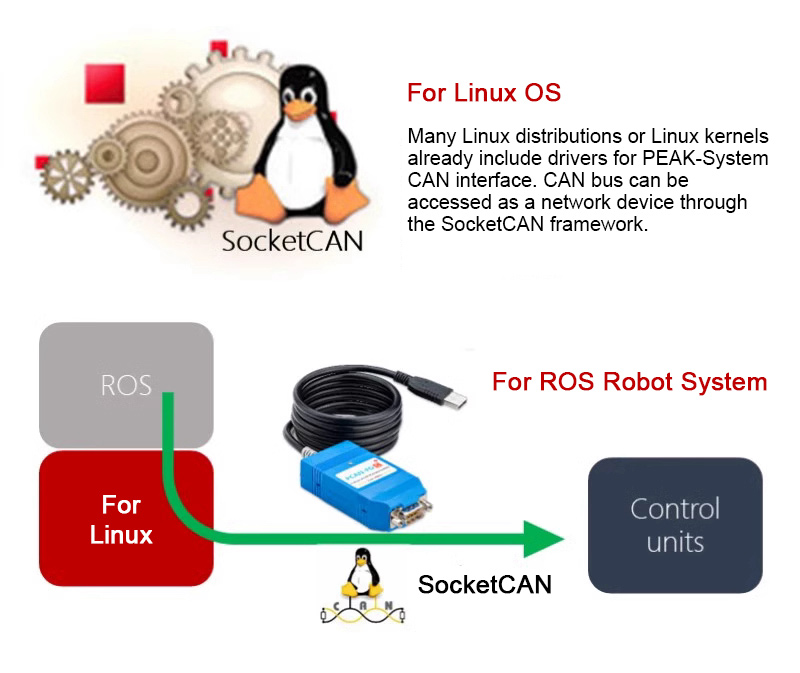

2. For Linux operating systems: Many Linux distributions or Linux kernels already include drivers for PEAK-System CAN interface. CAN bus can be accessed as a network device through the SocketCAN framework.
3. Supports ROS robot system.
4. For MacOS operating system: PCAN-USB library program and monitoring software for MacOS are provided, and CAN can be accessed through this product under MacOs.

Professional Automotive Bus Development Tool:
1. For PCAN-Explorer: Professional Windows software for communication with CAN bus.
2. For PCAN-Trace: It enables CAN messages to be quickly recorded and even played back on the CAN bus.
3. For BusMaster & TSMaster: It supports for ETAS and TOSUN bus development and simulation software (installation package provided).

Standard Industry Software Programming Interface:

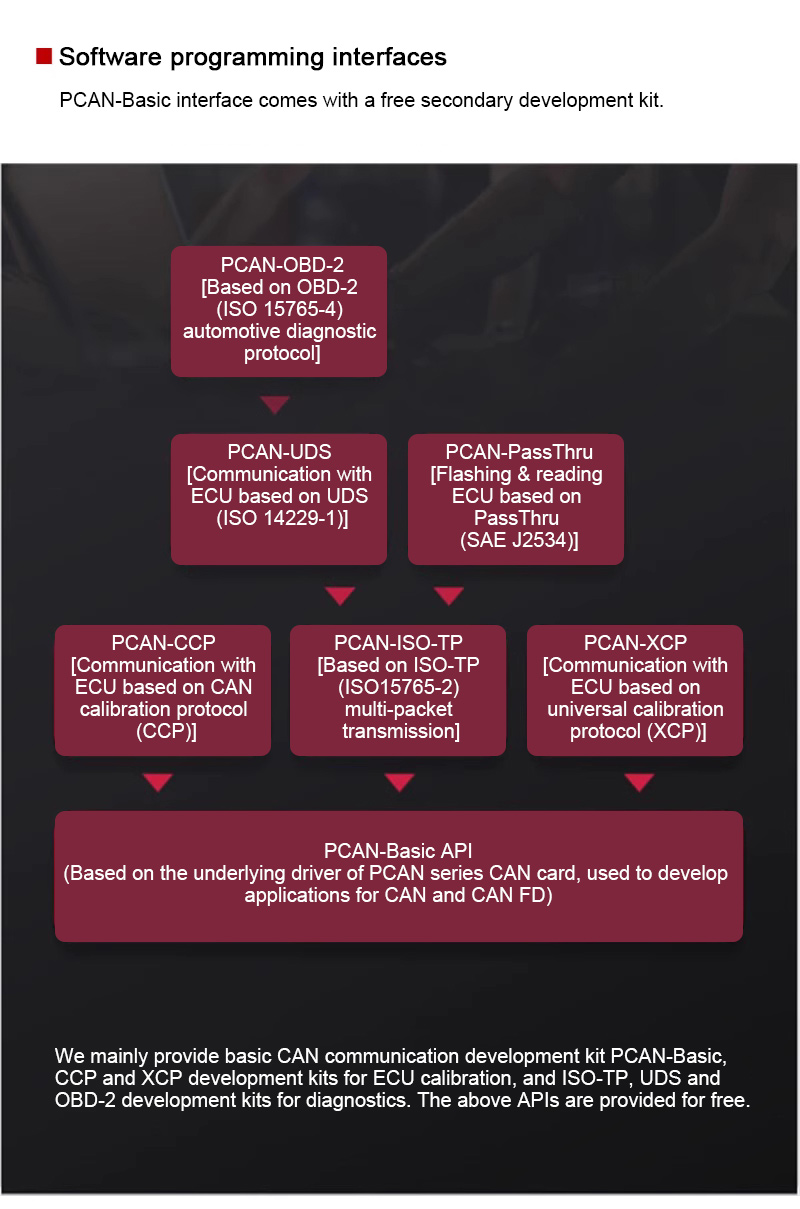

1. PCAN-Basic: It provides more features and extended language support. It offers a variety of features for developers under C++, C#, C++/CLR, Delphi, VB.NET, Java and Python 3.x.
2. For Linux operating systems: Many Linux distributions or Linux kernels already include drivers for PEAK-System CAN interface. CAN bus can be accessed as a network device through the SocketCAN framework.
3. For MacOS operating system: PCAN-USB library program and monitoring software for MacOS are provided, and CAN can be accessed through this product under MacOs.
4. For Labview: Provides sub-VI interface and example VI of Labview that supports PCAN devices.

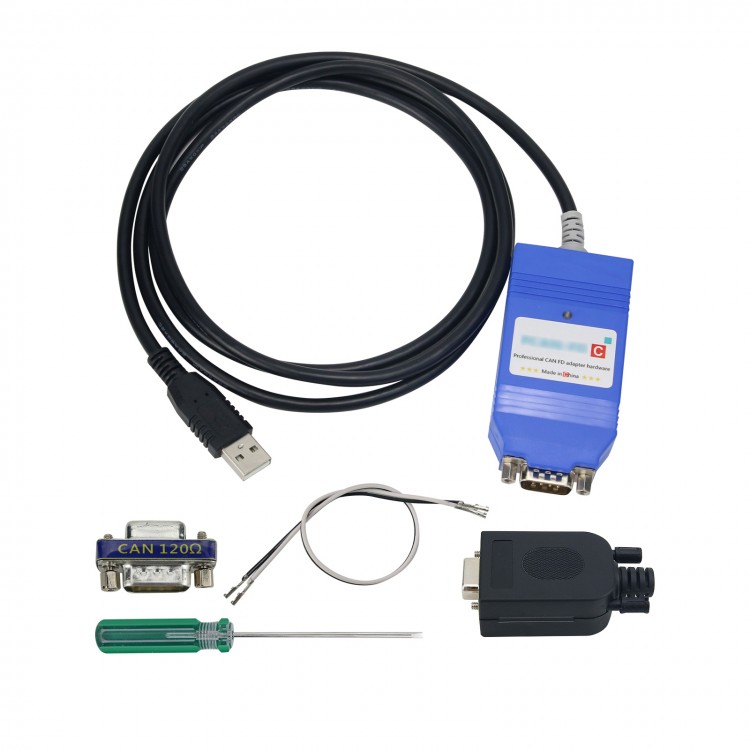

Package Included:
- 1 x CAN FD adapter
- 1 x Terminal resistor
- 1 x Flat-blade screwdriver
- 2 x Wires
- 1 x DB9 terminal block adapter

Packaging Details:
- G.W.: 0.7kg
