Description:
There is no 120 ohm termination resistor configured in the PCAN FD by default. This product is equipped with an external DB9 interface 120 ohm resistor

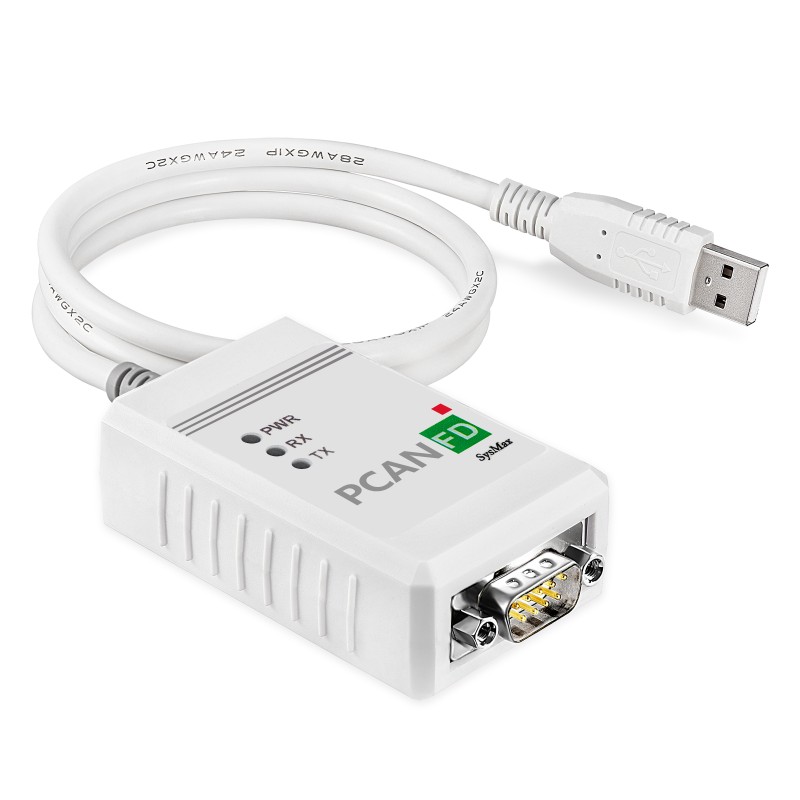

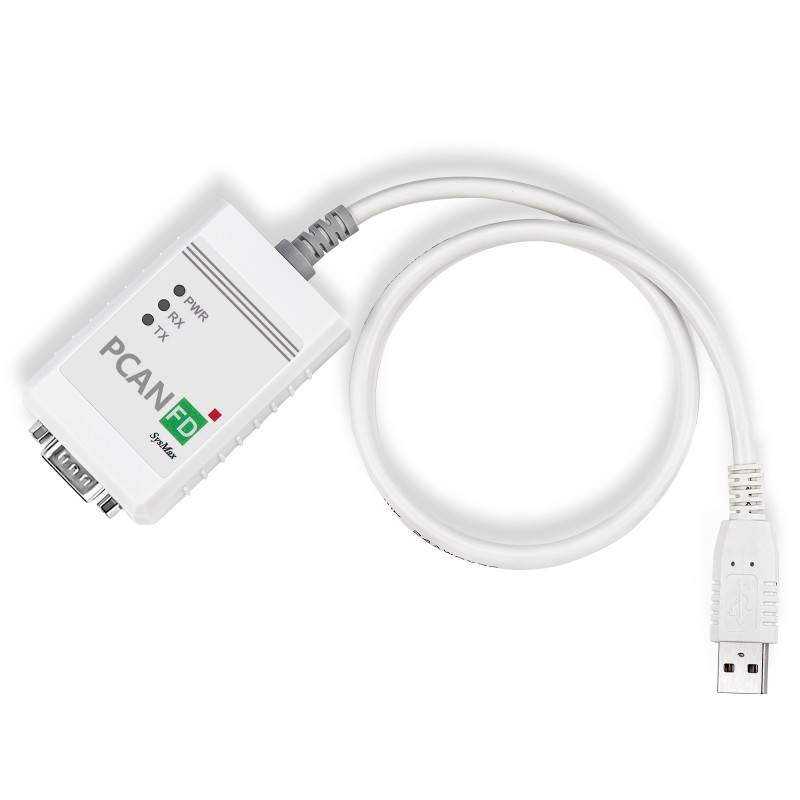

The CAN FD adapter PCAN-USB FD can connect CAN FD and CAN network to a computer via USB.

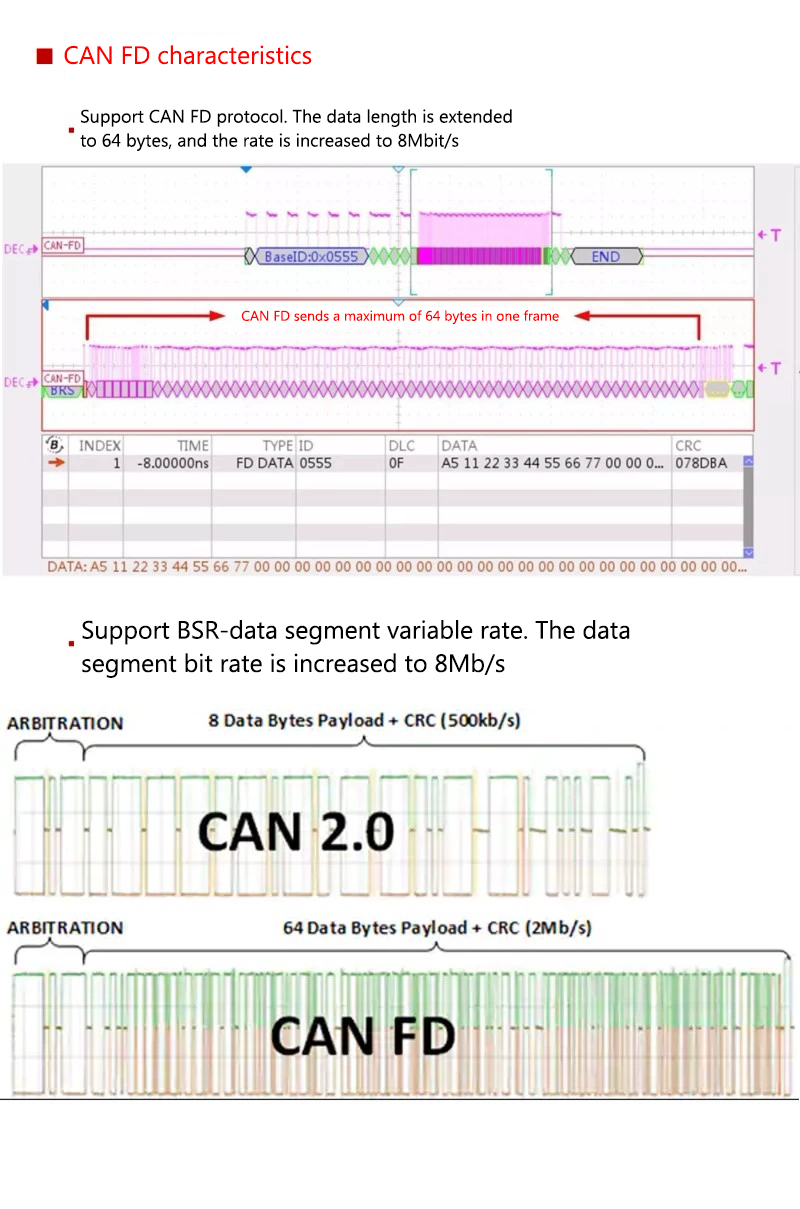

The main feature of the new CAN FD standard (CAN with Flexible Data Rate) is the higher data transmission bandwidth. A maximum of 64 data bits per CAN FD frame (instead of the current 8 bits) can be transmitted at 8Mbit/s bit rate. CAN FD is backward compatible with the CAN 2.0A/B standard, so CAN FD nodes can be used in existing CAN networks.

Technical Specifications:
- Support USB (full speed mode, compatible with USB1.1, USB2.0, USB3.0)
- Supports high-speed CAN connection (ISO11898-2) and CAN FD (supports ISO and non-ISO switching)

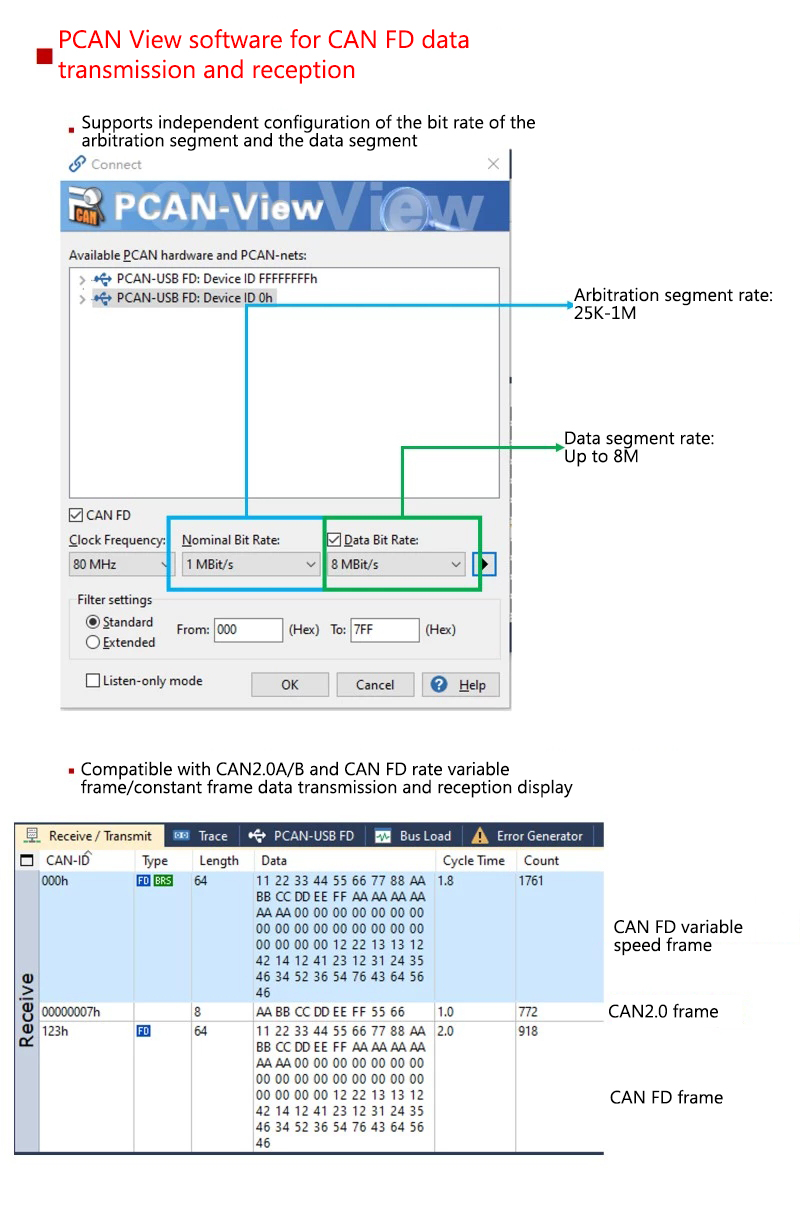

- Support bit rate adjustment: 25Kbit/s~8Mbit/s
- Timestamp resolution: about 1 μs
- Compatible with CAN 2.0A (11-bit ID) and 2.0B (29-bit ID)

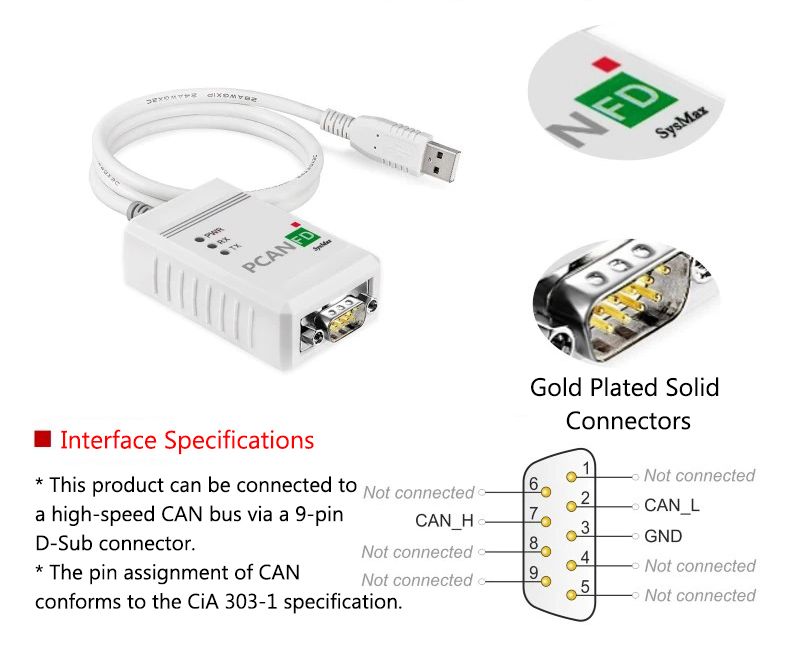

- CAN bus connection via 9-pin D-Sub interface (according to CiA 303-1)
- CAN electrical isolation up to 1500V

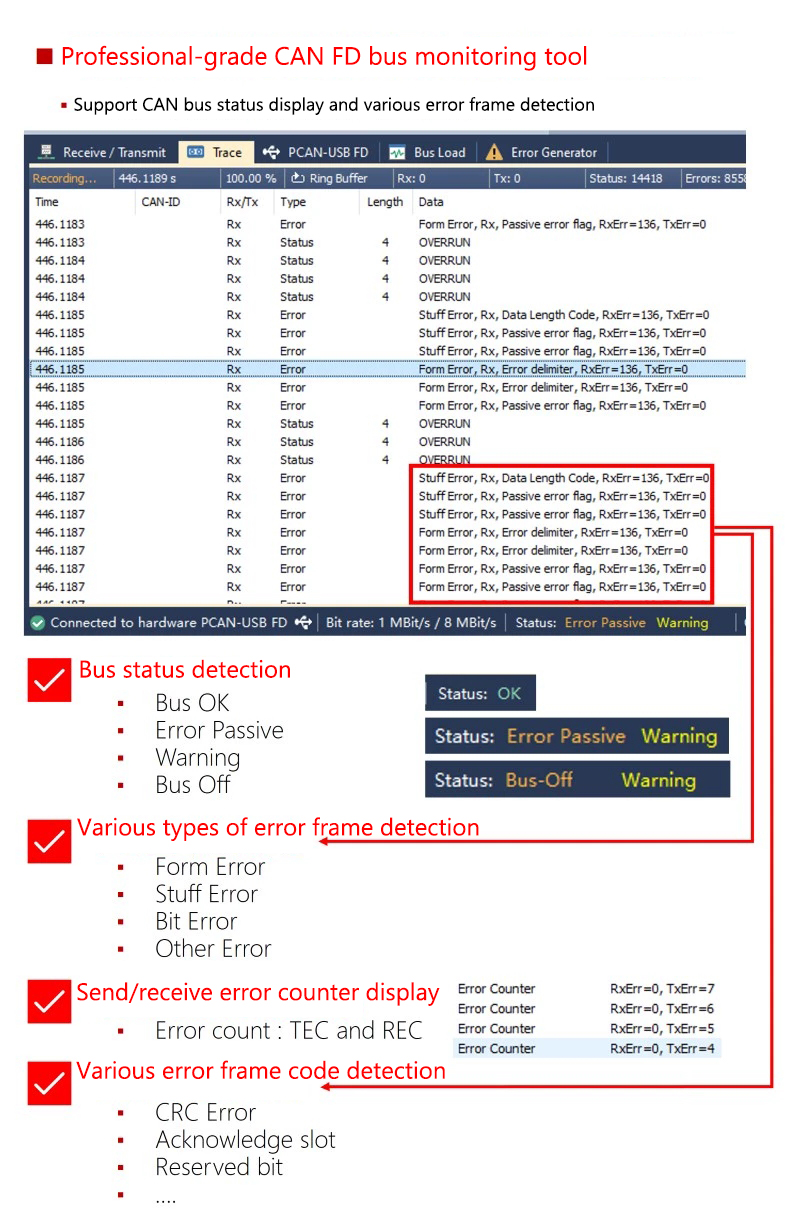

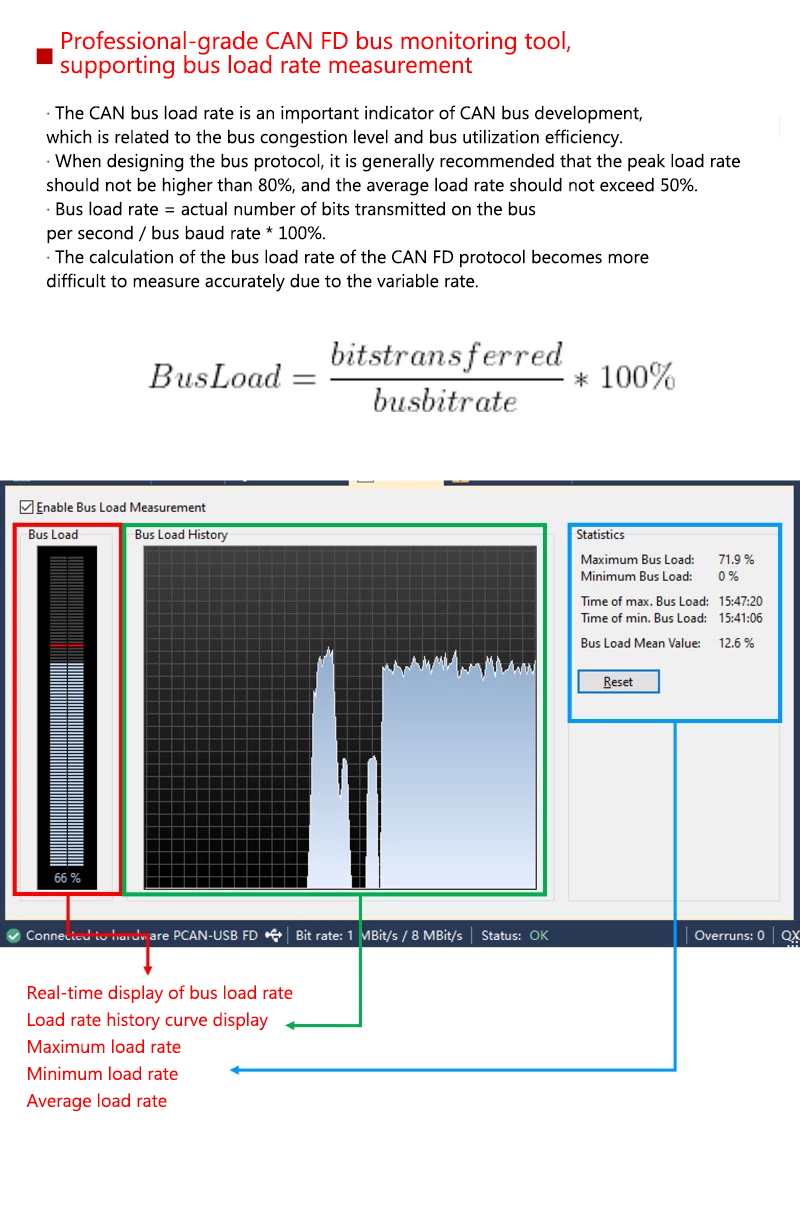

- Supports bus load measurement. Supports error frame detection and bus status monitoring
- For linux system, the kernel of which has integrated driver (Socket CAN)
- For MacOS (MacCAN)

More Information:
- Professional vehicle bus development tool: For PCAN-Explorer. A professional software for communication with CAN bus for Windows
- For PCAN-Trace: It enables CAN messages to be quickly recorded, saved and even played back on the CAN bus.
- For BusMaster and TSMaster: Support bus development and simulation software for ETAS and Tongxing (installation package provided)
- Standard industry software programming interface: PCAN-Basic provides more functions and extended language support. It provides various functions for developers under C++, C#, C++/CLR, Delphi, VB.NET, Java and Python 3.x.
- For Linux operating system: Many distributions, or kernels for Linux, already include drivers for PEAK-System's CAN interface. Supports access to the CAN bus as a network device via the framework for SocketCAN
- For MacOS operating system: Provide PCAN-USB library program and monitoring software for MacOS, you can access CAN through this product for MacOS
- For Labview: Provides sub-VI interfaces and example VIs of Labview that support PCAN devices
- Extensive industry application and software support: Diesel, Natural Gas - Commercial Engine SERVICES. Provides RP1210 driver for PCAN; Can be used for Cummins ECU diagnosis - flashing
- INCA: Provides XCP and CCP protocol drivers for PCAN; supports INCA ECU diagnostics - flashing
- For Woodward: OH6 Gas ECU Diagnostics - Flashing (for Win10 only)

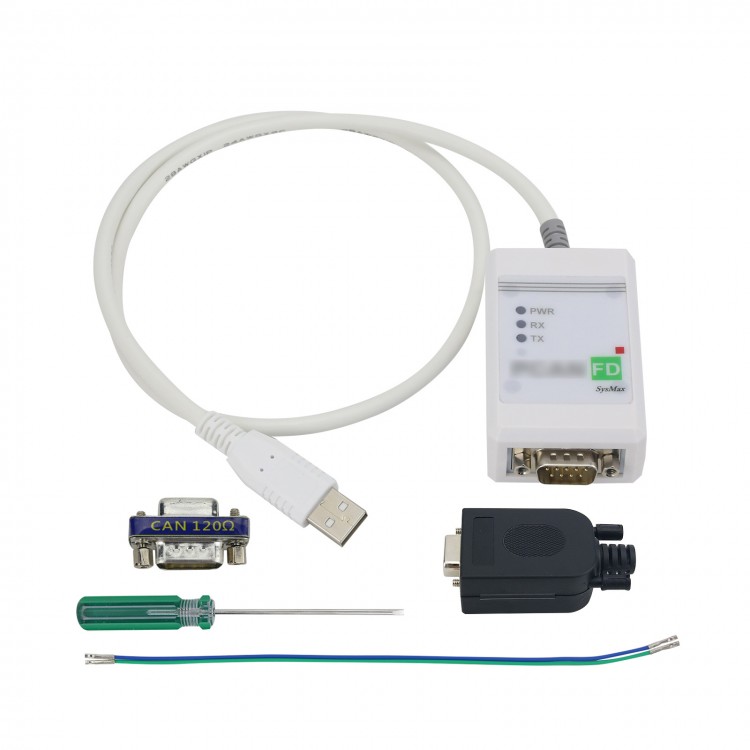

Package Included:
- 1 x CAN FD Analyzer
- 1 x DB9 Terminal Adapter
- 1 x Screwdriver

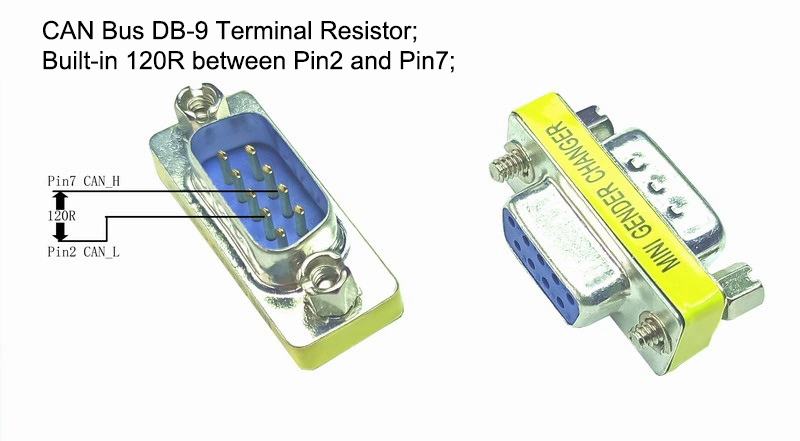

- 1 x Terminal Resistor (120Ω)
