| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $60.07 | $58.85 | $57.01 | $54.56 | Contact US |
PCAN C Plus PCAN C+ CAN Adapter PCAN USB Adapter (with Imported Scheme) Compatible with IPEH-002022
$102.11
OBD II Simulator ECU Simulator w/ 2.4" TFT Screen (Values Change Automatically & for J1939 Protocol)
$150.33
OBD II Simulator ECU Simulator 2.4" Screen (7 Conventional Protocols & Values Change Automatically)
$136.73

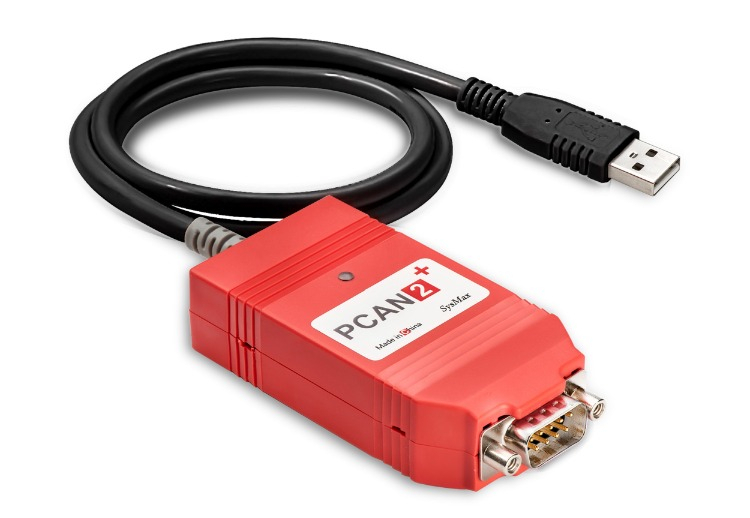

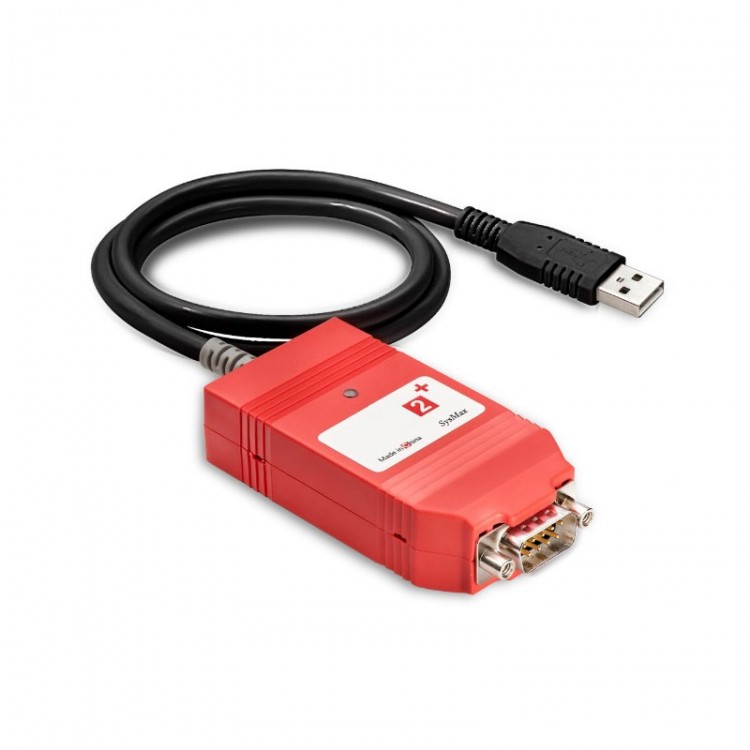

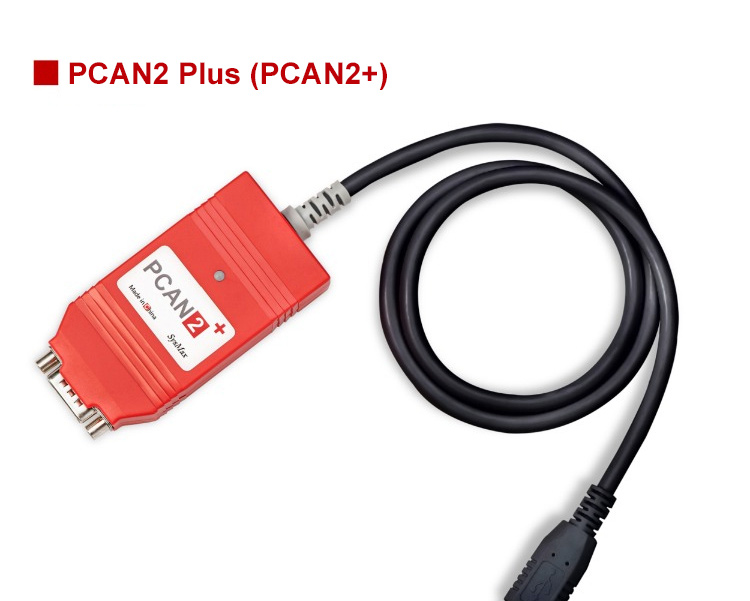

PCAN2 Plus PCAN2+ CAN Adapter PCAN USB Adapter (with Chinese Scheme) Compatible with IPEH-002022
Description:
The PCAN series adapters can be easily connected to CAN networks. Its compact plastic housing makes it suitable for mobile applications. Optocoupler isolation guarantees galvanic isolation of up to 1500V between the PC and the CAN side, protecting your PC from electrical interference and static electricity in complex working environments.
The software package for this product also provides the Windows CAN monitor PCAN-view and the programming interface PCAN-Basic. The device driver supports different operating systems, so the program can easily access the connected CAN bus.
Technical Specifications:
- Supports USB (full-speed mode, compatible with USB1.1, USB2.0, USB3.0)
- Supports high-speed CAN connection (ISO 11898-2)
- Supports bit rate adjustment: 5Kbit/s~1Mbit/s
- Timestamp resolution: Approx. 42μs
- Compatible with CAN 2.0A (11-bit ID) and 2.0B (29-bit ID)
- CAN bus connection via 9-pin D-Sub connector (CiA 303-1 compliant)
- CAN galvanic isolation up to 1500V
- Supports for Windows 7, Windows 8.1, Windows 10 and Windows 11
- Supports for Linux system and Linux kernel has integrated PCAN driver (Socket CAN)
- Supports for MacOS (MacCAN)
Package Included:
- 1 x PCAN2 Plus CAN adapter with plastic housing
- 1 x DB9 terminal adapter
Packaging Details:
- Weight: 0.35kg
Note:
- PCAN is not configured with a 120-ohm terminal resistor by default.
