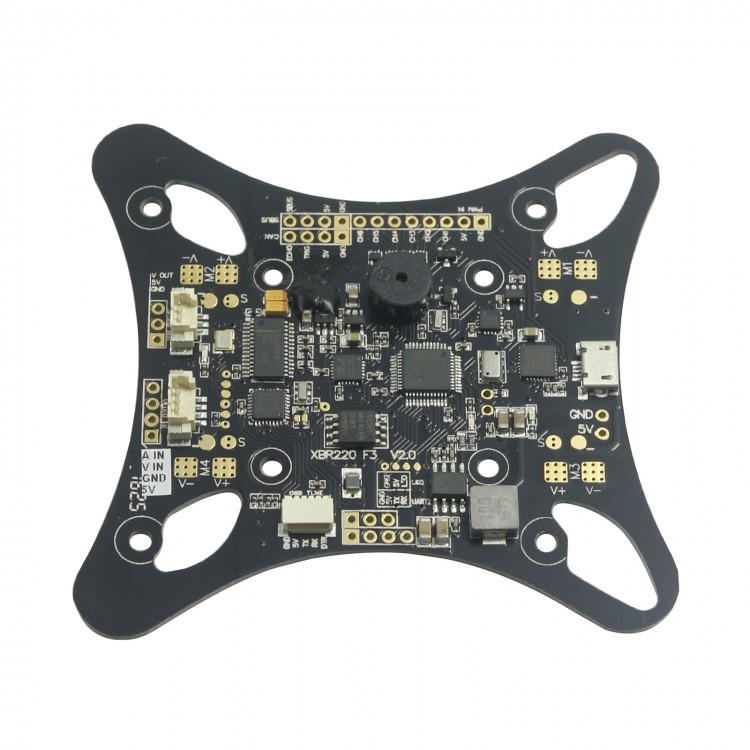

PCB Board Integrated F3 Flight Control OSD UBEC Power Distribution Board for FPV Quadcopter Drone
Description:
DYS release a board with clean flight with power distribution board finally for XBR220 racer
Feature:
- F3 Flight control, OSD, UBEC and the power distribution board to integrated into a PCB board, with a debug function and can easy work with more quadcopters, minimize the difficulties in installation and debugging.
- PCB board is with multi-layers copper foil,solder pad, what is easy to minimize the interference, can take more current.
- The PCB board is easy to upgrading the firmware because it is with connectors of the F3 clean flight, OSD upgraded turnning.
- F3 clean flight is with more connectors, and convenient for pilots to expand peripherals.
- The function setting is with base edition,advanced edition and advanced integrated with pressure sensor and compass.
Specification：
- Item name: XDRF3
- Size: 82.14*27*15
- Weight: 22.18g
- Input Voltage:6-16.8V(2-4S)
- Output Voltage:5V/3A
- SPRacingF3 Version：1.12.0
- MW OSD Version：R1.6
Package included:
- 1 *PCB Board
