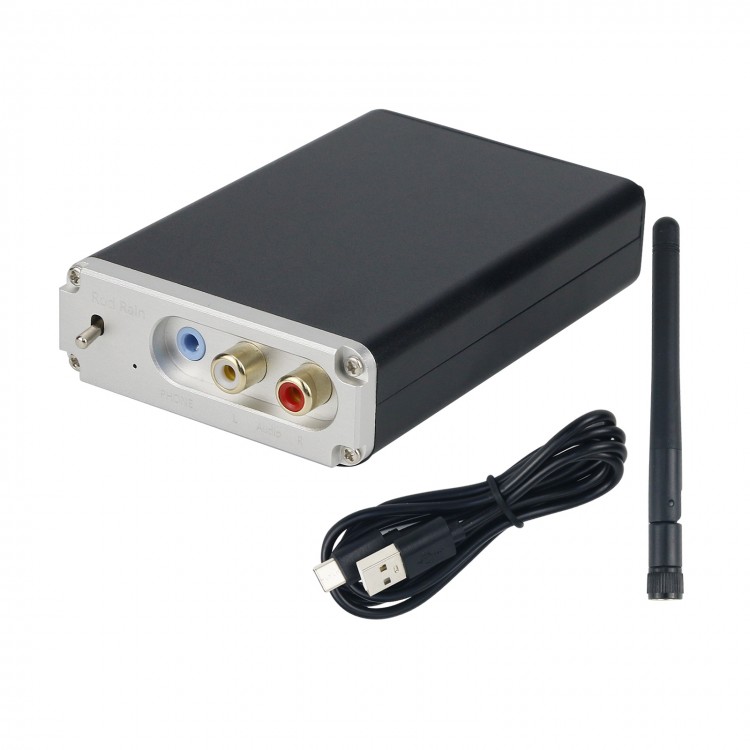

PCM1794 DAC Bluetooth 5.1 QCC5125 Silver Front Panel 5532DD + 5534DD Op Amp For LDAC USB Decoding
Extreme Version:
- PCM1794 + QCC5125 Bluetooth 5.1
- Upgradable op amp
- Support for LDAC, APTX-ADAPTIVE, etc.
- Dual 5532DD + dual 5534DD
- Without volume knob
- Can be powered by USB 5V
- Compatible with DC 6-24V
- Design bias towards in-line
- With relay protection for Omron
- Bluetooth pairing password: 0123
Features:
- Bluetooth 5.1 QCC5125 and PCM1794 decoding
- With original relay protection circuit for Omron. Turn-on delay is closed. Shut down instantaneously, eliminating impact sound
- Op amps can be replaced and upgraded
- Can be powered by 6V DC (for example, using a DC 6V power supply), or by USB 5V (using a mobile phone charger)
- Internal boost is dual 14V power supply
- Type-C port can be used as a 5V socket. It can also works as an USB sound card to your computer
- QCC5125 Bluetooth 5.1 supports for SBC, AAC, APTX, APTX-LL, APTX-HD, LDAC and APTX-ADAPTIVE encoding
- Improved circuit design and selected components including capacitors for Nichicon, for WIMA and gold-plated socket for Nextron
- Professional welding ensures its quality
Specifications:
- Brand: Rod Rain Audio
- Type: Bluetooth 5.1 QCC5125 + PCM1794 decoder
- Whole machine power: Power consumption 3W
- Power supply: DC port 6V (such as router power supply), or USB power supply
- Impedance: output standard RCA and impedance 47K. Can drive 300 ohm headphones
- Product size: approx. 75 x 23 x 120mm/3 x 0.9 x 4.7"
- N.W.: 160g/0.4 lb
Package Included:
- 1 x Semi-Finished DAC
- 1 x Antenna
- 1 x USB Cable
Attention:
5pcs filter capacitors are available in FW version or SMD version. The imported capacitors are delivered at random, which will not affect the quality. Please make sure that you don't mind before purchasing. Thank you!
