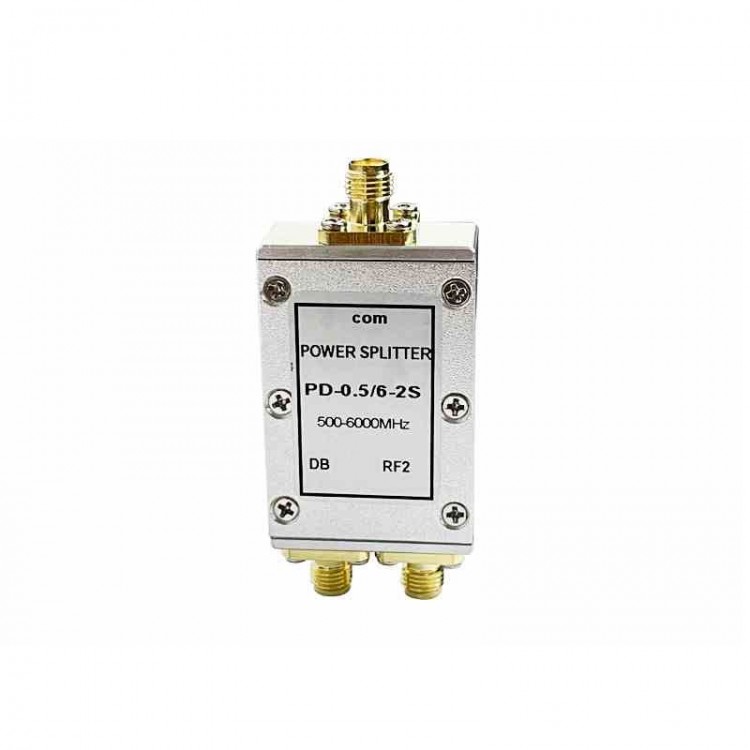

PD-0.5/6-2S 500-6000MHz 2-Way RF Power Splitter Power Divider 2.4G 5.8G Combiner (with DC Block)

Features:
- Microstrip power divider with 1 input and 2 outputs
- Designed with SMA connectors
- Low VSWR, low insertion loss and easy installation
- Frequency: 500-6000MHz
- Reliable data and stable performance

Specifications:
- Frequency range: 0.5-6GHz
- Insertion loss (excluding distribution ratio of 3.0dB): ≤1.2dB
- Isolation (dB): ≥14dB (at 500M-800MHz); ≥20dB (at 800M-6000MHz)
- Input VSWR: ≤1.65
- Output VSWR: ≤1.35
- Amplitude balance: ≤0.3dB
- Phase balance: ±5°
- Impedance: 50Ω
- Interface type: Two SMA female connectors
- Power capacity: FORWARD: 10W(AVG.) and 100W(PEAK); REVERSE: 2W (AVG.) and 30W (PEAK)
- Operating temperature: -30°C to +85°C

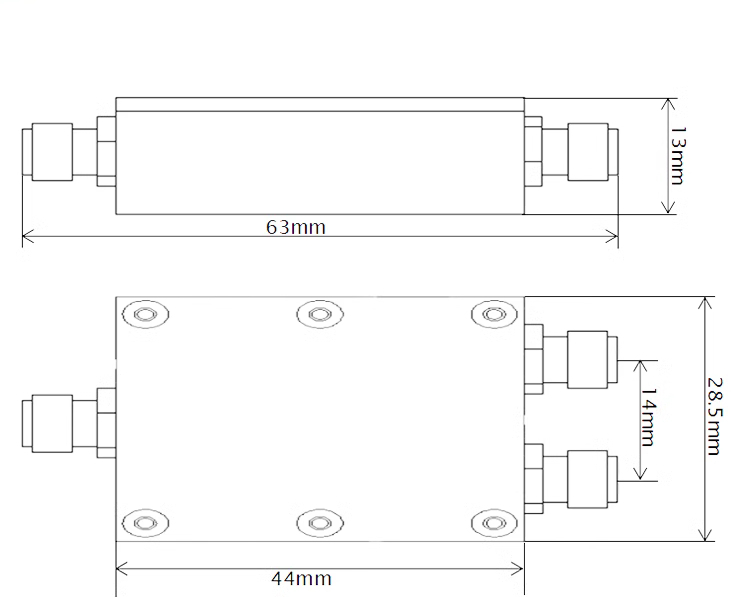

- Dimensions: 63mm x 28.5mm x 13mm/2.5" x 1.1" x 0.5"

Package Included:
- 1 x Power Splitter

Packaging Details:
- Weight: 0.28kg
