• PD-0.5/6-2S 500-6000MHz Power Splitter 2-Way RF Power Divider 2.4G 5.8G Wifi SMA RF Power Combiner

PD-0.5/6-2S 500-6000MHz Power Splitter 2-Way RF Power Divider 2.4G 5.8G Wifi SMA RF Power Combiner

Availability: In stock, usually dispatched in 1 business day

  • Price:$30.83
  • Price in reward points: 308 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $30.21 $29.60 $28.67 $27.44 Contact US
Quantity:

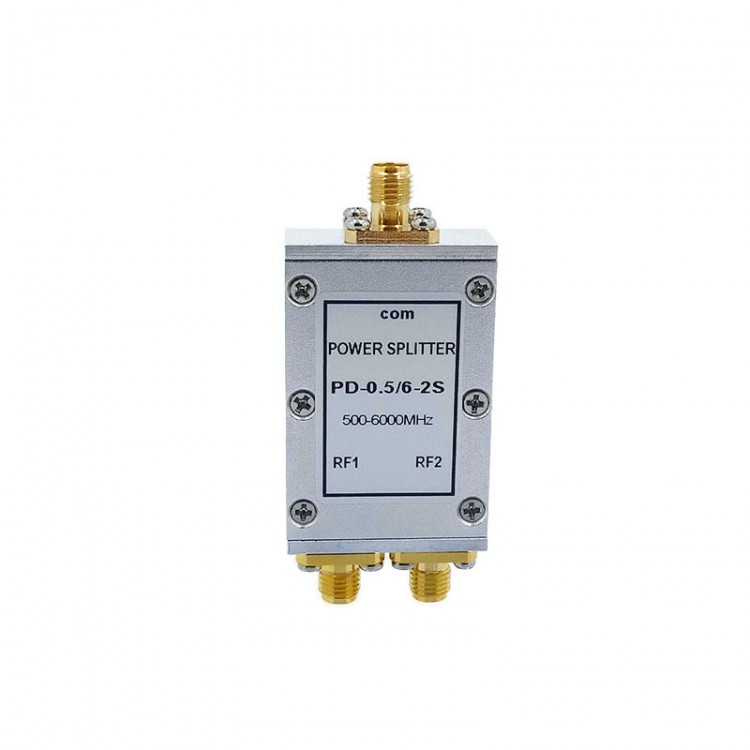

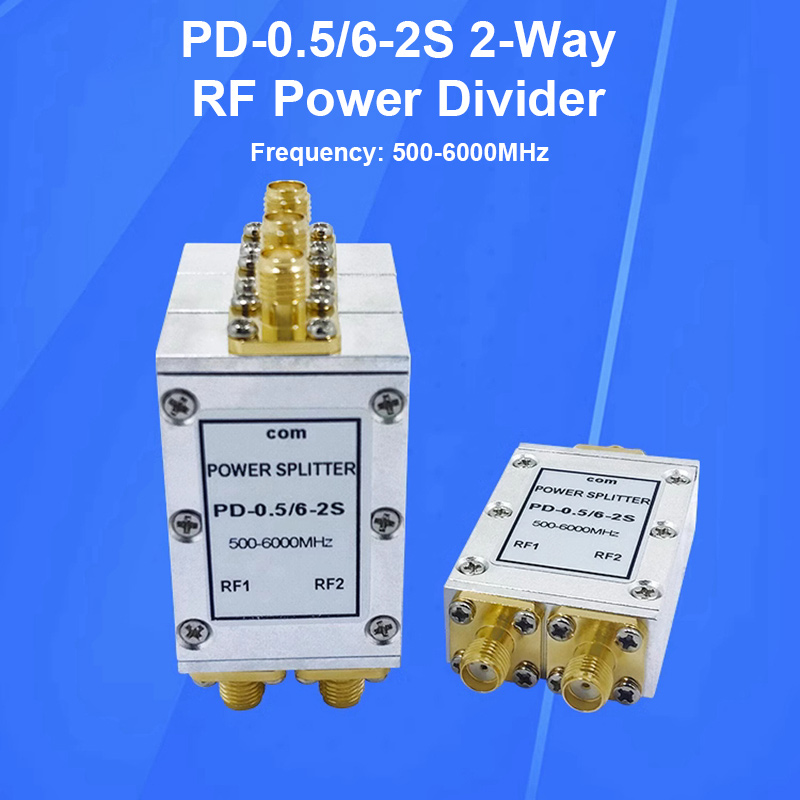

PD-0.5/6-2S 500-6000MHz Power Splitter 2-Way RF Power Divider 2.4G 5.8G Wifi SMA RF Power Combiner

Features:

- 2-way power splitter
- Frequency: 500-6000MHz
- Low VSWR, small insertion loss and easy installation
- Microstrip power divider with SMA connectors
- It has a wide range of applications, covering commonly used frequency bands

Technical Parameters:
- Frequency range: 0.5-6GGHz

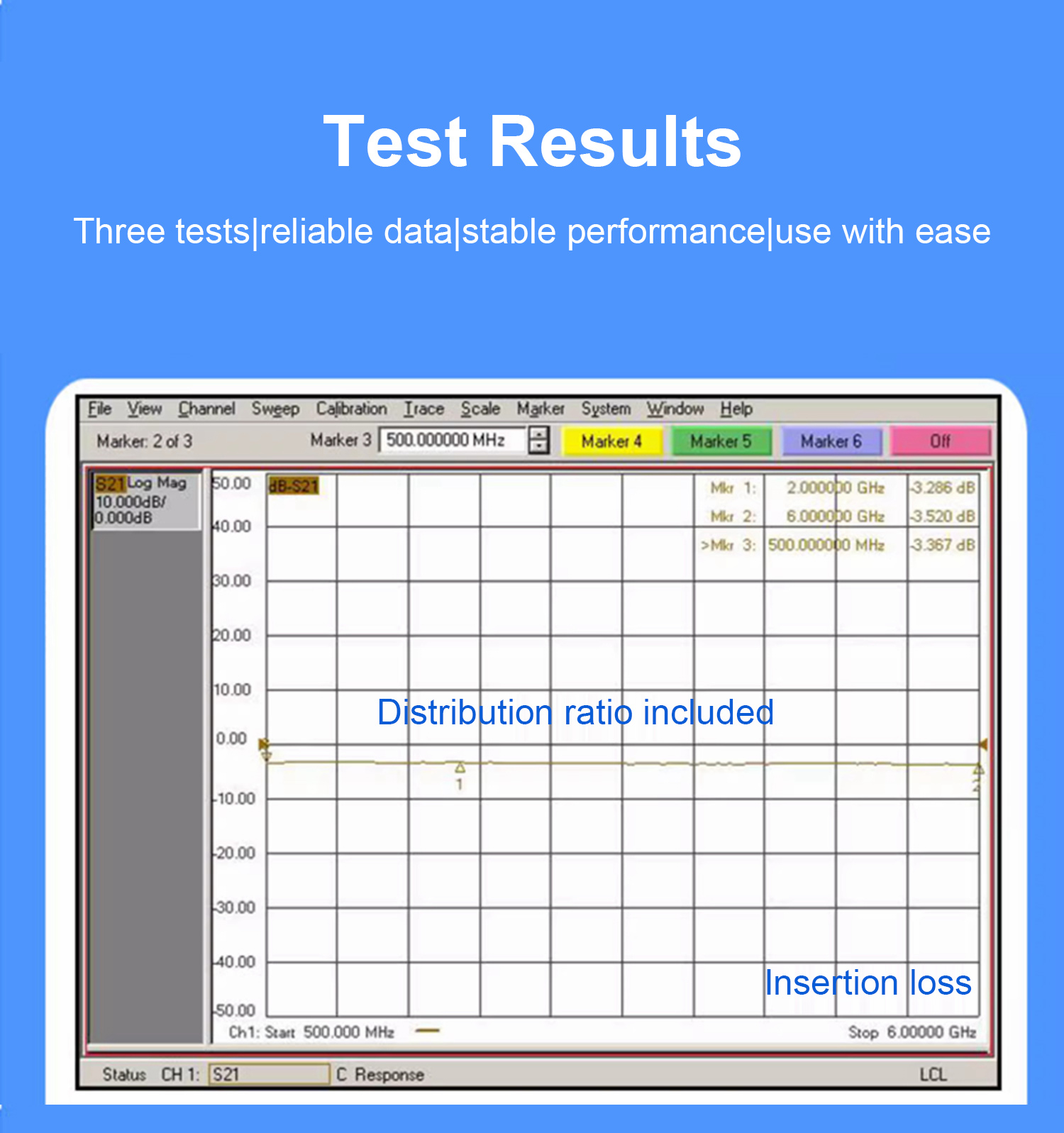

- Insertion loss (including distribution ratio): ≤4.5dB

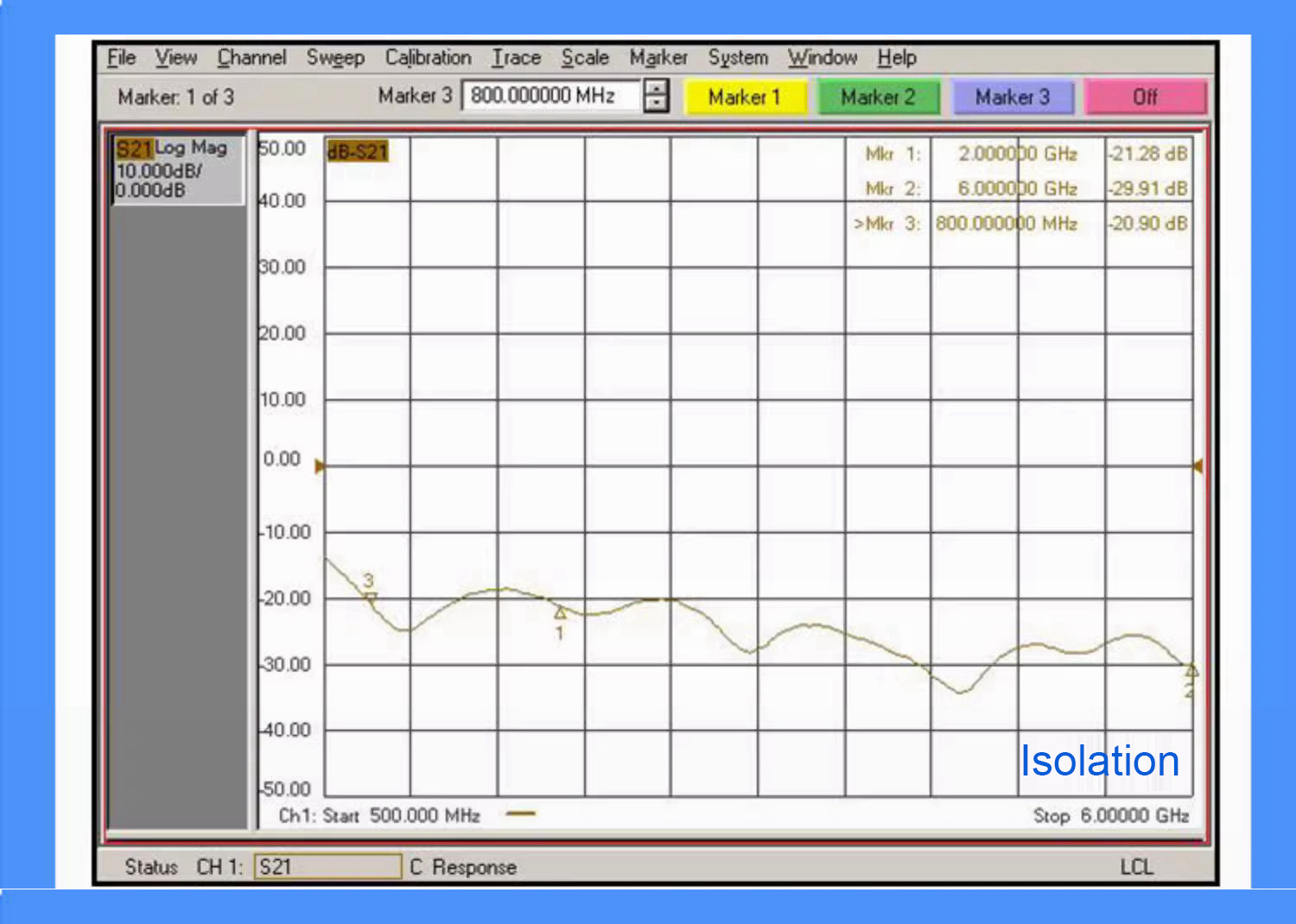

- Isolation: ≥15dB (500M-800MHz); ≥20dB (800M-6000MHz)

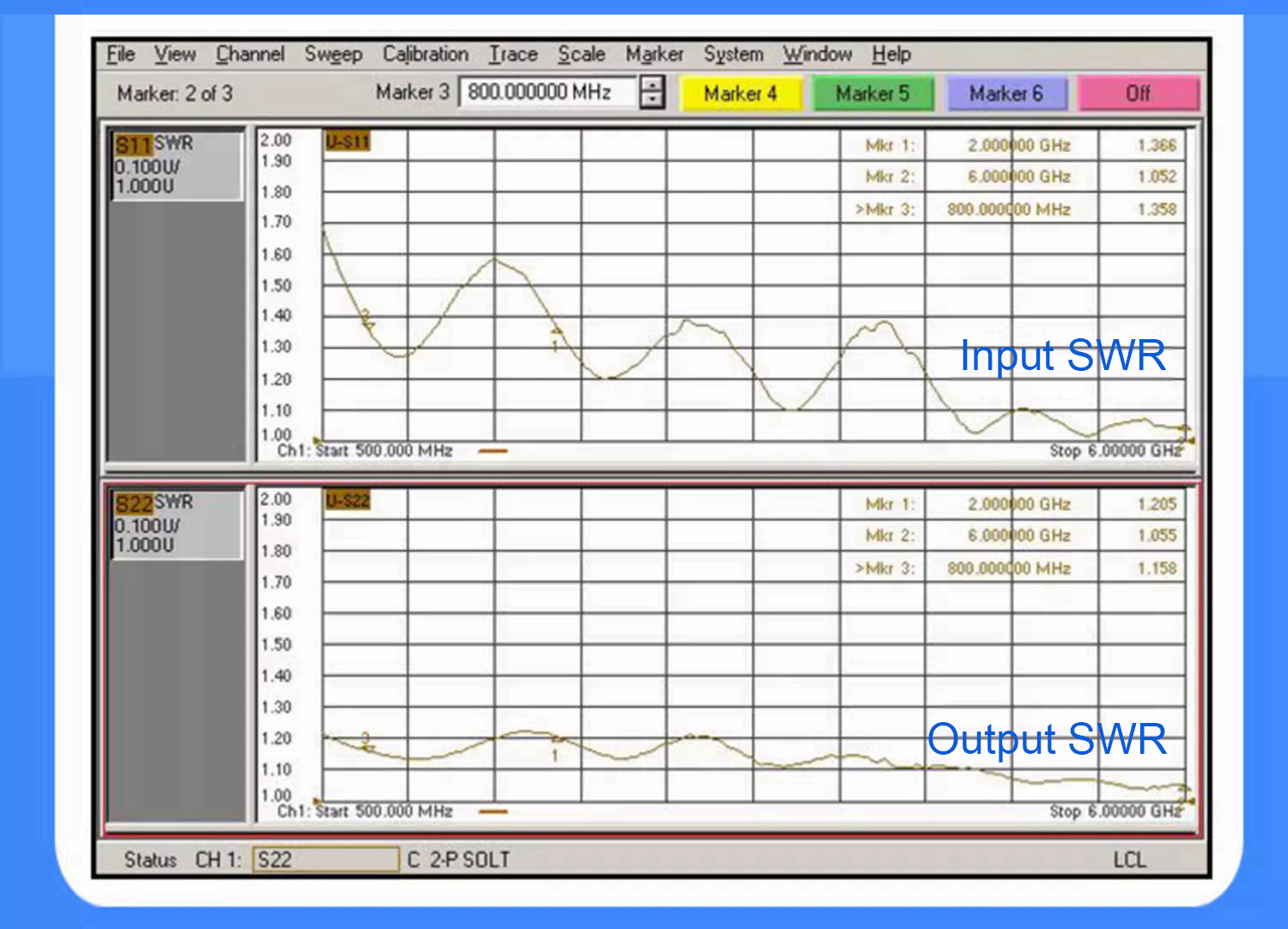

- Input SWR (VSWR): ≤1.65
- Output SWR (VSWR): ≤1.35
- Amplitude balance: ≤0.3dB
- Phase balance: ±5°
- Impedance: 50Ω
- Interface type: SMA-K
- Power capacity: Forward: 10W (AVG.) and 100W (PEAK); Reverse: 2W (AVG.) and 30W (PEAK)
- Operating temperature: -30°C to +85°C

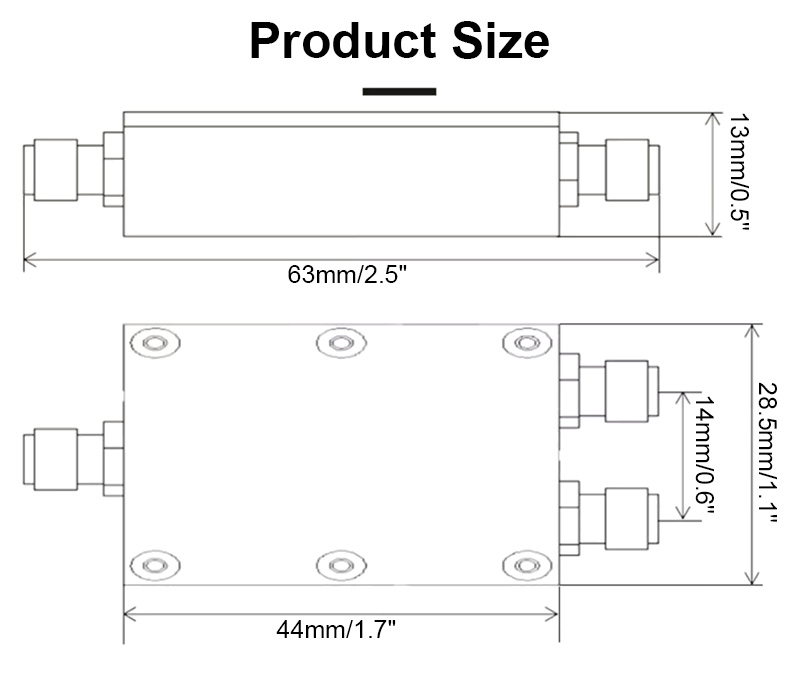

- Dimensions: 44 x 28.5 x 13mm/1.7 x 1.1 x 0.5"

Package Included:
- 1 x Power Splitter

Packaging Details:
- G.W.: 0.2kg
