PD-0.5/6G-4S 500-6000MHz 4-Way Microstrip Power Divider Power Splitter Combiner (without DC Block)

Availability: In stock, usually dispatched in 1 business day

  • Price:$53.80
  • Price in reward points: 538 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $52.72 $51.65 $50.03 $47.88 Contact US
Quantity:
Buy it now Add cart

You might like

PD-0.5/6-2S 500-6000MHz 2-Way RF Power Splitter Power Divider 2.4G 5.8G Combiner (with DC Block)

PD-0.5/6-2S 500-6000MHz 2-Way RF Power Splitter Power Divider 2.4G 5.8G Combiner (with DC Block)

$55.77

(0)
PD-0.5/6G-4S 500-6000MHz 4-Way Microstrip Power Divider Power Splitter RF Combiner (w/ DC Block)

PD-0.5/6G-4S 500-6000MHz 4-Way Microstrip Power Divider Power Splitter RF Combiner (w/ DC Block)

$77.70

(0)
PD-0.5/6-2S 500-6000MHz 2-Way RF Power Splitter Power Divider 2.4G 5.8G Combiner without DC Block

PD-0.5/6-2S 500-6000MHz 2-Way RF Power Splitter Power Divider 2.4G 5.8G Combiner without DC Block

$30.32

(0)
PD-0.6/6-2N 600-6000MHz Power Splitter 2-Way Microstrip Power Divider RF Combiner with N-K Connector

PD-0.6/6-2N 600-6000MHz Power Splitter 2-Way Microstrip Power Divider RF Combiner with N-K Connector

$50.33

(0)
PD-0.5/6-2S 500-6000MHz Power Splitter 2-Way RF Power Divider 2.4G 5.8G Wifi SMA RF Power Combiner

PD-0.5/6-2S 500-6000MHz Power Splitter 2-Way RF Power Divider 2.4G 5.8G Wifi SMA RF Power Combiner

$30.83

(0)
QM-PD056020S 0.5-6G Power Divider 2.4G 5.8G RF Power Splitter 4-Way RF Power Combiner SMA Connector

QM-PD056020S 0.5-6G Power Divider 2.4G 5.8G RF Power Splitter 4-Way RF Power Combiner SMA Connector

$41.13

(0)
PD-2/8-2S 2000-8000MHz 2-Way WiFi Microstrip Power Divider Power Splitter 2-8G RF Power Combiner

PD-2/8-2S 2000-8000MHz 2-Way WiFi Microstrip Power Divider Power Splitter 2-8G RF Power Combiner

$21.04

(0)
PD-2/8-4S 2000-8000MHz Power Splitter 4-Way Microstrip Power Divider with SMA Female Connectors

PD-2/8-4S 2000-8000MHz Power Splitter 4-Way Microstrip Power Divider with SMA Female Connectors

$53.52

(0)

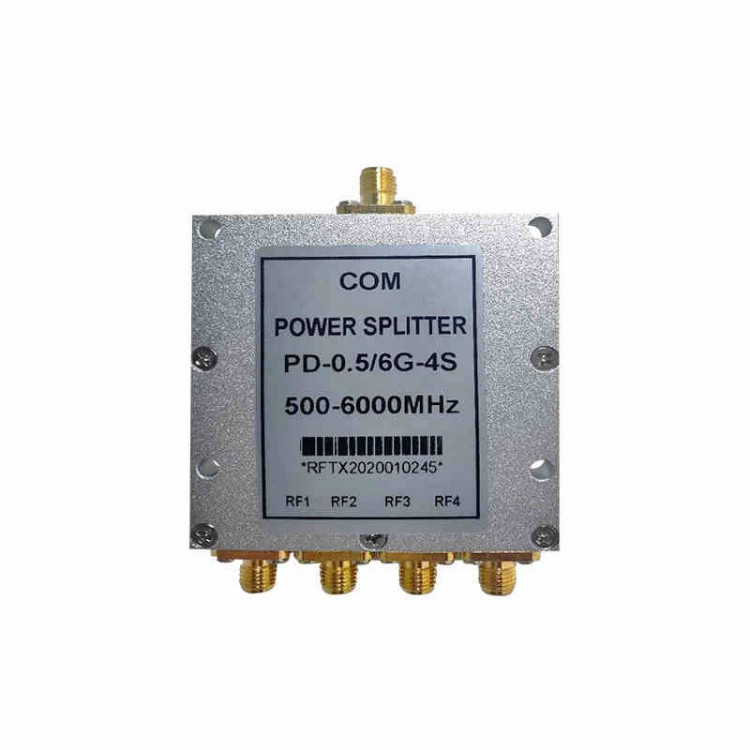

PD-0.5/6G-4S 500-6000MHz 4-Way Microstrip Power Divider Power Splitter Combiner (without DC Block)

Features:
- Microstrip power divider with 1 input and 4 outputs
- Wide frequency, low insertion loss and low VSWR
- With SMA female connectors
- Quality assurance and cost-effective

Technical Parameters:
- Frequency range: 0.5-6GHz
- Insertion loss (excluding distribution ratio of 6.0dB): ≤ 1.5dB
- Isolation: ≥15dB (at 500M-800MHZ); ≥20dB (at 800M-6000MHZ)
- Input VSWR: ≤1.5
- Output VSWR: ≤1.3
- Amplitude balance: ≤0.3dB
- Phase balance: ±6°
- Impedance: 50Ω
- Interface type: SMA-K
- Power capacity:Forward: 10W (Avg.) and 100W (Peak). Reverse: 2W (Avg.) and 30W (Peak)
- Operating temperature: -20°C to +80°C

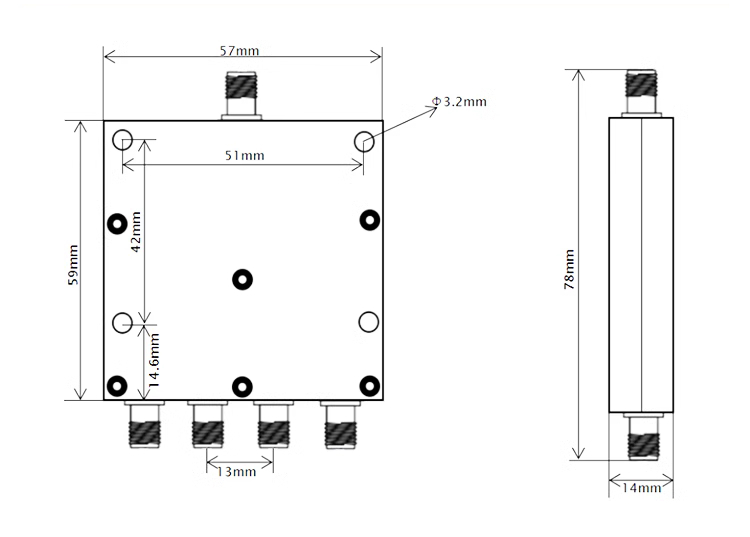

- Dimensions: 59mm x 57mm x 14mm/2.3" x 2.2" x 0.6"

Package Included:
- 1 x Power Splitter

Packaging Details:
- Weight: 0.3kg
