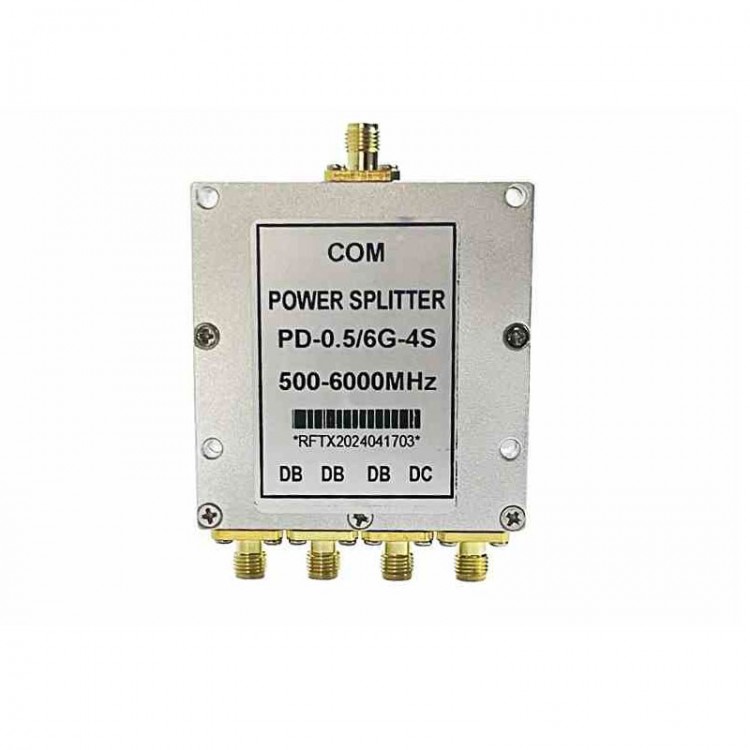

PD-0.5/6G-4S 500-6000MHz 4-Way Microstrip Power Divider Power Splitter RF Combiner (w/ DC Block)

Features:
- Microstrip power divider with 1 input and 4 outputs
- Wide frequency, low insertion loss and low VSWR
- With SMA female connectors
- Quality assurance and cost-effective

Technical Parameters:
- Frequency range: 0.5-6GHz
- Insertion loss (excluding distribution ratio of 6.0dB): ≤ 1.5dB
- Isolation: ≥15dB (at 500M-800MHZ); ≥20dB (at 800M-6000MHZ)
- Input VSWR: ≤1.5
- Output VSWR: ≤1.3
- Amplitude balance: ≤0.3dB
- Phase balance: ±6°
- Impedance: 50Ω
- Interface type: Two SMA female connectors
- Power capacity:Forward: 10W (Avg.) and 100W (Peak). Reverse: 2W (Avg.) and 30W (Peak)
- Operating temperature: -20°C to +80°C
- Dimensions: 59mm x 57mm x 14mm/2.3" x 2.2" x 0.6"

Package Included:
- 1 x Power Splitter

Packaging Details:
- Weight: 0.3kg
