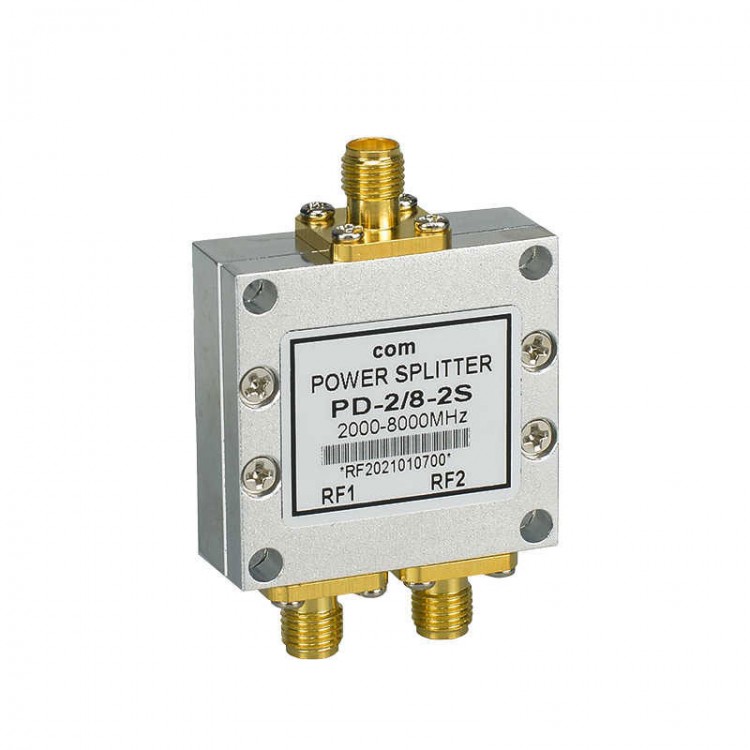

PD-2/8-2S 2000-8000MHz 2-Way WiFi Microstrip Power Divider Power Splitter 2-8G RF Power Combiner
Features:
- 2-way microstrip power divider
- Wide frequency, small insertion loss, high isolation and stable performance
- Exquisite appearance: Its matte aluminum shell is not easy to oxidize and discolor
- The power splitter has passed strict tests before delivery
- With SMA-K connectors
- Fixing holes make it convenient to install
- Application scenario: It can be used for signal transmission in wireless intercom, GNSS, 2.4G/5.8G WiFi, 3G/4G/5G and other frequency bands. It is widely used in military, aerospace, electronic countermeasure radar satellite, wireless communication and mobile phone testing
Specifications:
- Product name: 2-Way Power Divider
- Insertion loss: ≤0.8 (excluding distribution ratio of 3.0dB)
- Frequency range: 2000-8000MHz
- Isolation: ≥20dB
- Input VSWR: ≤1.5
- Output VSWR: ≤1.35
- Amplitude balance: 0.5dB
- Phase balance: ±5°
- Power capacity: 15W
- Weight: 35g/0.08lb
- Impedance: 50Ω
- Connector type: SMA
- Operating temperature: -30°C to +70°C

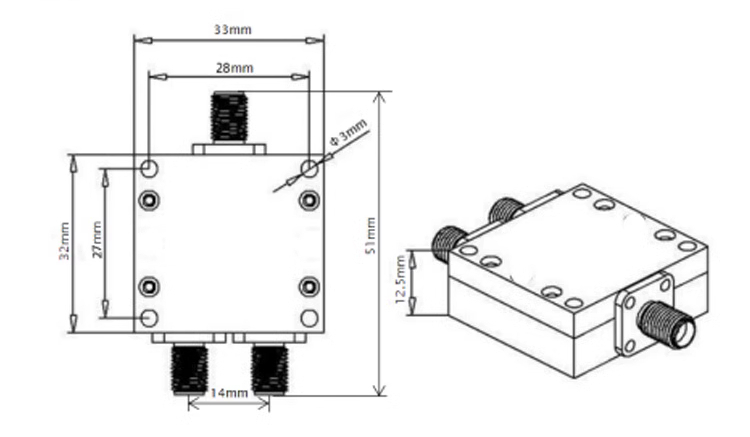

- Dimensions: 32mm x 33mm x 12.5mm/1.3" x 1.3" x 0.5"
Package Included:
- 1 x Power divider
Packaging Details:
- Weight: 0.25kg
