Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $52.45 | $51.38 | $49.77 | $47.63 | Contact US |

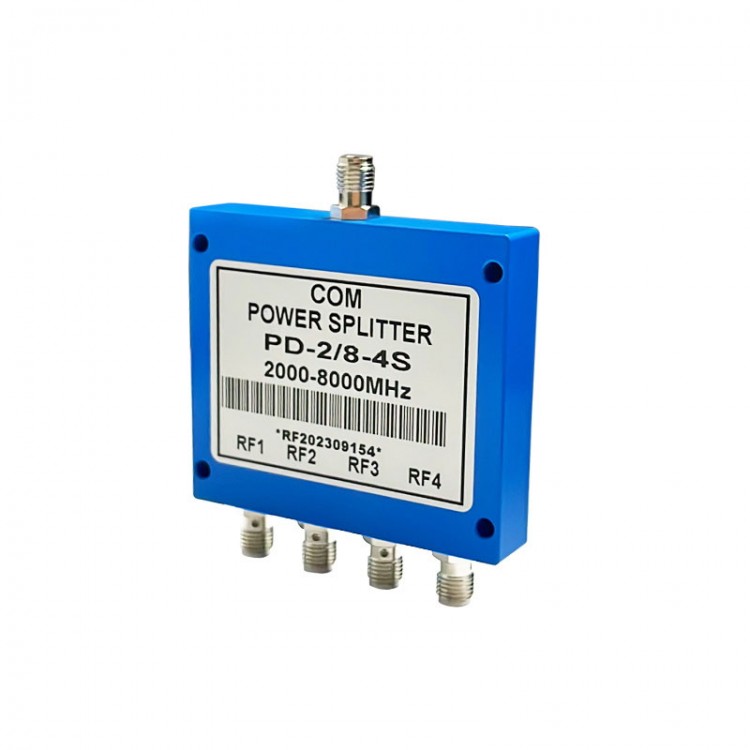

PD-2/8-4S 2000-8000MHz Power Splitter 4-Way Microstrip Power Divider with SMA Female Connectors
Features:
- 4-way microstrip power divider
- With low VSWR, low insertion loss, wide frequency band and high isolation
- Small size, corrosion resistance, wear resistance, long service life and high mechanical reliability
- The power splitter has passed strict testing and has strong stability
- Application scenario: It can be used for signal transmission in wireless intercom, GNSS, 2.4G/5.8G WiFi, 3G/4G/5G and other frequency bands. It is widely used in military, aerospace, electronic countermeasure radar satellite, wireless communication and mobile phone testing
Specifications:
- Product name: 4-way microstrip power divider
- Insertion loss (including 6.0dB distribution ratio): 7.2dB Max.
- Frequency range: 2000-8000MHz
- Isolation: Typical: 22dB; Minimum: 18dB
- Input VSWR: Typical: 1.25; Maximum: 1.35
- Output VSWR: Typical: 1.19; Maximum: 1.25
- Amplitude balance: 0.5dB Max.
- Phase balance: ±5°
- Power capacity: Splitter: 30W; Combiner: 2W
- Weight: 80g/0.2lb
- Impedance: 50Ω
- Connector type: SMA female
- Operating temperature: -30°C to +70°C
- Dimensions: 50.7mm x 59mm x 11mm/2" x 2.3" x 0.4"
Package Included:
- 1 x Power Splitter
Packaging Details:
- Weight: 0.35kg
