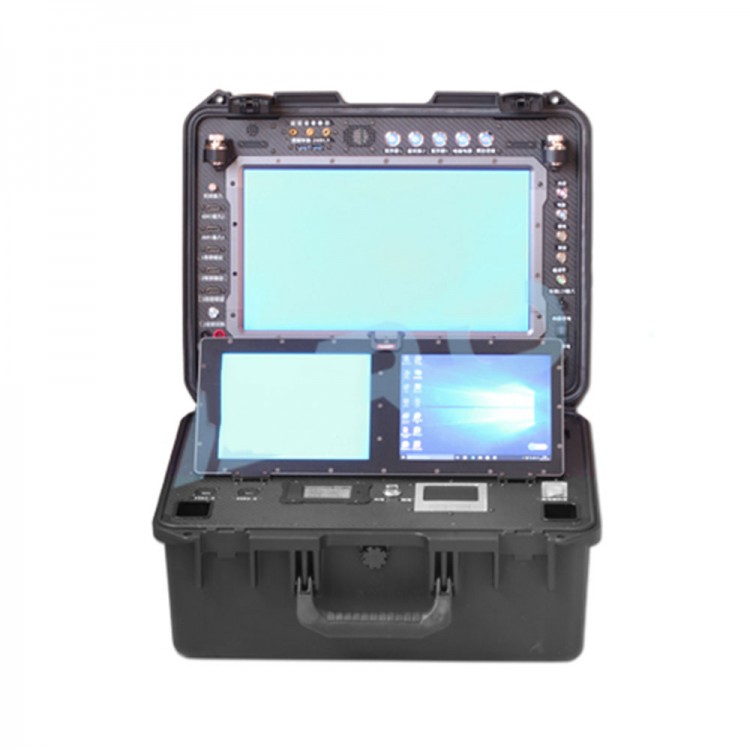

Peeper Ground Station System with 15.6" and 2pcs 8.4" Monitors for FPV Drone Quadcopter UAV

Peeper Ground Station System with 15.6" and 2pcs 8.4" Monitors for FPV Drone Quadcopter UAV

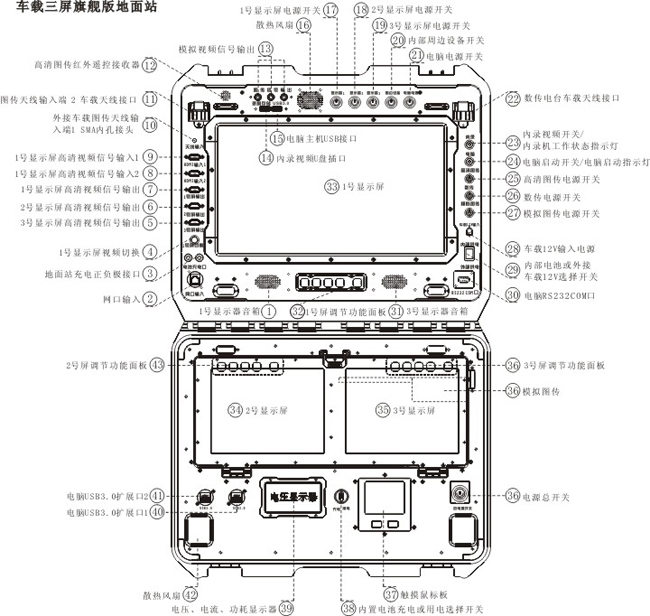

1. Monitor audio
2. Net port input
3. Charging interface
4. Number 1 monitor video switching
5. Number 3 monitor HD video output
6. Number 2 monitor  HD video output
7. Number 1 monitor HD video output
8. Number 1 monitor HD video input2
9. Number 1 monitor HD video input1
10. External car connection  antenna input port 1, SMA interface
11. Image transmission input port 2, car antenna interface
12. HD Image transmission infared remote control receiver
13. Analog video signal output
14. Computer host USB interface
15. Inside video U-disk plug
16. Number 1 monitor
17. Number 1 monitor power switch
18. Number 2 monitor power switch
19. Number 3 monitor power switch
20. Internal peripheral equipment switch
21. Computer power switch
22. Data image transmission car antenna interface
23. Inner recording video switch/working state indicator light
24. Computer boot switch/computer boot  indicator light
25. Image transmission power switch
26. Data transmission power switch
27. Analog Image transmission power switch
28. Car 12V input power supply
29. Inner battery or external car 12V SWITCH
30. Computer RS232COM port
31. Number 3 monitor audio
32. Number 1 function adjustment panel
34. Number 2 monitor
35. Number 3 monitor
37. Touch mouse panel
38. Built-in battery charging power selection switch
39. Voltage ,current,power consumption monitor
40. Computer USB3.0 expansion port1
41. Computer USB3.0 expansion port2
42. Cooling fan
43. Number 2 function adjustment panel

Description:
- The ground station system is suitable for industrial drones and for BVR flight control.
- All electrical components and devices are designed with protective layer.
- The case, panel by mortise and tenon engagement design, waterproof function

Functions:
- Super long working time
- Support offline map
- Double screen display
- Support voice reminding
- Low voltage alarm
- Support saving and loading route
- Support English/ Chinese
- Support customization
- Fall resistance

Instructions:

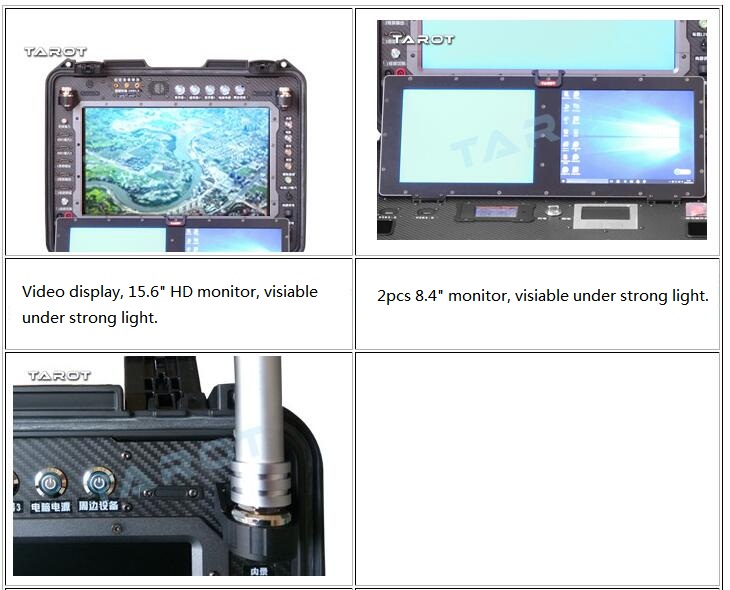

- With 1*15.6" monitor and 2* 8.4" monitor, visiable under strong light
- Built in computer adopts Gigabyte Intel 14nm and celeron N3150 processor, up to 2.08GHz, Samsung 8G memory,  Kingshare 120H HDD. Win10 system with MissionPlanner software.

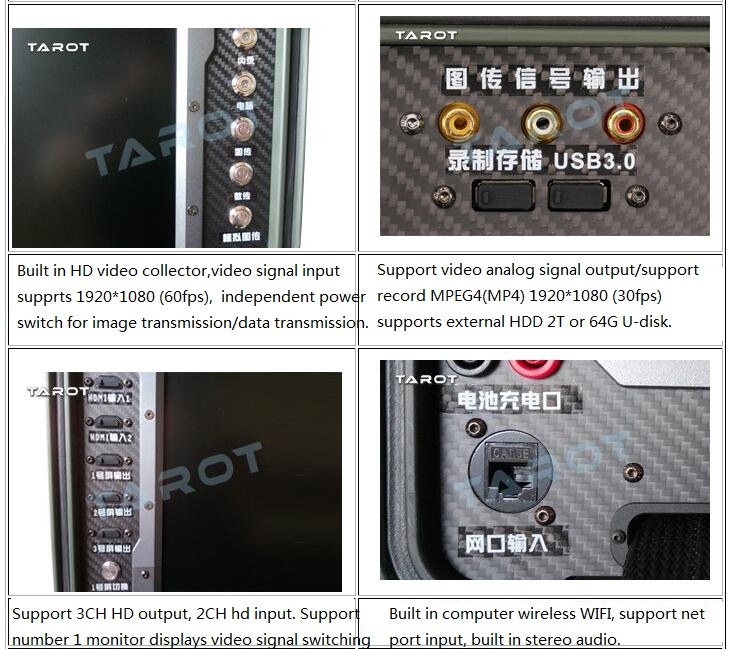

- Support 3CH HD output, 2CH HD input. Built in HD collector,input supports 1920*1080(60fps),recording MPEG4(MP4) 1920*1080(30fps),support external hard disk 2T or 64G U-disk.
- Reserved image /digital transmission position. Can built in analog signal to HDMI signal. Reserved digital transmission radio iterface, suppport 433MHZ 800MHZ 900MHZ 1.2G and 2.4G, etc.
- The system integrates two car antenna mounting seat , can be used for image transmission and digital transmission, effectively increase the launch distance.

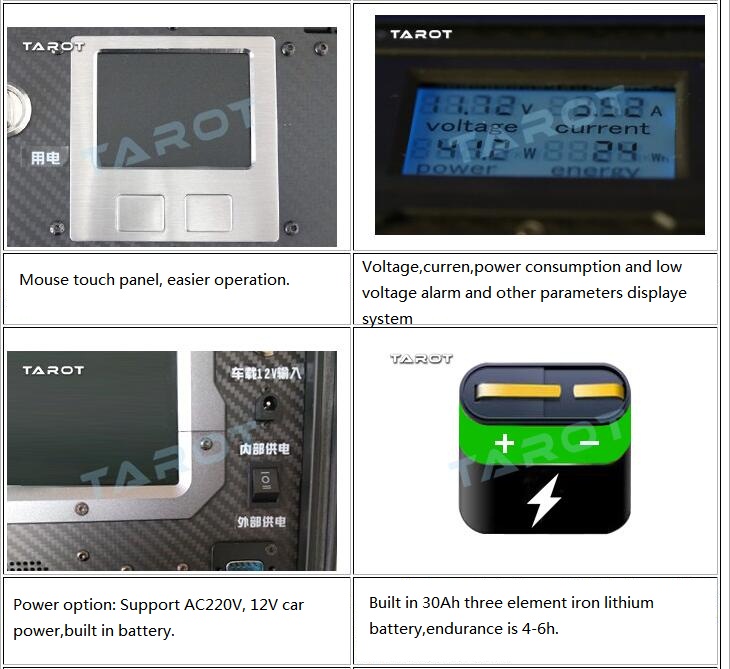

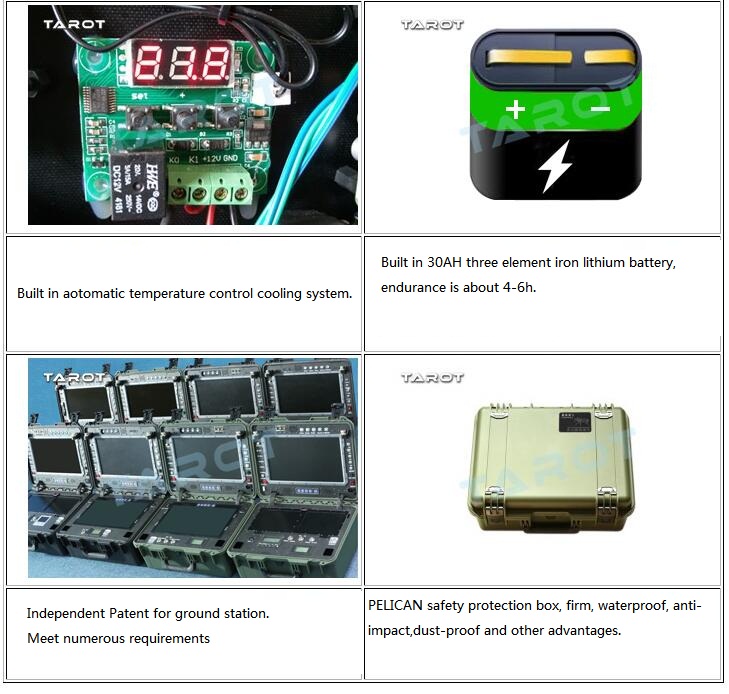

- Can directly display the system voltage, current, power consumption and other working parameters, can set low voltage alarm, and built-in automatic temperature control system.
- The system can work under the 220V input, can also work under the 12V vehicle power supply, built-in 11.1v 30AH large capacity battery, outdoor endurance is 4-6 hours.

Note: This version includes 10km HD image transmission. Not include digital transmission.

Specifications:

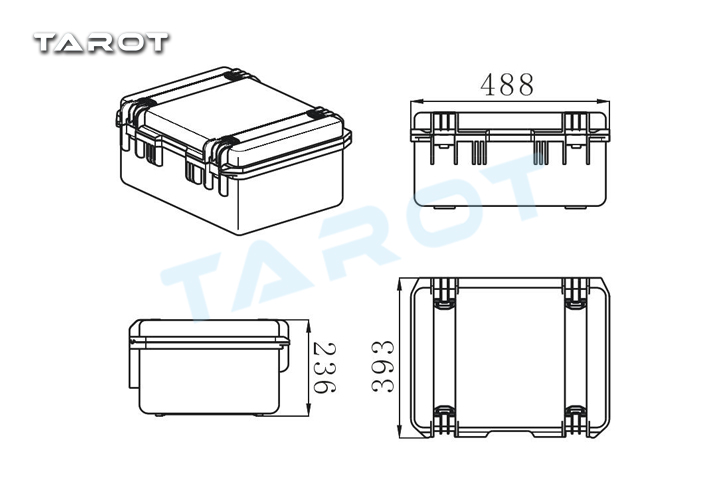

- PELICAN case
- Monitor 15.6"
- 8.4" monitor
- Computer 8.4" monitor
- Built in host computer BXi3H-5010
- Built in dual channel audio
- USB3.0 interface* 2
- 1080P internal video resolution
- HD format MPEG4 (MP4)
- U-disk support up to 64G
- Support mobile hard disk internal recording device
- HD video input* 2CH
- HD Video output *3CH
- Voltage/current/power consumption display
- Low voltage alarm
- Built in temperature controller auto cooling
- Support 12V working
- Outdoor endurance: 7h
- Can charging when using external power supply
- Support endurance expansion
- Battery over charging protection
- Battery over discharging protection
- Support external antenna mount
- Net port input
- 5.8G analog image transmission
- RS232 COM port
- Embeded touch mouse
- AV video output

Recommend image transmission (not included):
- HD digital image transmission  1080P 540MHz  TL1000-540
- HD digital image transmission  1080P 352MHz  TL1000-352
- 1.2G image transmission,transmitter and receiver set    TL300N5
- 1000mW 5.8G image transmission,transmitter group   TL300N4
- 5.8G image transmission FPV reciving set    TL300N3
- LINK digital link system   KS00T1

Digital transimission (not included):
- Xtend data transmission    KS00S2
- 3dr data transmission module    KS00S1
- LINK digital link system     KS00T1

Gimbal controller (not included):
- Bluetooth 3 axis gimbal controller   KS00L1
- Gimbal joystick controller   KS00L2

Flight controller (not included): Pixraptorflight controller   ZYX33

Package Contents:
- 1 x  Ground Station System
