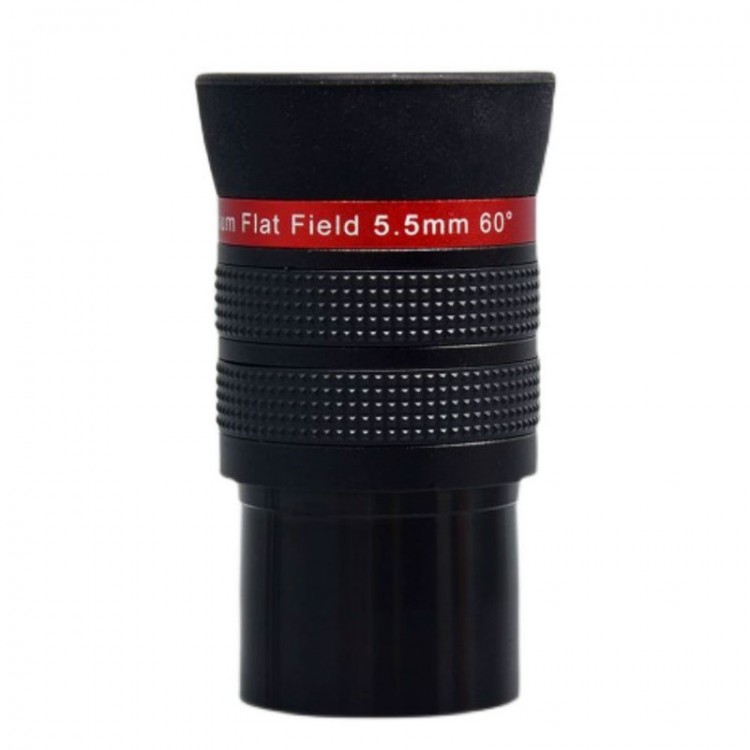

PF5.5mm Telescope Eyepiece 60 Degree Wide Angle Flat Field Eyepiece 1.25-inch Interface Astronomical Accessory
Description:
- The PF series is a high transmittance flat field eyepiece with the characteristics of high contrast, low distortion, and flat field of view. It can provide sharp imaging from the center to the edge of the field of view. The PF series eyepieces have accurate color reproduction and a moderate field of view, effectively avoiding the black eye effect. Whether you are conducting astronomical observations or enjoying the scenery, the PF series eyepieces can bring a comfortable observation experience.
- PF5.5mm belongs to the high-magnification eyepiece in the PF series, and in most cases, it can be observed at medium to high magnification in medium and short focus telescopes. When observation conditions permit and the atmosphere is stable, it can also be used for telephoto telescopes. It adopts a 6-piece 4-group structure, with a 16mm exit pupil distance and a 60 degree apparent field of view. It adopts a cup shaped foldable eye cover, making it easy to find a comfortable observation position even when wearing glasses.
- Due to its focal length of 5.5mm, it belongs to the high-magnification eyepiece, and its visibility will limit its performance on telephoto telescopes. For example, when used with 102APO PRO, the magnification is 129 times and the exit pupil diameter is 0.79mm. For experienced observers, both are precisely within the limits of maximum magnification and minimum pupil size, so PF5.5mm can be used for observation under good visibility conditions. When the visibility is not ideal, the magnification of PF5.5mm combined with a telephoto telescope may be too high.
- Magnification ratio = Objective lens focal length / eyepiece focal length
Specification:
- Model: PF 5.5mm flat field eyepiece
- Coating film: UWB multi-layer coating film FMC
- Focal length: 5.5mm
- Exit pupil distance: 16mm
- Field stop: 6.4mm
- Field: 60 degree
- Optical structure: 6 pieces 4 sets
- Net weight: 80g
- Size: 67mm (maximum diameter); 13mm (height)
- Interface size: 1.25-inch interface with 1.25-inch filter threaded interface
- Eye-shade type: foldable
Package Included:
- 1 x Eyepiece
