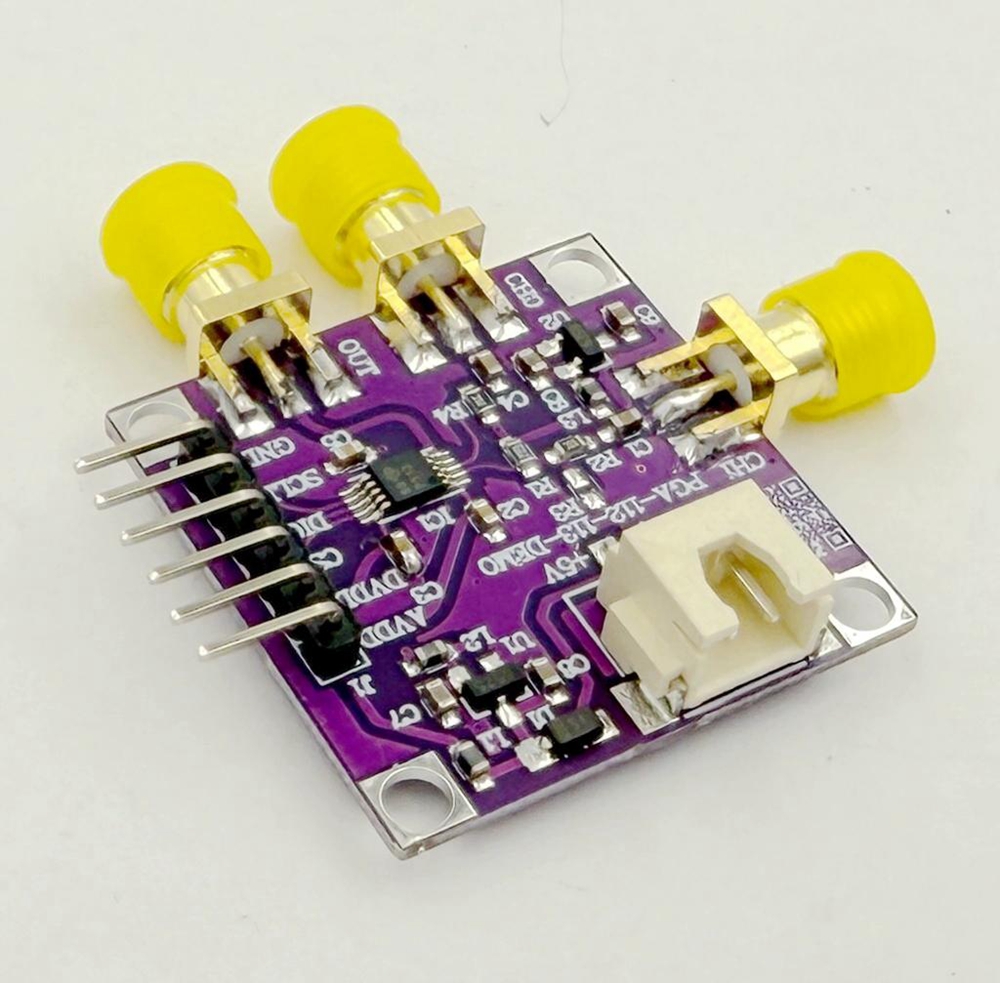

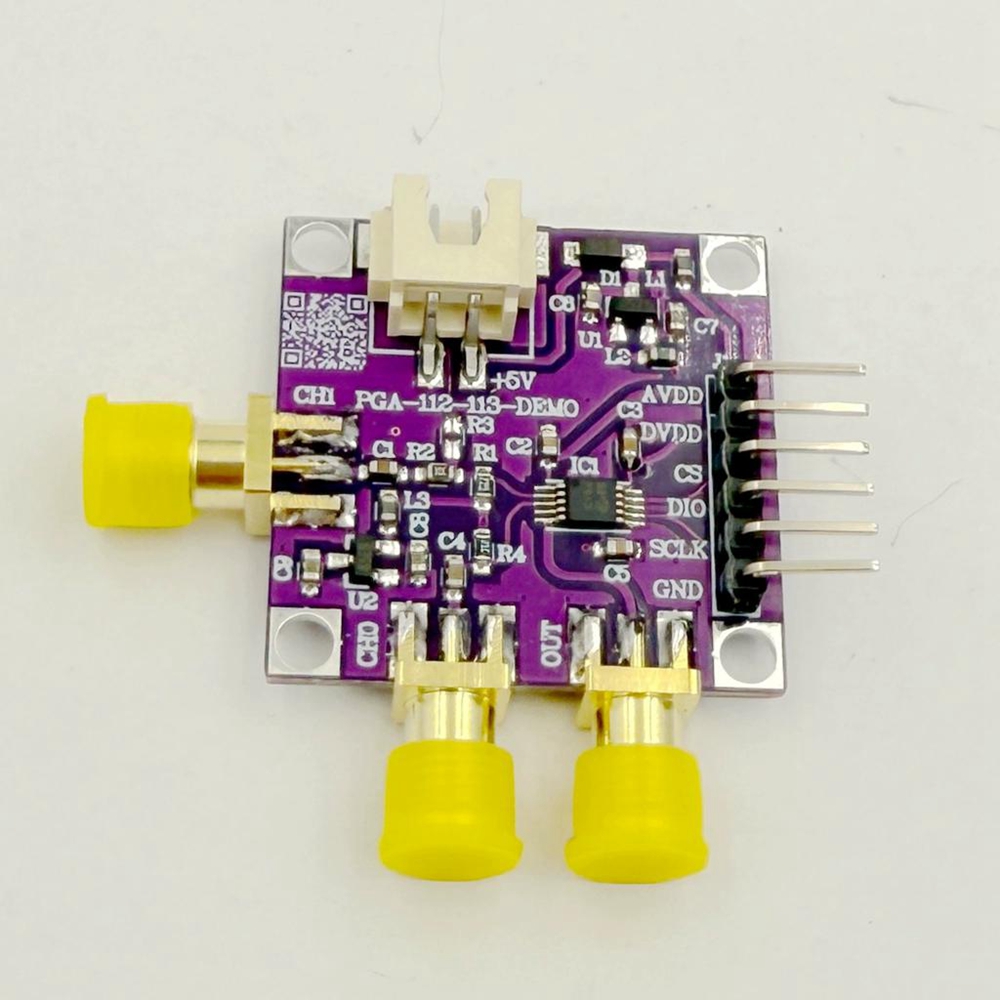

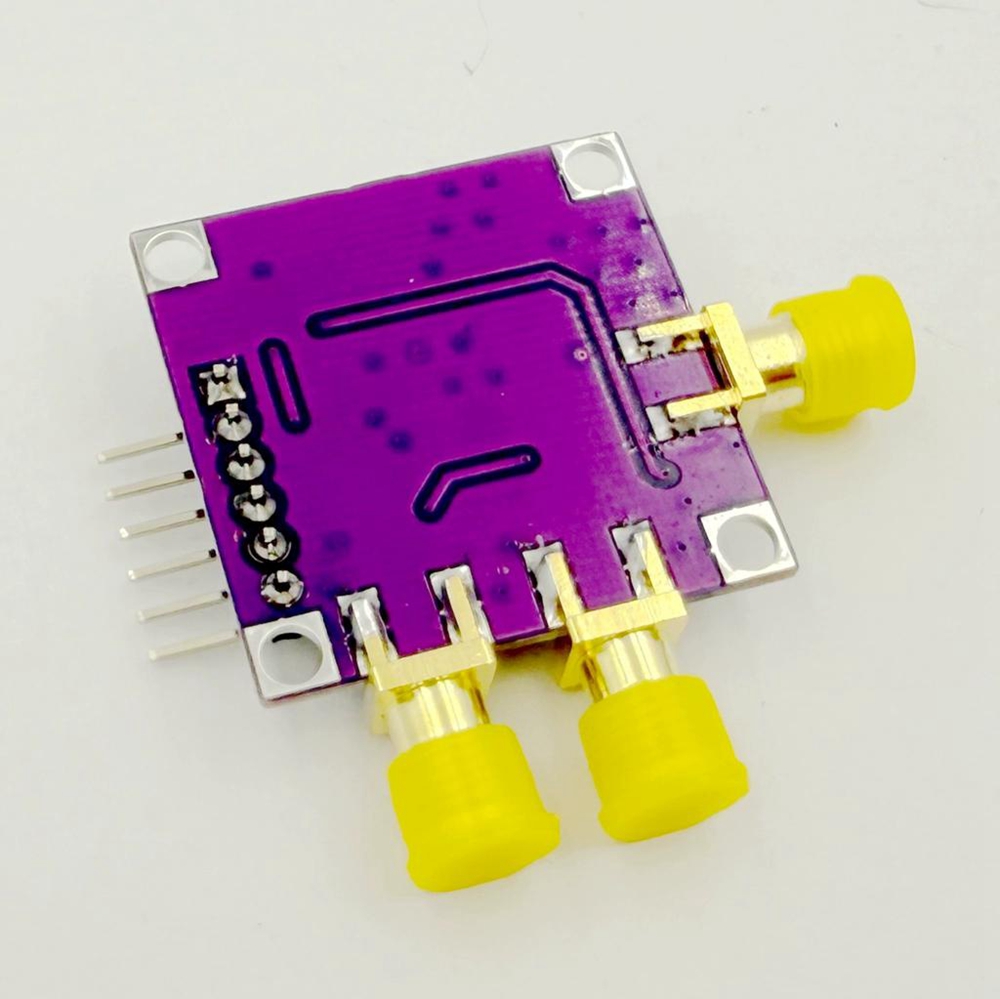

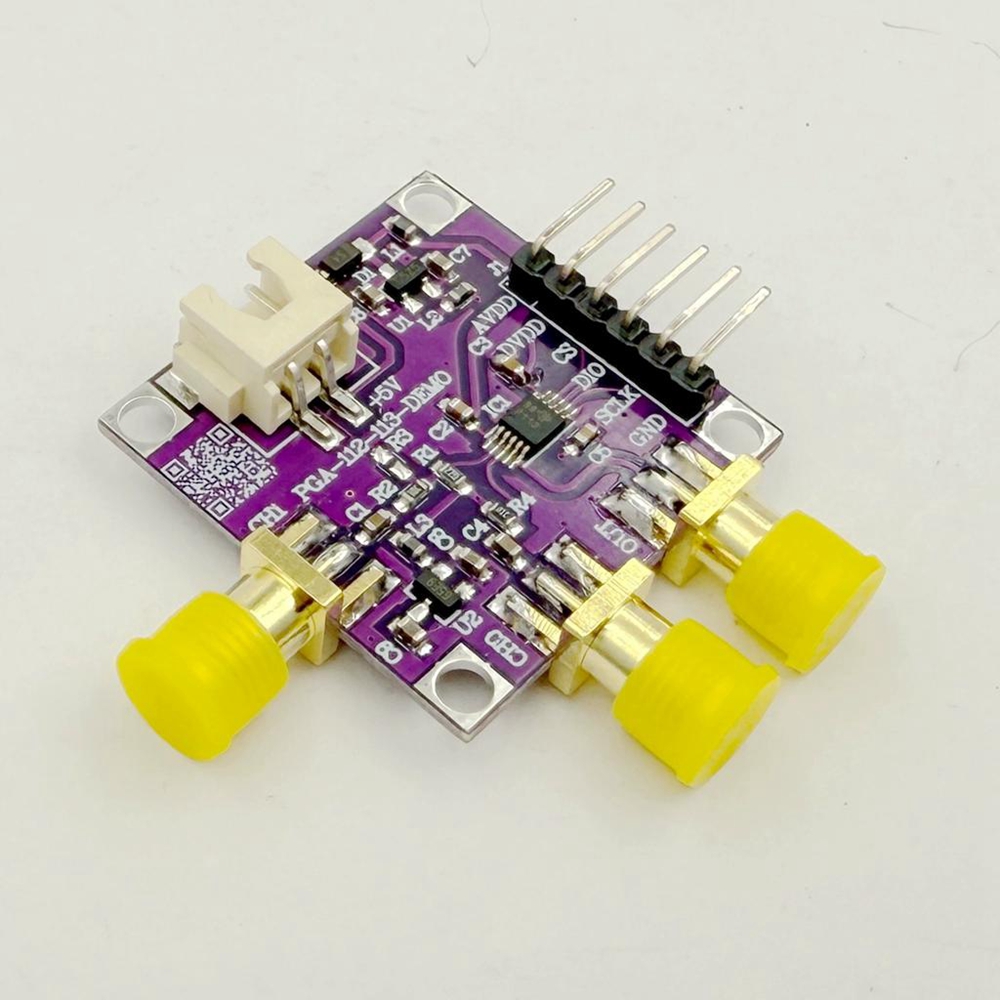

PGA113 Zero-drift Programmable Gain Amplifier with Mux Signal Conditioning Module 1-200X Adjustable Gain
Specification:
- Core chip: PGA113
- Scope gains: 1, 2, 5, 10, 20, 50, 100, 200
- Maximum input: CH1 channel (10VPP), CH0 channel (3VPP)
- Product size: 3 x 3cm

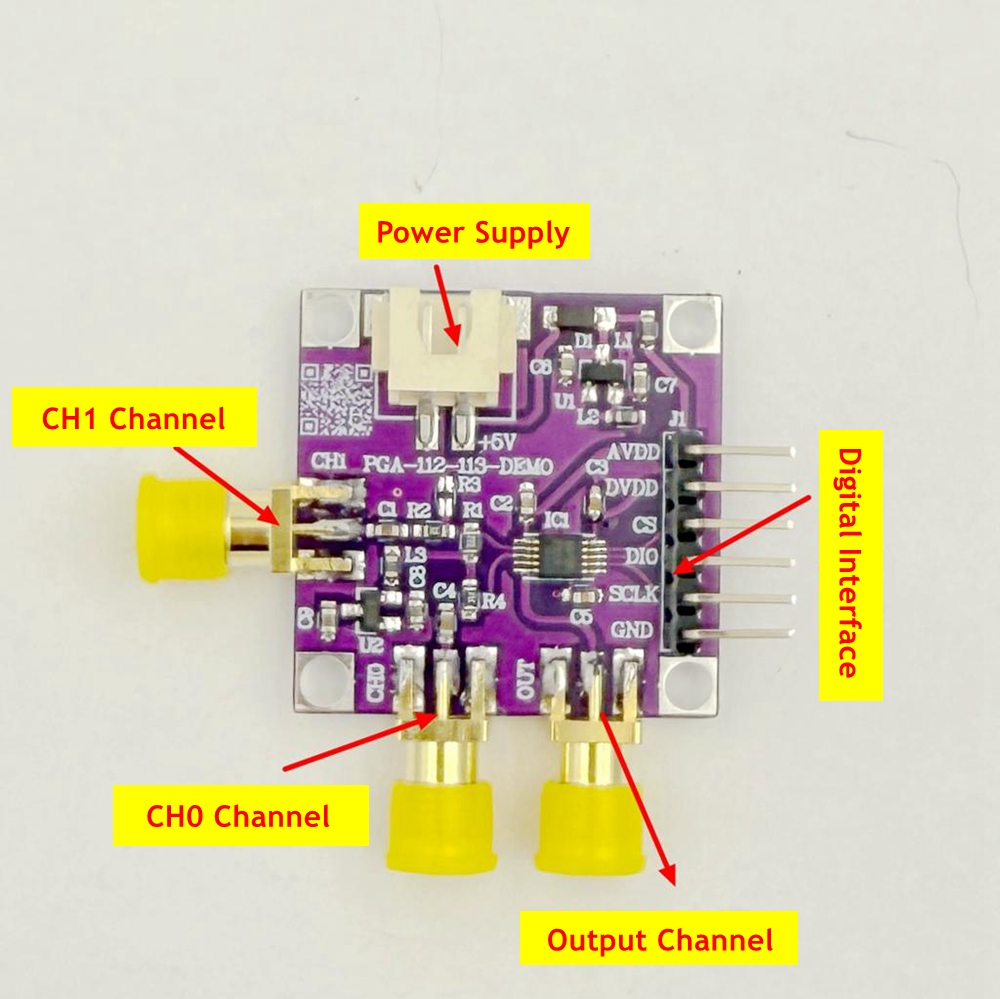

- Input and output interface: SMA
- Reserved digital interface, internally integrated with 3V and 1.5V voltage references
Package Included:
- 1 x Programmable Gain Amplifier
