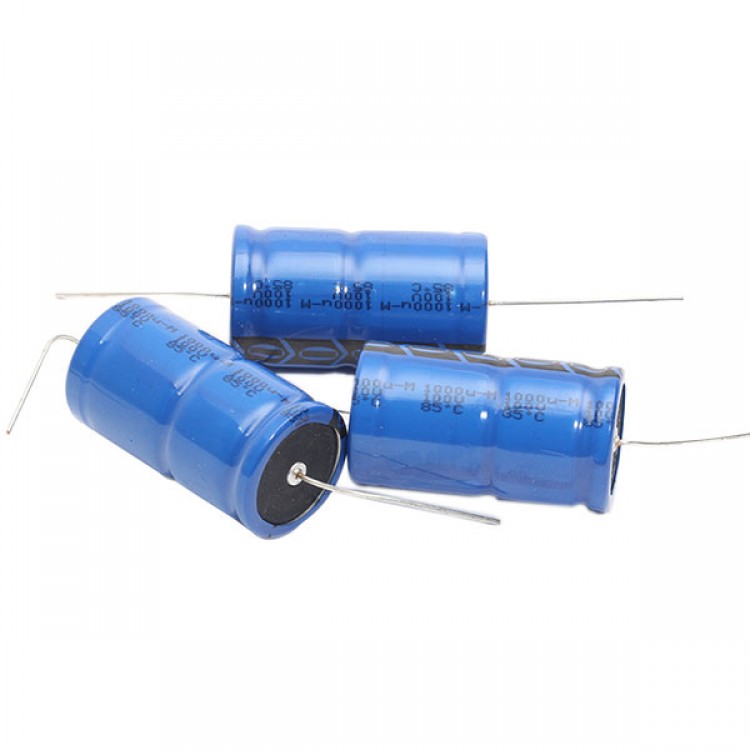

PHILIPS BC 1000UF 100V Capacitor for Amplifier
Description:
Capacitor 1000UF 100V
Product range: VISHAY - 021 ASM Series
Capacitance: 1000 F
Capacitance tolerance: + 20%
Rated voltage: 100V
Diameter: 21mm
The equivalent series resistance (ESR): 0.16ohm
Height: 38mm
Capacitor terminal: axial lead
Pin pitch: -
Life @ temperature: 8000 hours @ 85 C
Minimum working temperature: -55 degrees C
The maximum working temperature: 85 degrees C
Each package:
AC ripple current: 1161mA
AC ripple current @ 100Hz: 1470mA
External length / height: 38mm
Tolerance: + 0.2%
Tolerance: 0.2%
Working life: 8000h
Operating temperature range: -55 ~ C to +85 ~ C
Wire diameter: 0.8mm
Leakage current: 204 A
The temperature of 85 DEG C @ ripple current measurement
Environment type: 55/085/56
Capacitor installation: installation hole
Capacitance tolerance: + + 20%
The maximum rated voltage, DC: 100V
Terminal type: wire
Pin number: 2
@ frequency ripple current measurement: 100Hz
Rated voltage of V DC: 100V
