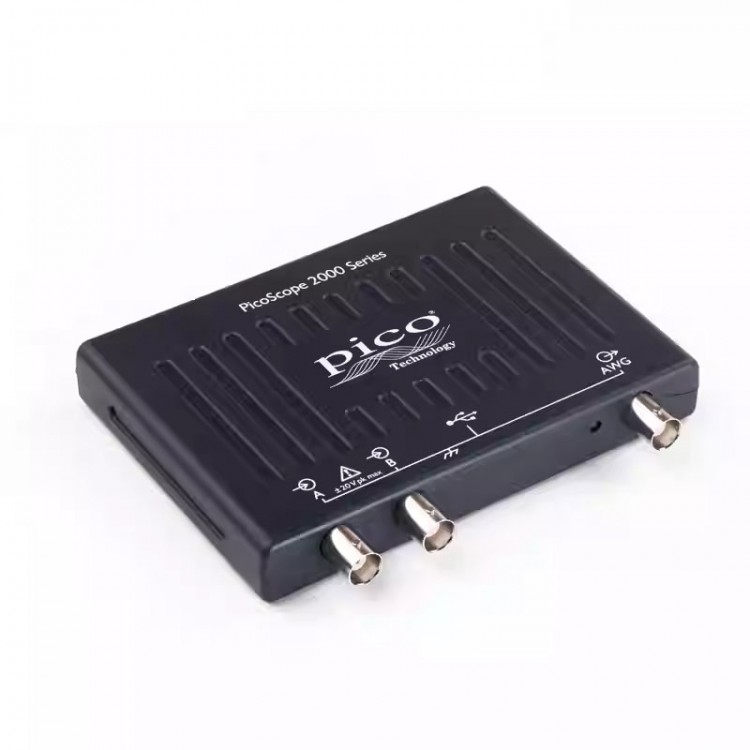

PicoScope 2000 Series 5-in-1 Portable Oscilloscope 2 Channel Oscilloscope (2208B 100MHz 1GS/s)

PicoScope 2000 Series 5-in-1 Portable Oscilloscope 2 Channel Oscilloscope (2208B 100MHz 1GS/s)

Description:
Small and Portable
* It is your complete test and measurement laboratory.

5 In 1
* It can be used as an oscilloscope, spectrum analyzer, function generator, arbitrary waveform generator, and protocol decoder.
* Serial protocol decoder: It can collect and decode a variety of protocols.
* FFT spectrum analyzer: It finds noise, crosstalk or distortion.
* AWG & function generator: Output signal on front panel BNC.

Serial Bus Decoding and Protocol Analysis
* It can decode 1-wire, ARINC 429, CAN & CAN FD, DALI, DCC, DMX512, Ethernet, FLEXRAY, I²C, I²S, LIN, MANCHESTER, MODBUS, PS/2, SENT, SPI, UART (RS-232/RS-422/RS-485) and USB1.1.

FFT Spectrum Analyzer
* It can display multiple spectrum views next to the oscilloscope view of the same data. It can calculate FFT of up to 1 million points in milliseconds, providing excellent frequency resolution.

Arbitrary Waveform Generator and Function Generator
* It has a built-in function generator and an arbitrary waveform generator (AWG).
* The function generator can generate sine, square, triangle, and DC level waveforms. In addition, it can generate more waveforms, while AWG allows you to import custom waveforms from data files or create and modify them using the built-in graphical AWG editor.

Advanced Display
* One of the differences between using a PICOSCOPE oscilloscope and a desktop oscilloscope is the monitor. After a few minutes of viewing a waveform on a laptop or PC monitor, you won't want to go back to the cramped, cluttered low-resolution display of your desktop oscilloscope.

Template Limit Test
* You can compare the real-time signals with the known good signals. It can be used in production and debugging environments.

Math Channels and Filters
* You can choose simple functions. Or open the equation editor to create complex functions containing filters, trigonometric functions, exponents, logarithms, statistics, integrals, and differentials.

Waveform Buffer and Navigator
* You no longer need to worry about missing glitches or other transient events. It can store 10,000 oscilloscopes or spectral waveforms in its circular waveform buffer.

Alarms
* PICOSCOPE can be programmed to perform operations when certain events occur. Events that can trigger an alarm include mask limit failures, trigger events, and buffer full.

Deep Memory Oscilloscope
* The oscilloscope's waveform buffer size of up to 128 million samples is many times larger than competing PC-based or traditional desktop oscilloscopes.

Digital Triggers
* PICO uses actual digitized data to use all-digital triggering. This technique reduces triggering errors. It allows the oscilloscope to trigger with a small signal even at full bandwidth.

Automatic Measurements
* With the help of an automatic measuring system, it can take a large number of measurements. Using the Measure menu, you can select the measurement you wish to make, and a table of its values will be automatically displayed.

Reference Waveform
* It can display the stored waveform next to the real-time track. You can apply all the same features to real-time waveforms.

Resolution Upscaling
* This is a technique that increases the effective vertical resolution of an oscilloscope at the expense of high-frequency detail. This is useful for solving small signal details and reducing noise.

Custom Probe
* The custom probe feature allows you to correct gain, attenuation, offset, and non-linearity in the probe, sensor, or sensor connected to the oscilloscope.

Package Included:
* 1 x Set of oscilloscope

Packaging Details:
* Weight: 1kg
