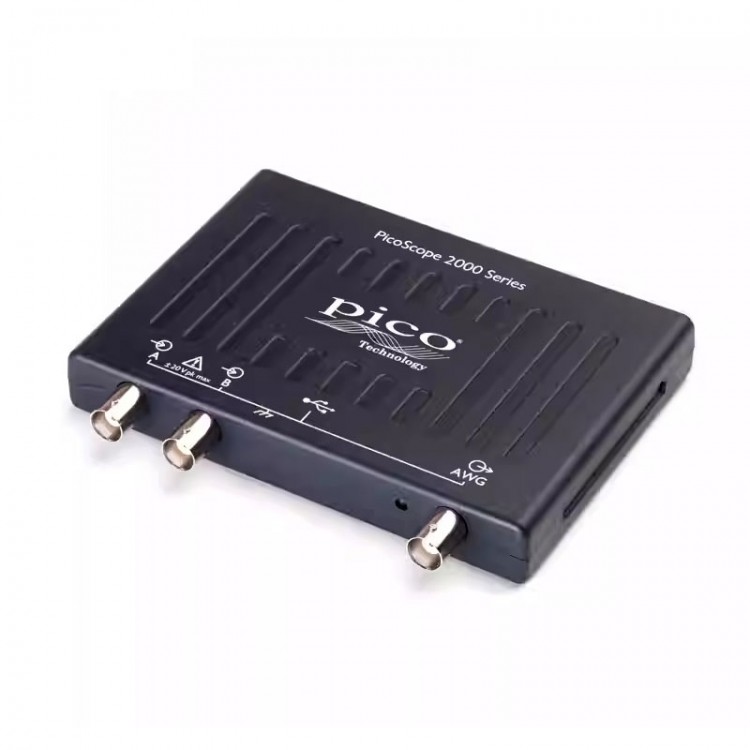

PicoScope 2206B 50MHz Portable Oscilloscope 2-Channel 500MS/s Sampling Rate Arbitrary Waveform Generator

PicoScope 2206B 50MHz Portable Oscilloscope 2-Channel 500MS/s Sampling Rate Arbitrary Waveform Generator

Description:
- All models feature spectrum analyzers, function generators, arbitrary waveform generators, and serial bus analyzers.
- Serial bus decoding and protocol analysis can decode 1-wire, ARINC 429, CAN & CAN FD, DALI, DCC, DMX512, Ethernet, FLEXRAY, IPC, IPS, LIN MANCHESTER, MODBUS, PS/2, SENT, SPI, UART (RS-232/RS-422/RS-485) and USB1.1.
- FFT spectrum analyzer allows you to display multiple spectrum views next to the oscilloscope view of the same data. With the 2000B model, it can calculate up to 1 million FFT points in milliseconds, providing excellent frequency resolution.
- Equipped with built-in function generator and arbitrary waveform generator (AWG). The function generator can generate sine waves, square waves, triangular waves, and DC level waveforms, and can also generate more waveforms; AWG allows you to import custom waveforms from data files, or create and modify them using the built-in graphic AWG editor.
- One of the differences between using PICOSCOPE and a desktop oscilloscope is the display. After viewing waveforms on a laptop or PC monitor for a few minutes, you won't want to return to the narrow, cluttered low resolution display of a desktop computer.

Functions:
- Template Extreme Testing: You can compare real-time signals with known good signals and design them for production and debugging environments.
- Mathematical Channels and Filters: You can choose simple functions or open an equation editor to create complex functions that include filters, trigonometric functions, exponents, logarithms, statistics, integrals, and differentials.
- Waveform buffer and navigator: You no longer need to worry about missing spikes or other transient events, as you can store 10000 oscilloscope or spectral waveforms in its circular waveform buffer.
- Alarm: PICOSCOPE can be programmed to perform actions when certain events occur. Events that can trigger alerts include mask restriction failure, trigger events, and buffer full.
- Deep storage oscilloscope: The waveform buffer size of the 2000B oscilloscope is up to 128 million samples, which is many times larger than competing oscilloscopes based on PC or traditional desktops.
- Digital triggering: In 1991, PICO used actual digital data to use all digital triggering. This technology reduces triggering errors and allows our oscilloscope to trigger with small signals even at full bandwidth.
- Automatic measurement: ERA can perform a large number of measurements with the help of an automatic measurement system. Using the 'Measurement' menu, you can select the measurement you want to perform, and then a table of its values will be automatically displayed.
- Reference waveform: You can display the stored waveform next to the real-time trajectory. You can apply all the same functions to real-time waveforms.
- Resolution enhancement: It is a technique that improves the effective vertical resolution of an oscilloscope at the expense of high-frequency details. This is very useful for addressing small signal details and reducing noise.

Specification:
- Model: Pico2206B
- Bandwidth: 50MHz
- Channel: 2
- Sampling rate: 500MS/s
- Recording length: 32MS
- Resolution (strengthened): 8 bit (12 bit)

Package Included:
- 1 x Oscilloscope
