PiKVM-A8 Kit HAT Remote Control KVM-over-IP Remote Management PCI Express Card HDMI-compatible CSI for Raspberry Pi 4B
Description:
- PiKVM is a very powerful open source software that can remotely connect, turn on/off, or restart a computer, configure UEF I/BIOS, and even reinstall the operating system using a virtual CD-ROM or flash drive through Raspberry Pi.
- You can use a remote keyboard and mouse to simulate the keyboard, mouse, and display them in a web browser, just like working directly on a remote system. This is true hardware level access and does not rely on any remote ports, protocols, or services.

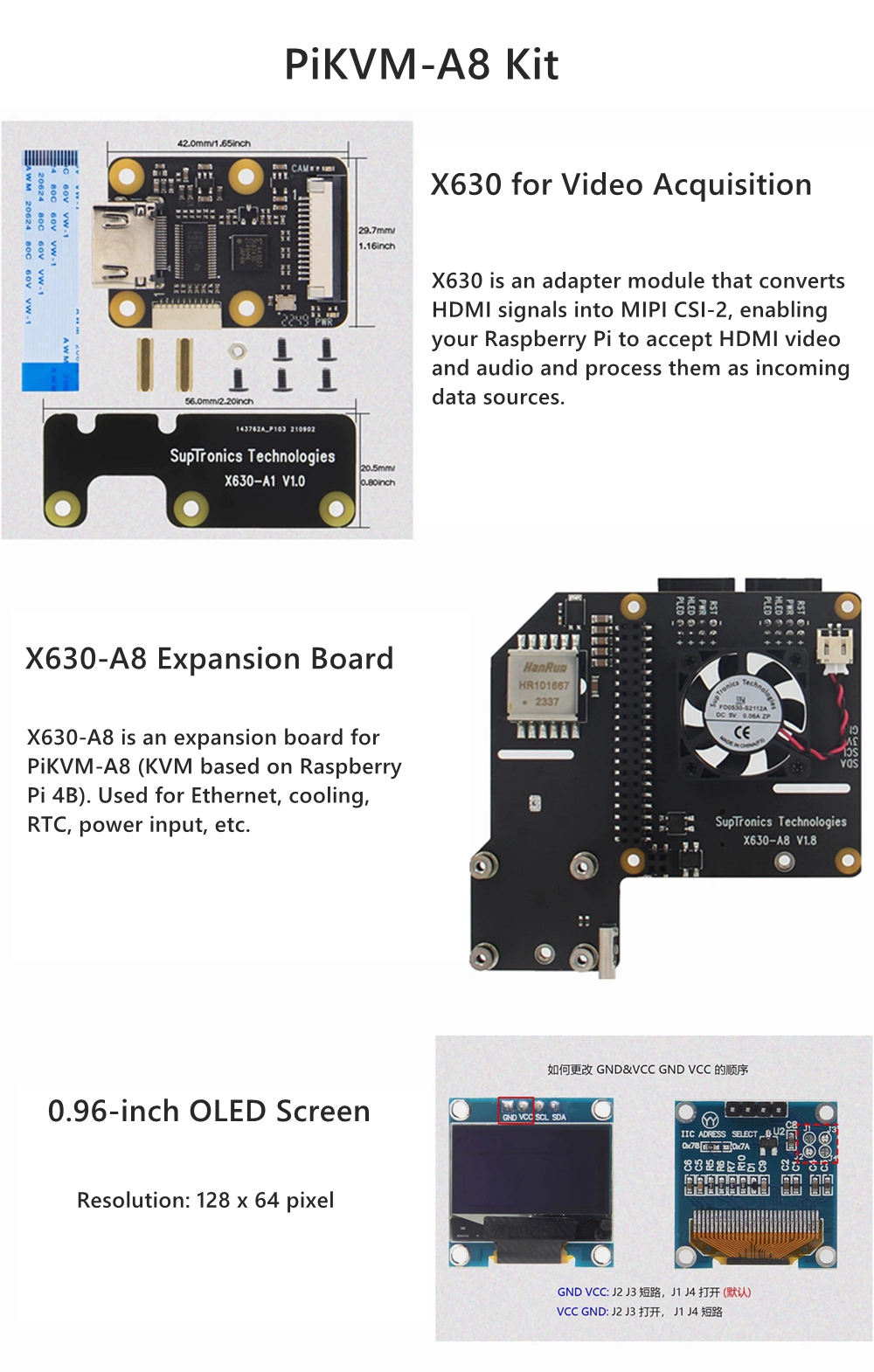

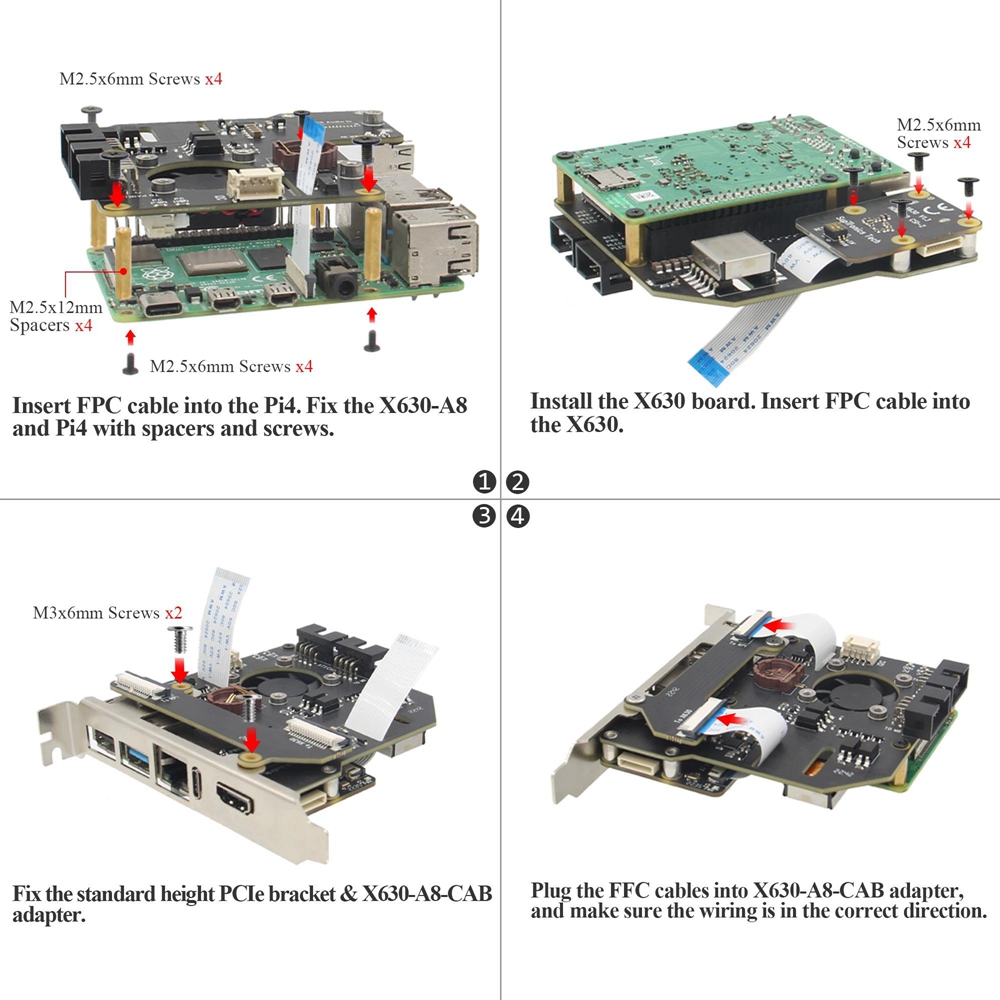

- PiKVM-A8 is a member of the PiKVM family. It only supports for Raspberry Pi 4B. It plugs directly into the computer chassis as a PCI Express card. It does not require additional cables and is more convenient to use.
User Manual:
- wiki.geekworm.com/PiKVM-A8
Power Supply:
Power supply method:
- POE splitter
- Type-C power supply (5.1VDC +/-5%, >=3A)
Precaution:
- Do not power through the Type - C port of Raspberry Pi, as it is occupied by OTG.
- The power adapter is very important. The vast majority of problems are caused by the power supply. It is recommended to use a DC 5V 4A 20W high-quality power supply.

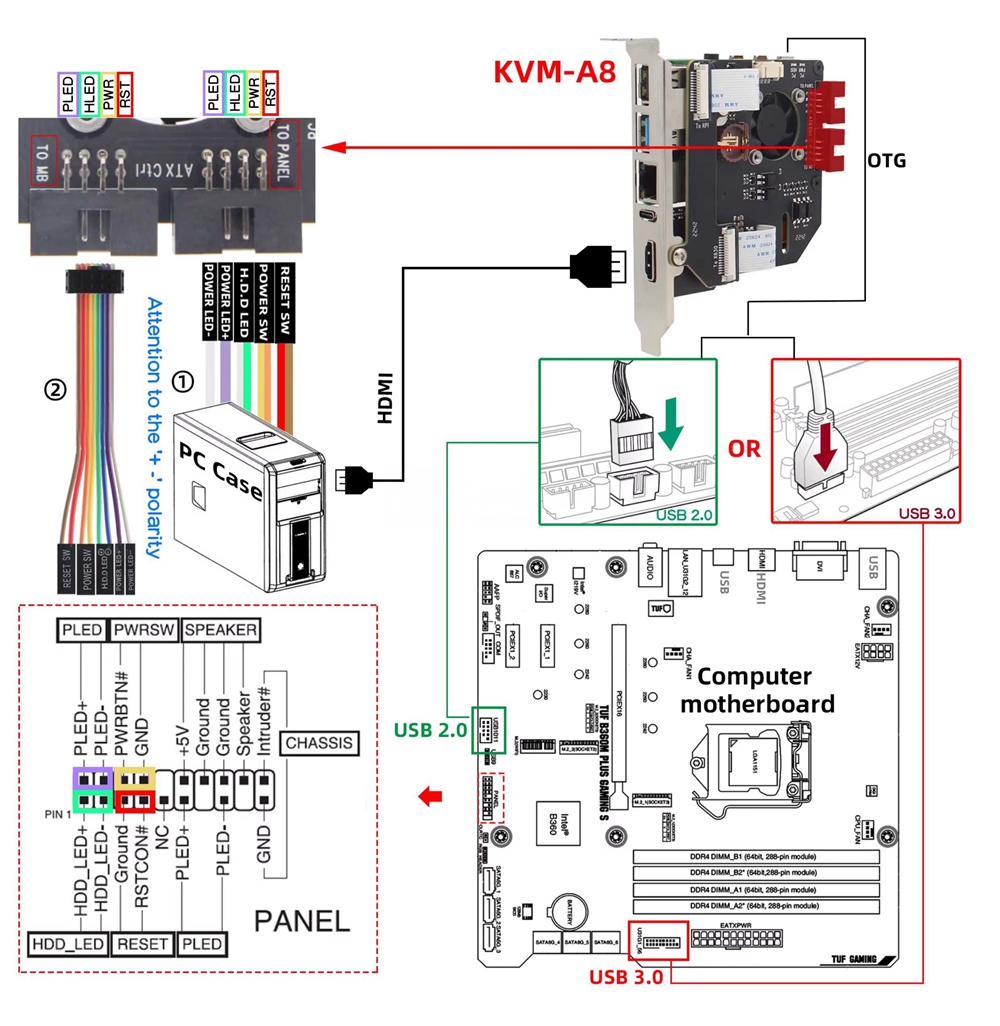

Wiring:
- The takeover of the keyboard and mouse is achieved through USB; But the HDD light, power switch, power indicator light, RESET, etc. of the target computer are achieved by controlling the ATX signal of the motherboard.

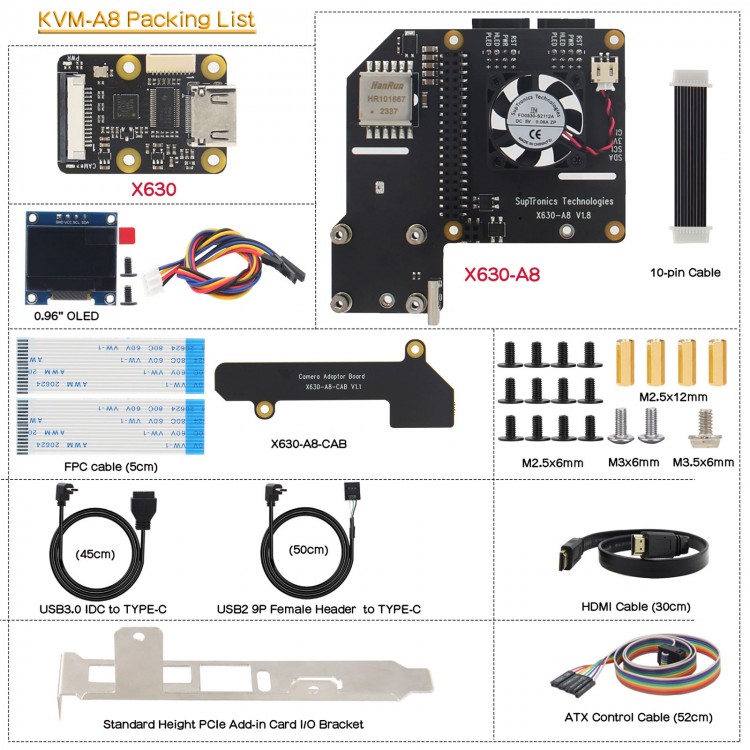

Package Included:
- 1 x PiKVM-A8 Kit
Note:
- The Raspberry Pi 4B is not included.
