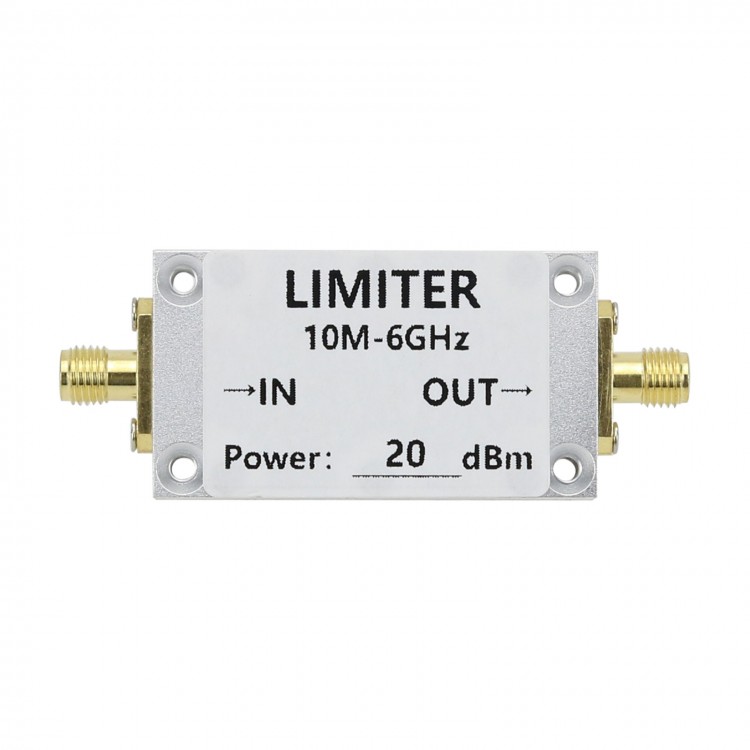

PIN Diode RF Limiter with CNC Shell Compact Size 10M-6GHz Power 20dBm
Description:
The RF limiter is used for input protection of low-power receiving equipment such as low-noise preamplifiers, SDR receivers, and spectrum analyzers, which can effectively resist ESD damage. It can also be used for input protection of shortwave receivers. This product contains a solid aluminum alloy shielding shell, no leakage, no interference, small and easy to use. It is a needed device for radio frequency and microwave technology experiments.
Parameters:
1. Model: Limiter 20dBm
2. Impedance: 50 Ohms
3. Insertion loss: <0.2dB @ 1GHz/0dBm; <2dB @ 1 ~ 3GHz/0dBm; <3dB @ 3 ~ 6GHz/0dBm
Attention: Specific reference to the measured S21 curve
4. Maximum input power: 20dBm
5. 1dB limiting power: <20dBm
6. Interface: SMA female connector
7. Dimensions with shell: 45 * 25 * 12mm (LxWxH) (without the size of SMA)
Package Included:
- 1 x RF Limiter
Measured S21 Insertion Loss (0dBm limiter frequency range up to 6GHz):
