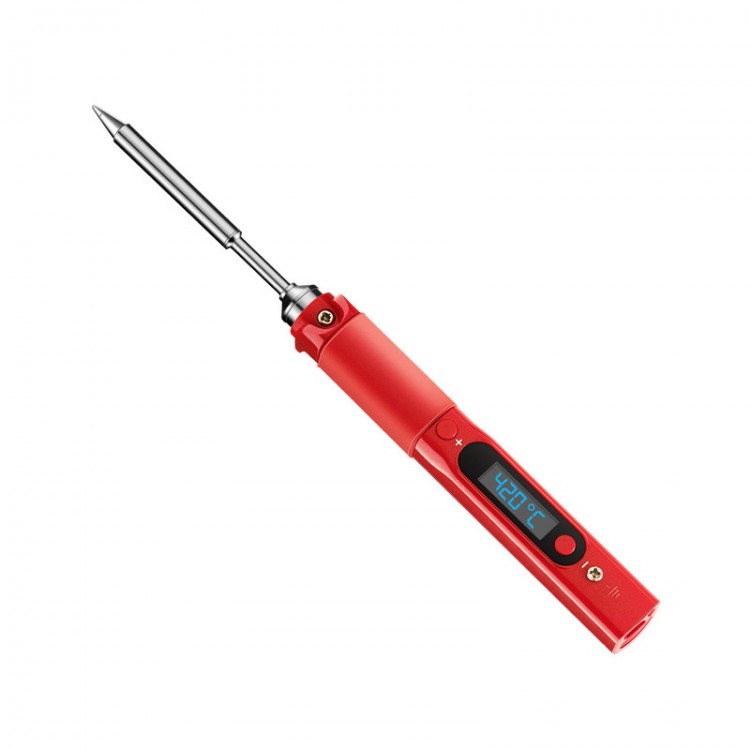

Pine64 60W Mini Soldering Iron Tool 50-420℃ CE FCC Certification For Precision Maintenance Welding

Pine64 60W Mini Soldering Iron Tool 50-420℃ CE FCC Certification For Precision Maintenance Welding

Description:
The PINE64 soldering iron is an intelligent soldering iron with TYPE-C interface and be powered by DC5525 power supply. It can be powered by 9V-12V-20V mobile phone charging head and power bank. The maximum output power is 60W. Its left-hand and right-hand modes are automatically switched. The temperature is controllable from 50℃ to 420℃, and it takes 13 seconds to heat from room temperature to 420℃.

PIEN64 has simplified Chinese, traditional Chinese operating systems and English system, as well as language operating systems in 31 countries. OLED display allows you to control the status of the soldering iron at any time. It can intelligently control the temperature, and has multiple modes such as sleep, automatic shutdown, and safety protection.

It adopts an internally heated ceramic heating core, which conducts heat through pure copper and quickly transfers heat to the tip of the soldering iron. The temperature control performance is stable. The soldering iron tip can be easily and quickly replaced by easy-to-push fasteners.

Upgrade hardware here. Link for https://wikipine64.org/wiki/pinecil.

Features:
- HD digital display. OLED display and fiber handle housing
- Support universal QC3.0/4.0/PD3.0/pd4.0/DC5525 power supply
- Power 60W. It takes only 13 seconds to heat from room temperature to 420°C
- Automatic sleep: stand for 50 seconds and automatically keep constant temperature to 150℃, pick up 5 seconds to rise to 420℃
- Temperature control: The temperature can be changed by 1°C every time adjustment or 10°C every time adjustment. You can set it yourself
- Easy to loose the soldering iron tip via its easy-push type soldering iron fasteners
- Safe to use. Prevent from getting burned
- Smart security chip protects its interfaces
- Lead-free and environmentally friendly iron tip
- Power supply modes type-c and DC5525
- Can be used indoors and outdoors
- Open-source software makes it easy to upgrade in the future
- Its acceleration sensor senses the usage status. The main chip adopts GD32VF103T B for GigaDevice
- Intelligent temperature control chip enables fast heating. Precisely control current, voltage and frequency to achieve constant temperature and constant voltage
- Internal ceramic heating core heats from the inside to the outside, with stable heating performance
- The heat-insulating sheath is made of high-temperature resistant and heat-insulating material. It is comfortable to hold

Compatible with Fast Charging Protocols of Various Power Sources:
- GaN fast charging technology: higher power, smaller size, faster charging, and lower temperature rise
- BPS charging technology: intelligently adjust output voltage, current and power distribution
- BCT heat dissipation technology: Nanotechnology stimulates the infrared resonance effect on the heat dissipation surface to accelerate heat dissipation

Performance Parameters:
- Temperature range: 50-420℃
- Rated power: 60W
- Interfaces: USB Type-C and DC5525
- Display: OLED
- Power supply input: 9V-12V-20V-21V
- Temperature accuracy: ±3%
- Certification: CE/FCC
- Product Length: 17cm/6.7"
- N.W.: 30g/0.07 lb

Package Included:
- 1 x Soldering Iron Control Terminal
- 1 x TSL-B2 Soldering Iron Tip

Note:
- Please leave a message about the language of operation system you want when purchasing. Thank you!
- Power supply is not included in the package.
