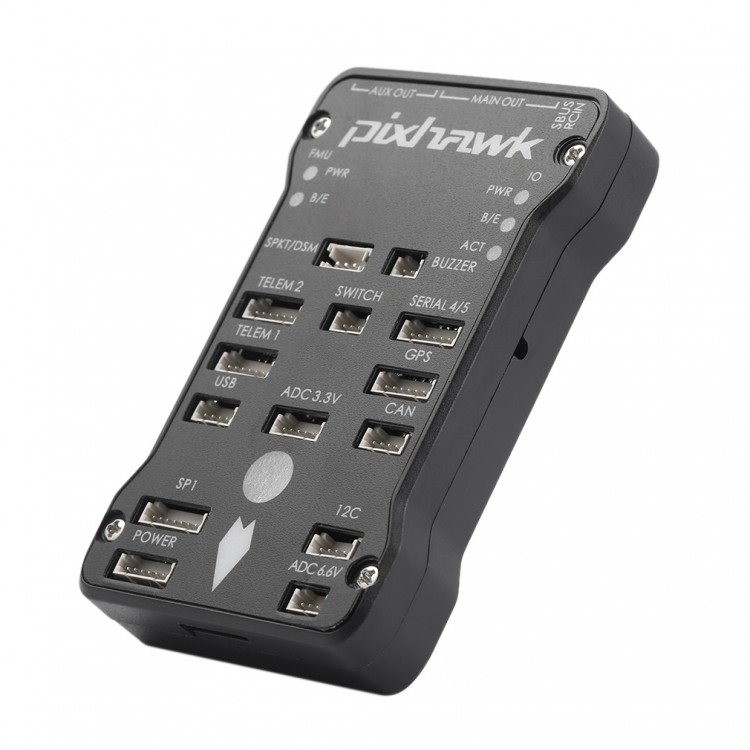

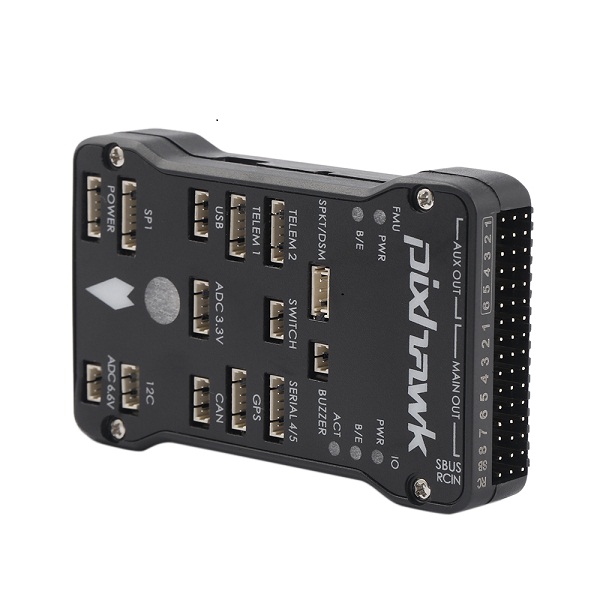

Pixhawk 2.4.8 Flight Controller 32 Bit ARM PX4FMU PX4IO Combo For RC Toys

Pixhawk 2.4.8 Flight Controller 32 Bit ARM PX4FMU PX4IO Combo For RC Toys

Product Features:
- Material :Composite Material
- Upgrade Parts/Accessories :Adapter
- Four-wheel Drive Attributes :Assemblage
- For Vehicle Type :Airplanes
- Technical parameters :Value 2
- RC Parts & Accs :Flight Controller
- Remote Control Peripherals/Devices :Flight Controller
- Tool Supplies :Assembled class

Specification:
- Advanced 32 bit CortexM4 ARM high performance processor,32 bit STM32STMF100 failsafe co-processor;
- On the basis of 3DR PIX function,developed optimized circuit design and creative design automation software QA system, less interference of inner components, less noise, more accurate compass and safetly while flying.
- Each port of every PIX by automated, sotware system comprehensive fine tested, avoiding wrong installation.
- Easyily control any aireplanes and rc car, switch the flight mode as you like, including acro,altitude hold,auto,circle,drift and so on.
- Multi tone buzzer interface.MicroSecureDigital to record flight data
- Color:Black
- Size: 50x81x16mm/2.0x3.2x0.6 in

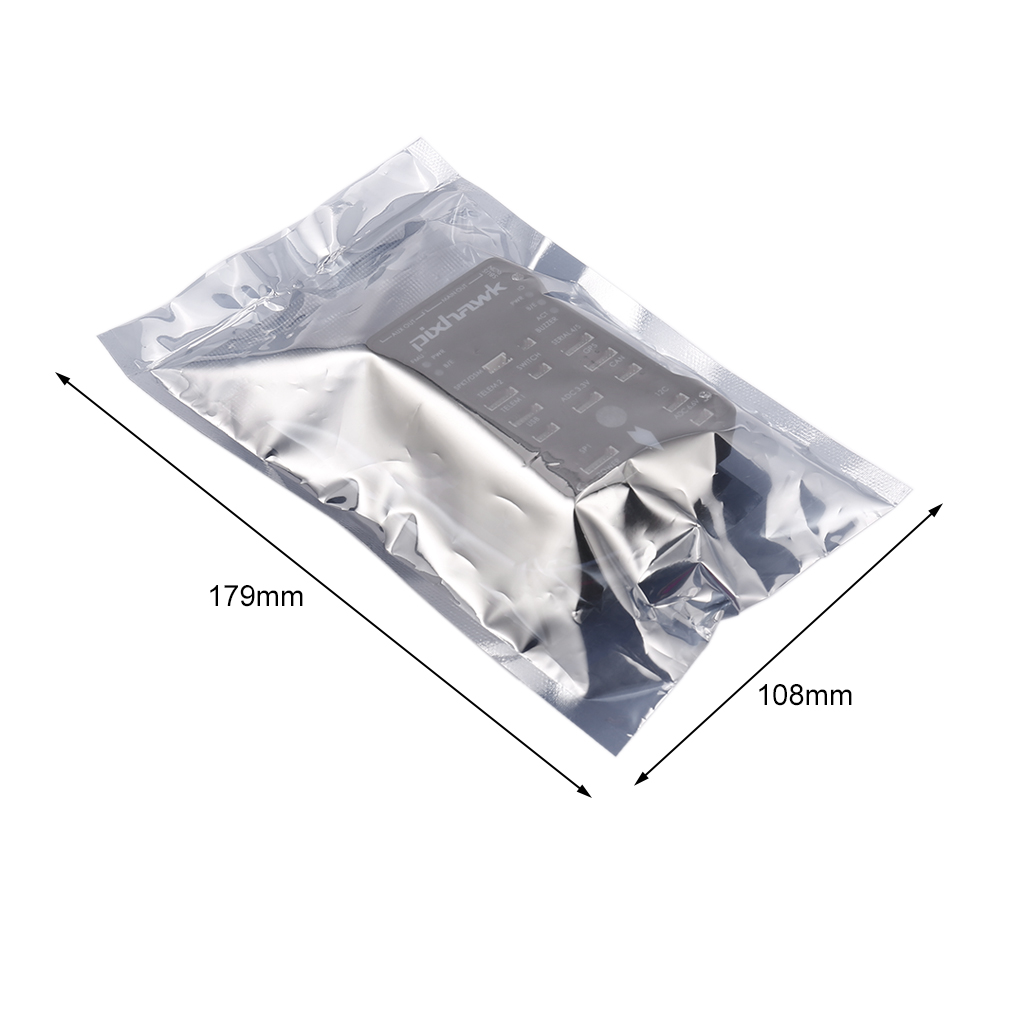

- Package size: 108x179x17mm/4.3x7.0x0.7 in
- Weight: 56g
- Package weight: 61g

Processor:
- 32bit STM32F427 Cortex M4 core with FPU
- 168MHz
- 256KB RAM
- 2 MB Flash
- 32 bit STM32STMF100 failsafe co-processor

Sensor:
- ST MicroL3GD20H 16 bit gyroscope
- ST MicroLSM303D 14 bit accelerometer/magnetometer
- Invensense MPU 6000 3-axis accelerometer/gyroscope
- MEAS MS5611 barometer

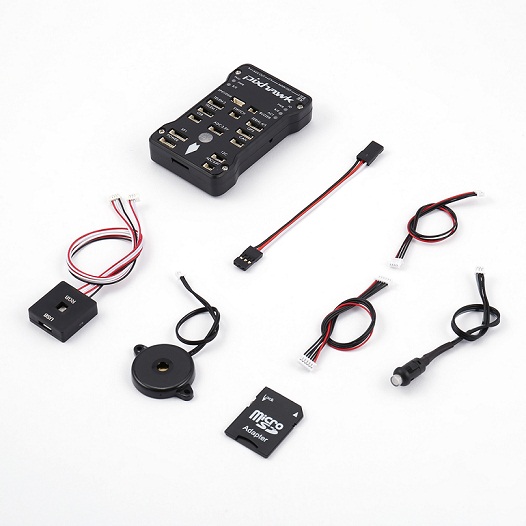

Package List:
- 1   x    2.4.8 Pixhawk main control
- 1   x    Safety switch
- 1   x    Flight control shell

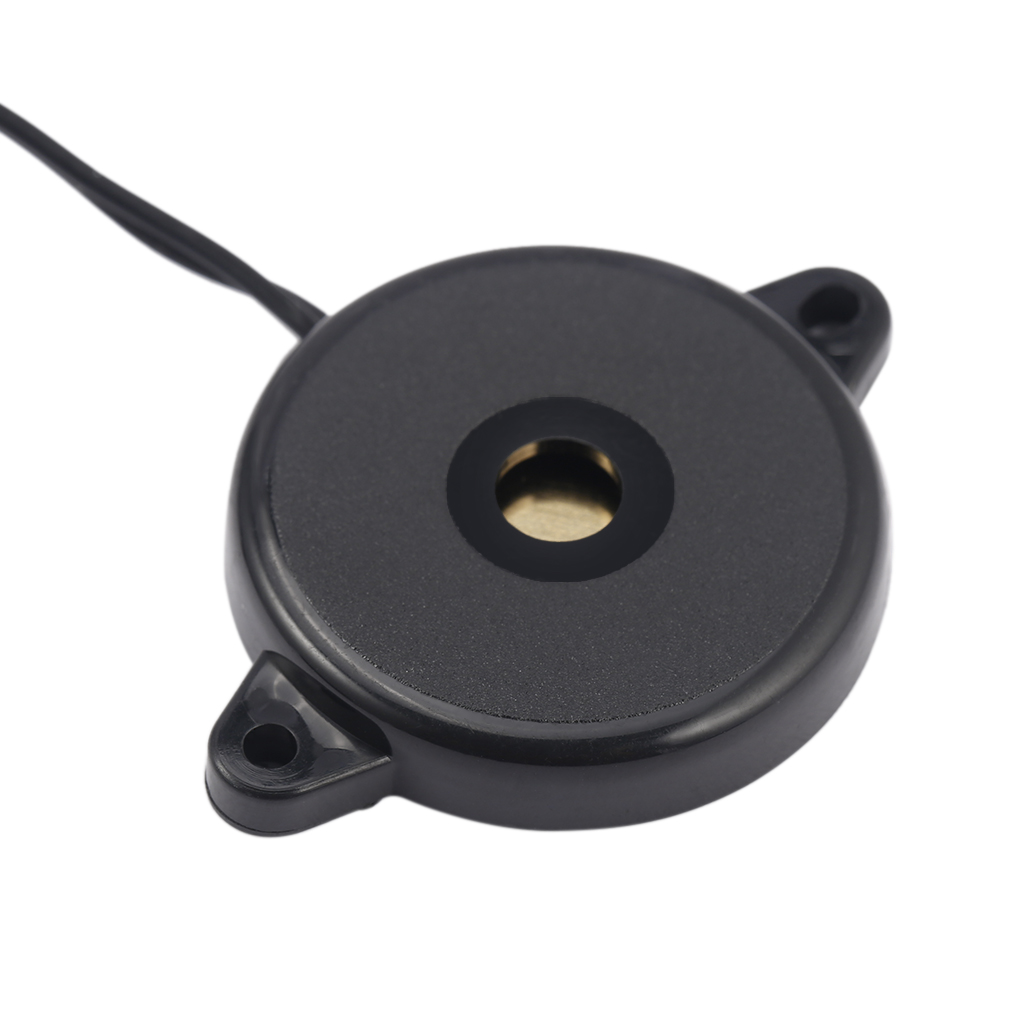

- 1   x    Buzzer

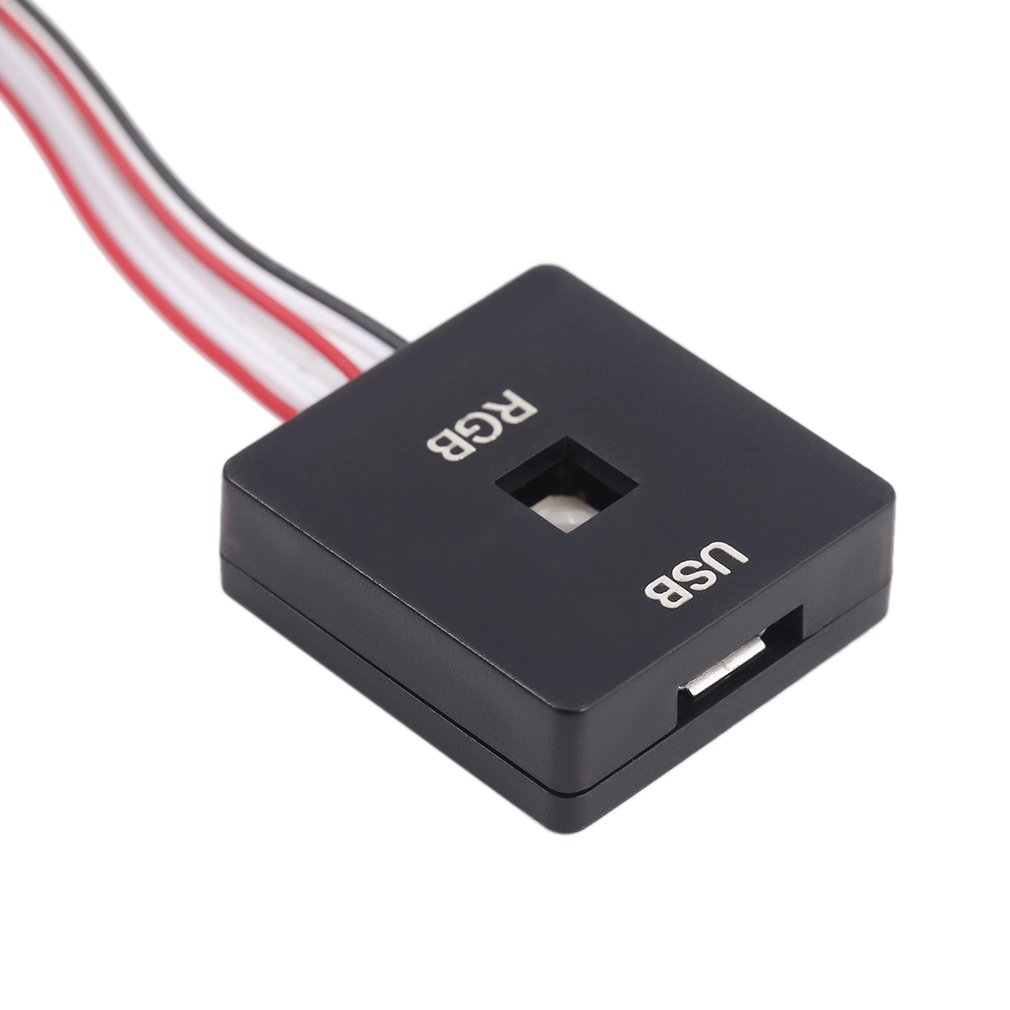

- 1   x    USB RGB
- 1   x   6pin to 6pin line
- 1   x   4Pin to 4Pin line
- 1   x   3pin DuPont line
- 1   x   Secure Digital card
