Pixhawk PX4 2.4.8 Flight Controller 32 Bit ARM PX4FMU PX4IO Combo For RC Toys

Pixhawk PX4 2.4.8 Flight Controller 32 Bit ARM PX4FMU PX4IO Combo For RC Toys

Product Features:
- Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;
- Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control;
- Provide redundant power input and fault transfer function;
- 14* PWM/ actuator output;
- Bus interface (UART, I2C, SPI, CAN);
- Provide automatic and manual mode;
- Color LED lamp;
- Multi tone buzzer interface;
- Micro SD to record flight data;
- Material :Composite Material
- Upgrade Parts/Accessories :Adapter
- Four-wheel Drive Attributes :Assemblage
- For Vehicle Type :Airplanes
- Technical parameters :Value 2
- RC Parts & Accs :Flight Controller
- Remote Control Peripherals/Devices :Flight Controller
- Tool Supplies :Assembled class

Specification:
- The board integrates with PX4FMU+PX4IO
- Pixhawk is with new 32 bit chip and sensor technology

Processor:
- 32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit
- Main frequency: 256K, 168MHZ RAM
- 32 bit STM32F103 backup co processor

Sensor:
- L3GD20 3 axis digital 16 bit gyroscope
- LSM303D 3 axis 14 bit accelerometer /magnetometer
- MPU6000 6 axis accelerometer / magnetometer
- MS5611 high precision barometer

Interface:
- 5* UART, 1*compatible high voltage, 2*hardware flow control
- 2*CAN
- Spektrum DSM/DSM2/DSM-X satellite receiver compatible input
- Futaba SBUS compatible input and output
- PPM signal input
- RSSI (PWM or voltage) input
- I2C
- SPI
-3.3 and 6.6VADC input
- External USB MICRO interface
- Color:Black

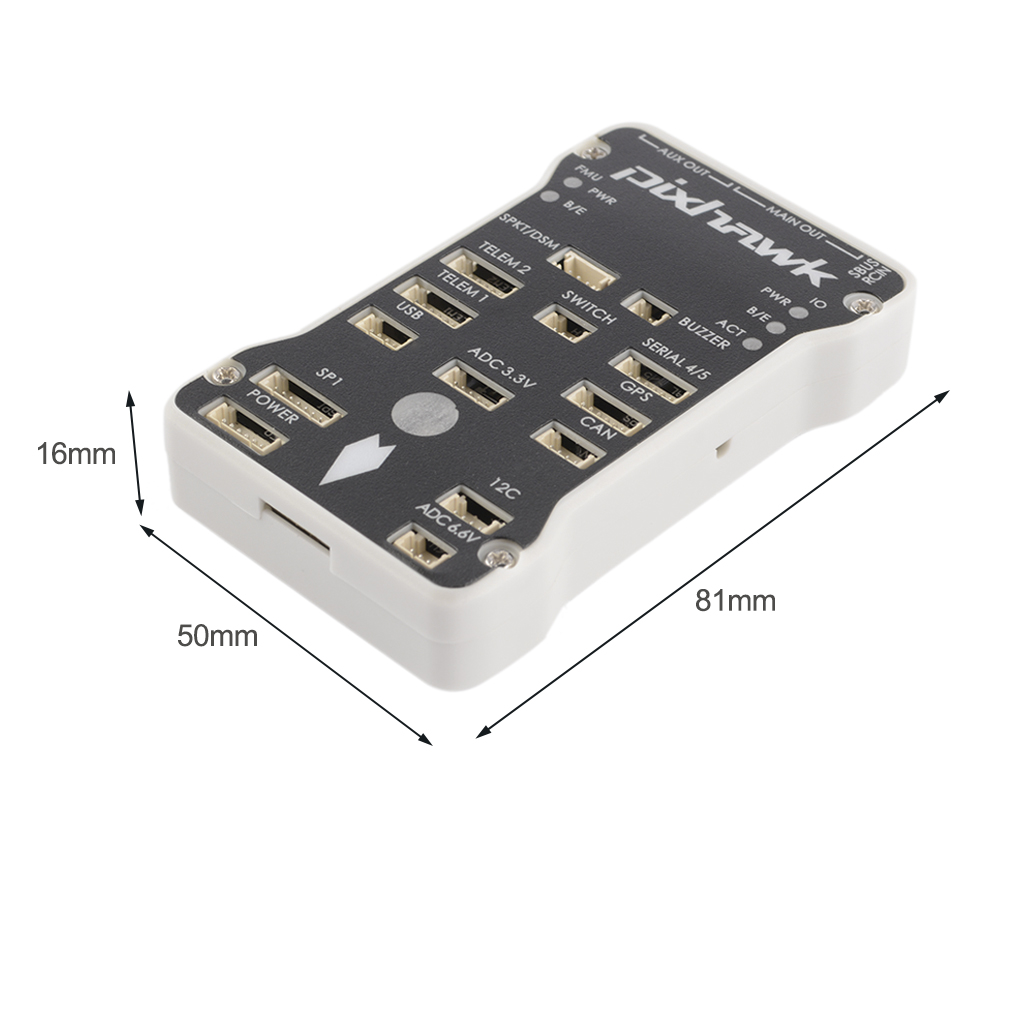

- Size: 50x81x16mm/2.0x3.2x0.6 in
- Package size: 110x145x18mm/4.3x5.7x0.7 in
- Weight: 48g
- Package weight: 52g

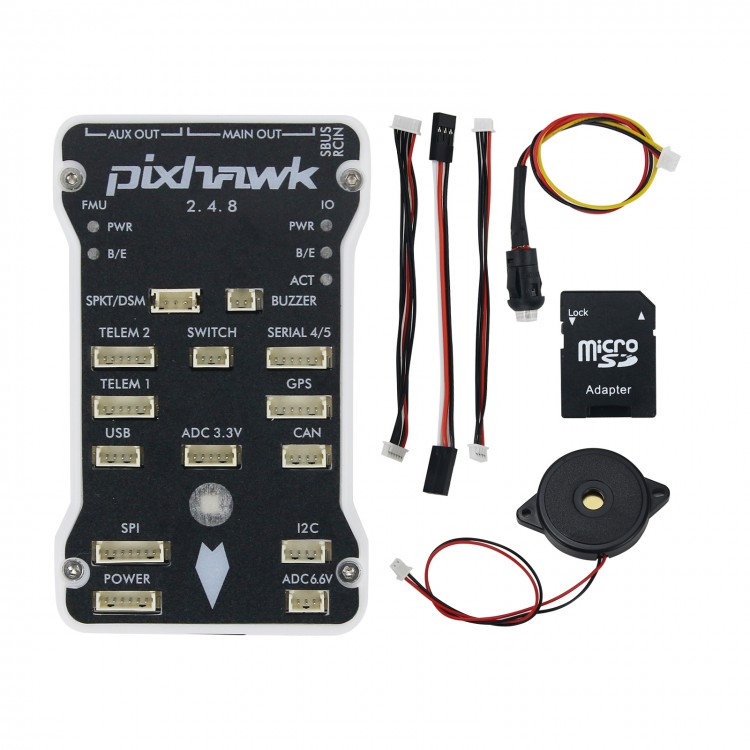

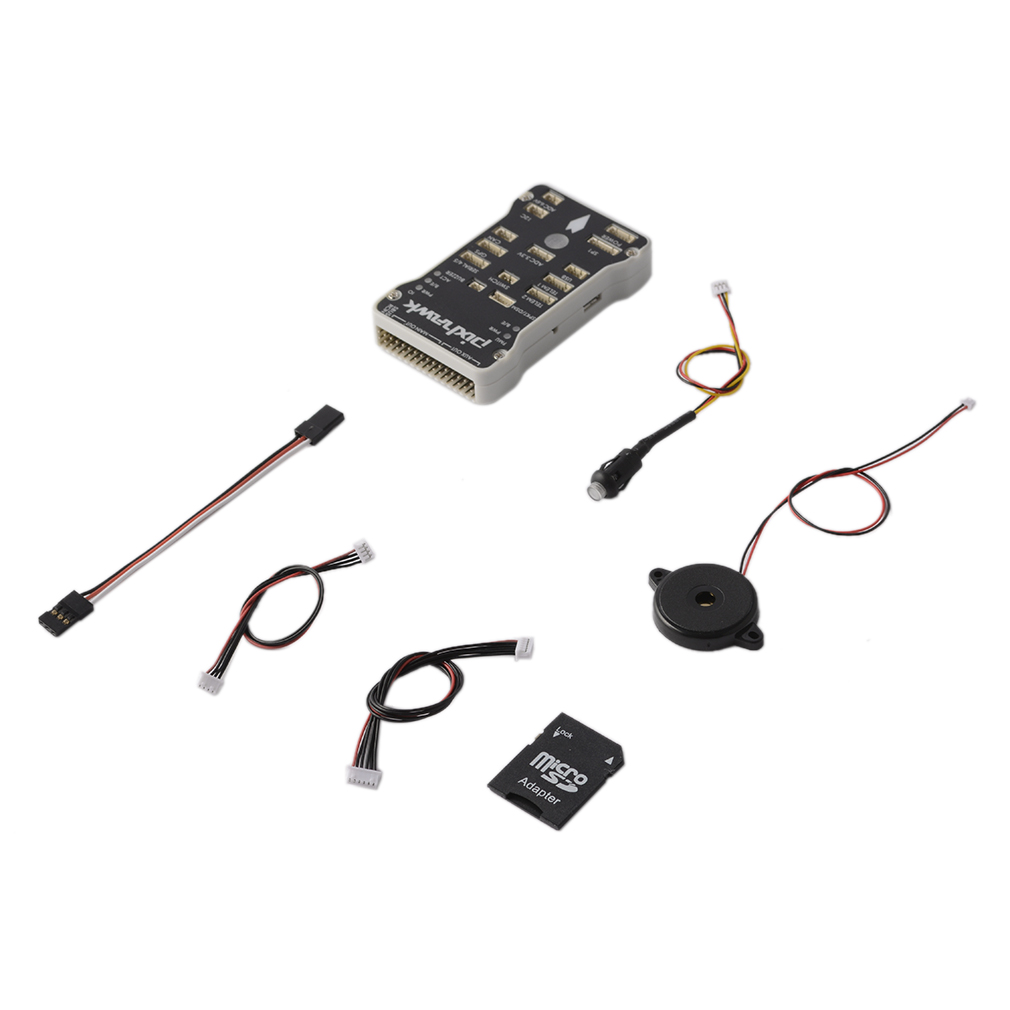

Package List:
- 1 x 2.4.8 Pixhawk main control

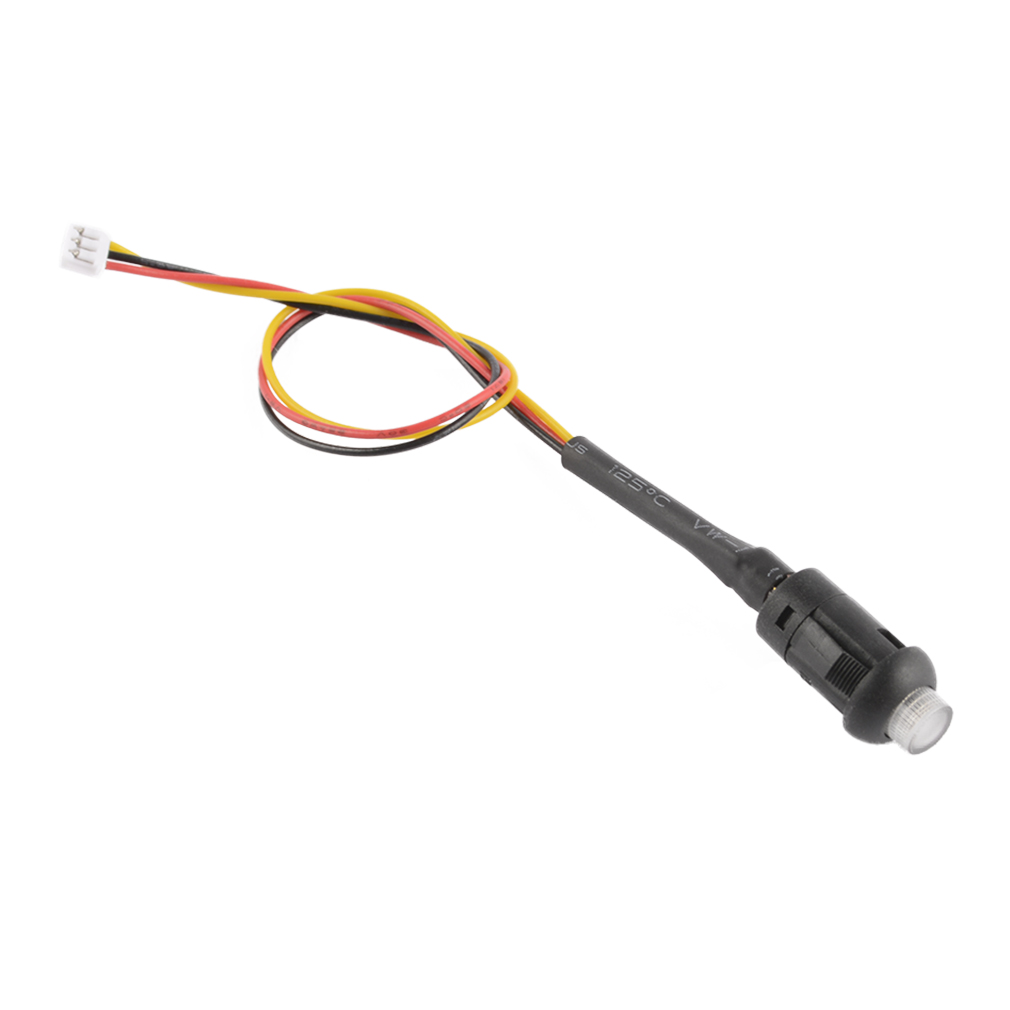

- 1 x Safety switch
- 1 x Flight control shell

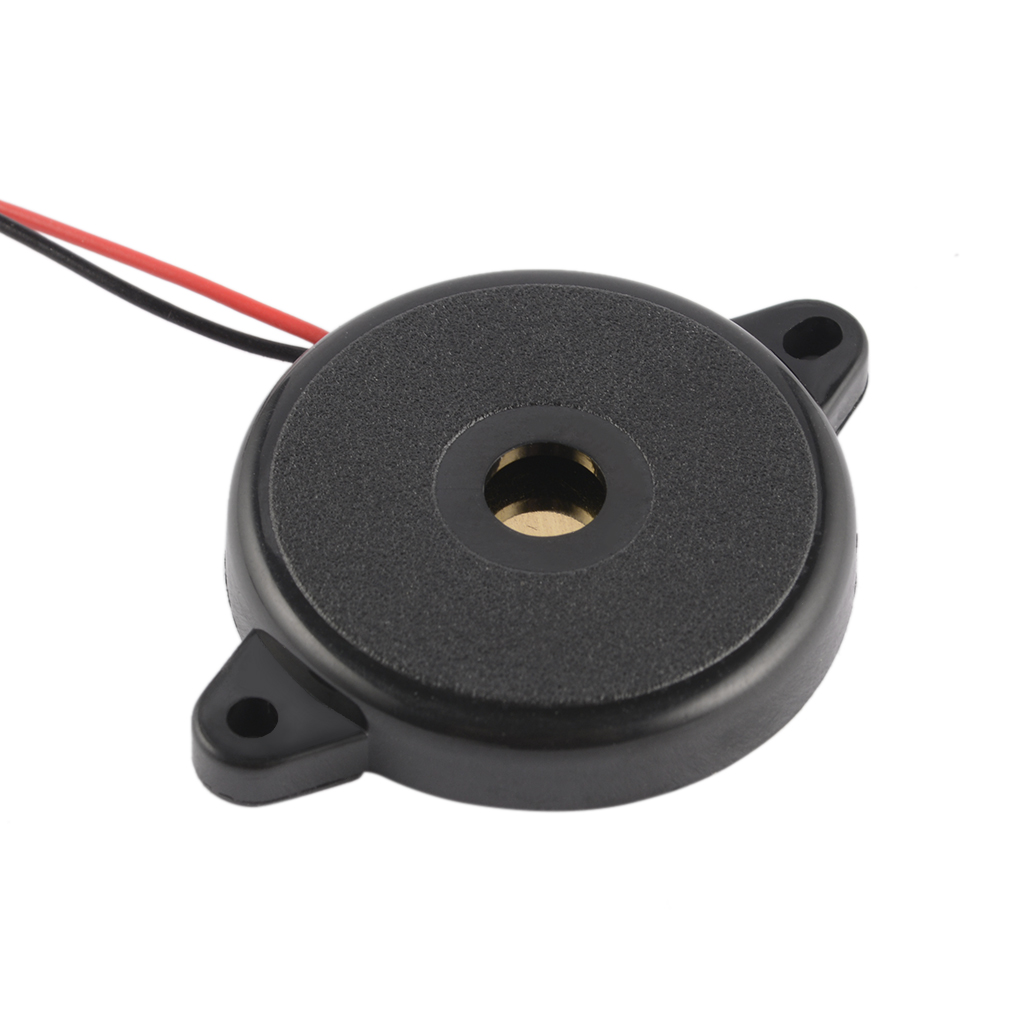

- 1 x Buzzer
- 1 x 6pin to 6pin line
- 1 x 4Pin to 4Pin line
- 1 x 3pin DuPont line
