Pixhawk PX4 Autopilot PIX 2.45 Flight Controller 32 bit ARM Set with UBLOX LEA 6H GPS 3DR Radio Telemetry Case for RC Model

Pixhawk PX4 Autopilot PIX 2.45 Flight Controller 32 bit ARM Set with UBLOX LEA 6H GPS 3DR Radio Telemetry Case for RC Model

Pls specifiy the Telemetry Frequency when you place order: 915Mhz or 433Mhz


Features

• Advanced 32 bit ARM Cortex® M4 Processor running NuttX RTOS
• 14 PWM/servo outputs (8 with failsafe and manual override, 6 auxiliary, high-power compatible)
• Abundant connectivity options for additional peripherals (UART, I2C, CAN)
• Integrated backup system for in-flight recovery and manual override with dedicated processor and stand-alone power supply
• Backup system integrates mixing, providing consistent autopilot and manual override mixing modes
• Redundant power supply inputs and automatic failover
• External safety button for easy motor activation
• Multicolor LED indicator
• High-power, multi-tone piezo audio indicator
• microSD card for long-time high-rate logging

Microprocessor:

• 32-bit STM32F427 Cortex M4 core with FPU
• 168 MHz/256 KB RAM/2 MB Flash
• 32 bit STM32F103 failsafe co-processor

Sensors:

• ST Micro L3GD20 3-axis 16-bit gyroscope
• ST Micro LSM303D 3-axis 14-bit accelerometer / magnetometer
• Invensense MPU 6000 3-axis accelerometer/gyroscope
• MEAS MS5611 barometer

Interfaces:

• 5x UART (serial ports), one high-power capable, 2x with HW flow control
• 2x CAN
• Spektrum DSM / DSM2 / DSM-X® Satellite compatible input
• Futaba S.BUS® compatible input and output
•  PPM sum signal
• RSSI (PWM or voltage) input
• I2C®
• SPI
• 3.3 and 6.6V ADC inputs
• External microUSB port

Power System:

• Ideal diode controller with automatic failover
• Servo rail high-power (7 V) and high-current ready
• All peripheral outputs over-current protected, all inputs ESD protected

Weight and Dimensions:

• Weight: 38g (1.31oz)
• Width: 50mm (1.96")
• Thickness: 15.5mm (.613")
• Length: 81.5mm (3.21")

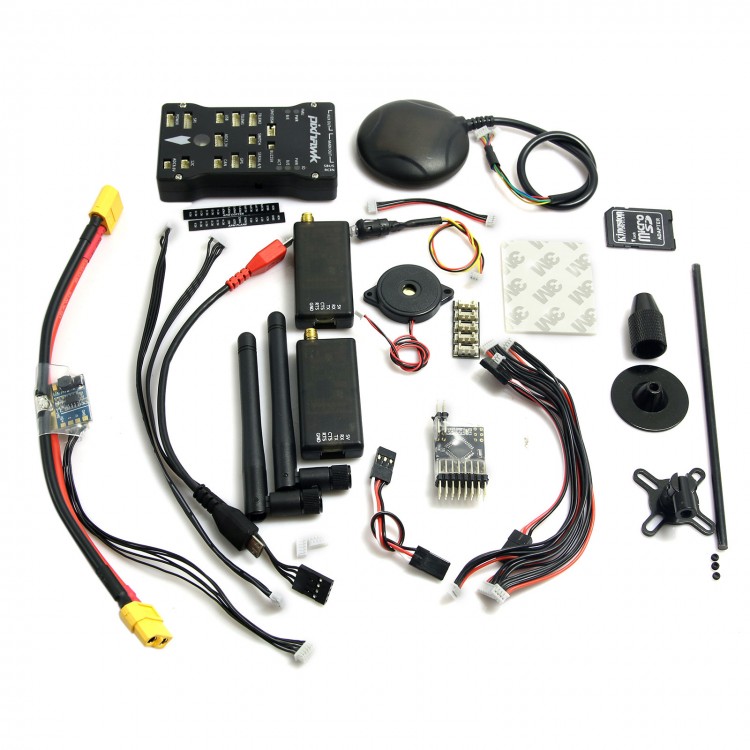

Pixhawk includes:

• Pixhawk autopilot
• Buzzer
• Safety switch button
• 3DR Radio wireless data transmission Dual TTL (including housing, 433mHz, 915mHz optional)
• Extra 6-position cable to connect a 3DR GPS+Compass module
• SD card and USB adapter
• 3-wire servo cable
• Pixhawk box
• Power Module
• UBLOX LEA-6H GPS

Pixhawk is a PPM-input autopilot, which means that it gets RC input from a single cable to the receiver, either via the PPM port, the Futaba S.BUS port, or the special satellite receiver port for Spektrum gear. Most modern RC receivers (and all those sold by 3D Robotics) allow for PPM output, but some, such as non-S.BUS Futaba receivers, do not. If your receiver does not support PPM output, please add a PPM encoder board option to your order below.
