PIXHAWM V2.43 PX4FMU & PX4IO Autopilot Flight Controller 32 Bit w/Shell for Multicopters Fixed-wing Copters

PIXHAWM V2.43 PX4FMU & PX4IO Autopilot Flight Controller 32 Bit w/Shell for Multicopters Fixed-wing Copters

Features:
- Advanced 32 bit ARM Cortex® M4 Processor running NuttX RTOS
- 14 PWM/servo outputs
- Abundant connectivity options for additional peripherals (UART, I2C, CAN)
- Integrated backup system for in-flight recovery and manual override with dedicated processor and stand-alone power supply
- Backup system integrates mixing, providing consistent autopilot and manual override mixing modes
- Redundant power supply inputs and automatic failover
- External safety button for easy motor activation
- Multicolor LED indicator
- High-power, multi-tone piezo audio indicator
- microSD card for long-time high-rate logging

Hardware Parameters:
Processor:
- 32 bit STM32F427 Cortex M4 core with FPU
- 168 MHz/256 KB RAM/2 MB Flash
- 32 bit STM32F103 failsafe co-processor
Sensors:
- ST Micro L3GD20H 16 bit gyroscope
- ST Micro LSM303D 14 bit accelerometer / magnetometer
- MPU6000 6-Axis Accelebrator/magnetometer
- MEAS MS5611 barometer
Interfaces:
- 5x UART (serial ports), one high-power capable, 2x with HW flow control
- 2x CAN
- Spektrum DSM / DSM2 / DSM-X® Satellite compatible input
- Futaba S.BUS® compatible input and output
- PPM sum signal
- RSSI (PWM or voltage) input
- I2C
- SPI
- 3.3 and 6.6V ADC inputs
- External microUSB port

Package Included:

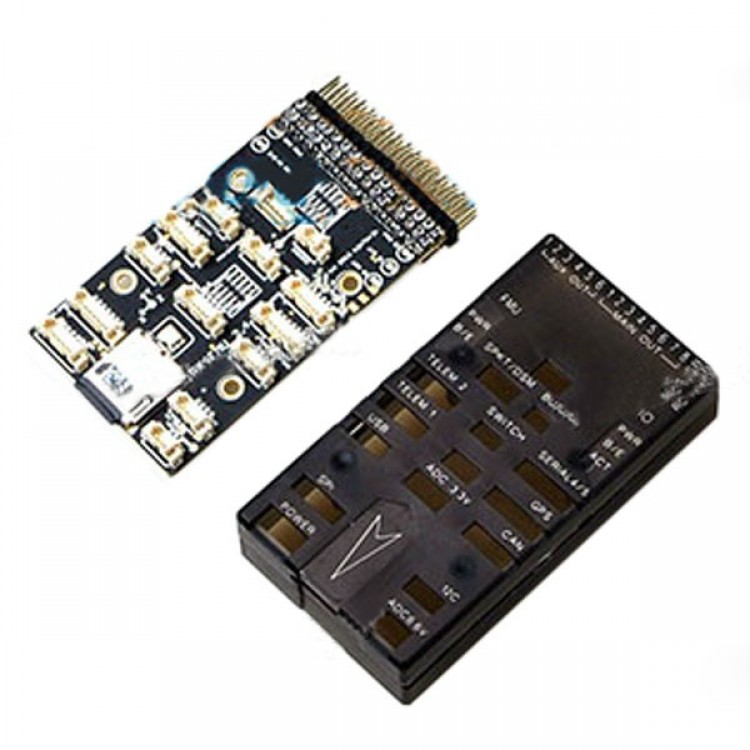

- PX4 Autopilot flight controller board
- PX4 Protective shell
