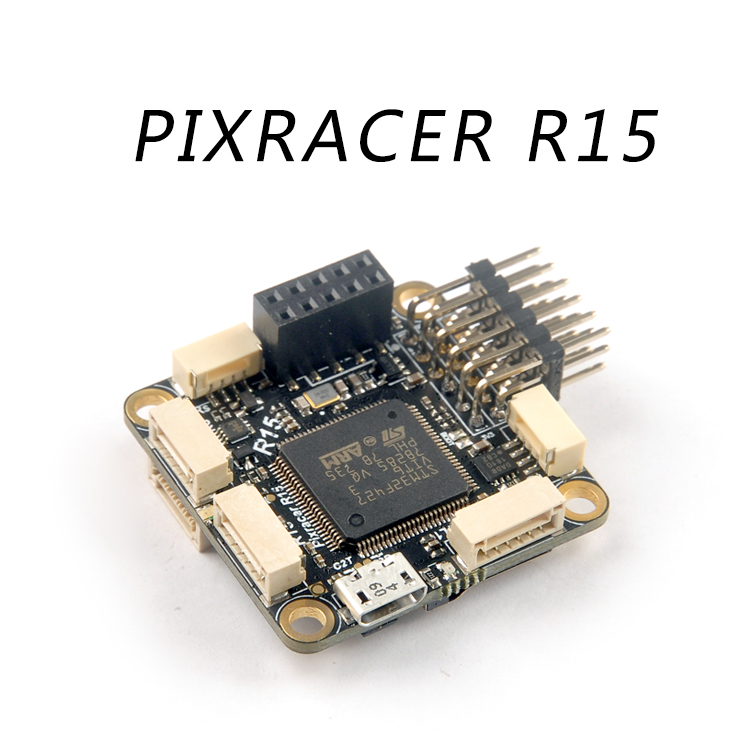

Pixracer R15 Autopilot Xracer PX4 Flight Controller For Drone FPV Mini Version
Description:

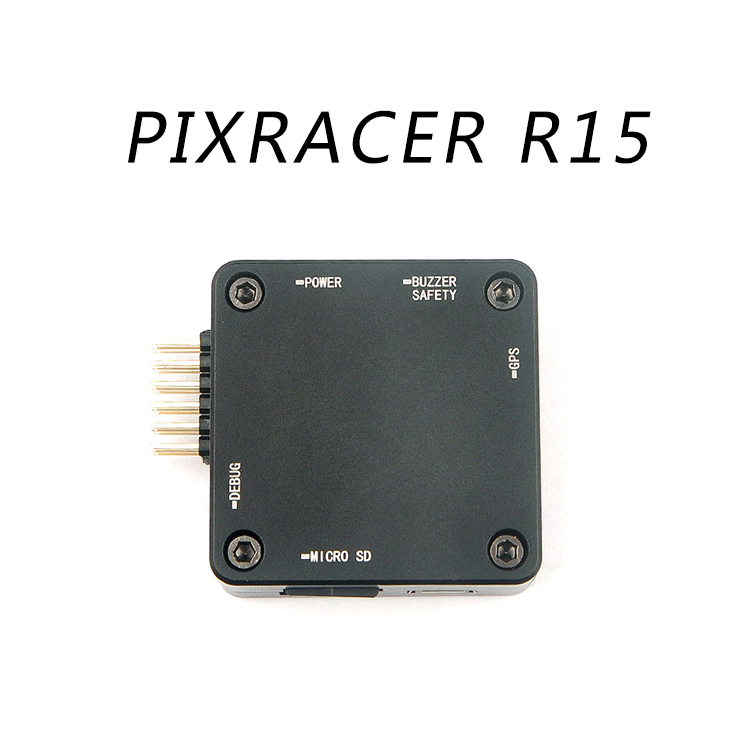

Pixracer R15 Autopilot xracer is the new generation PX4 flight controller mini version. The flight controller adopts the same hardware, circuit structure and foolproof socket as the official R15 version, and is equipped with a high-end CNC metal case, which has good heat dissipation and good shielding performance.
The R15 version uses an upgraded electronic compass ST LIS3MDL. The receiver circuit has been improved, and it has supported for Spektrum DSM2 / DSMX series receiver link function. The default software for PX4 Stack flight firmware can directly click Spektrum bind in the QGC software. You can enter receiver link mode. Pixracer is for PX4 Stack program by default. If you need to use a barometer to set the height, please purchase the matching GPS. You cannot use the flight control barometer to set the height.
Specifications:
Microprocessor:
* 32-bit STM32F427 Cortex M4 core with FPU rev. 3
* 168 MHz/256 KB RAM/2 MB Flash
Sensors:
* Invensense MPU-9250 3-axis accelerometer/gyroscope/magnetometer
* MEAS MS5611 barometer
* ST LIS3MDL magnetometer

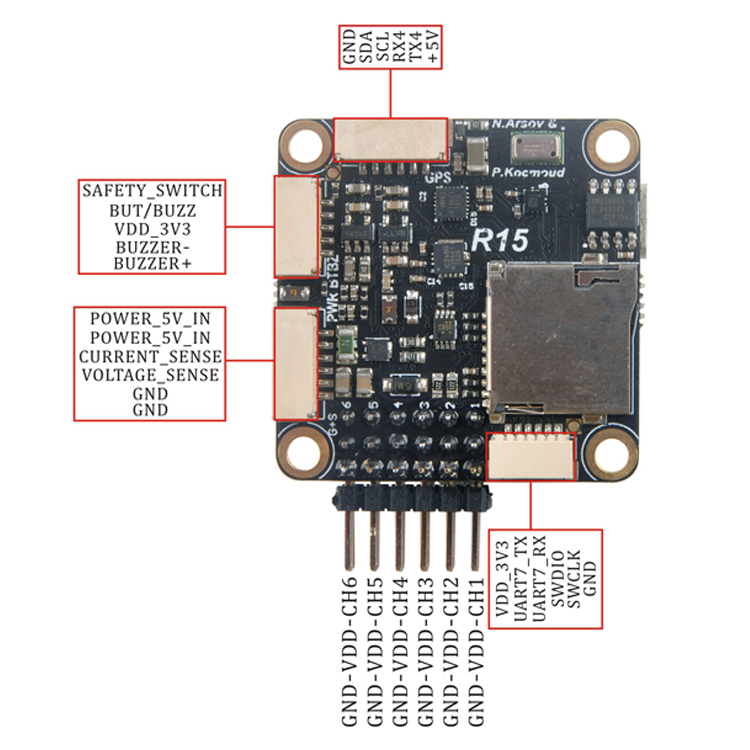

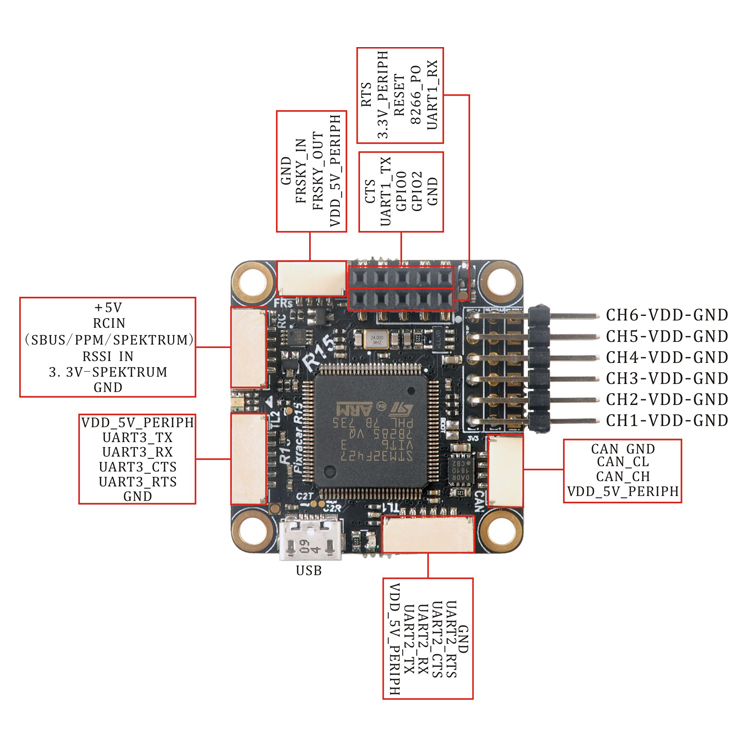

Interfaces:
* 5 x UART (serial ports), one high-power capable, 2 x with HW flow control and GPS+I2C
* CAN
* For Spektrum DSM / DSM2 / DSM-X Satellite compatible input up to DX9 and above.
* For Futaba S.BUS & S.BUS2 compatible input

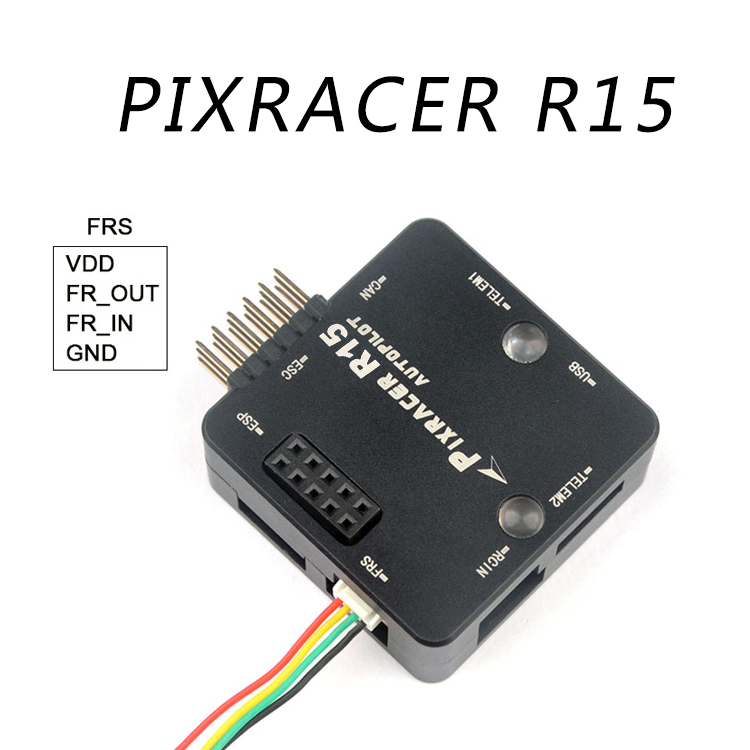

* For FRSky Telemetry port output
* For Graupner SUMD
* For Yuneec ST24
* For PPM sum input signal
* For OneShot PWM output (Configurable)
* RSSI (PWM or voltage) input
* I2C
* SPI
* External microUSB port
* JTAG
* Drone code debug connector
* WiFi Telemetry & firmware update via ESP8266 (Included!)
* 6 x PWM outputs

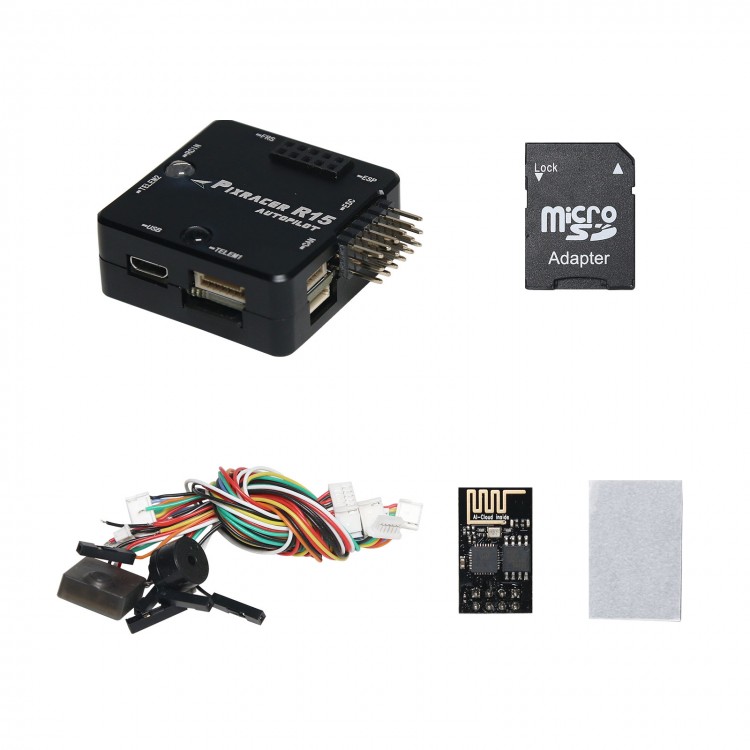

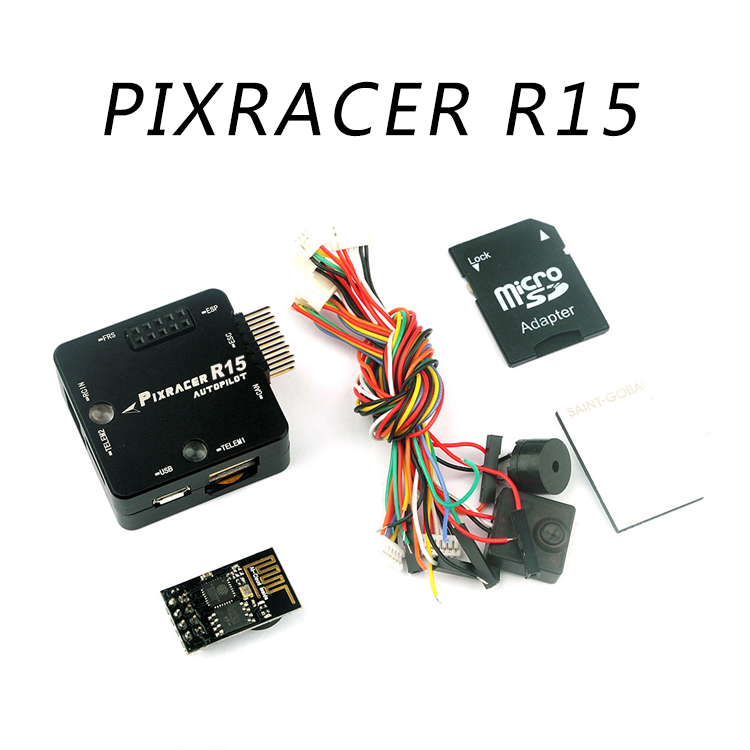

Package Included:
- 1 x Pixracer R15 Flight Controller
- 1 x CNC Aluminum Alloy Protective Shell
- 1 x ESP8266 Wifi Module
- 1 x Safety Switcher
- 1 x Buzzer
- 1 x Micro SD Card
- 1 x SD Card Reader

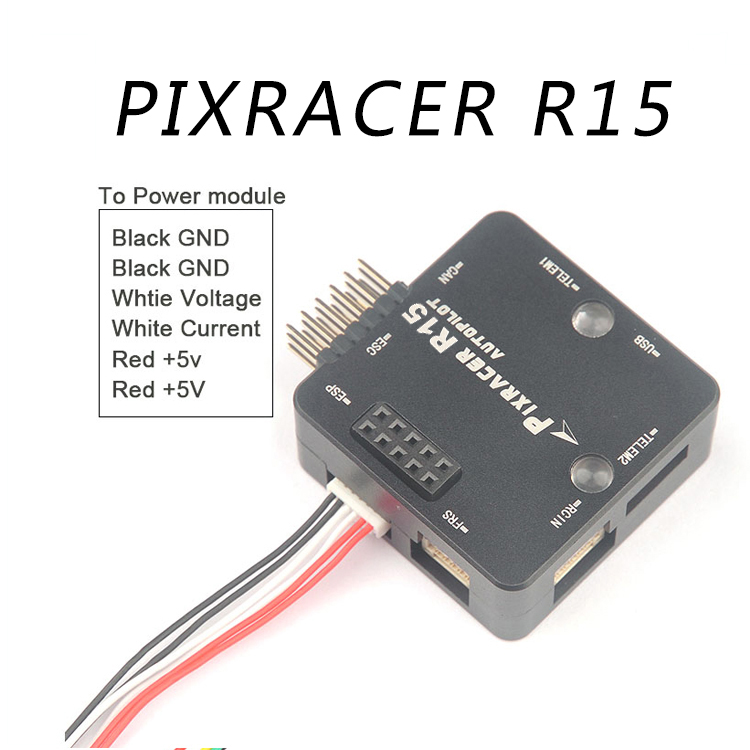

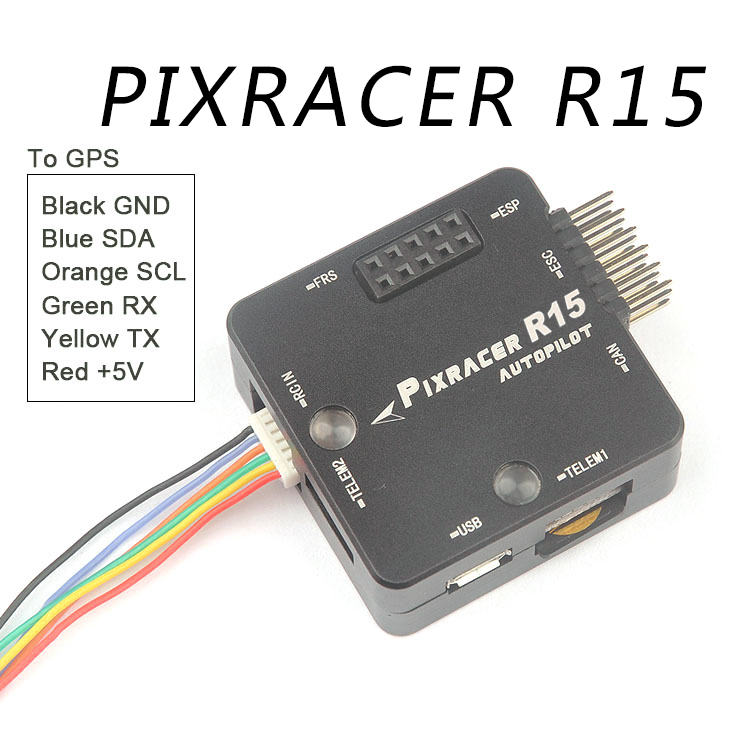

- 1 x Cables Set (For Receiver, GPS, I2C , Power module, Serial)
