Product Description:

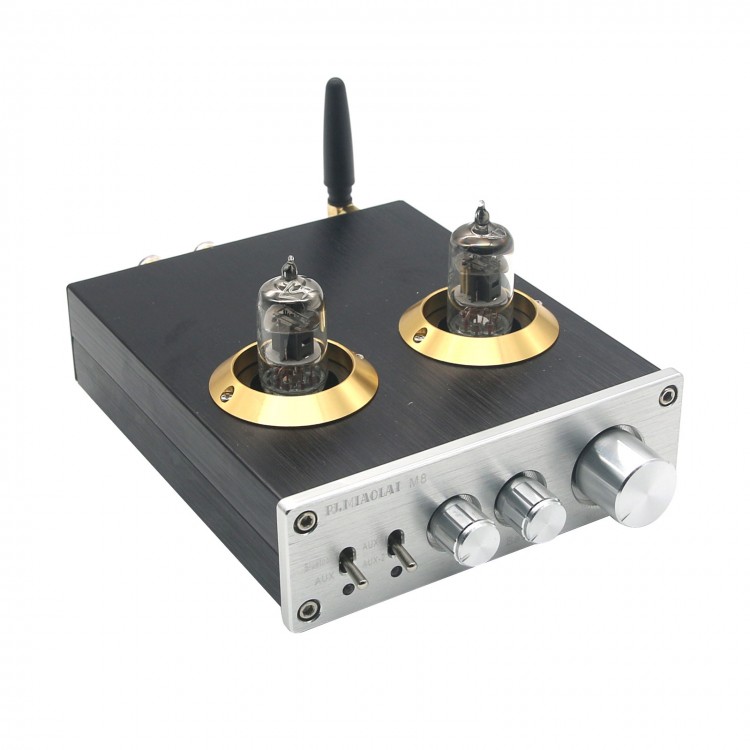

- M8 fever Hifi electron tube bluetooth digital amplifier,The amplifier uses TPA3116 core chip.The TPA3116 is D type amplifier IC.The max 1.2MHZ modulation frequency,large power output distortion is less than 0.1%(10W).the max support 50W+50W dual channel output.
- Thick gold plating,M8 multi group audio signal input,sound switch on the front panel,free converion,

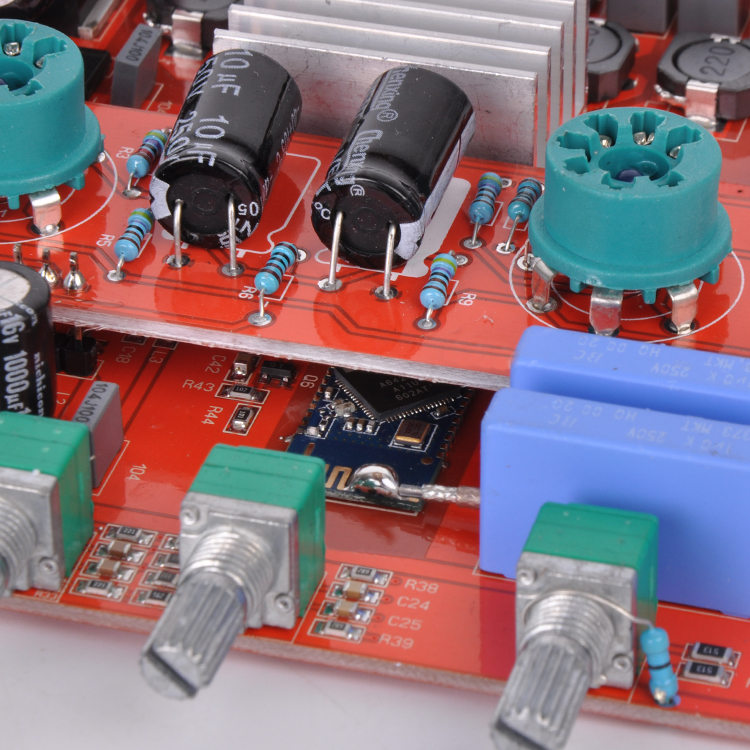

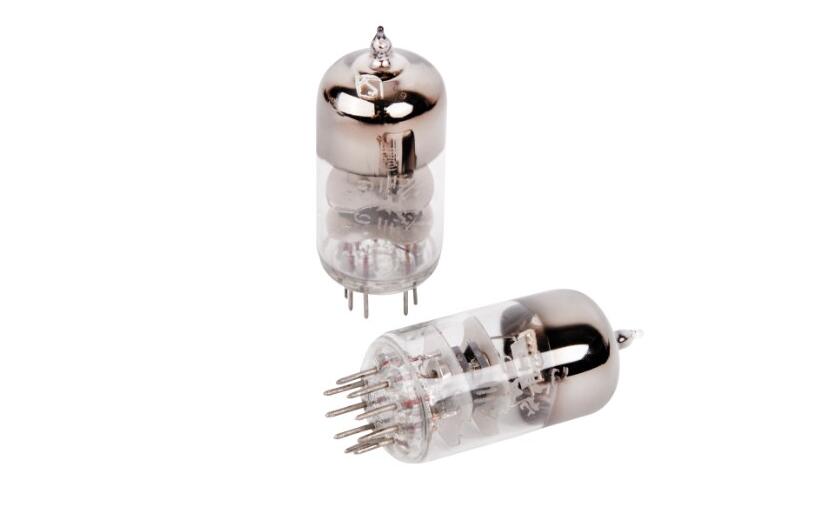

- 6J1 electron tube,aluminum large radiation fin.

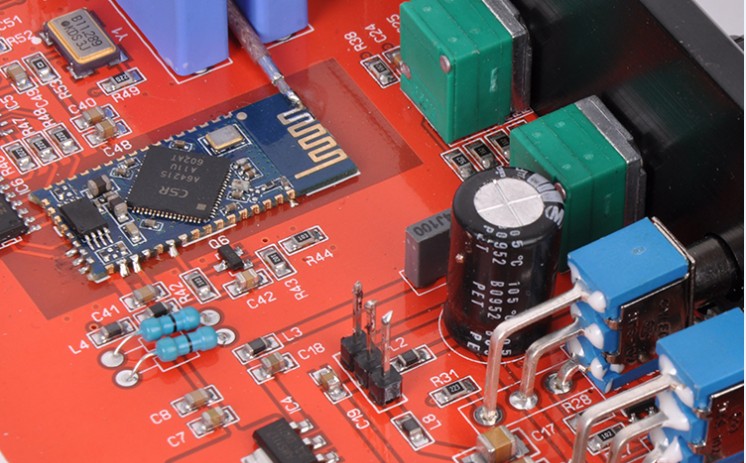

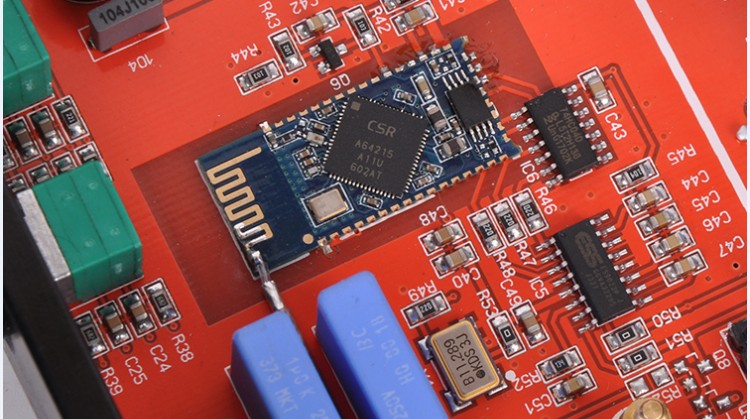

- M8 BTM625 bluetooth audio module,CSRA64215 chip,support A2DP,AVRCP,HFP,TWS,AAC,I2S,APTX,APTX-LL.
- 4M SPI FLASH memory chip,external high gain detachable antenna,signal lossless transmission.
- Inner 2 pcs relayer and high presion customed crystal oscillator,switch on protection function.
- ESS9023 bluetooth decode,24 bit stereo audio digital analog conversion chip(DAC).Hyperstream structure,112dB dynamic range.
- M8 audio signal input port can connect computer,CD,lossless music player.can connect computer,tablet PC through bluetooth.
- Audio output port can connect desktop passive speaker,bookshelf speaker(passive bookshelf speaker below 4 ohm 150W,8ohm 100W)
Specification:
- Audio input port:RCA input,3.5 stereo input,bluetooth input
- Voltage input:19V/4.7A
- Rated output power:8ohm 2x30W,4ohm 2x50W
- SNR:99dB
- Frequency:50Hz-60Hz
- Color:Silver
- Channel:2 channel
- Output power:2x50W
- Weight:0.8kg
- M8 size:16x11.5x7(LxWxH)
Package List:
- 1 x Main unit
- 1 x Power supply
- 3 x Electron tube(Spare tube)
- 1 x Bluetooth antenna
- 1 x User manual
