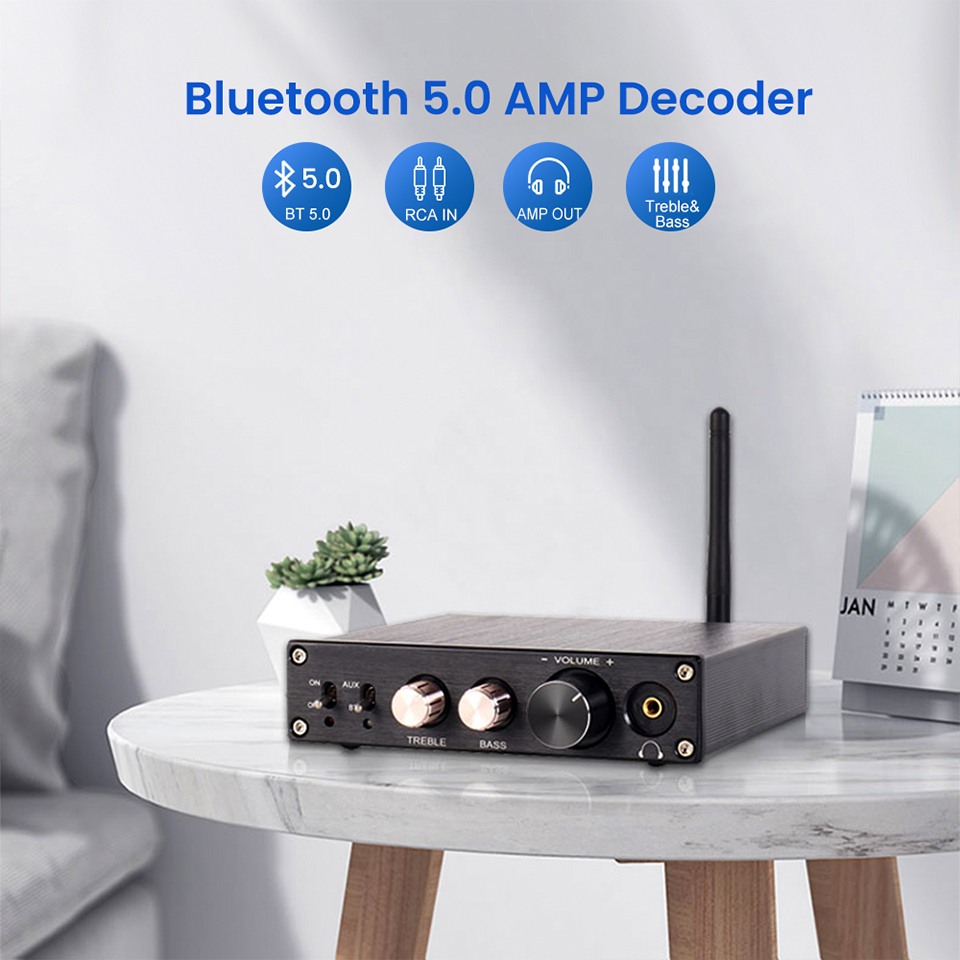

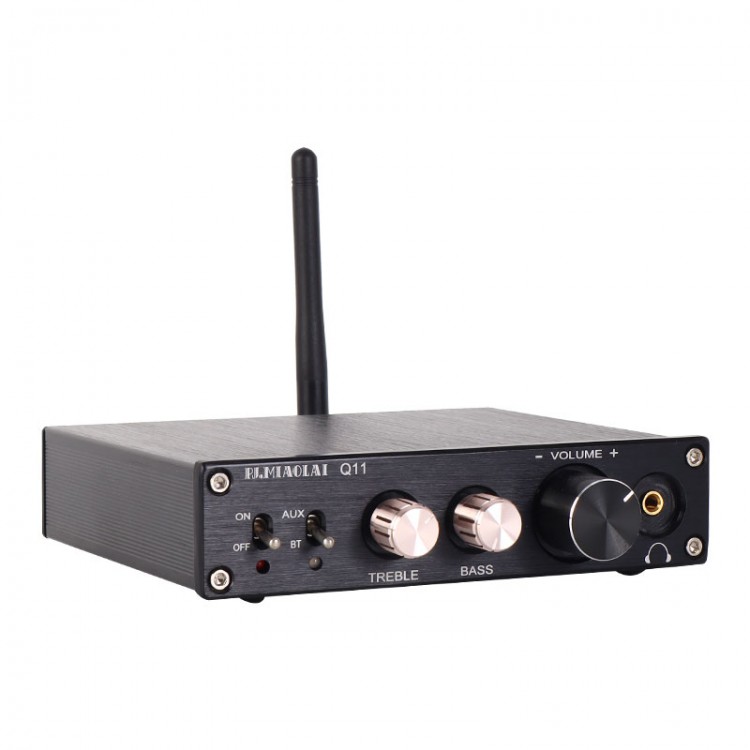

PJ MIAOLAI Q11 Lossless Audio Decoder HiFi Bluetooth Receiver Analog to Optical Fiber and Coaxial
Features:
- High fidelity ear amplifier

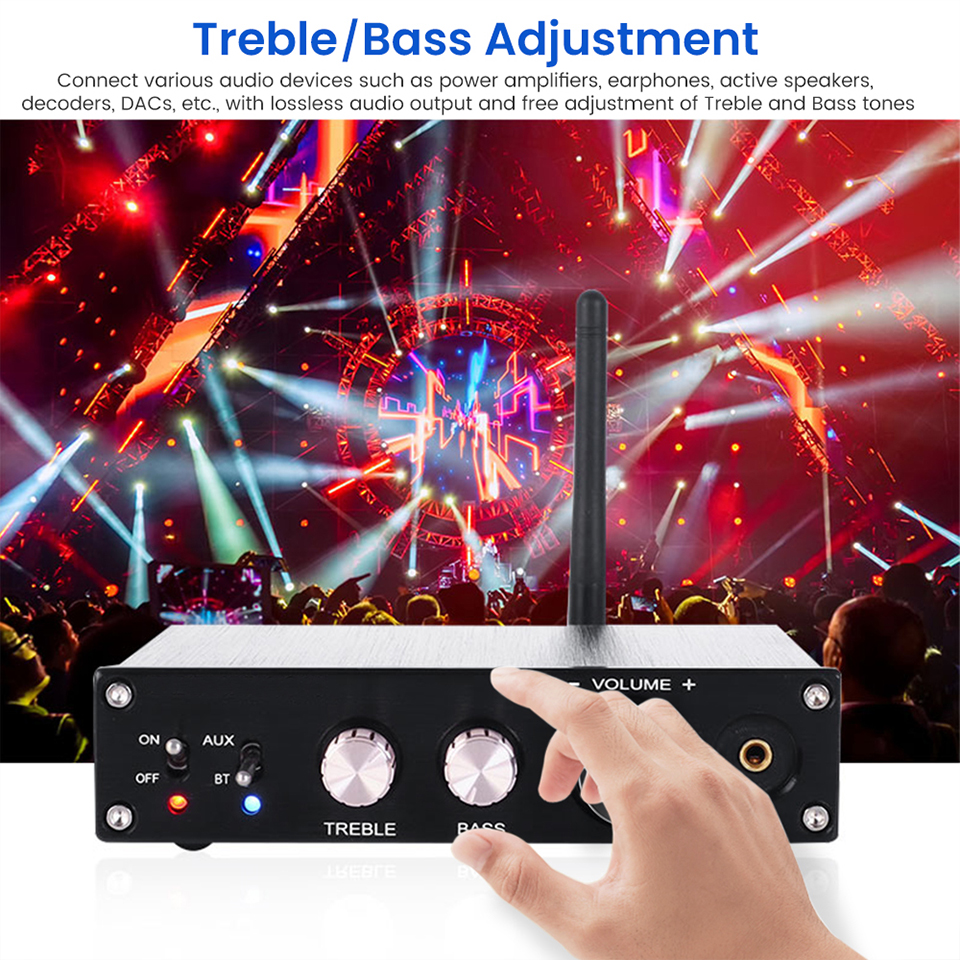

- High and low pitch adjustment
- Electroplated thick gold interface

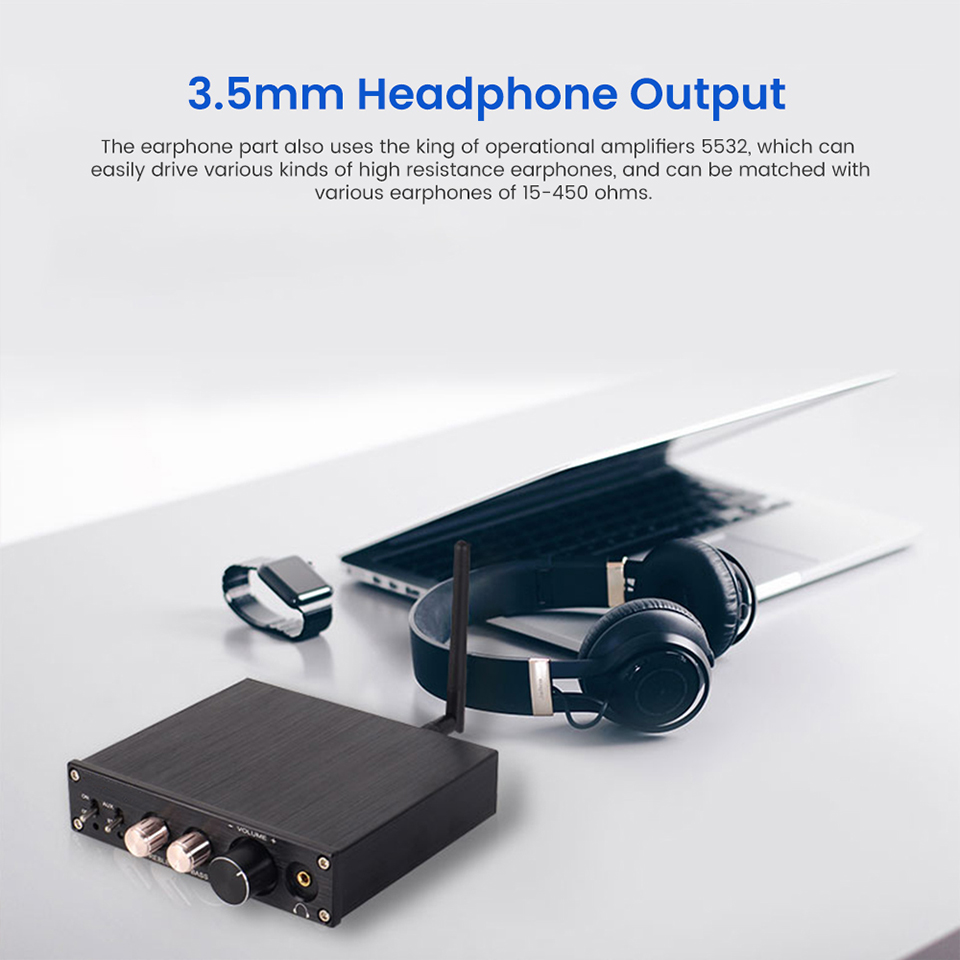

- It can be used with 15-450 ohm earphones

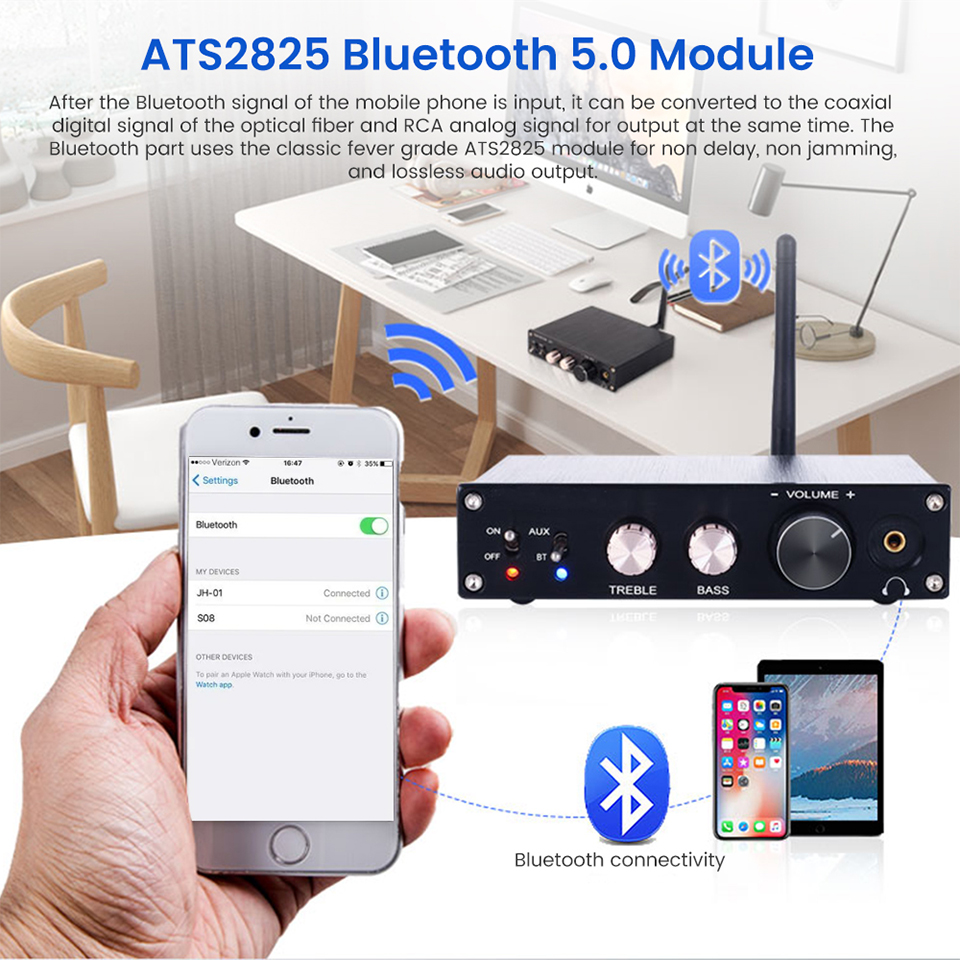

- Bluetooth 5.0: After the Bluetooth signal of the mobile phone is input, it can be converted to the coaxial digital signal of the optical fiber and RCA analog signal for output at the same time. The Bluetooth part uses the classic fever grade ATS2825 module for non delay, non jamming, and lossless audio output.
- It has RCA analog signal input, optical fiber conversion and coaxial digital signal output functions. Coaxial and optical fiber signals are shaped by high-precision crystal oscillator and PCM1802+CS8406-CZ high-speed data IC. After being filtered by digital isolation transformer DV709, the sound quality is more pure and the output signal is more stable. It can also output RCA analog signal after RCA analog signal input is amplified by 5532 operational amplifier.
Parameter:
- Model: Q11
- Operating voltage: 12V
- Ear amplifier output load: 15-450 ohm
- RCA output load: 10K+100K
- RCA output signal: 4Vrms
- Coaxial output signal: 24Bit/96kHz

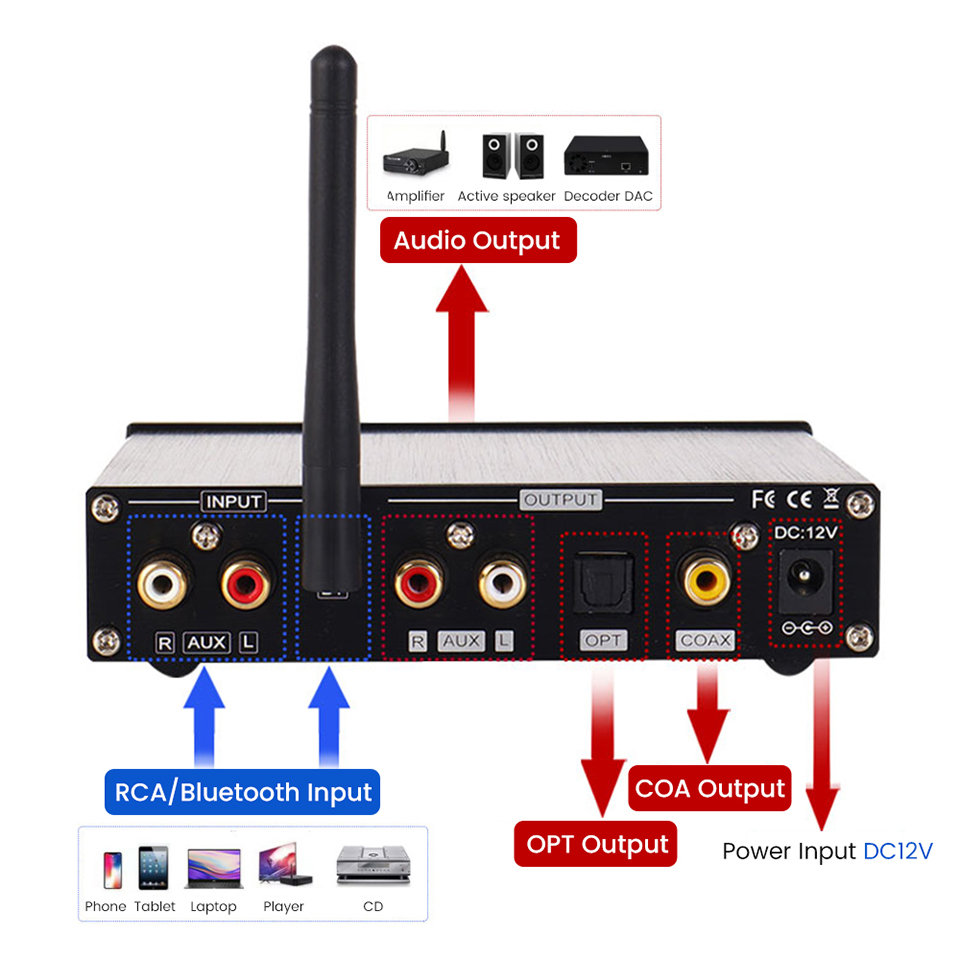

- Output signal: optical fiber, coaxial, headphone, RCA

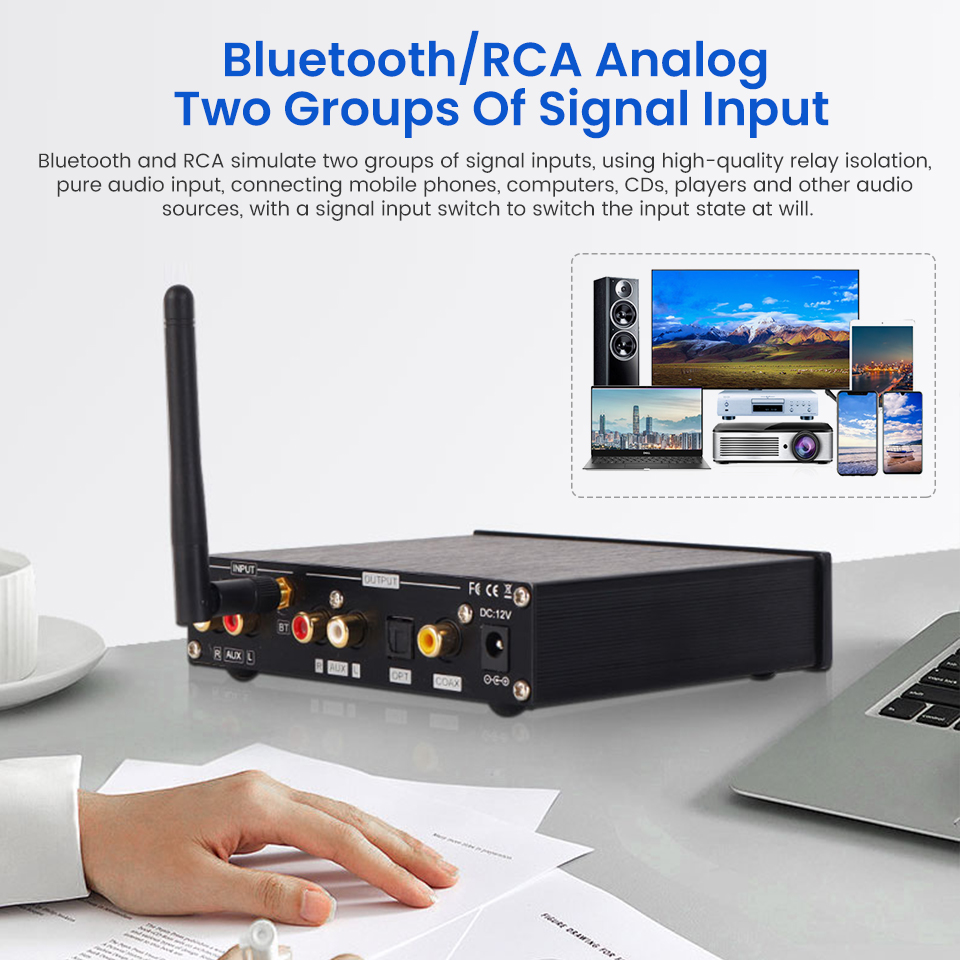

- Input signal: Bluetooth 5.0.RCA analog input
- Ear-amplifier output load: 15-450 ohm
- Ear-amplifier output power: 280mW
- Optical fiber signal output: 24Bit/96kHz

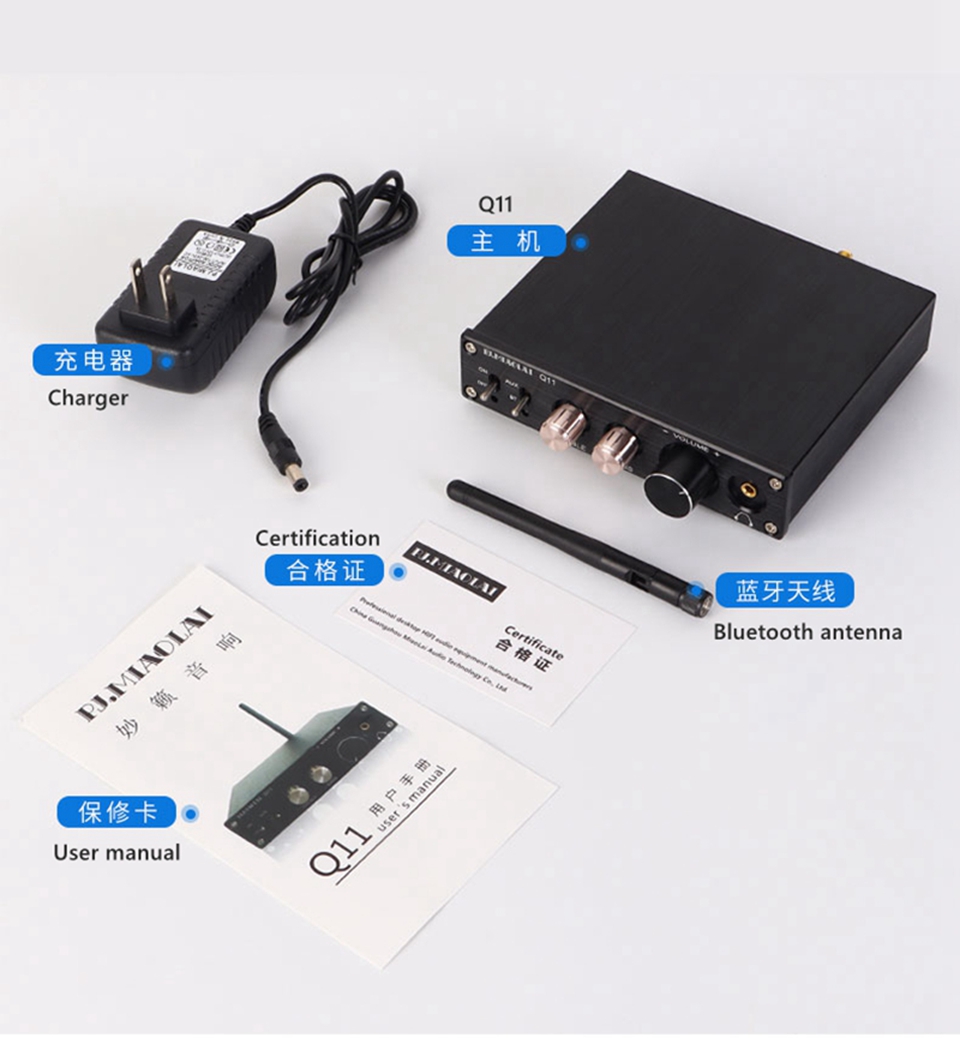

Package Included:
- 1 x Host
- 1 x Charger
- 1 x Bluetooth antenna
- 1 x User manual
- 1 x Certification
