Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $23.53 | $23.05 | $22.33 | $21.37 | Contact US |

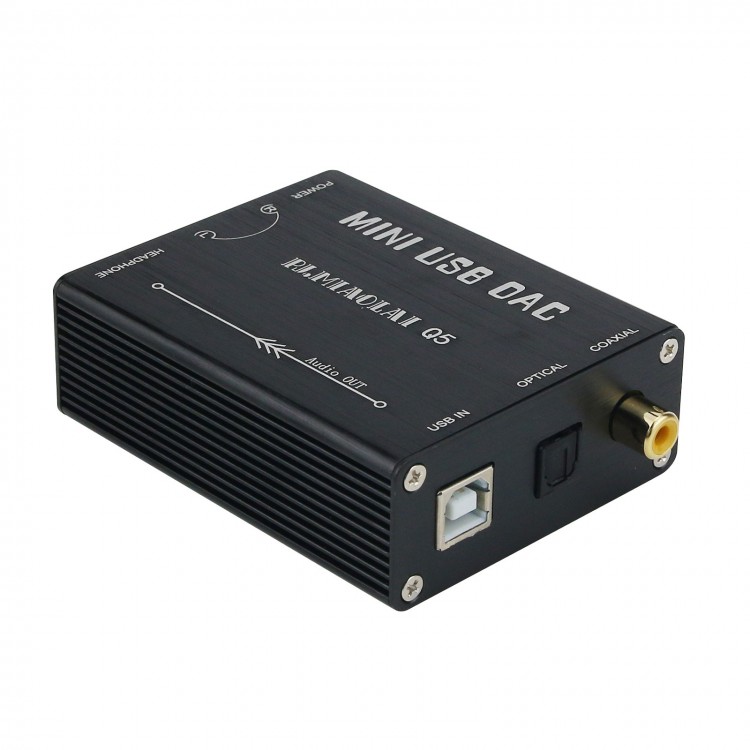

PJ.MIAOLAI Q5 Mini USB DAC Hifi Computer USB External Sound Card Optical Coaxial Analog Output
Description:
Q5 is a desktop multi-function computer external USB sound card decoder with a set of signal input and multiple signal output functions. The USB input port is a set of signal input ports, which can be connected to the computer with a USB cable. It can also be connected to a mobile phone with OTG function, and then it can output digital optical signal, digital coaxial signal, analog RCA stereo, 3.5 stereo at the same time, and can be connected to various audio equipment such as power amplifiers, active speakers, and multiple sets of signals The output meets the input interface requirements of a variety of audio equipment. It is an indispensable audio signal transfer station in the formation of a desktop HiFi audio system.
Compatible with USB 1.0, plug and play, suitable for most operating systems, for Windows2000, WIN7, WIN8. WIN10. MAC and other operating systems, no driver is required. Note: If there is no sound output after connecting to your computer, please go to the computer control panel-sound setting option and set it as the default.
Features:
1. Small size, easy to carry, including input and output socket size 100*66*27mm
2. Full-featured, with analog output, coaxial/optical digital output, headphone output function, can be output to headphones, can also be used directly as a USB sound card, or output to a power amplifier, as an upgrade to a computer integrated sound card, and can be connected to decode device
3.Using the widely acclaimed USB chip PCM2704 in the audiophile industry
4. Coaxial and optical fiber signals are shaped by high-speed data IC, the output signal is more stable and pure
5. Digital output signal is filtered by digital isolation transformer DV709, and the sound quality is more pure
6. All components are made of audiophile components, the analog output and coaxial output adopt gold-plated interfaces, and the optical fiber head adopts the model with automatic protection door, which is more convenient to use
7. Use a safe and reliable USB B-type port, send high-quality USB cable, no power supply, plug and play
8. Aluminum shell is made of laser wire drawing process, and the surface font is engraved by expensive laser
Specifications:
- Q5 sound card size: 10*66*27 (mm)
- Distortion: THD+N: 0.006% (RL> 10 kΩ)
- Distortion: THD+N: 0.025% (RL = 32 Ω)
- Signal to noise ratio: 99 dB
- Dynamic range: 99 dB
- Support sampling rate: 16Bit 32k, 44.1k, 48k
Package Included:
- 1 x Mini USB DAC
