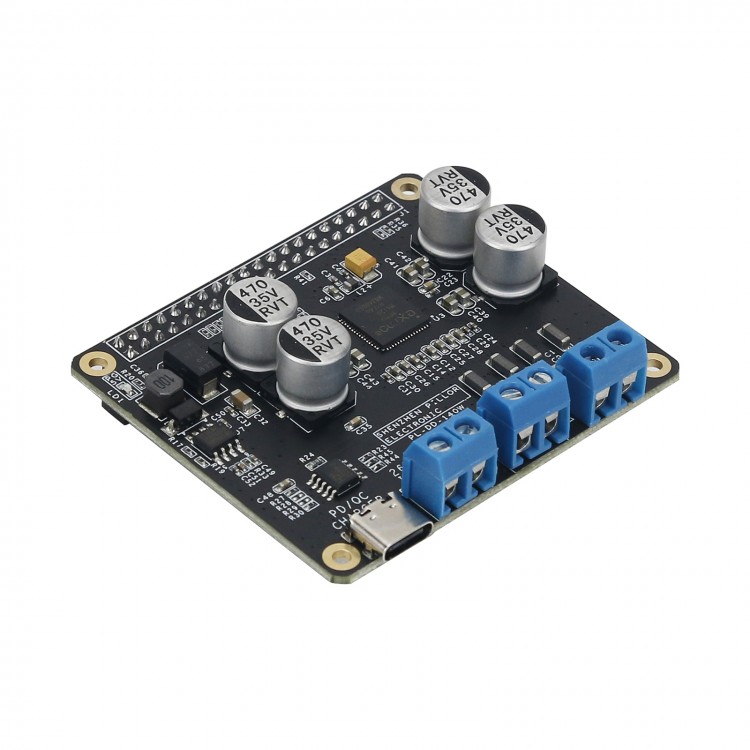

PL-DD-160W MA12070P Audio Power Amplifier Board 2x80W Adapter Board For Raspberry Pi I2S Input
Description:
The module supports direct mating with 40Pin 2.54mm pin headers on the boards for Raspberry Pi Zero/3 4B and others. The size and positioning holes are equal to the size and width of the board for Raspberry Pi 4B. Users can drive MA12070P by configuring the board for Raspberry Pi to output IIS audio signals to obtain 2x80W high-quality audio output.
The input power supply of this module is compatible with PD adapter, QC adapter and 24V DC power supply. When using PD as a power supply, use Type-C cable to connect the module and PD adapter, the module will adaptively output 20V DC from the PD, and the module will supply power to the board for Raspberry Pi through the DCDC converter. The board for Raspberry Pi does not require a separate DC power supply, which simplifies the user's power supply circuit.
The driver of this module can be found in the driver configuration file of MA12070P for Infineon from GitHub. Our shop cannot provide other detailed software support.
Package Included:
- 1 x Set of Power Amp Board
Note:
- Only the power amp board is included. The board for Raspberry Pi is not included.
- Since different versions and pictures will have different details and changes, but the functions are the same or richer, no further explanation will be given. Please make sure that you don't mind before purchasing.

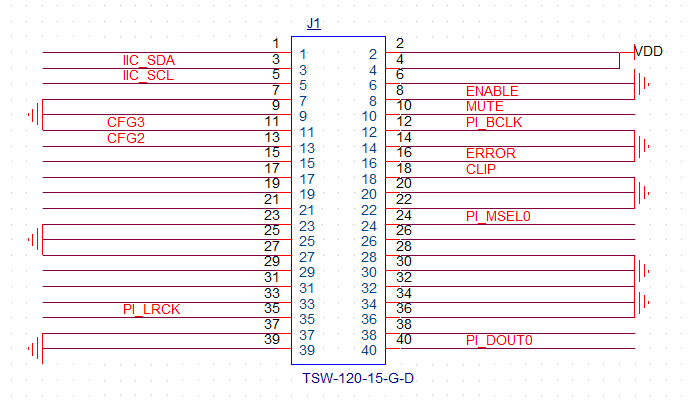

Adapter Board's Interface Definition:
