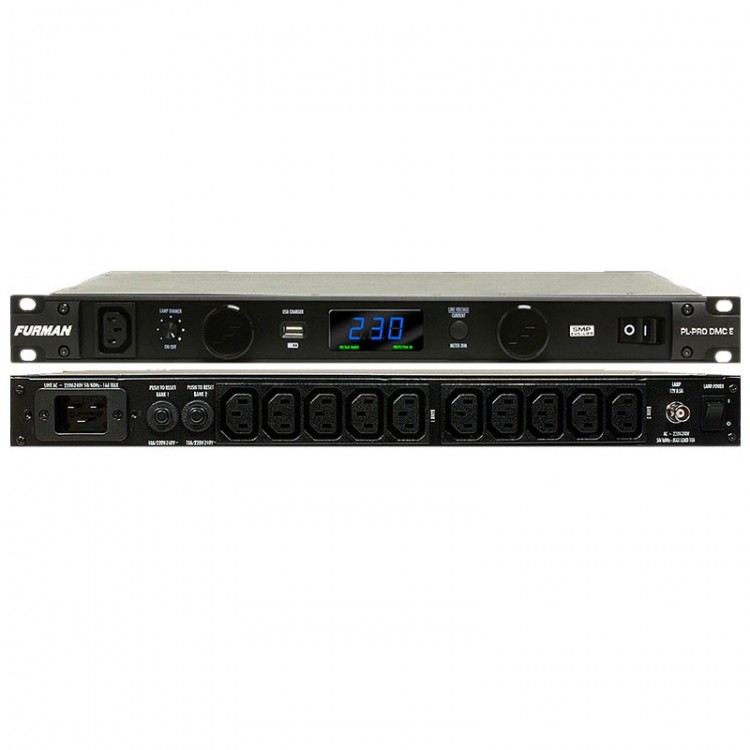

PL-PRO DMC E 16A Power Conditioner with Lights Voltmeter/Ammeter Surge Protector 220V-240V for Furman

PL-PRO DMC E 16A Power Conditioner with Lights Voltmeter/Ammeter Surge Protector 220V-240V for Furman

Description:
The Classic Series features revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world's most advanced and comprehensive transient voltage surge supressors.

Applications:
INSTRUMENT RIGS
You've got a rack for your effects, preamps, tuner…You're going to plug that into the wall? One big spike and your rig is up in smoke. Advanced Series Multi-Stage Protection defends your gear from the spikes and surges that are so common at gigs and practice spots. With advanced Linear Filtering Technology, you'll get a quieter tone without pops, crackles, and the local radio station coming out of your amp.

RECORDING
Can't track down where that noise is coming from? Your mix sounding flat? With advanced Linear Filtering Technology for Furman you'll lower the noise floor caused by the dirty AC power coming into your console or DAW. Advanced advanced Series Multi-Stage Protection keeps your sensitive digital equipment from acting funny or burning up due to everyday spikes and surges. With a 16A capacity and eleven total outlets, it's enough to power your whole home studio.

DJ EQUIPMEN
Bars, clubs and other event venues have some of the worst power out there – from air compressors turning on and off to light shows pulling current loads up and down, the AC power can be a strain on the circuits in your rig. Advanced Series Multi-Stage Protection and LiFT keeps the bad stuff out and the dual pull-out front panel lights let you discreetly see your board and gear without distracting from the show on the dance floor.

PRO AUDIO
When you're out there gigging, you never know what kind of power you're going to get. The wear and tear on mobile rigs eventually takes it toll – that's why it's smart to plug into advanced Linear Filtering Technology. It keeps your equipment safe and sounding clean. Whether you're setting up a show at the local club or powering up the church band for their next service, make sure you give them power they can trust.

Features:
Surge Protection
- Exclusive SMP technology provides the highest level of surge & spike protection available.

Noise Filtration
- LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.

Voltage Protection
- Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.

Pull-out Lights
- Dual smooth track retractable LED lights illuminate equipment in your rack.

Diagnostic Lights
- LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.

USB Charger
- Front panel convenience charger allows you to charge most media devices or power a USB lamp.

Voltmeter / Ammeter
- Large digital voltmeter / ammeter, with discrete dimmer button, displays line voltage and true RMS current draw.

Isolated Banks
- Isolated outlet banks minimize inter-component interference and noise contamination.

16 AMP Rating
- 16 Amp rating featuring a high inrush magnetic circuit breaker for added protection.

11 Total Outlets
- 11 total outlets (10 rear panel outlets and one front panel convenience outlet).

BNC Lamp Connector
- Rear panel BNC connector powers any standard goose-neck lamp for rear rack illumination.

Specifications:
General:
- Family Classic Series: 240V
- Line Voltage: 240 (Volts)

AC Protection:
- AC Protection Technology
- Extreme Voltage Shutdown
- Series Multi-Stage Protection
- Non-sacrificial protection with zero ground contamination

Other Specifications:
- CURRENT RATING: 16 amps
- OPERATING VOLTAGE: 180 to 274 VAC
- OVER VOLTAGE SHUTDOWN: 275 VAC typically
- SPIKE PROTECTION MODES: Line to neutral, zero ground leakage
- SPIKE CLAMPING VOLTAGE: 376 VAC peak at 3,000 Amps, 266 VAC RMS
- RESPONSE TIME: 1 nanosecond
- MAXIMUM SURGE CURRENT: 6,500 amps
- NOISE ATTENUATION: 10 dB at 10 kHz, 40 dB at 100 kHz, 50 dB at 500 kHz Linear attenuation curve from 0.05 – 100 Ohms line impedance
- DIMENSIONS: 44.45mm H x 482.6mm W x 266.7mm D.
- WEIGHT: 5.5 kg
- CONSTRUCTION: Steel chassis, 3mm brushed and black anodized aluminum front panel; glass epoxy printed circuit boards
- POWER CONSUMPTION: 25 VA
- SAFETY AGENCY LISTING: CE

Package Included:
- 1 x Power Conditioner
