Attention:
For the algorithm of burning FLASH, the USB Blaster II driver has been enhanced in the software layer, so the speed of burning third-party (non-original EPCQ devices) FLASH will be a little slower. The slow speed is mainly to ensure that the burning process is more reliable, and has nothing to do with the performance of the download cable itself, which is a reliability guarantee mechanism. And this speed control is also done at the software level, and it has nothing to do with the USB Blaster II download cable. Even if you spend more money to buy an original USB Blaster II for Intel to burn, it is still the same speed.

If you mainly use JIC mode to burn Flash, it is highly recommended to continue using the Gen 1 product. The second generation is mainly recommended for engineers to download SOF and online debugging.

Description:

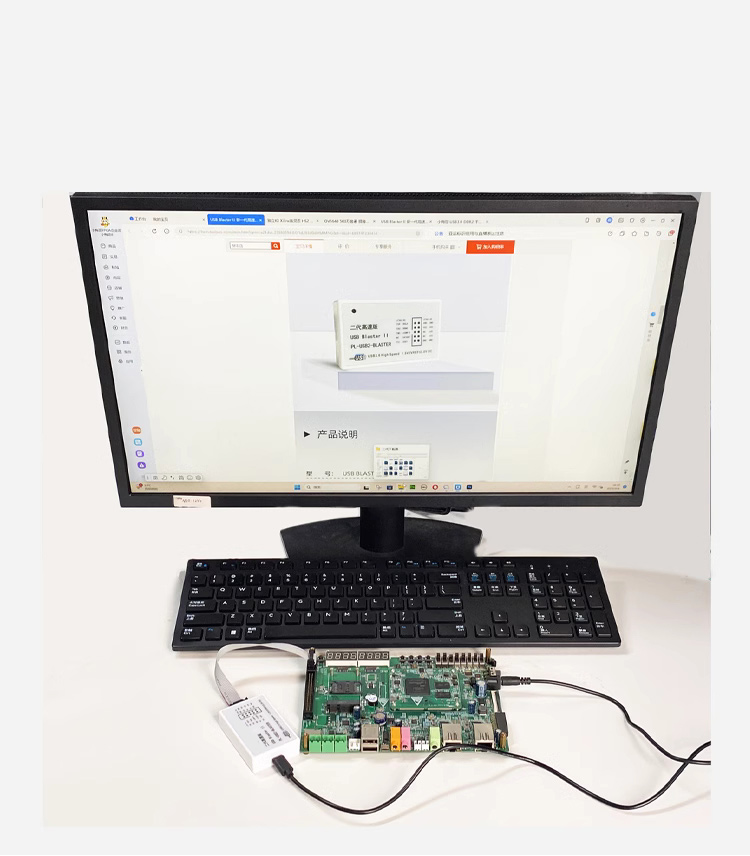

USB Blaster II download cable provides the driver for the development software Quartus for Altera/Intel. It is a cost-effective emulator based on the forward design of the official internal design file of USB Blaster II. To use the download cable, you only need to install the official driver for Intel, and then you can directly use the software for Quartus to download your FPGA, Signaltap II online debugging, ISSP debugging, NIOS II program online download and debugging, Cyclone V SoC FPGA hard core CPU program and debugging.

Features:
- New USB Blaster II high-speed download cable with a different design for a more enjoyable experience
- This solution is extremely cost-effective. Suitable for users who use low to medium-end FPGAs for Altera, and for heavy development and debugging on a daily basis

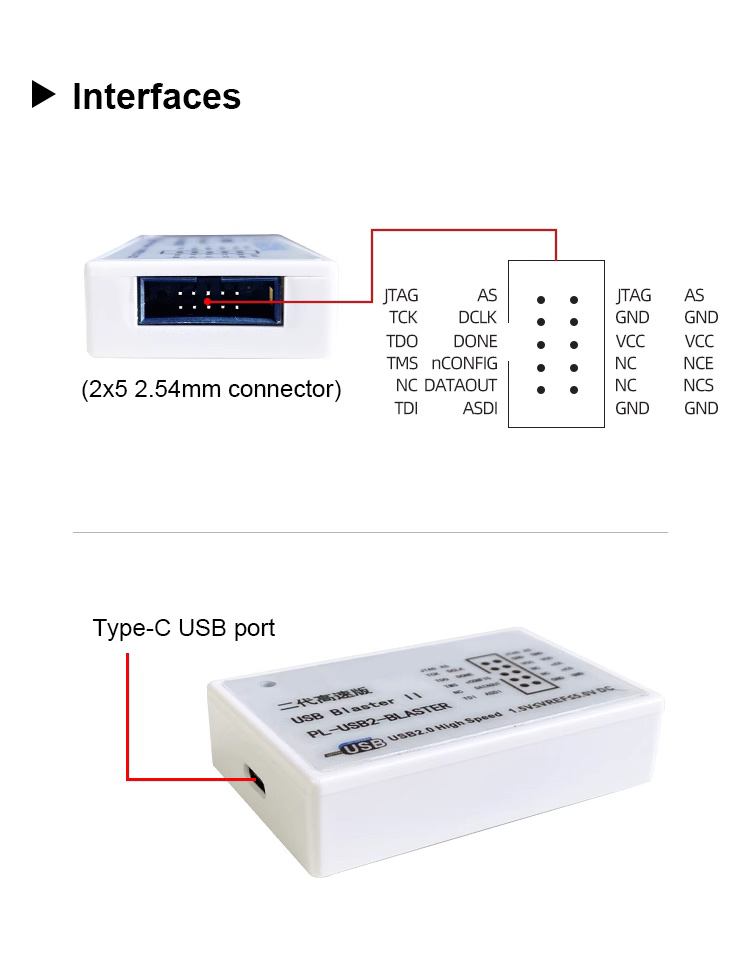

- With type-c USB port
- The speed of burning SoF files is the same as the speed of the original second-generation download cable. Its burning speed is 8 times that of USB Blaster 1. When debugging NIOS II and SOC FPGAs, the communication rate is more than four times that of USB Blaster
- Product size: 70 x 45 x 18mm/2.8 x 1.8 x 0.7"

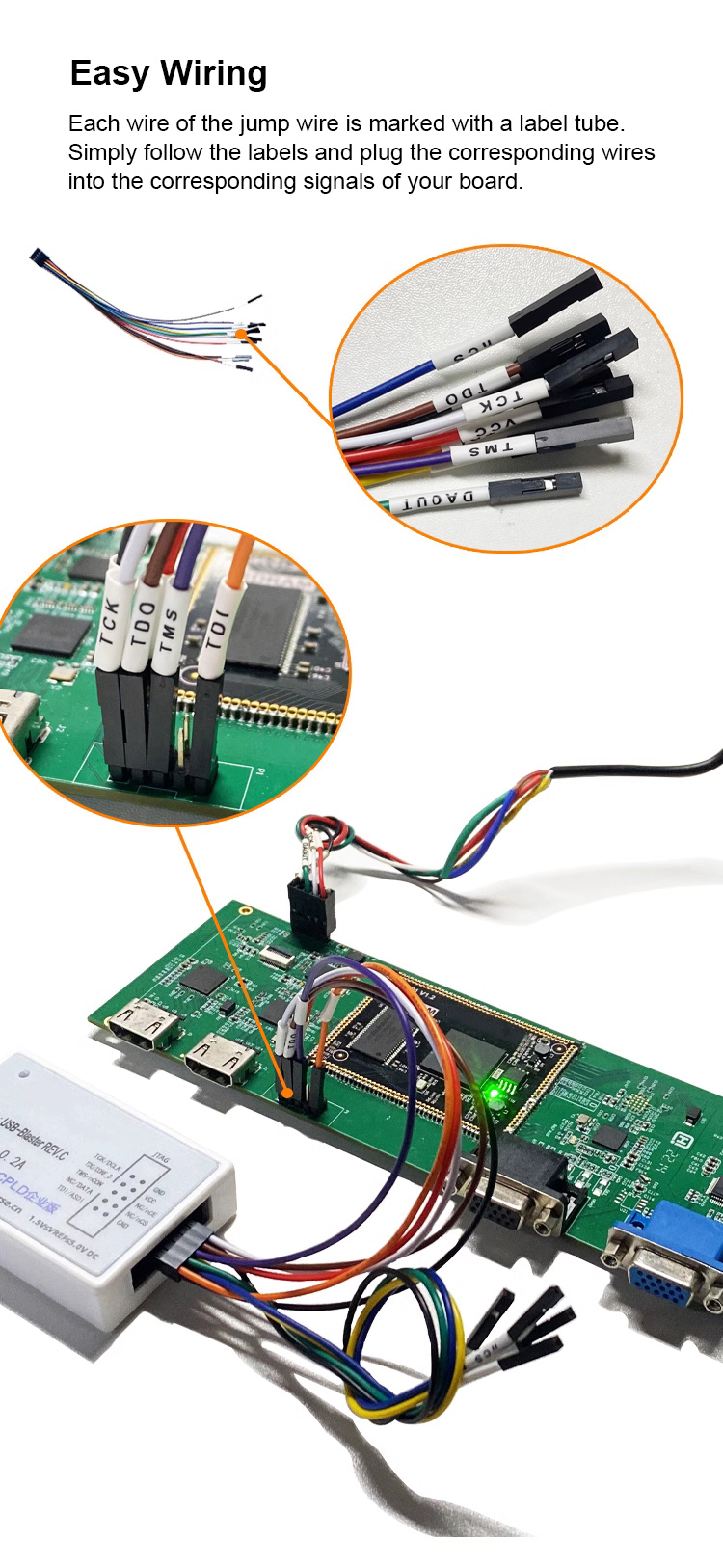

- Easy wiring: Each wire of the jump wire is marked with a label tube. Simply follow the label and plug the corresponding wires into the corresponding signals of your board
- Quality assurance: Before shipment, the product and cables have passed tests. Please feel free to use it

Functions:
- Computer System Compatibility:
  • Supported systems: for Win 7, Win 8, Win 10 and Win 11
  • System stability: no blue screen, no stuttering, no dropping, no crashing, no error
  • Driver compatibility: Use the native driver of the software for Quartus directly
- Development Software Compatibility: Since the official for Intel has only released and introduced USB Blaster Gen 2 from version 13.0 for Quartus II, you can use this product as long as you have a software version 13.0 or higher. It can be used in both web, standard and pro versions.
- Functional Compatibility: It supports SoF program download, JIC burning, burning POF in AS mode, Signaltap II online debugging, In-System-Sources-and-Probes online debugging, In-Sytem-memory-Content-Editor online debugging, NIOS II program download, NIOS II program online debugging, JTAG-UART serial port function, etc.
- Level Compatibility: High-speed level shifter chip is adopted, which has both level conversion and signal buffering functions. It is compatible with devices with voltages in the range of 1.5~3.3V, such as 1.5V, 1.8V, 2.5V, and 3.3V.
- Performance Excellence: TCK rates up to 24Mhz. The burning and debugging speed is much higher than that of any so-called high-speed version of the USB Blaster download cable. Its performance is almost the same as that of the original 2nd generation version for Intel.
- Device Compatibility: It supports CPLDs, FPGAs, and SoC FPGAs for Altera/Intel.

Specifications:

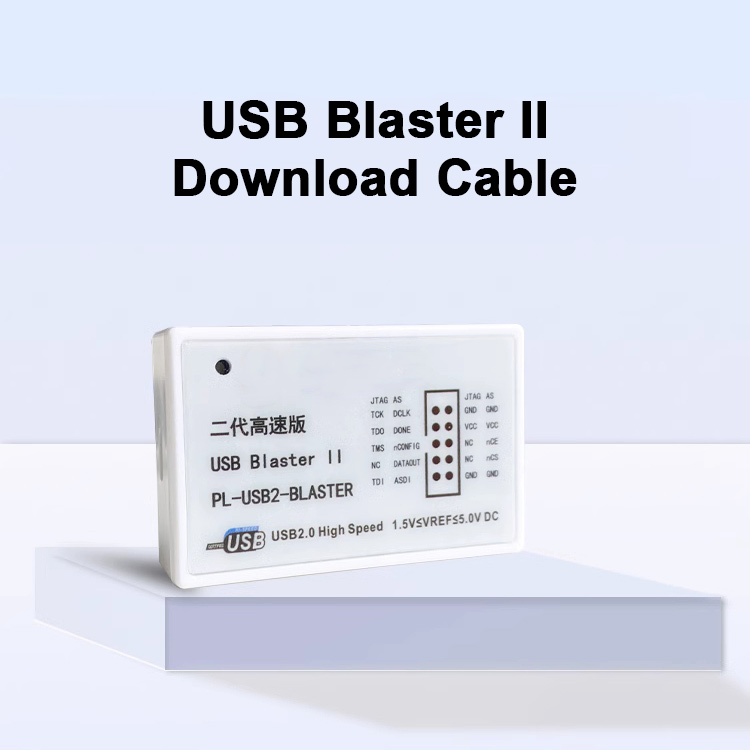

- Model: USB Blaster II
- Category: FPGA 2nd generation emulator for Intel Altera

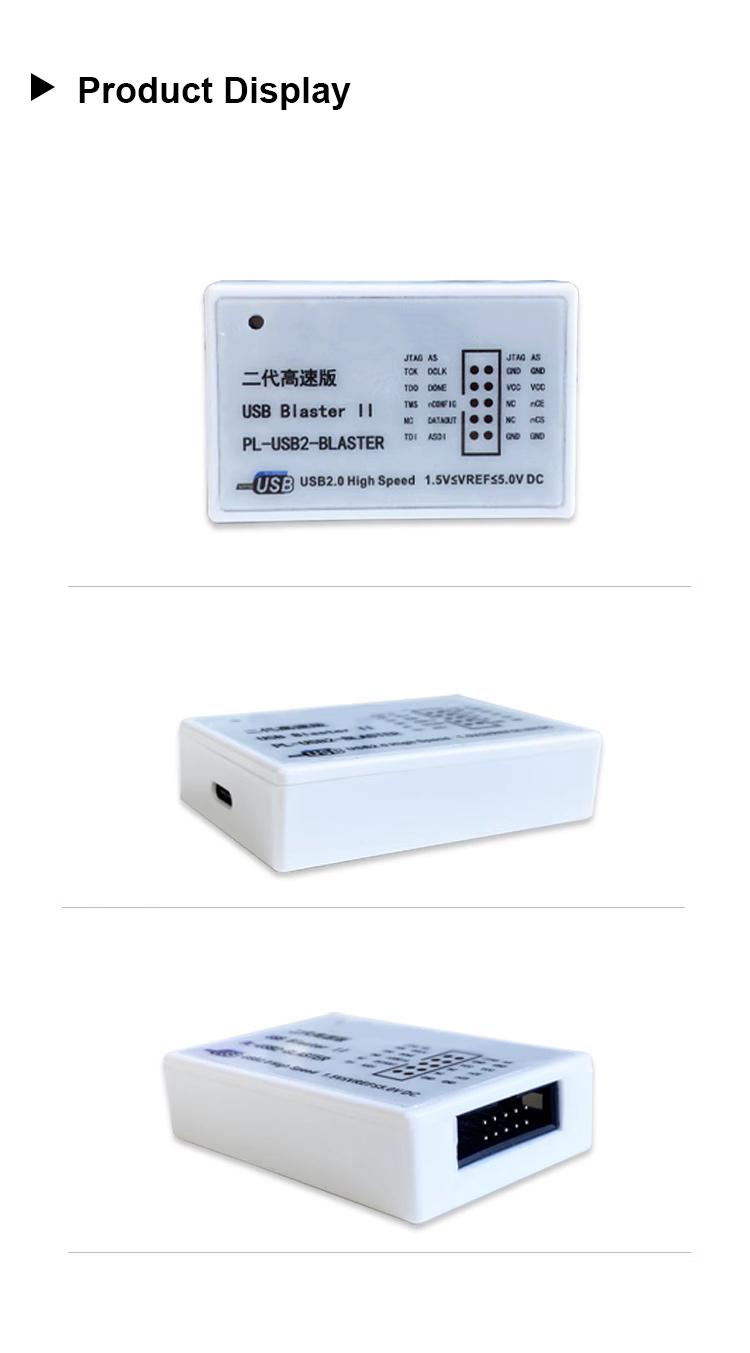

- Dimensions: 70 x 45 x 18mm/2.8 x 1.8 x 0.7"

Package Included:
- 1 x USB Blaster II Main Unit
- 1 x Jump Wire
- 1 x FFC Cable
- 1 x Type-C Data Cable

Packaging Details:
- G.W.: 0.2kg
