Product Description:

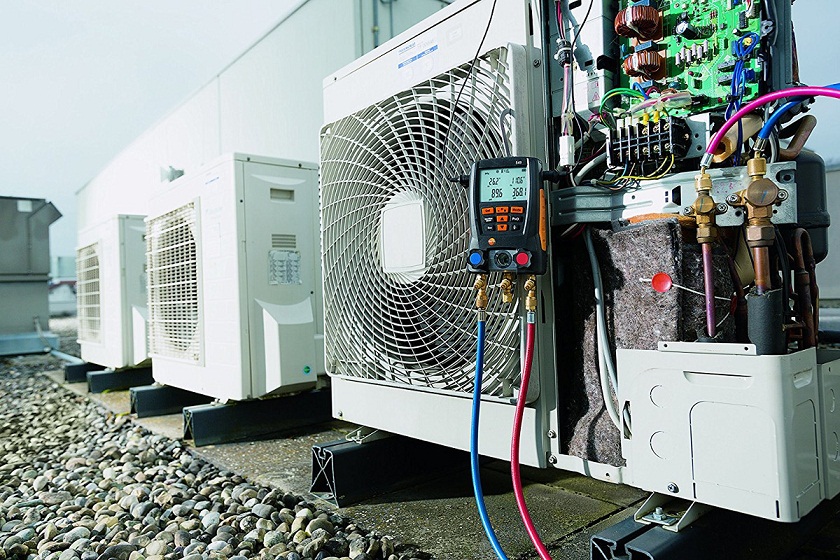

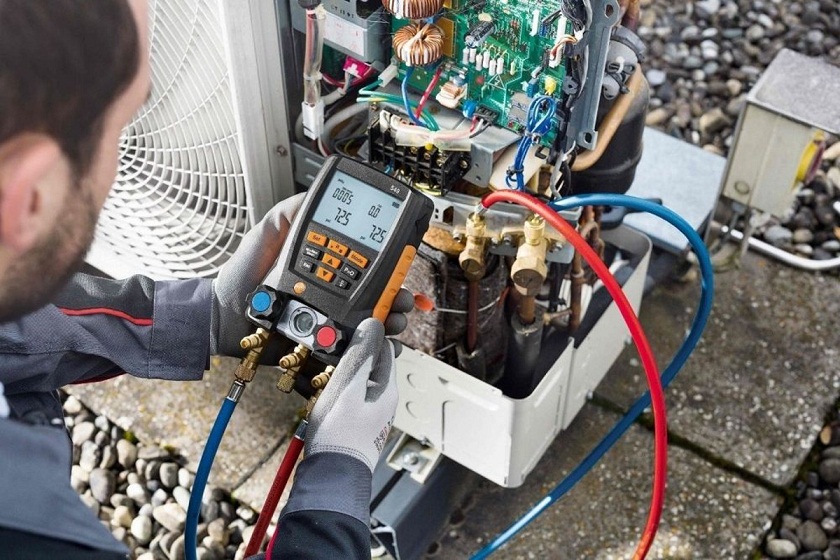

- When carrying out maintenance or installation work on refrigeration systems and heat pumps, are you increasingly noticing that the use of analog manifolds is laborious and time-consuming. If so, our entry-level digital manifold, is the perfect choice for you. This 2-way manifold can be used for 60 refrigerants and offers practical solutions for your everyday work:
- Two temperature-compensated pressure sensors ensure fast, precise measurement of high and low pressure, and automatic calculation of the evaporating and condensing temperature
Two connections for external temperature probes: with temperature probes attached (optional), the digital manifold can calculate superheating and subcooling simultaneously and in real time. This means you can do away with manual comparisons, which are prone to error, and obtain fast, accurate results
- Leakage test of refrigeration systems: the manifold can carry out a temperature-compensated leakage test of the system for rough tightness testing. For this, the initial system pressure is compared with the system pressure at the end of the measurement, so that the difference (if there is one) can be displayed immediately
- Can be used for standard refrigerants: the 60 most common refrigerants are stored in the instrument as standard
You can also view the temperature difference via the 2-way manifold. The automatic heat pump mode, which makes switching over the refrigerant hoses unnecessary, is also really practical.
- Digital manifold: sturdy and practical

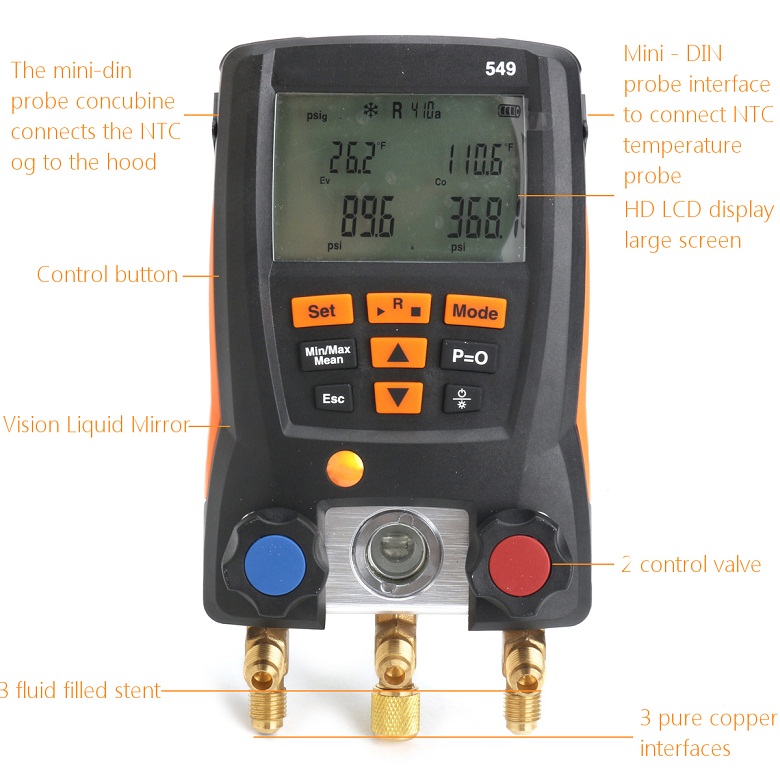

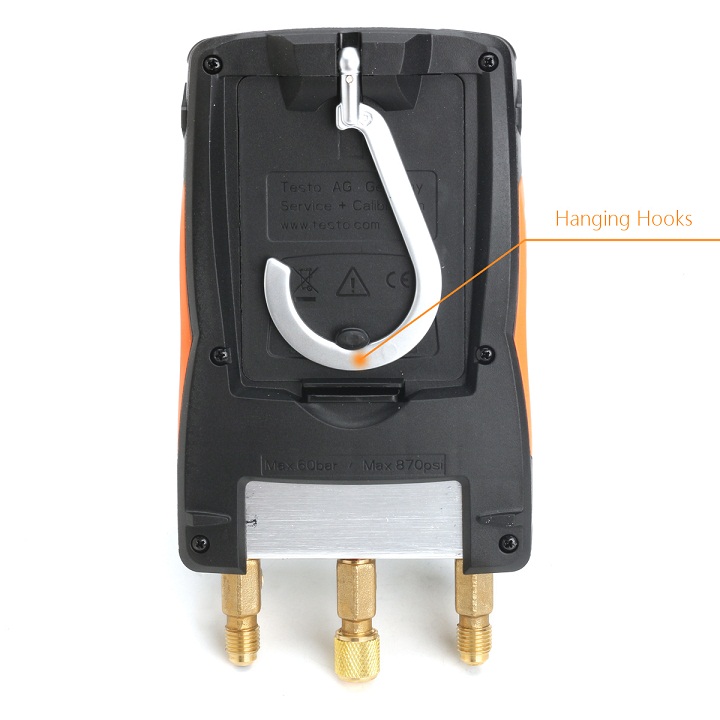

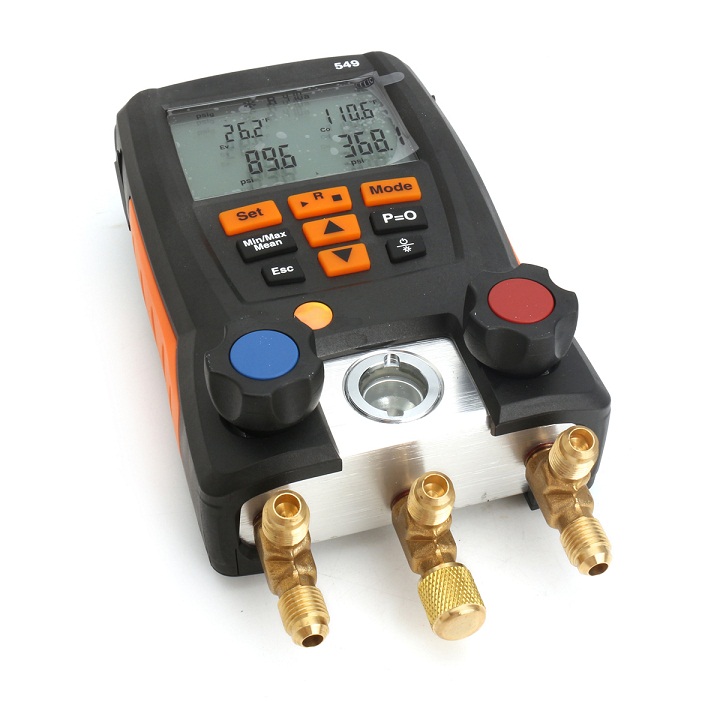

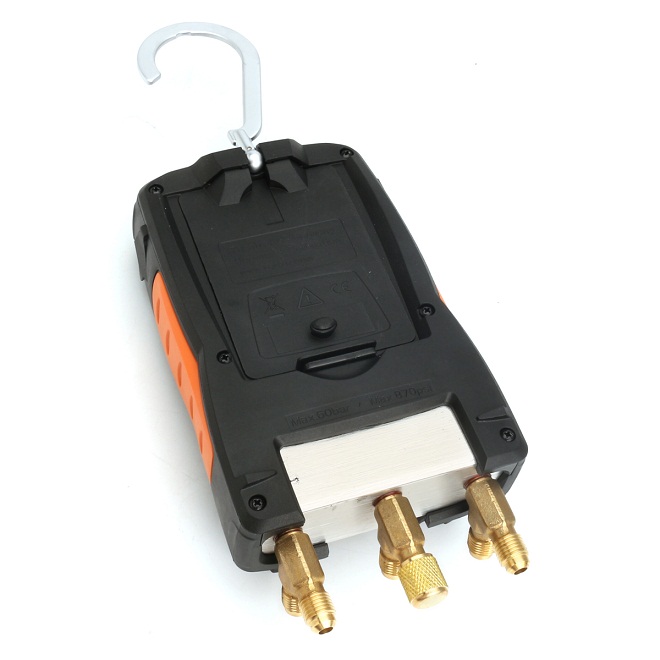

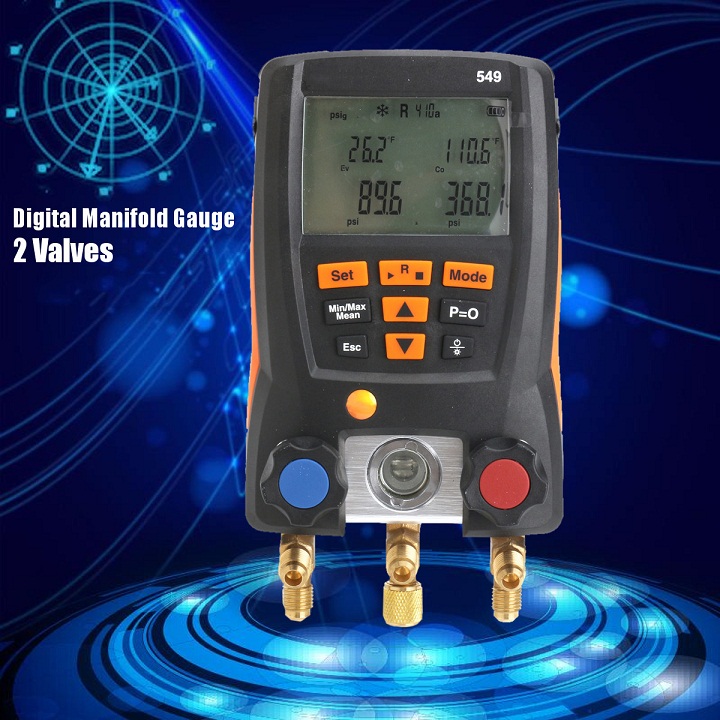

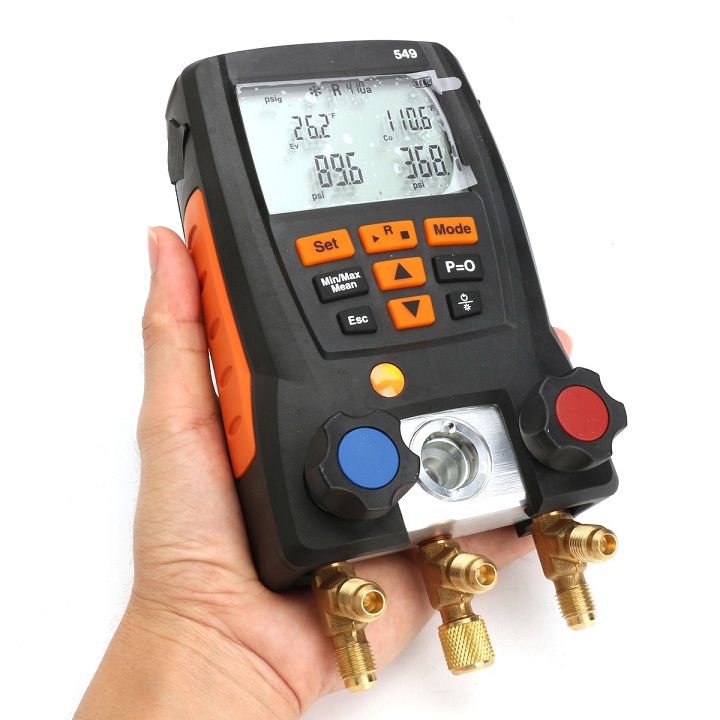

- This digital manifold features a robust 2-way valve block made of metal with 3 connections and 3 hose holders, is easy to handle and can even withstand harsh environmental conditions. With its solid housing, the instrument is reliably protected against impacts in compliance with protection class IP 42. You can use the suspension hook to secure the manifold during the measuring process. Thanks to the illuminated display, you can read off the readings easily, even in dark environments.
Technical Specifications:
Material: Plastic
Color: Black
Temperature:
- Measuring range: -50 to +150 °C
- Accuracy: ±0.5 °C
- Resolution: 0.1 °C
- Probe connection: 2 x plug-in (NTC)
Pressure measurement:
- Measuring range: -50 to +150 °C
- Accuracy: ±0.5 °C
- Resolution: 0.1 °C
- Probe connection: 2 x plug-in (NTC)
Vacuum measurement:
Measuring range: -1 to 0 bar
General technical data:

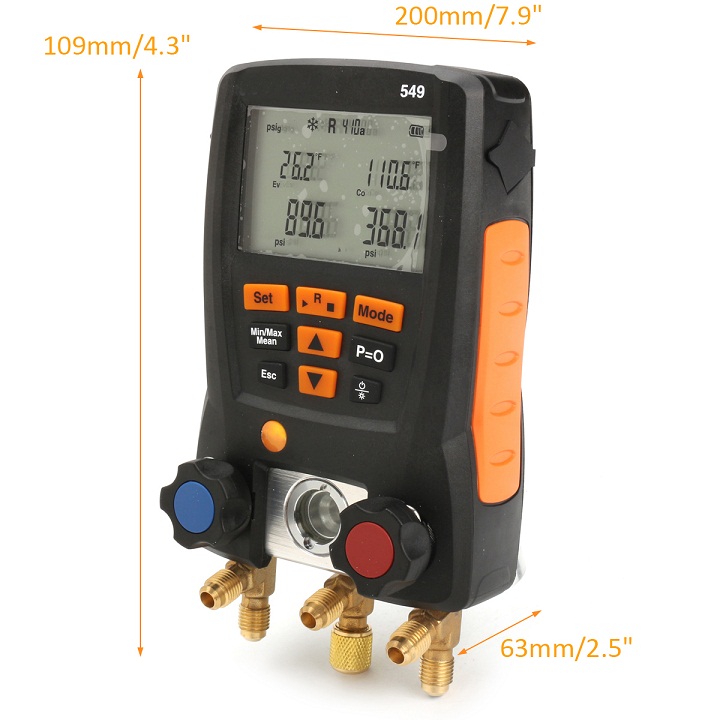

- Dimensions: 200 x 109 x 63 mm
- Dimensions: 200 x 109 x 63 mm
- Operating temperature: -20 to +50 °C
- Protection class: IP42
- Refrigerants in instrument:
60 profiles:; R11; R12; R123; R1234yf; R1234ze; R125; R13B1; R134a; R14; R142B; R152A; R161; R22; R227; R290; R32; R401A; R401B; R401C; R402A; R402B; R404A; R406A; R407A; R407B; R407C; R407D; R407F; R408A; R409A; R410A; Ra11A; R412A; R413A; R414B; R416A; R417A; R420A; R421A; R422A; R422B; R422B; R422C; R422D; R424A; R426A; R427A; R434A; R437A; R438A; R502; R503; R507; R508A; R508B; R600; R600a; R744 (CO₂); R718 (H₂O)
- Storage temperature: -20 to +60 °C
Notice:
1. Please allow 1-3mm error due to manual measurement.Pls make sure you do not mind before you bid.
2. The color may have different as the difference display,pls understand.

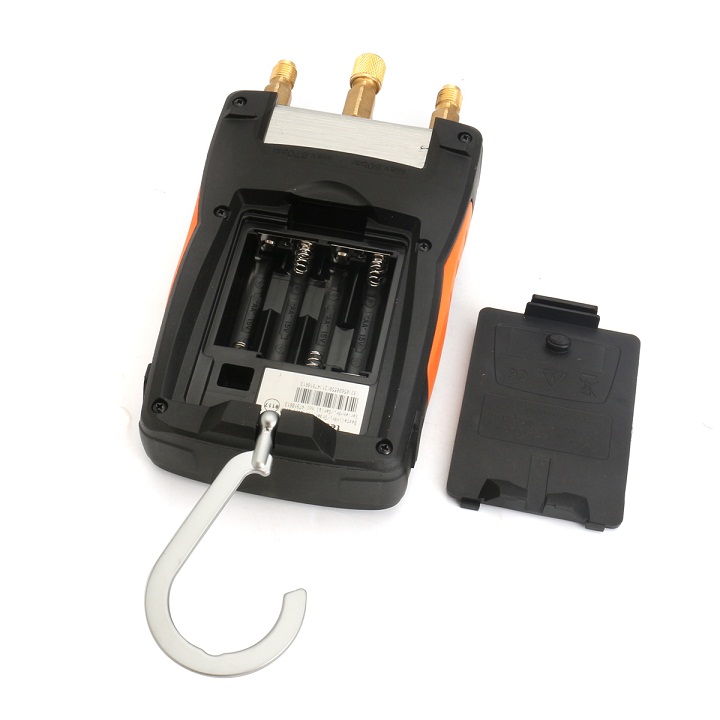

Attention:The airspace controls not include battery
Package Contents:
- 1 x 549 Digital Manifold
