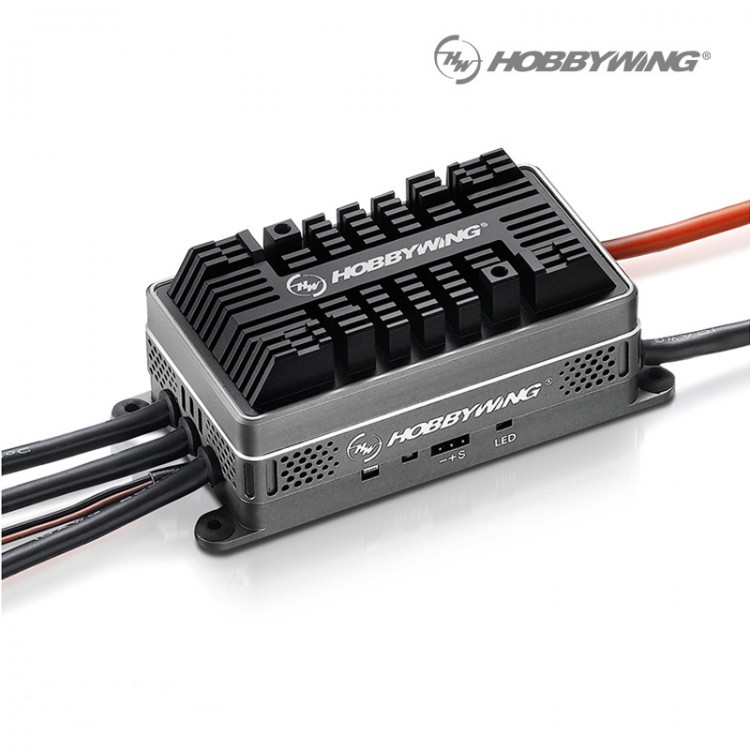

Platinum HV 200A OPTO V4 Brushless ESC 200A for 6-14S LiPo RC Drone Quadcopter Helicopter
Technical Parameters:
- Item Name: Platinum HV 200A OPTO V4 Brushless ESC
- Type: Brushless/High Voltage
Hardware Parameters:
- Continuous /Peak Current: 200A/250A
- Compatible with: 6-14s LiPo
- BEC Output: None
Cords & Plugs:
- Power Cords: Red -10AWG-150mm*1/Black -10AWG-150mm*1
- Output Cords: Black -10AWG-150mm*3
- Power Plug: None
- Output Plug: None
Note: Please note that the lengths of the cords are their original overall lengths. They are not the lengths of the parts which are visible to naked eye. Thank you for your understanding!
Parameter Programming Way:
- Via Remote Control: Not Support
- Via LED Programming Card: Not Support
- Via LED Programming Box: Not Support
- Via LCD Programming Box: Support
- Via WiFi Express Wireless Module: Support
- Via Programming Interface: Independent Programming Port
Firmware:
- On-Line Upgrading Firmware: Support
Size & Weight:
- Size: 106 x 50 x 40mm
- N.W.: 305g
Package Included:
- 1 x Brushless ESC 200A
