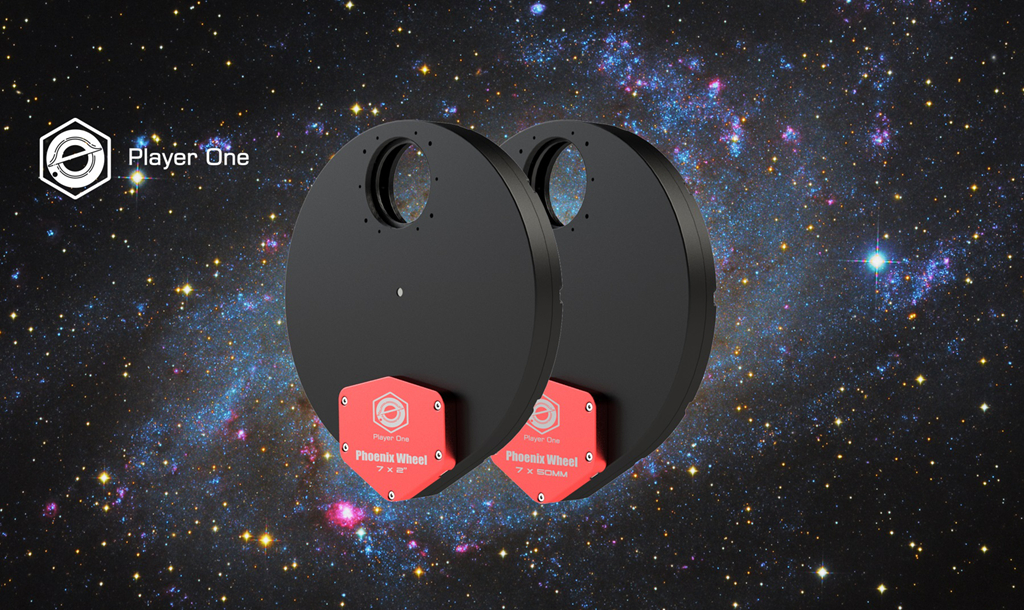

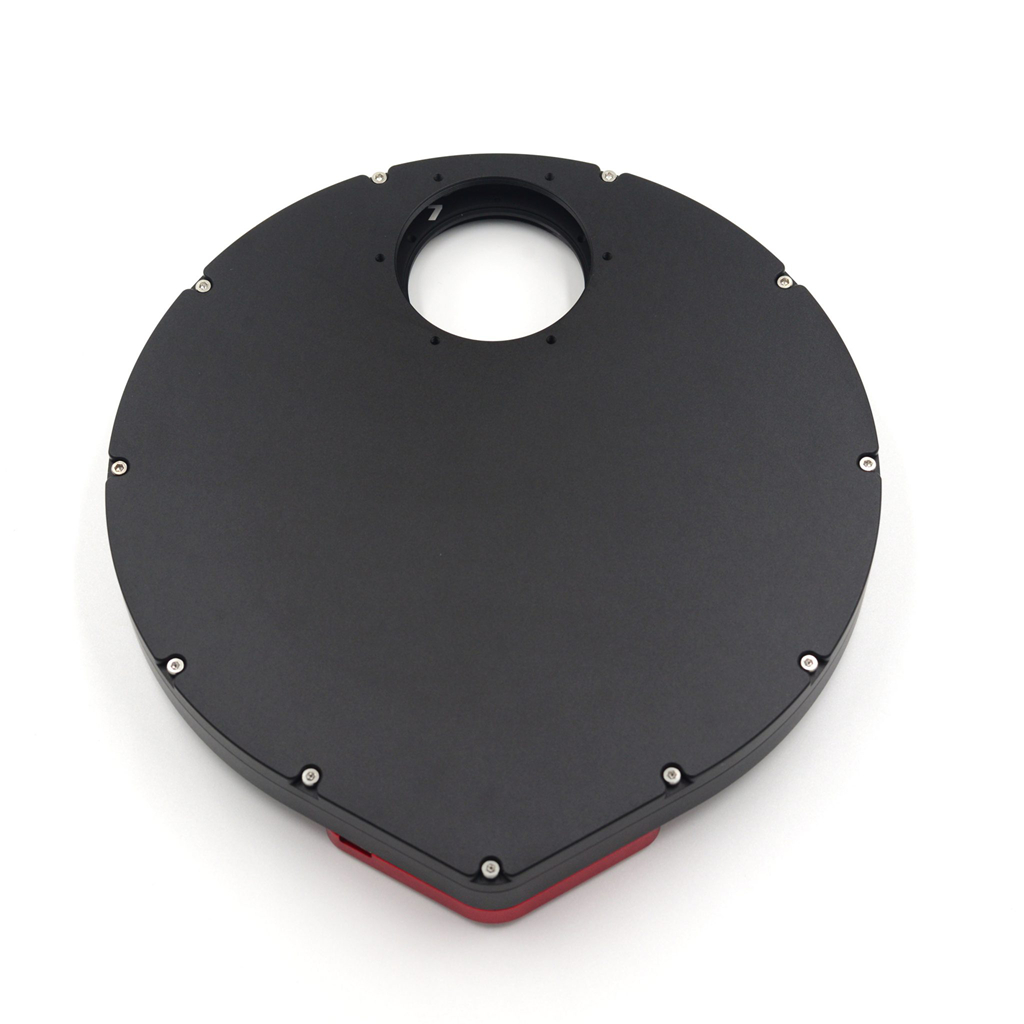

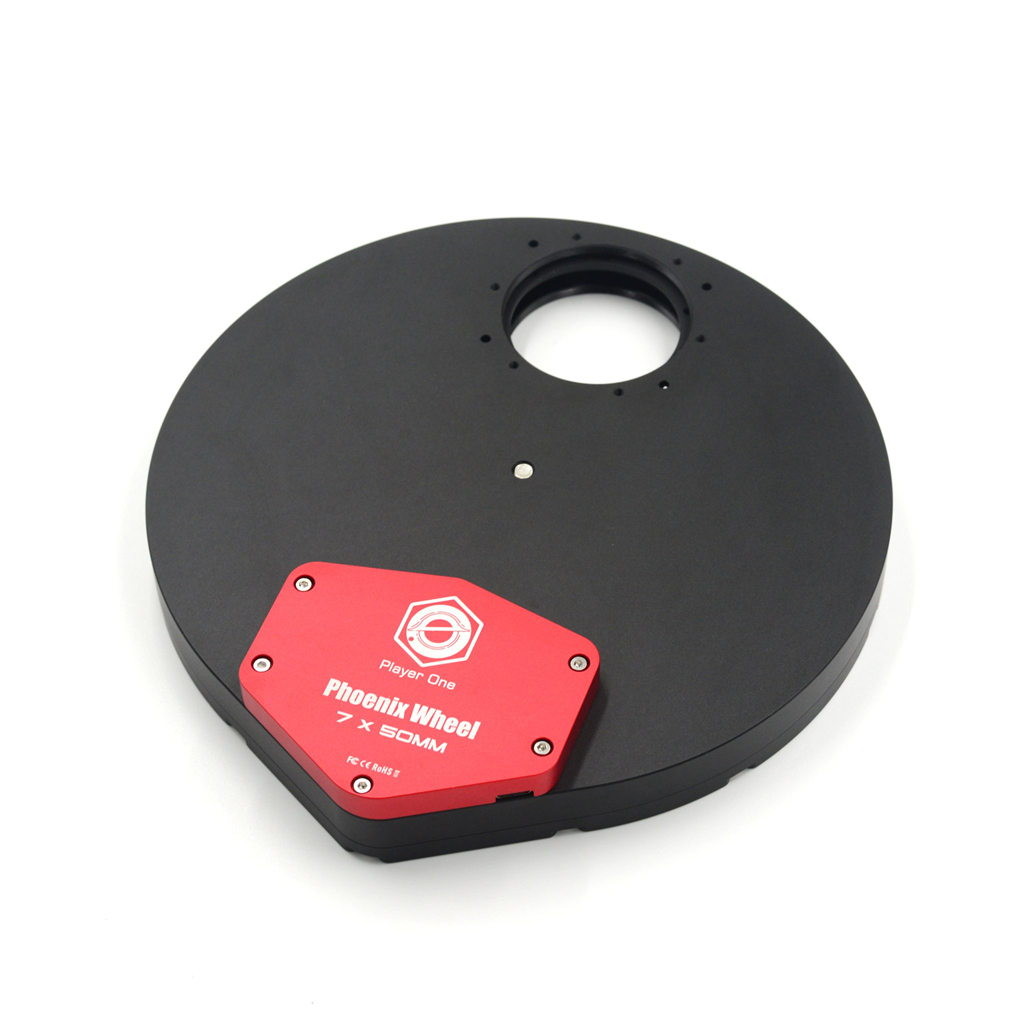

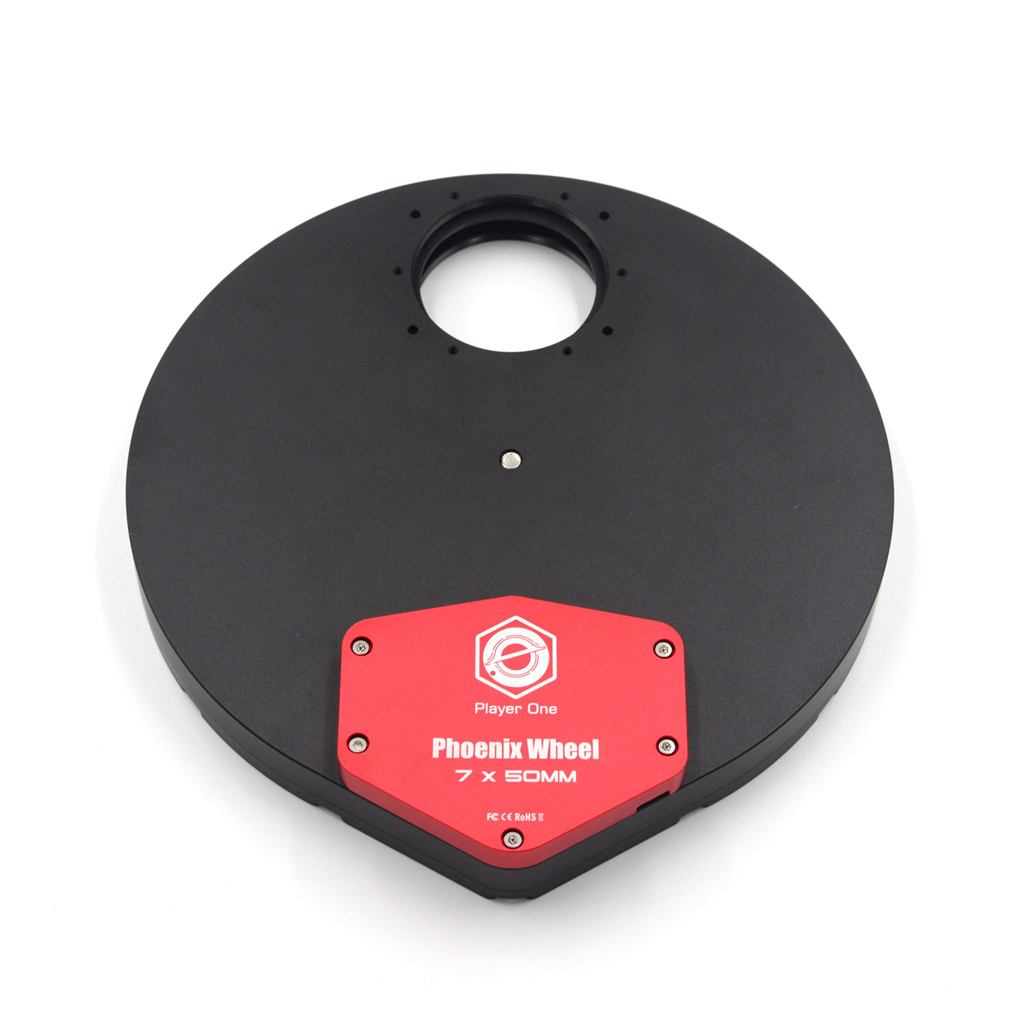

Player One Phoenix Filter Wheel (7x50MM) w/ 49mm Clear Aperture Supports 50mm Unmounted Filter
Product Description:
- Type: Phoenix Filter Wheel 7x50mm
- Supported models: Poseidon series, Zeus series and Artemis series

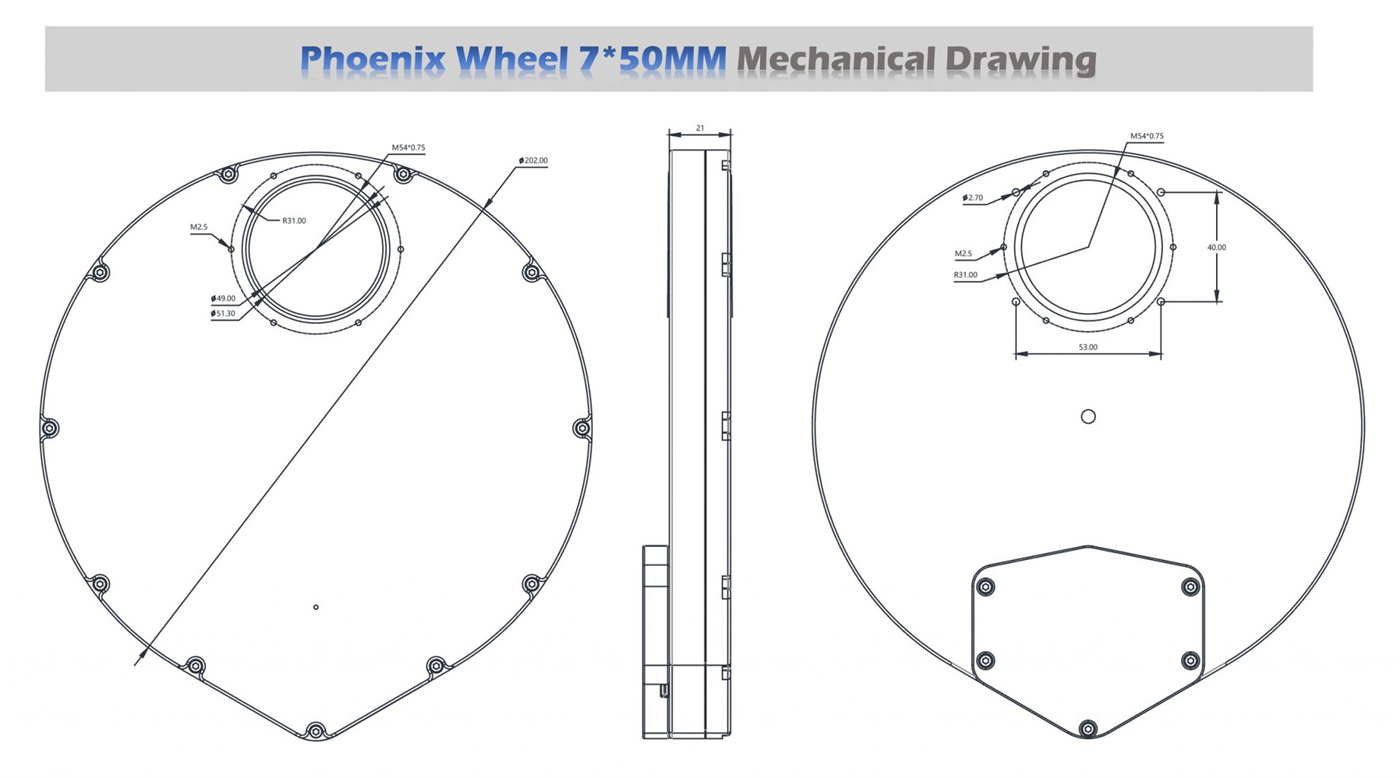

- Body threads: M54*0.75 on both sides
- Supported filter sizes: 50mm unmounted filter is required

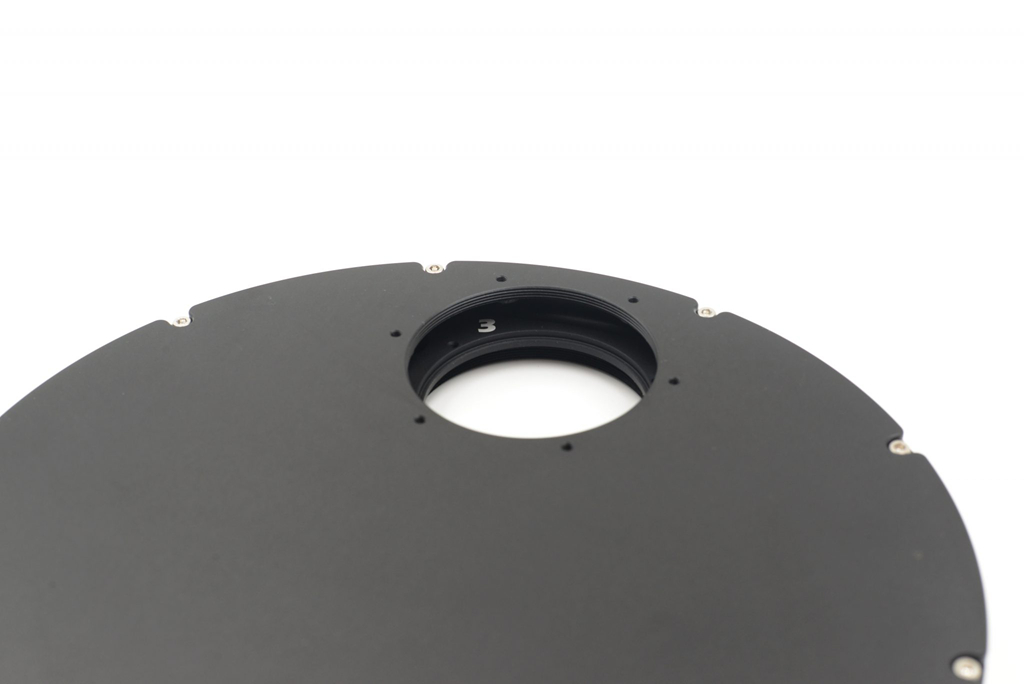

- Clear aperture: 49mm/1.9" (no thread)
- Material: Aluminum 6061-T6
- Thickness: 21mm (20mm optical path, used with a filter)

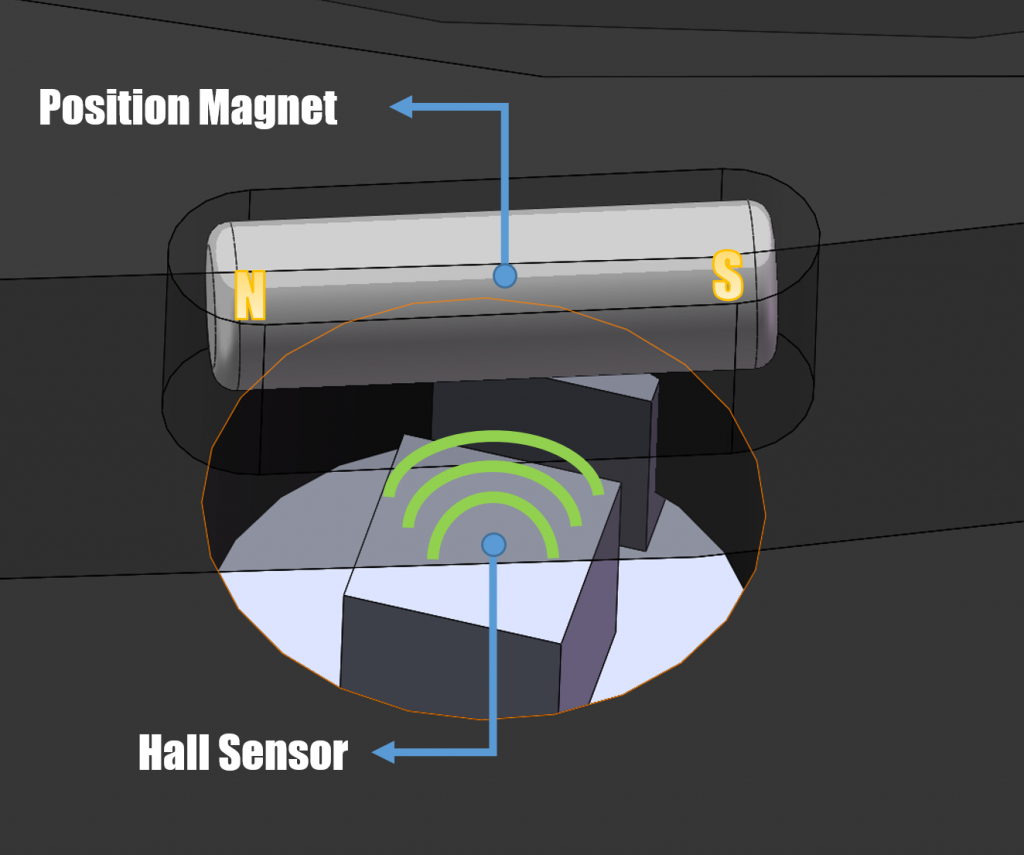

Hall Sensing Technology
Traditional infrared sensor scans the positioning hole to locate, and the positioning accuracy depends on the size of the positioning hole. The smaller the hole, the higher the accuracy. But the aperture must have a diameter of at least 1mm, otherwise it is difficult to locate and produce. However, if a magnet is used on the filter disc, the Hall sensor can detect the center of the magnet and is much more accurate than the IR sensor.

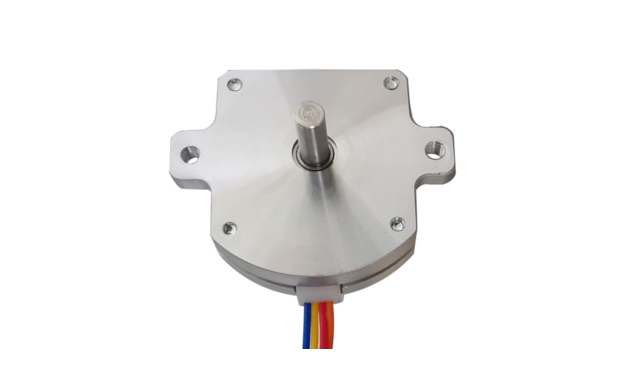

Hybrid Stepping Motor
This super thin hybrid stepping motor can provide very smooth rotation. There is almost no vibration when the filter position is being changed.

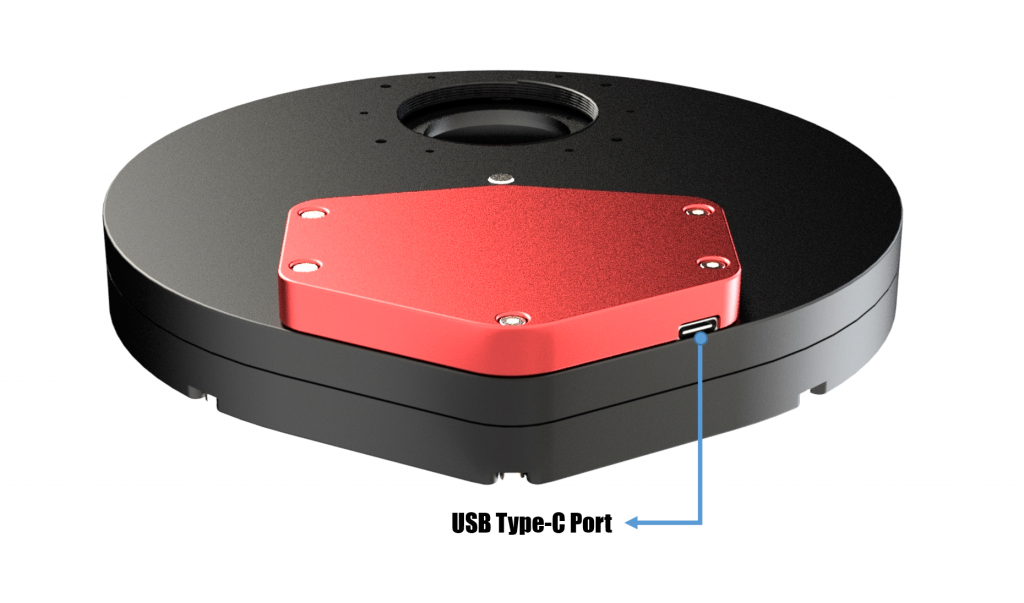

Type-C Data Port
The thickness of the motor housing can be reduced by using the USB Type-C interface.

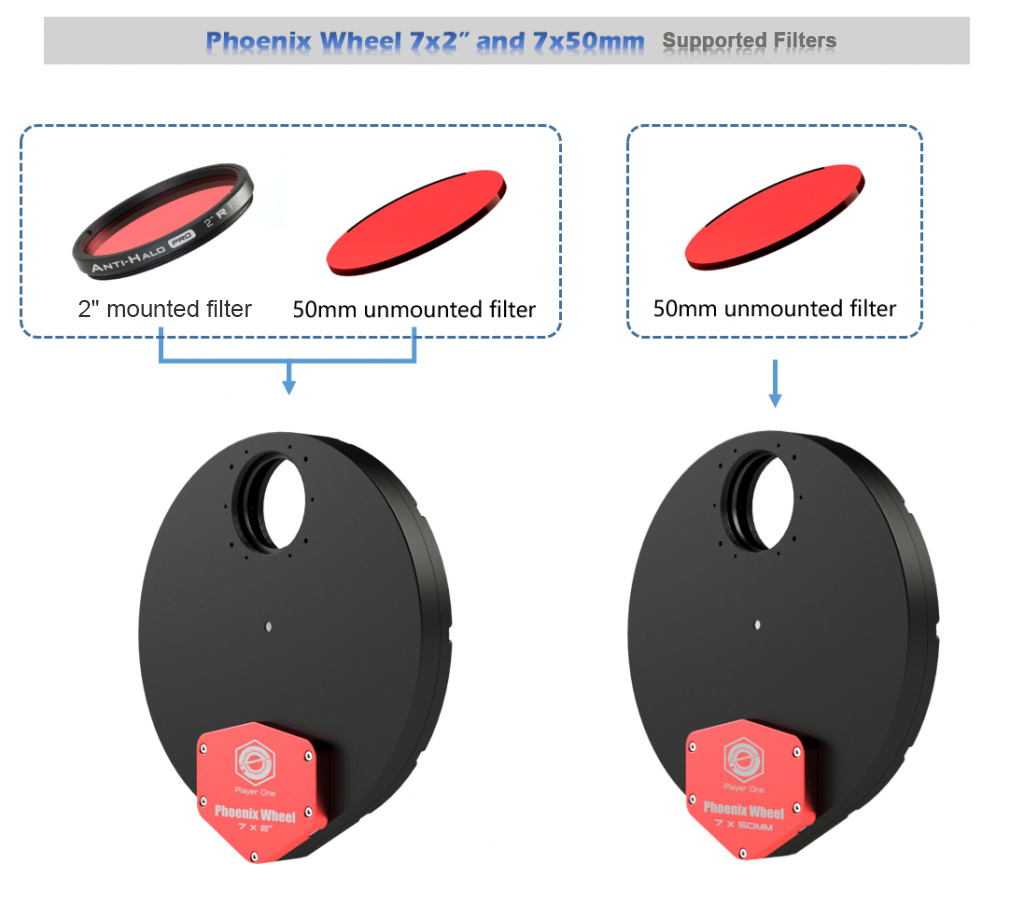

Supported Filters

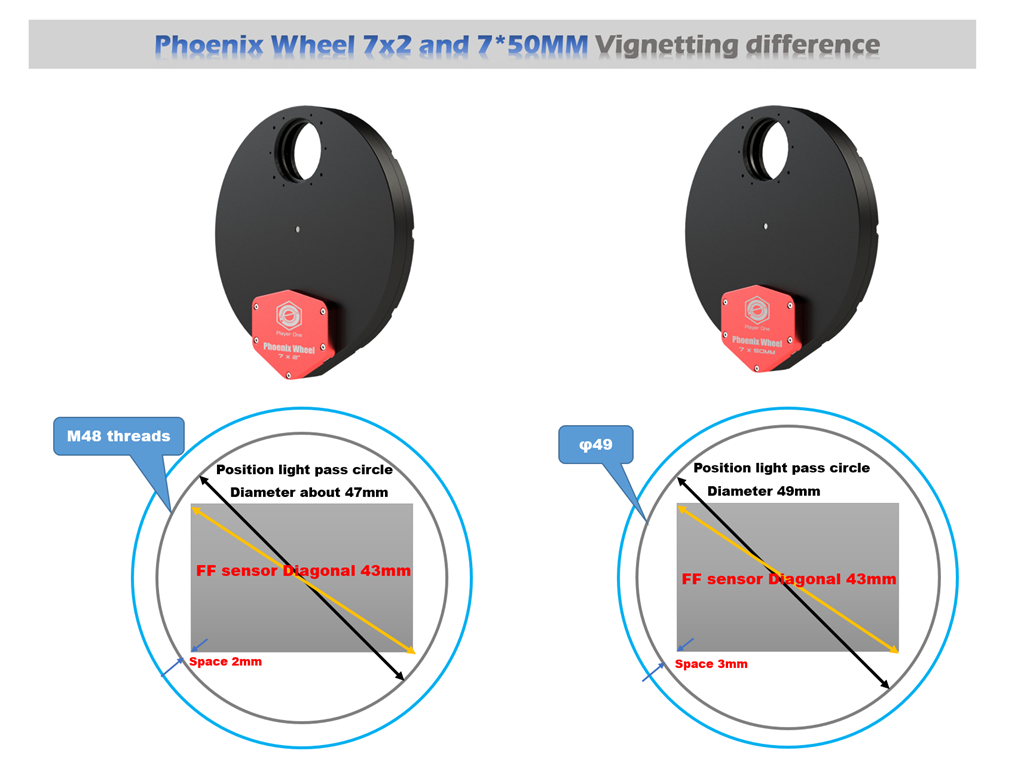

Filter positions of Phoenix Wheel 7x50mm support 50mm unmounted filter. Clear aperture is 49mm which is bigger than that of 7x2" wheel. It can give less vignetting when you are using full-frame cameras.

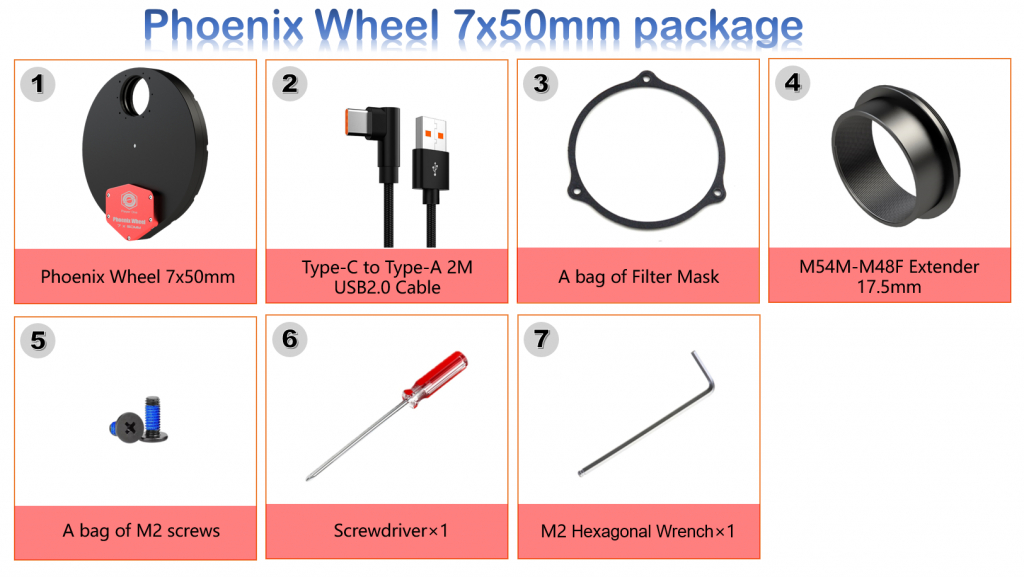

Packing List:
Packaging Details:
- G.W.: 1.35kg
