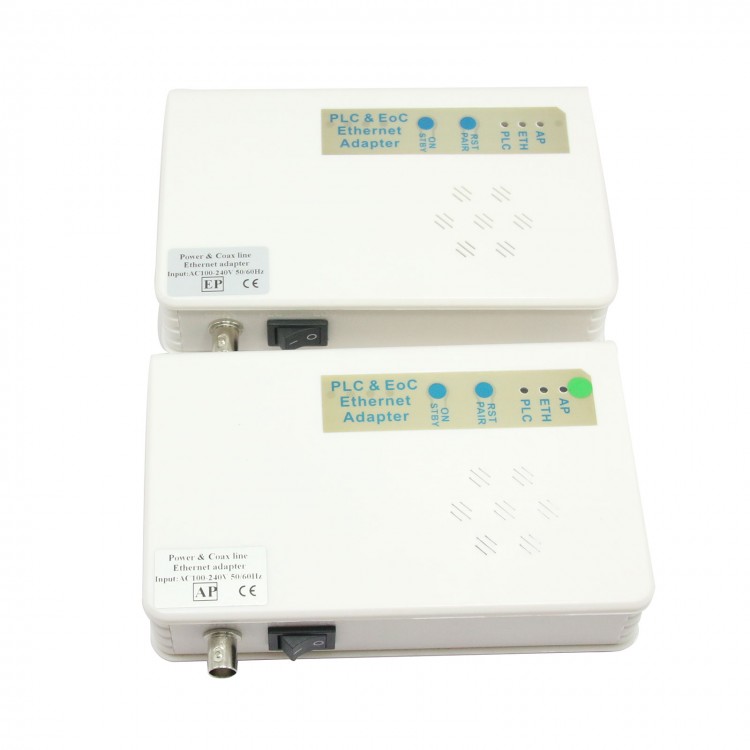

PLC & EoC/ PoE Transceiver Ethernet Adapter IP Transceiver

PLC & EoC/ PoE Transceiver Ethernet Adapter IP Transceiver

Introduction:
- The adapter is an use Power Line or Coax and Twisted Pair(only two copper line) for ethernet data communication adapter.
Support plug and play, plug in outlet or link transmission cable will easily extend ethernet length limit. Adapter in power line transmist distance up 500
meters max, in coax or twisted pair up to 2000 meters max
- The adapter support up 200Mbps date rate, support QoS. Built in filter have better anti-interference, can pass downlink power meter and use any one phase of three-phase
380V AC power for ethernet data communication
- The adapter support 128bit AES or 3DES encryption. Built-in WEB management. You can set Privacy Network group and adapter AP/ EP mode

Specification:
Interface
- RJ145 Jack     for ethernet connect IPCAM or Netswitch
- Power Jack     for AC power input and PLC data transceiver
- BNC female   Coax or Twisted- pair input for EOC data
- Switch              for PLC or EOC select
- Buttom             for AP/ EP and network group pair setup

Ethernet
- Standard         IEEE802.3.IEEE802.3u
- 10/100M         Auto-sense
- MDI/ MDX        Auto
- Distance         120m Max

PLC(Power Line communication) mode
- Wire type      Two wire power line AC100-240V
- Distance     500m 100Mbps Max; 200m 200Mbps max
- Series          28EOC max, for Ipcamera use recommand 15PLC

EoC(Ethernet Over Coax or Twisted-pair) mode
- Wire type         Coaxtal cable for Twisted-pair core>0.5mm
- Distance          1200m  200Mbps Max, 2000m 100Mbps Max
- Series               28EOC max, for Ipcamera use recommand 15PLC

Network Protocols
- 802.1D Ethernet Bridge; 802.1Q VLAN; Quality of Service(QoS)

Environment
- Temp      -10---65 degree celsius
- Humidity       10-90%

Dimension:
- 160*100*38mm
- 350g
